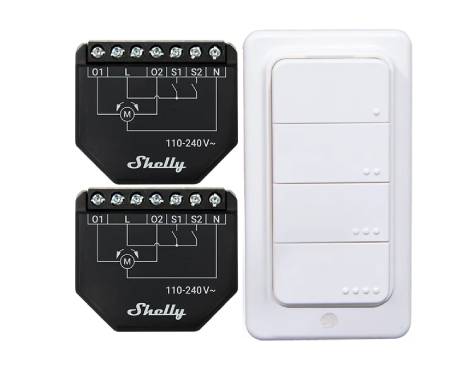

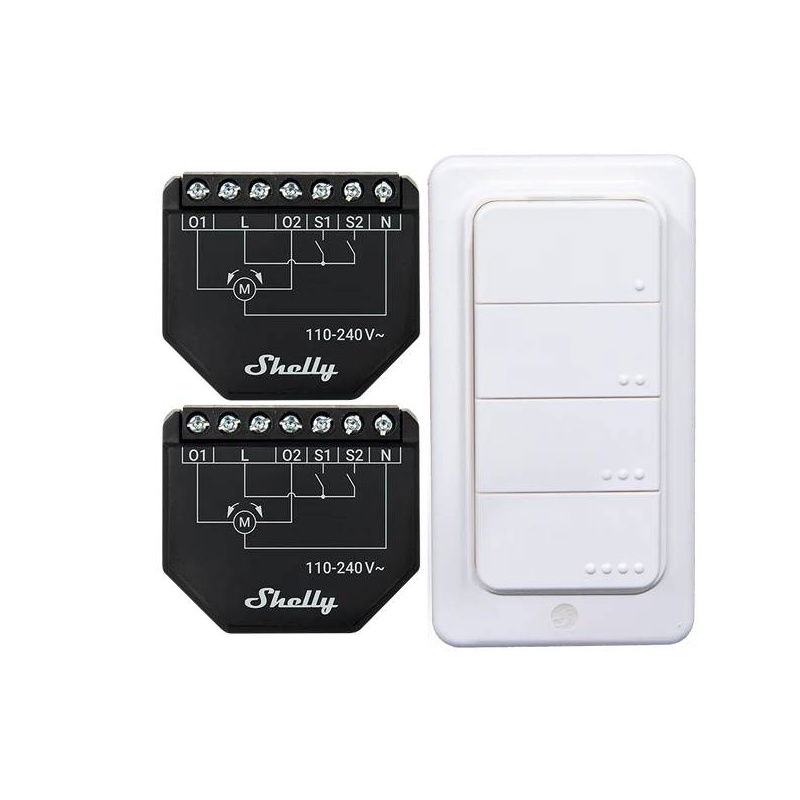

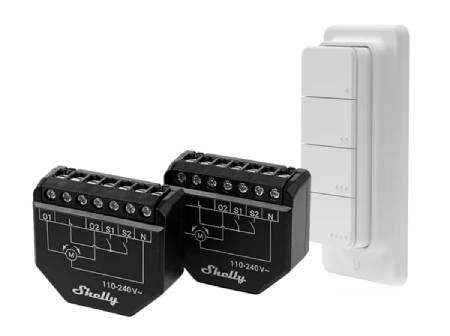

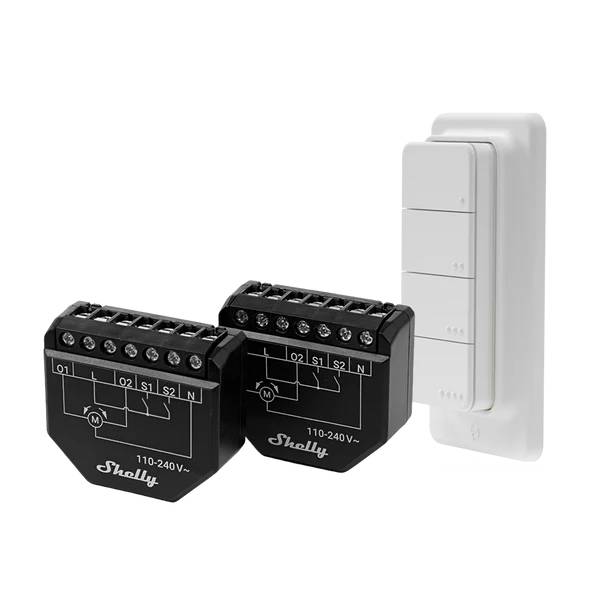

Product description: Shelly Shutter + BLU RC Button 4 - 2x roller blind controller + remote control for activating actions and scenes - WiFi / Bluetooth
The Shelly Shutter x2 + BLU RC Button 4 kit is designed to control two independent window coverings in a smart home system. Two Shelly Shutter modules allow for remote management of roller blinds, Venetian blinds, curtains, or awnings equipped with single-phase AC motors with limit switches. Each roller blind controller offers real-time energy consumption measurement , facilitating drive analysis and cost optimization. The kit includes the Shelly BLU RC Button 4 – a four-button Bluetooth Low Energy remote control that allows you to trigger scenes and actions without using your phone , providing convenient manual control of two roller blinds simultaneously. The devices operate via Wi-Fi , eliminating the need for additional control units.
Shelly Shutter + BLU RC Button 4 - 2x roller blinds controller + remote control for activating actions and scenes - WiFi / Bluetooth.

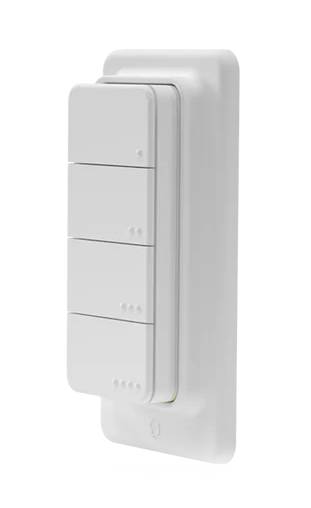

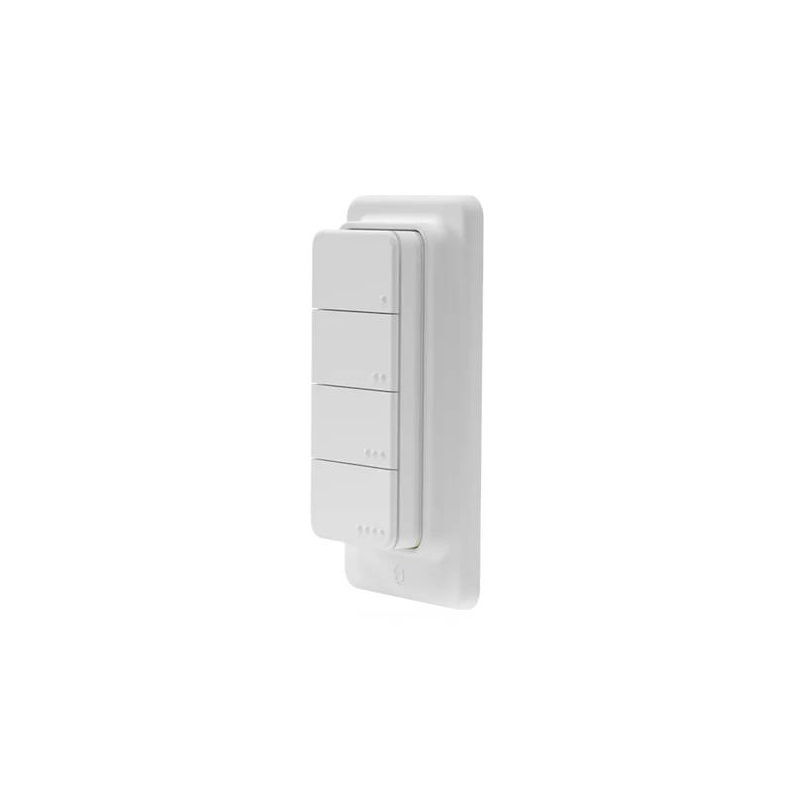

The compact size allows you to carry it in your pocket, and the magnetic holder allows you to mount the remote control on a wall or metal surfaces.
Main features of the Shelly Shutter x2 + BLU RC Button 4 set
- 2x WiFi roller shutter controller with energy measurement : monitoring the voltage and current of connected drives
- Supports voltages from 110 V to 240 V~ AC : direct connection to the home wiring
- Venetian blind mode : slat angle adjustment for precise light control
- WiFi 802.11 b/g/n + Bluetooth 4.2 : local and remote control and quick pairing
- BLU RC Button 4 remote control : 4 buttons and multi-click (single, double, triple, long) - up to 16 actions
- Magnetic holder : allows you to mount the remote control on walls or metal surfaces
- Long battery life : up to 2 years of operation on a replaceable CR2032 battery
- Beacon Mode : emits signals every 8 seconds for location-based automation
- AES encryption (CCM) : secure Bluetooth communication of the remote control
- Automations and integrations : 20 schedules, 20 webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, KNXnet/IP
- Web interface and OTA : browser-based configuration and software updates over the internet
Quick installation and advanced integration with the Shelly application
Shelly Shutter controllers are mounted in a standard junction box behind the roller shutter switch, allowing for modernization without any visible changes to the interior design. Each module works with single-phase AC motors equipped with mechanical or electronic limit switches, which must be properly set before connection. The devices operate locally via Wi-Fi or remotely via the cloud, and configuration is simplified via a built-in web interface. They work with the free Shelly Smart Control app, available for Android and iOS, which offers a clear interface for managing scenes and monitoring energy costs. The kit supports integration with Amazon Alexa, Google Smart Home, Samsung SmartThings, and MQTT- and KNXnet/IP-based automation systems.

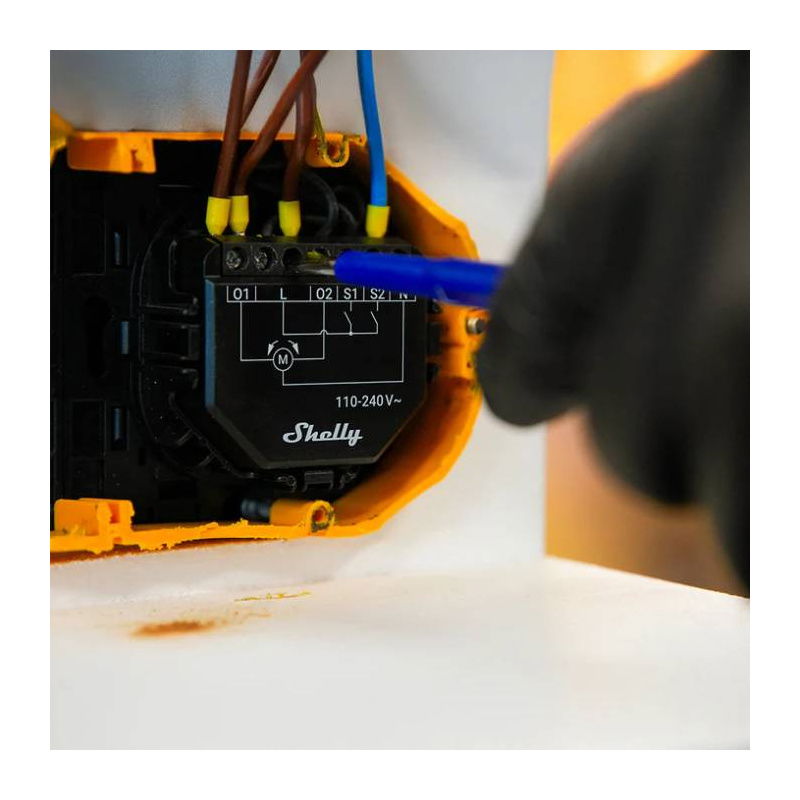

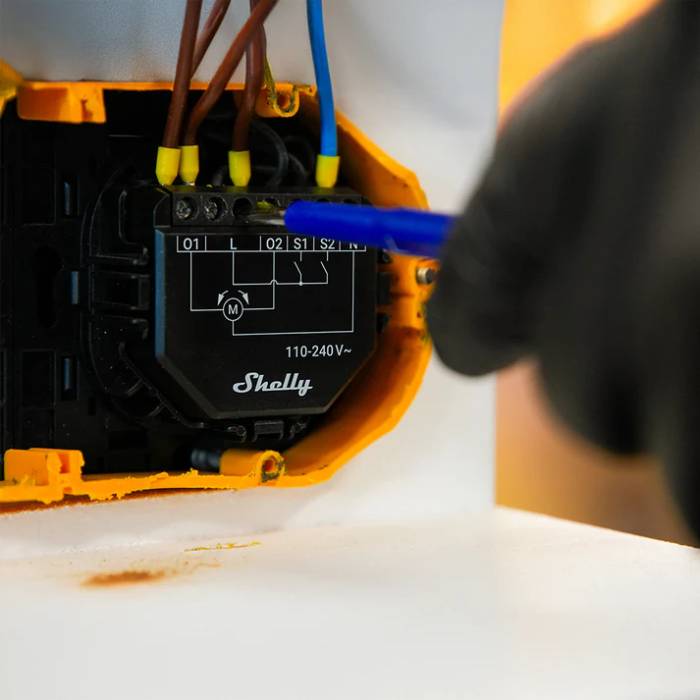

Shelly Shutter fits into the mounting box, eliminating the need for major changes to the installation.

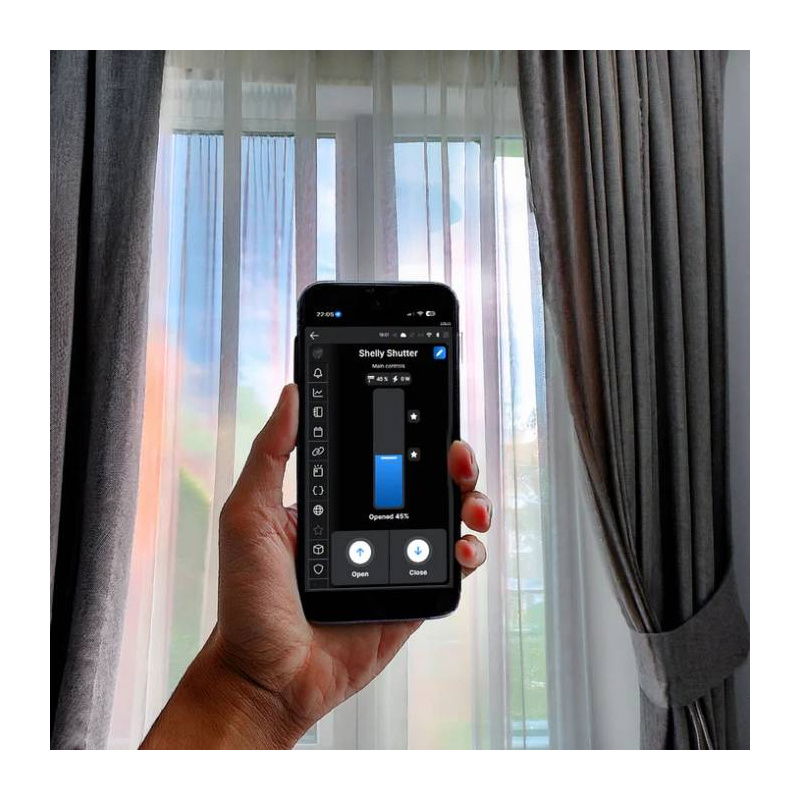

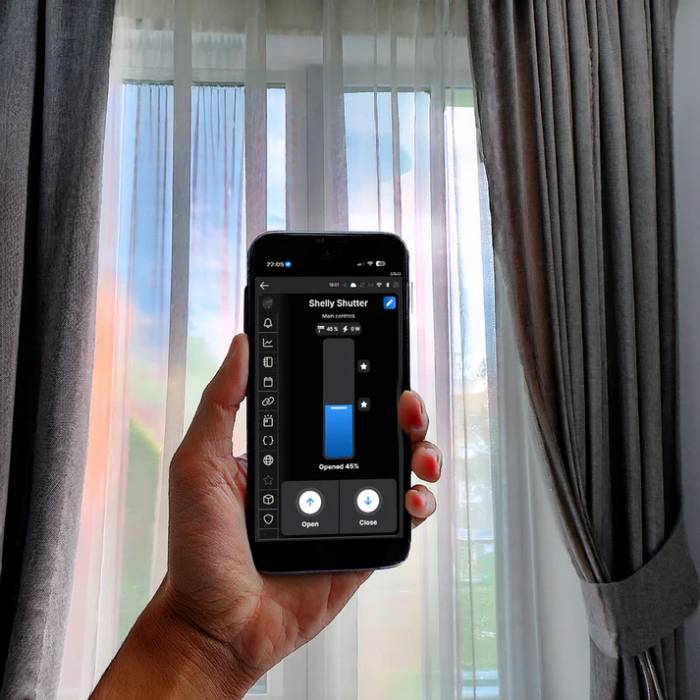

Works with the free Shelly Smart Control app to configure and manage devices.
Connecting to BLU RC Button 4 and controlling scenes
The Shelly BLU RC Button 4 communicates using Bluetooth Low Energy technology and allows you to control multiple devices with a single remote control . Four buttons support click combinations (single, double, triple, and long press), allowing you to configure up to 16 actions , such as opening, closing, stopping blinds, or triggering scenes. Each Shelly Shutter controller can act as a BLE gateway , receiving signals from the remote control and forwarding them to local or cloud-based automations. In practice, a single button can control two blinds simultaneously or assign separate actions to each blind.
Shelly Shutter Technical Specifications
- Power supply: 110 V to 240 V~ 50/60 Hz
- Power consumption: < 1.4 W
- Maximum switching voltage: 240 V~
- Maximum AC switching current: 4 A
- Supported motor type: single-phase AC motors
- Required limit switches: electronic or mechanical
- Sensors: AC voltmeter, AC ammeter, temperature sensor
- WiFi: 802.11 b/g/n (2412 to 2472 MHz), power < 20 dBm
- Bluetooth: 4.2 (2402 to 2480 MHz), power < 4 dBm
- WiFi range: up to 30m indoors / up to 50m outdoors
- Bluetooth range: up to 10 m indoors / up to 30 m outdoors
- CPU: ESP-Shelly-C38F
- Flash memory: 8 MB
- Schedules: 20
- Webhooks: 20 (up to 5 URLs per webhook)
- Operating temperature: -20°C to 40°C
- Dimensions: 37 x 42 x 16 mm
- Weight: 30 g
Shelly BLU RC Button 4 supports up to 16 pre-set actions or scenes via click combinations.
Technical specifications of Shelly BLU RC Button 4
- Connectivity: Bluetooth Low Energy 4.2
- RF Band: 2400 to 2483.5 MHz
- RF Power: <4 dBm
- Range: up to 10 m indoors / up to 30 m outdoors
- Encryption: AES (CCM)
- Number of buttons: 4
- Multi-click support: up to 16 actions
- Power supply: 1x CR2032 3V battery
- Estimated battery life: up to 2 years
- Operating temperature: -20°C to 40°C
- Dimensions: 65 x 30 x 13 mm
- Weight: 21 g
Contents of the set
- 2x Shelly Shutter roller shutter controller
- 1x Shelly BLU RC Button 4 Bluetooth Remote Control
- 1x Set of mounting hardware
- 1x Instruction Manual
