Product description: FNIRSI DWS-200 F - 200 W soldering station
The FNIRSI DWS-200 F is a soldering station designed for precision electronics work. It offers a maximum power of 200W , which translates into rapid temperature attainment – heating in approximately 1 second and melting in approximately 3 seconds . A temperature control range of 100°C to 450°C (212°F to 842°F) allows for optimal adjustments to soldering THT, SMD, and larger ground plane components. A built-in intelligent PID stabilization system maintains a constant tip temperature, minimizing fluctuations during operation. The 2.8" color TFT display allows for real-time temperature monitoring in three modes: value, graph, or mixed mode. The station also features three pre-programmed temperature settings , significantly accelerating daily work. Supporting both the F210 and F245 irons, the device offers wide compatibility, while the inductive standby mode automatically puts the iron into sleep mode when placed on the stand, extending the life of the tip and reducing power consumption.

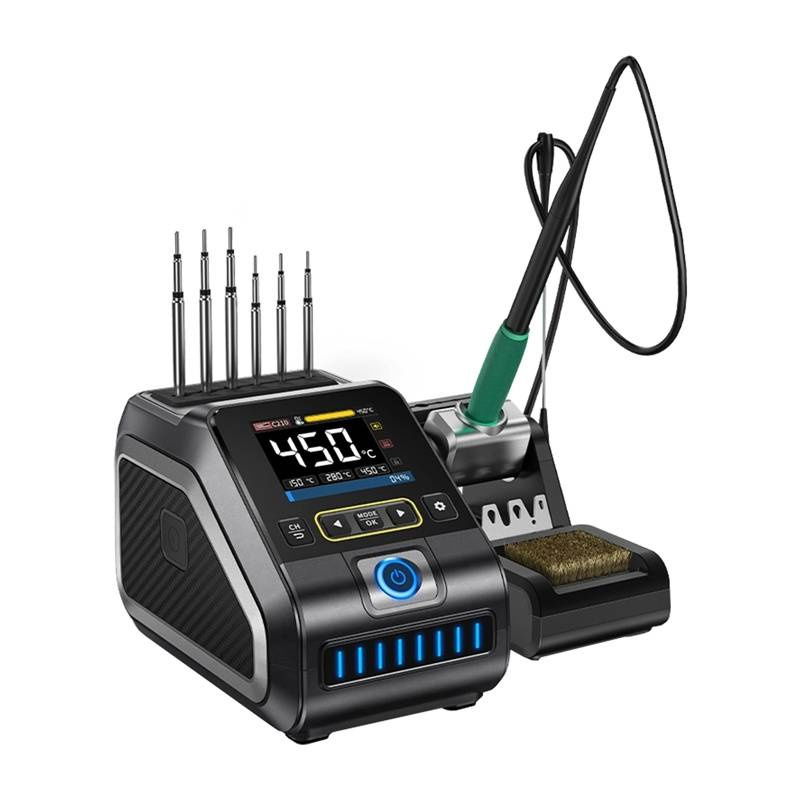

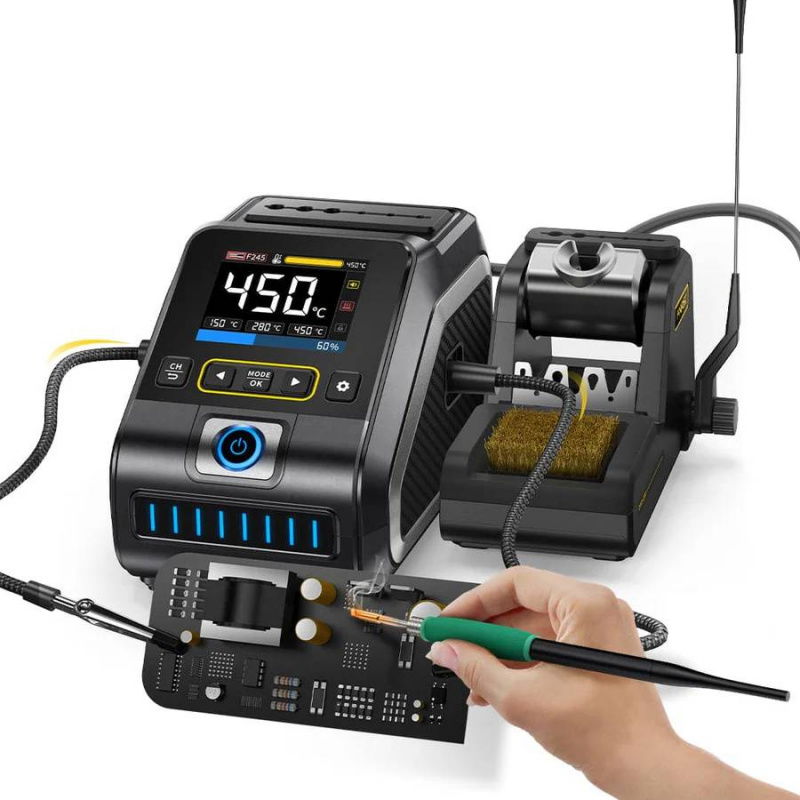

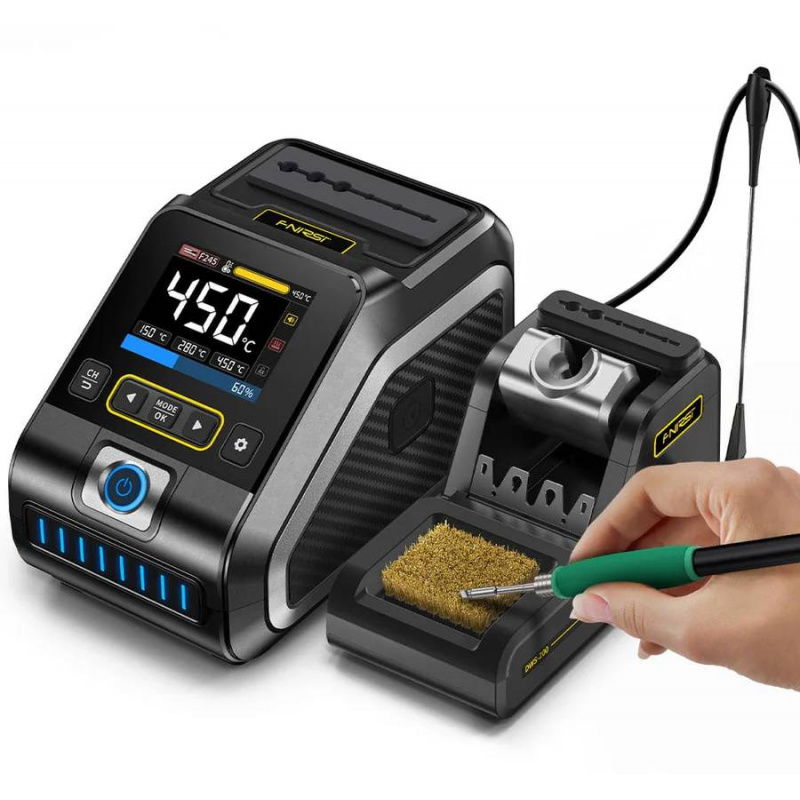

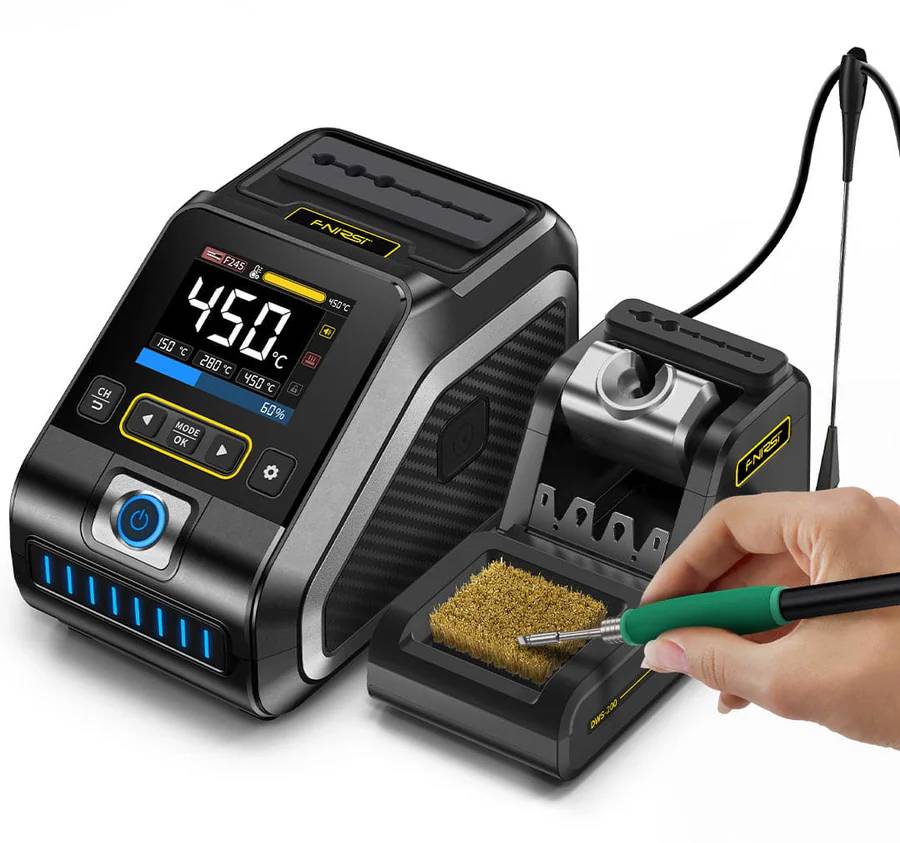

FNIRSI DWS-200 F - 200 W soldering station.
The station allows you to control the temperature in the range from 100°C to 450°C.
Main features of the FNIRSI DWS-200 F soldering station
- 200 W power : high peak power of 200 W ensures fast heating and stable operation even with large soldering areas
- Temperature range : adjustable from 100°C to 450°C with the option of switching between °C and °F units
- PID control : intelligent temperature stabilization to minimize fluctuations during soldering
- Fast heating : reaches operating temperature in about 1 second, melts tin in about 3 seconds

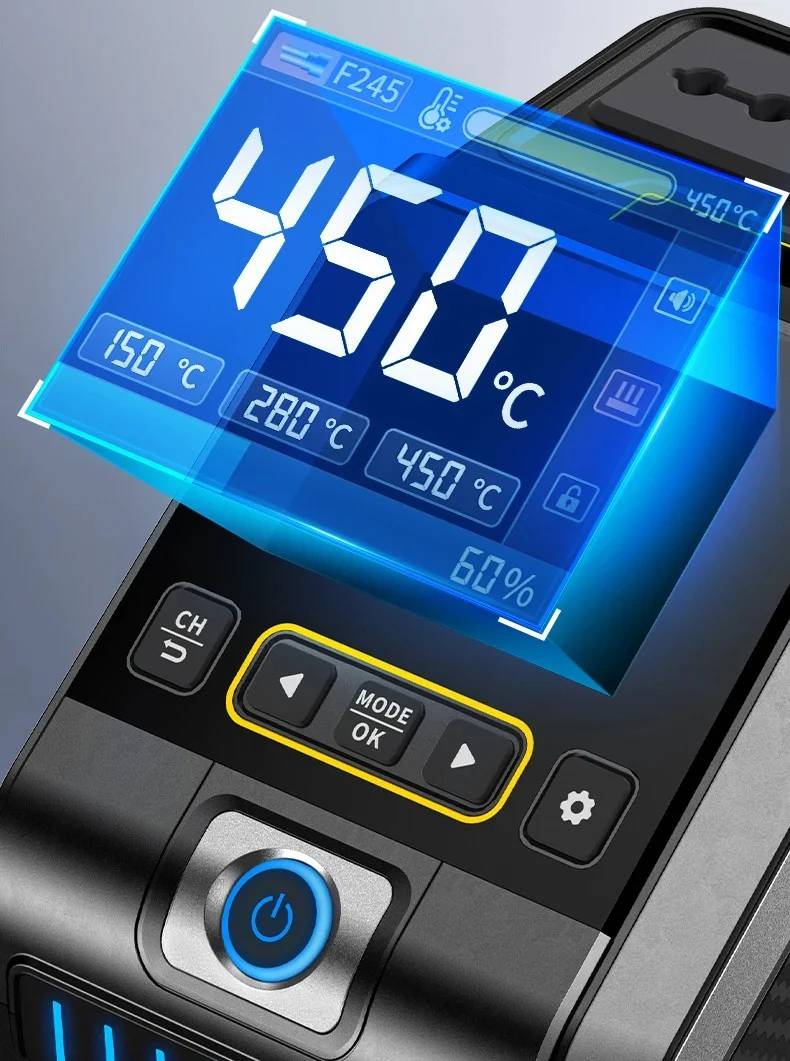

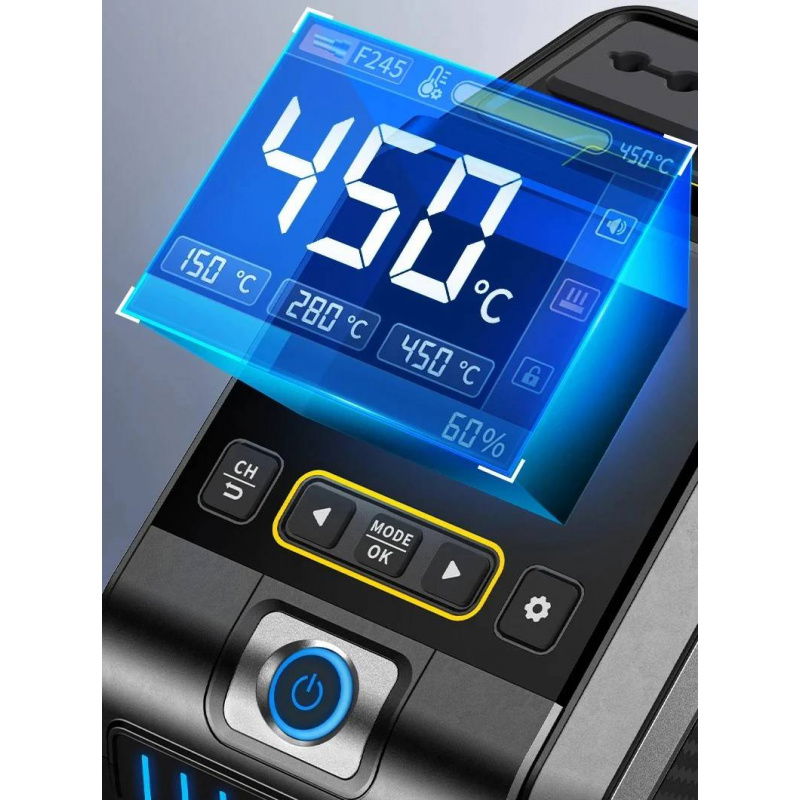

- 2.8-inch TFT display : easy-to-read color screen with three data presentation modes

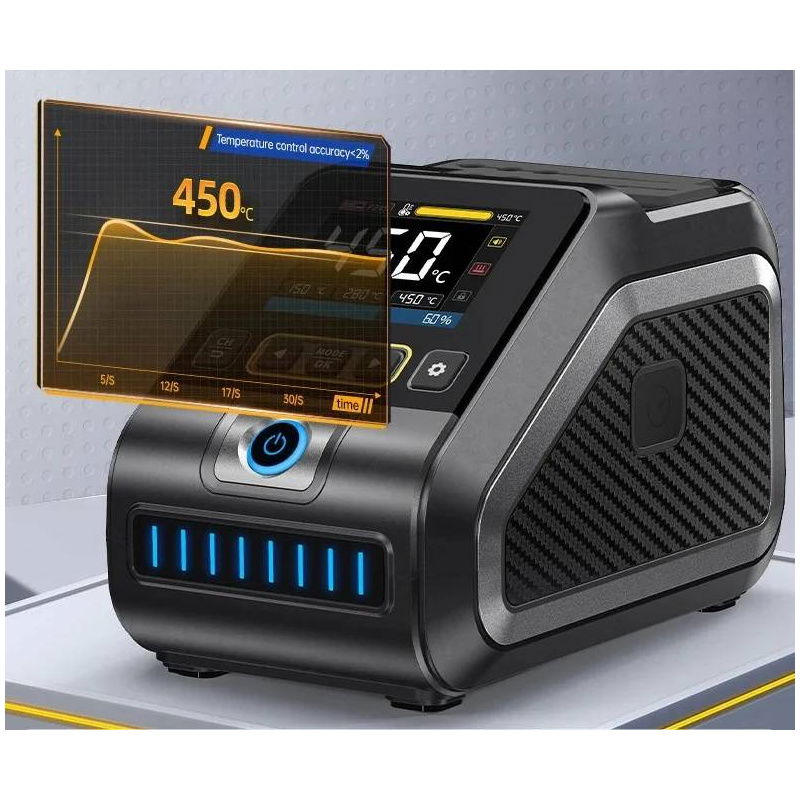

- Dynamic curve mode : real-time temperature trend preview

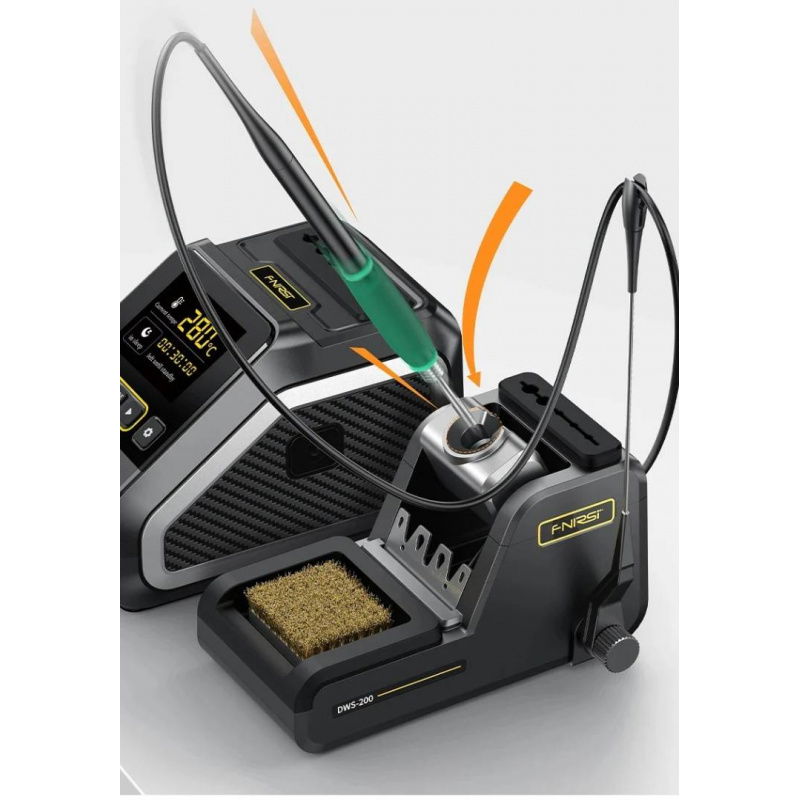

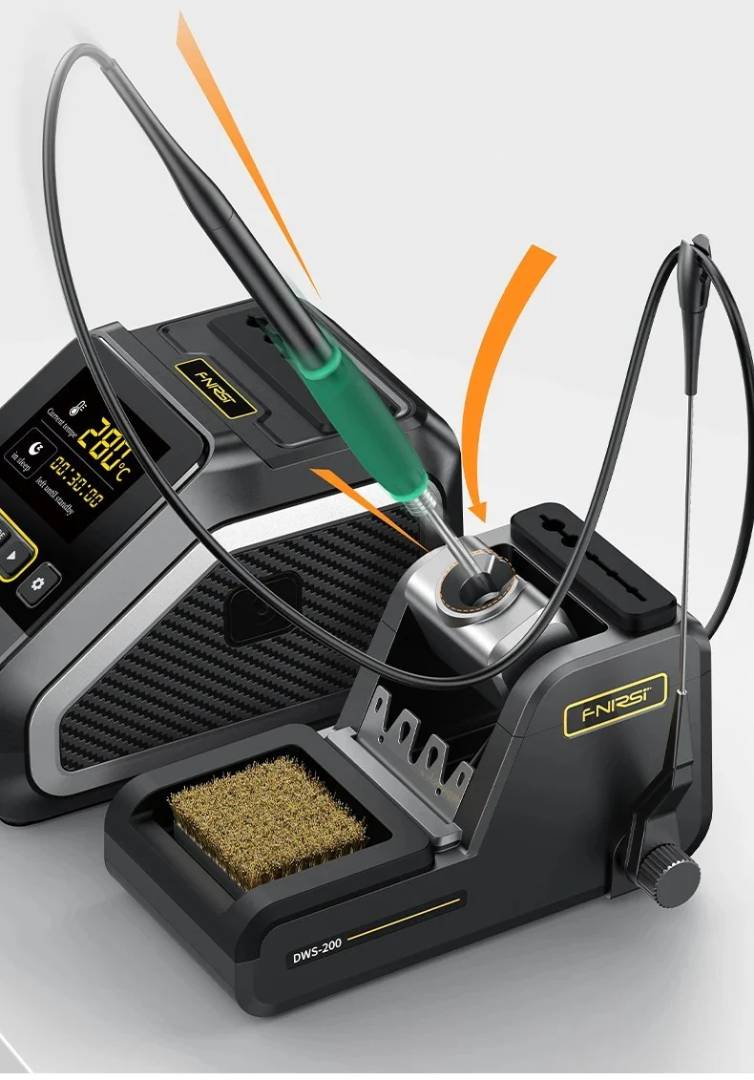

- Inductive sleep mode : automatic sleep mode when the portafilter is put down
- Protection : ESD antistatic protection and short circuit protection
- Wide compatibility : supports F210 and F245 stocks
- Power supply from 100 V to 240 V AC : stable operation in various network conditions
Technical specifications of the soldering station
- Model: DWS-200 F
- Peak power: 200 W
- Temperature range: 100°C to 450°C / 212°F to 842°F
- Display: 2.8'' TFT
- Temperature control: PID system
- Power input: 100V to 240V AC
- Input fuse: 3 A
- Supported stocks: F210, F245
- Dimensions: 156 x 96 x 103 mm
- Weight: 457 g (station only)
Contents of the set
- DWS-200 F soldering station
- Soldering iron stand
- F245 stock
- F210 stock
- Soldering tips for F245: B, KU, K, C2, I, JS
- Soldering tips for F210: K, I, IS
- Power cord
- Connection cable
The iron stand fits the F210, F245 handles and the HS-02 soldering iron.
