Product description: NeoKey Socket Breakout - module with a slot for a mechanical switch - NeoPixel - Adafruit 5756

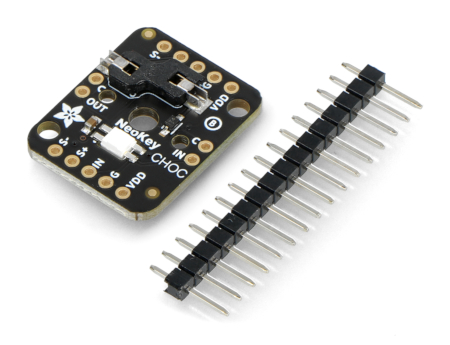

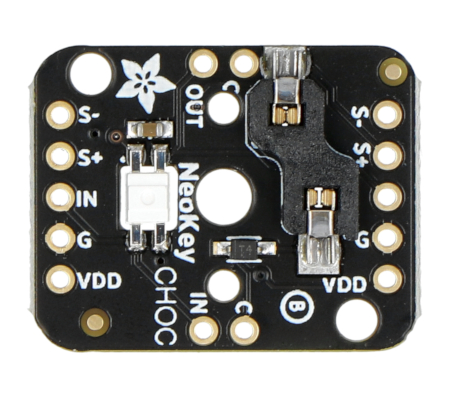

The NeoKey Socket Breakout is a small PCB designed for use with compatible Kailh CHOC switches . Allows you to easily connect the switch to a breadboard or universal board . There is a 1N4148 pulse diode on the board, which prevents the ghosting effect of keys in the matrices. The board is also equipped with a reversely mounted NeoPixel diode that lights up in the switch. The board has two rows of 5-pin sets that require soldering to connect them to the breadboard. The kit does not include a CHOC switch and must be purchased separately. The device is not compatible with Cherry MX buttons.
Check out the offers of Kailh mechanical switches in various colors available on our website!
NeoKey Socket Breakout - module with a slot for a mechanical switch - NeoPixel - Adafruit 5756.
The device allows you to connect CHOC switches.
Special features of NeoKey Socket Breakout
- Allows easy connection of Kailh CHOC switches
- It allows you to create switch matrices without key ghosting thanks to the 1N4148 pulse diode
- Equipped with a reversely mounted NeoPixel to create lighting effects
- Offers flexible connection options - power, ground, input/output pins for the NeoPixel diode, and anode and cathode for the switch
- It has two rows of 5-pin assemblies that require soldering when used with a breadboard
- Not compatible with Cherry MX switches
Derivations
- VDD (+) - power pin for NeoPixel, voltage range from 3 V to 5 V DC
- GND (- ) - system ground for NeoPixel
- INT (I) and OUT (O) - input and output to/from NeoPixel
- Anode (A) - "positive" side of the switch + diode connection
- Cathode (C) - the "negative" side of the switch + diode connection
Also check out other Adafruit products in our offer.
Technical specifications of the board
- Producer: Adafruit
- Model: NeoKey Socket Breakout
- Product code: 5756
- Number of supported buttons: 1
- Switch Socket Type: Kailh CHOC
- Built-in pulse diode: 1N4148
- LED: NeoPixel
- Connectors: two rows of pins, 5 pins per row
- Pins: VDD (+), GND (-), In (I), Out (O), Switch Anode (A), Switch Cathode (C)
- Assembly requirements: soldering the pins to connect to the breadboard
- Additional information: not compatible with Cherry MX switches
- Dimensions: 24 x 19 x 3.6 mm
- Weight: 1.5 g
Attention! The kit does not include the Kailh CHOC mechanical switch and must be purchased separately.
