Product description: 1,14'' 135 x 240 px LCD display - Unit extension module for M5Stack developer modules
LCD display in the form of aUnit type expansionmodule manufactured by the company famous for itssandwich modules- M5Stack. The diagonal of the display is1.14 inchesand its resolution is equal to135 x 240 px. The dimensions of a single pixel are 0.1101 x 0.17 mm. The display has a built-in ESP32 andST7789V2control chip. The module presents values in RGB666 gamut, which allows to obtain a really interesting effect consisting of up to 262,144 colors. It usesI2Cbus to communicate with M5Stack development module (which is connected via included cable). In rear part of the display casing there is also amagnetic overlay, which allows attaching it to any metal surface - thanks to adsorption overlap.

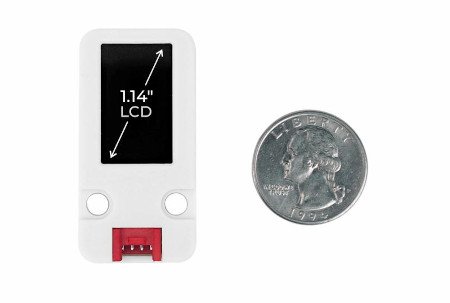

Unit type expansion module in the form of LCD display from M5Stack.

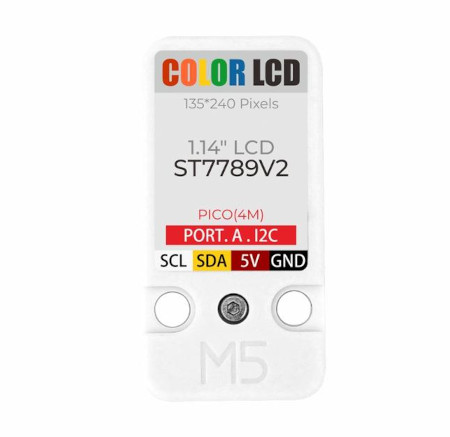

Built-in magnets for non-invasive mounting.
Technical specification of the display from M5Stack
- Compatible withM5Stackdevelopment modules:M5Stack Core,M5Atom,M5Stick
- Type: LCD display
- Built-in control chip: ST7789V2
- Display colors: RGB666 gamut - 262,144 colors
- Display resolution: 135 x 240 px
- Screen diagonal: 1,14''
- Viewing angle: full
- Current consumption: 45.7 mA
- Communication interface: I2C bus
- Interface address: 0x3E
- Housing material: plastic (PC)
- Built-in magnets enabling non-invasive assembly
- Pinout designations:
- SCL - I2C bus clock line
- SDA - I2C bus data line
- 5V - power supply pin
- GND - system ground
- Pixel dimensions: 0.1101 x 0.1038 mm
- Module dimensions: 48 x 24 x 8 mm
- Weight: 8.5 g
Contents of the kit
- 1.14'' 135 x 240 px LCD display - expansion module Unit
- Dedicated 4-pin connection cable
In our offer you will also find otherUnit type extensionsfor M5Stack series developer modules. We invite you to familiarize with available range.

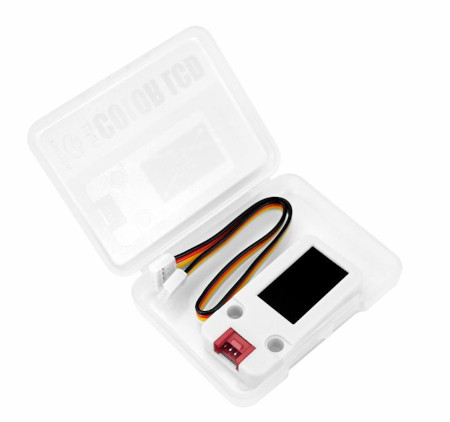

The kit is placed in a small plastic container, which makes easier to transport and store the module and cable.
