Product description: Universal meter UNI-T UT18C
The multimeterallows to measureDC and ACvoltageup to 690 V, frequency range, phase sequence in three-phase power supply, residual current circuit breaker test, circuit continuity test and voltage detection without batteries. The device has a function of recording the last measurement result (HOLD function). The meter is powered by two1.5 VAAA batteries (included). Digital indicator informs about their level of discharge. The device also has a function to illuminate the measurement site, a mute function, an overvoltage indicator and a device test. After the measurement is completed, a protective cap should be placed on the probe and the device should be placed in a cover.
|
Attention! Do not put the device in your pocket! |

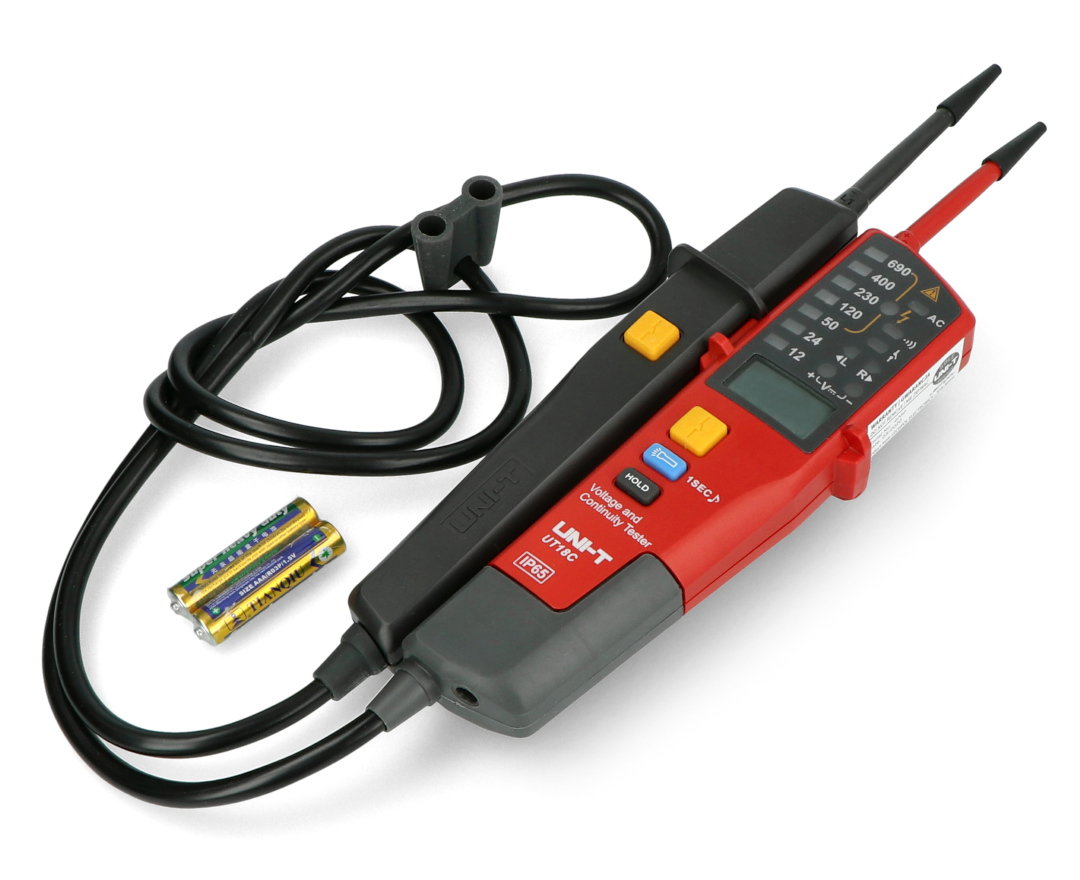

Universal meter UNI-T UT18C.
Specifications of the UNI-T UT18C Universal Meter
| Parameter | Scope |
|---|---|
| AC/DC voltage range (LED indicators) | 12 V to 690 V |
| LED voltage indicators |
|
| Frequency range | From 40 Hz to 400 Hz |
| Automatic change of measuring ranges | Yes |
| Possibility to switch off the buzzer | Yes |
| Automatic polarity detection |
Yes |
| Response time |
|
| Measurement time | 30 s |
| Measurement interval time | 240 s |
| RCD test (residual current circuit breaker test) |
|
| Overvoltage protection | 750 V AC/DC |
| Circuit continuity test |
|
| Phase sequence test (three-phase supply) |
|
| Voltage detection (without batteries) | Voltage range: 50 V to 690 V AC, 120 V to 690 V DC |
| Operating temperature | From -15°C to 45°C |
| Storage temperature | From -20°C to 60°C |
| Air humidity | ≤ 85% RH |
| Standards to be met |
|
|
Power supply |
2x1.5 V AAA battery LR03 |
| Dimensions | 272 x 85 x 31 mm |
| Mass | 272 g (including batteries) |
Set contents
- UNI-T UT18C meter
- 2x AAA battery
