Product description: BleBox actionBoxS - multifunctional WiFi action trigger - Android / iOS application
BleBox actionBoxS is a miniaturized version of the BleBox actionBox module, which is equipped with one short-circuited input . The controller, after receiving a signal from another sensor, e.g. motion, flood or smoke, allows you to send a notification to the user's phone or turn on another WiFi controller , e.g. switchBox , which will turn on the light or fan. ActionBoxS can also be used as a central button that, for example, will cover all roller shutters in the apartment. The controller supports monostable (bell) or traditional bistable buttons. The user gets the possibility to configure up to 30 control actions and notifications . The small dimensions of the device, 39 x 25 x 24 mm , allow it to be used as an "implant" in existing devices, eg a motion sensor.

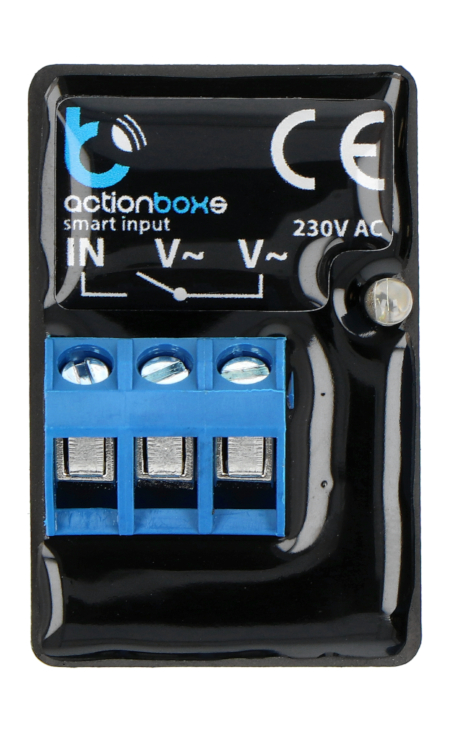

Action trigger module - BleBox actionBoxS.

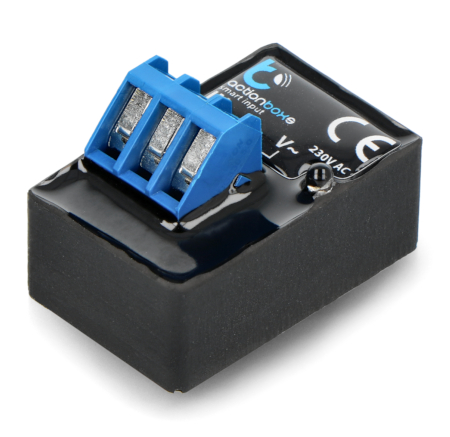

BleBox actionBoxS - a module with miniature dimensions, equipped with screw connections.Main features of BleBox actionBoxS
- Wireless control of other BleBox controllers via WiFi network
- Up to 30 actions and notifications can be configured
- Powered with 230 V, it allows you to use any signal as an action (button, PIR motion sensor)
- The miniature design allows you to hide the device, e.g. in a small box or in the housing of another device, e.g. a motion sensor
- The ability to control with a "virtual button" in the wBox application for Android and iOS
Connection diagram of BleBox actionBoxS
Before installing the controller, disconnect the voltage in the powered circuit to which the actionBoxS will be connected. The controller should be installed in a place protected against external conditions.
The module has terminals in the form of screw connections , to which you should connect the wires with a screwdriver.
- IN - connectors for connecting a button or other trigger.
- V ~ - supply voltage, phase or neutral wire.
- V ~ - supply voltage, phase or neutral wire.
Example of combining actionBoxS with a PIR motion sensor.| BleBox actionBoxS specification | |
|---|---|
| Supply voltage | 230 V AC |
| Energy consumption | up to 1 W. |
| Number of inputs | 1 |
| Input type | logical, push-button, short-circuited to N, configurable |
| Supported buttons | monostable (bell), bistable (traditional, cross) - without backlight |
| Input voltage | 230 V AC |
| Communication | μWiFi, compatible with WiFi, 802.11g |
| Transmission frequency | 2.4 GHz |
| Encryption | WPA2-PSK, and encryption authentication (AEAD) |
| Installation | in a box, in the wall, inside the casing of another device |
| Case | made of polyurethane composition without halogen, self-extinguishing thermal class B (130 ° C) |
| API | Open |
| Level of security | IP20 |
| Working temperature | -10 ° C to 40 ° C |
| Control | Android, Apple, computers and other devices supporting HTML5 |
| Dimensions | 39 x 25 x 24 mm |
