Product description: Gravity - Screw Shield V2 - overlay with screw connectors for Arduino - DFRobot DFR0171
Gravity - Screw Shield V2 is a Shield overlay for Arduino that acts as a lead expander. It extends the Arduino with screw connectors, so you can attach wires to them for a much stronger and secure connection. Screw Shield V2 also expands the power pins for signal pins. This allows you to connect sensors, servos and other peripherals directly to the overlay.
Product is compatible with Arduino!
In our shop you can also buy Arduino board. Check out available models in Arduino main module category.

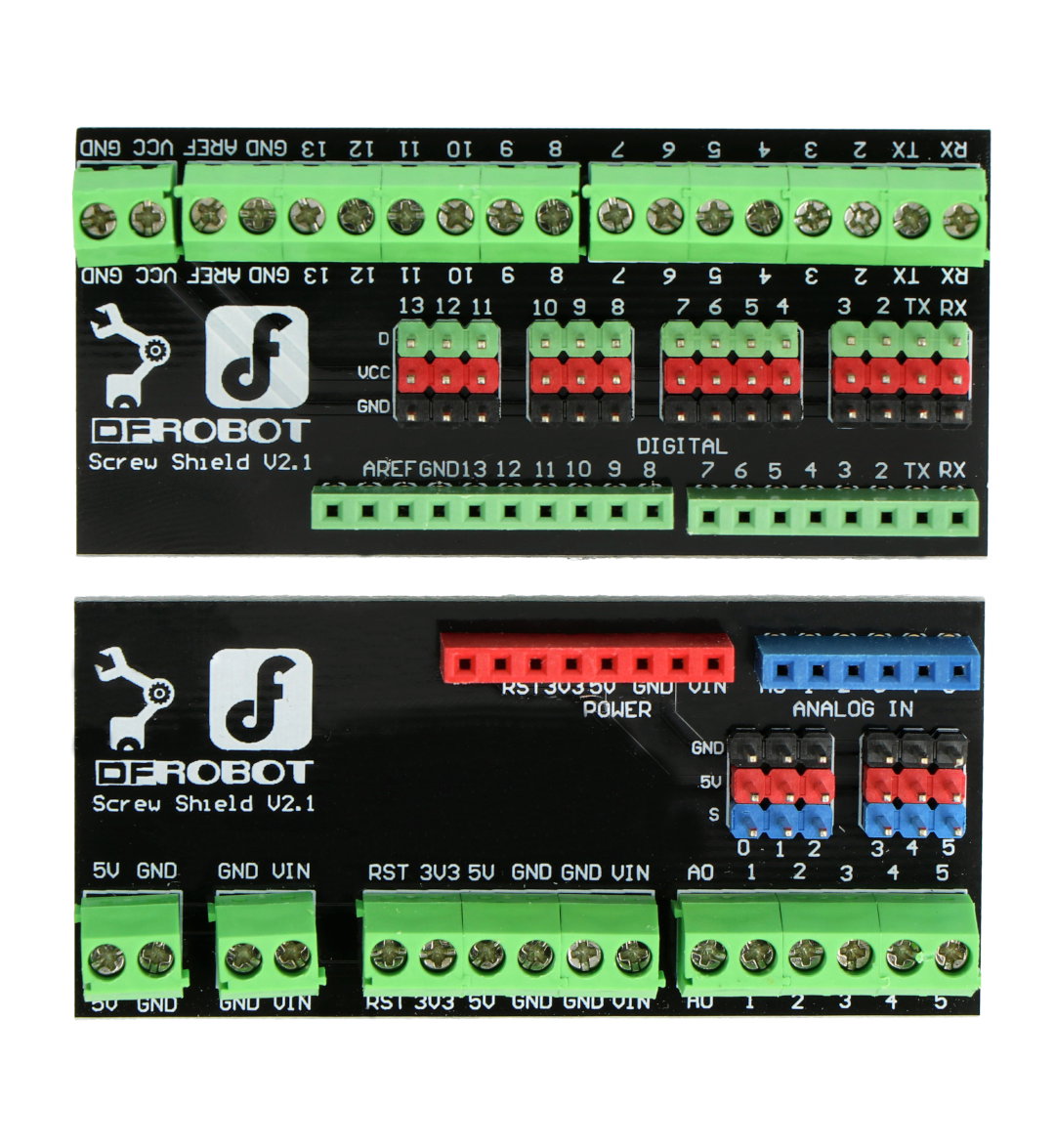

Gravity - Screw Shield V2 - overlay with screw connectors for Arduino.

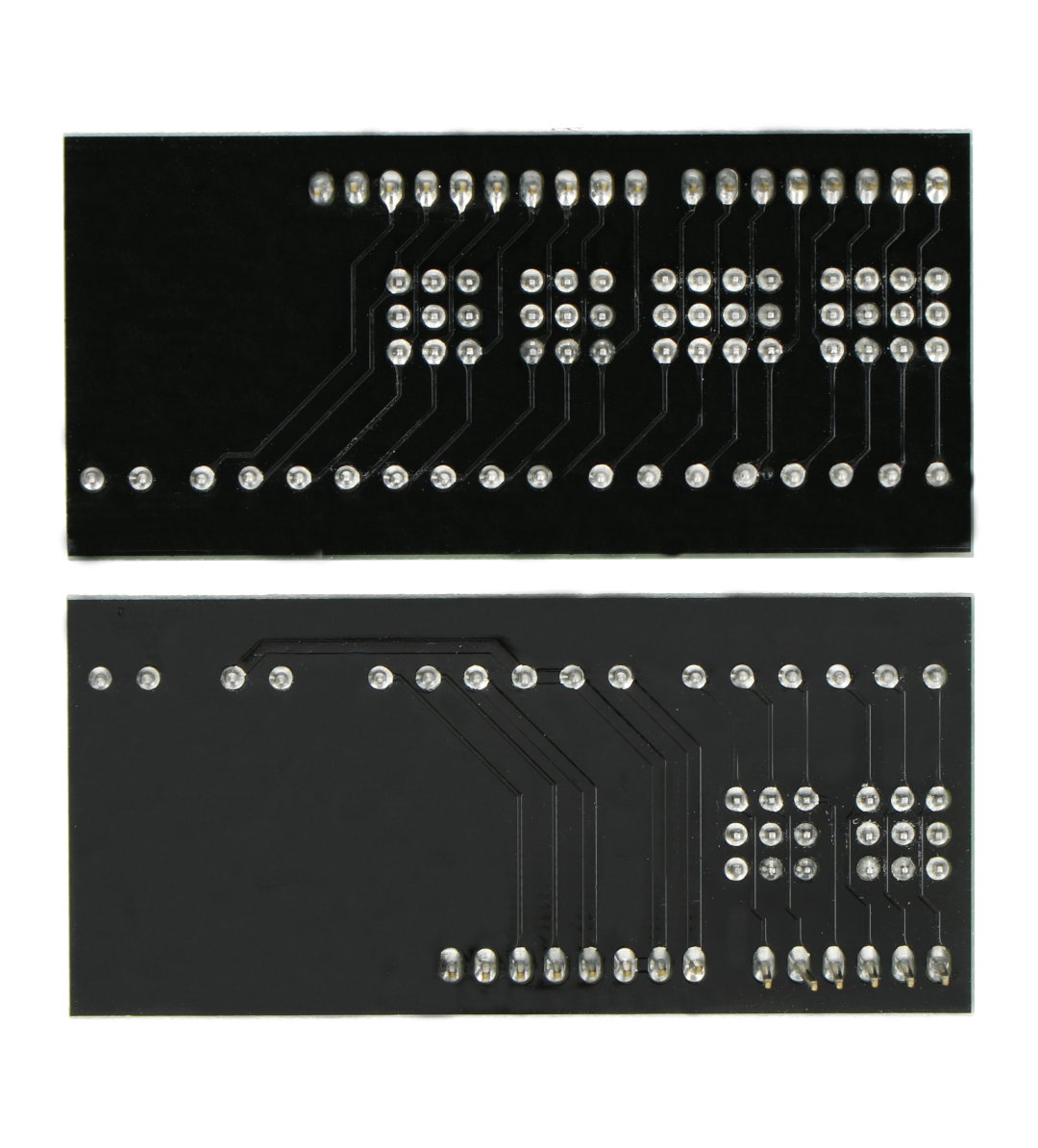

Gravity - Screw Shield V2 - overlay with screw connectors for Arduino - rear view.
Technical specification of Screw Shield V2
- Application: Arduino frontend / shield
- Type: extension with screw connectors
- Series: Gravity
- Screw terminals input and output
- 3-pin male connectors for easy sensor / servo connection
- Colored pin headers for easy pin identification:
- green pins: for digital inputs / outputs
- blue pins: for analogue inputs / outputs
- red pins: for voltage
- Two-piece
- Dimensions of the cap: 32 x 65 mm
