Product description: Gravity - IO Sensor Shield V2.4 - I/O Sensor Shield for Arduino Mega - DFRobot DFR0165
Gravity - IO Sensor Shield is an I/O extension for Arduino. It has 3 Xbee slots, 1 microSD slot, headers and leads for connecting extensions. It also includes a DIP prototyping area that makes it easy to add more modules, peripherals or electronic components. It also has color-coded leads for easy identification: green for digital I/O, blue for analog I/O, and red for voltage connection.
Product is compatible with Arduino!
On manufacturer website you can find user guide, which makes it easy to get started with the frontend. You'll find there pinouts description and useful downloads.

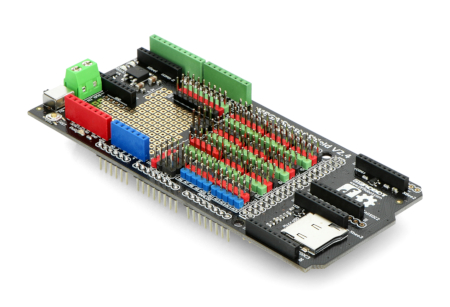

Gravity - IO Sensor Shield - I/O extension from DFRobot.

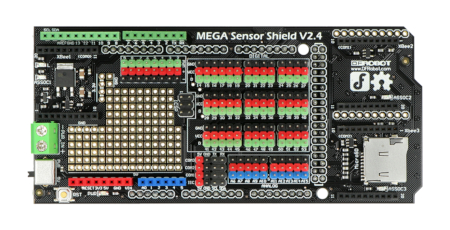

Gravity - IO Sensor Shield - top view.
Technical specification of the IO Sensor Shield
- Type: lead expander
- Version: 2.4
- Application: expansion board for Arduino / Arduino Mega / DFRobot Mega
- Expanded TTL connection pins for four serial ports
- Additional prototyping area
- 3x Xbee sockets
- 1x microSD memory card slot
- Built-in power on/off switch
- Colored pin headers for easy pin identification:
- green pins: for digital inputs / outputs
- blue pins: for analogue inputs / outputs
- red pins: for voltage
- Dimensions of the cap: 125 x 57 mm
