Product Description: Arduino Nano Connector Carrier - Qwiic / Grove / microSD Expansion Board - ASX00061
The Arduino Nano Connector Carrier is designed to maximize the potential of Arduino Nano boards . It offers intuitive and fast connections to popular Qwiic , Grove, and Modulino interfaces, and also allows data storage to a microSD card . Whether you're developing projects in MicroPython, building Matter-compatible devices, or implementing edge AI applications, this versatile extension will help you go from idea to working prototype in record time.

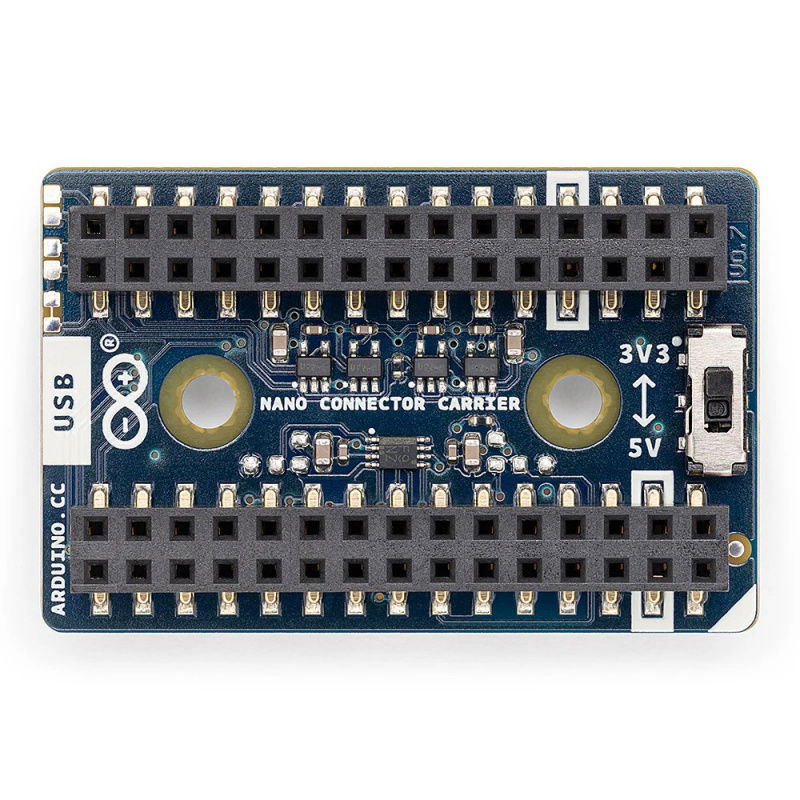

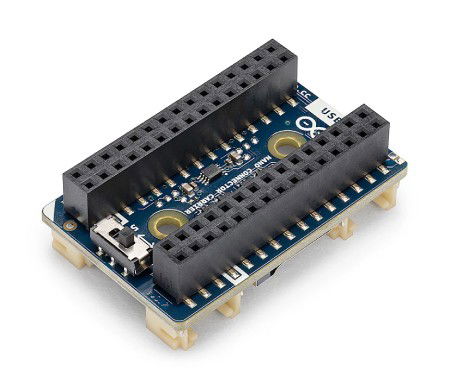

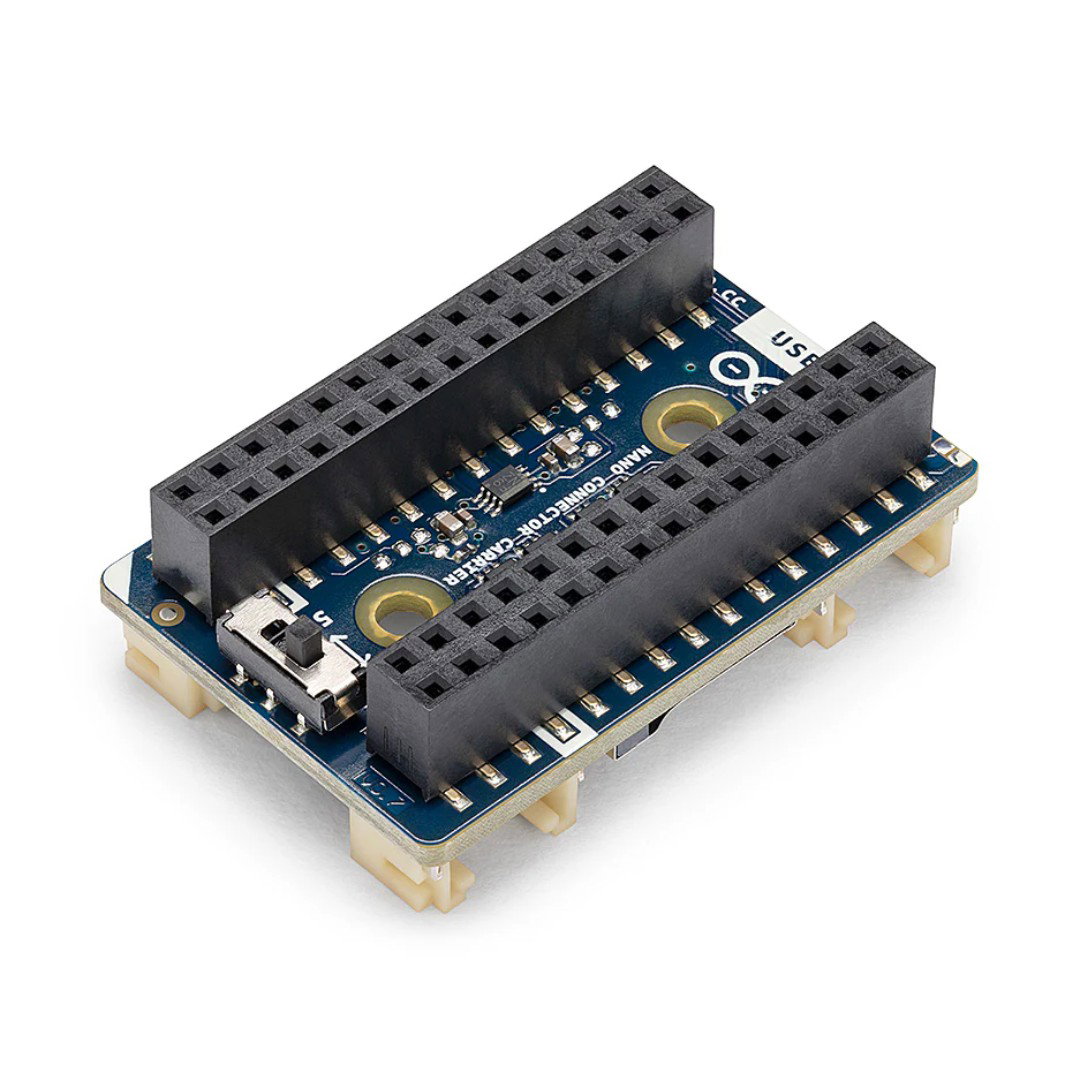

Arduino Nano Connector Carrier - Qwiic / Grove / microSD expansion board - ASX00061.
The board speeds up prototyping with Qwiic, Grove and Modulino modules.
Main features of the expansion board
- Qwiic, Grove and Modulino support : compatibility with popular extension ecosystems
- MicroSD card slot : allows data logging and local storage
- MicroPython and Matter support : the perfect extension for Nano RP2040 Connect, Nano ESP32, Nano Matter boards
- Compact design : small size while maintaining multiple ports
- Double row connectors : fully compatible with Arduino Nano pins
Connectivity and outputs - full versatility
The board is equipped with a wide range of connectors that enable quick and safe connection to external modules:
- 2 Grove connectors (I2C, UART) - for digital and analog sensors
- Grove Analog/Digital Connector - Flexible GPIO
- Qwiic I2C - quick connection to sensors and accessories
- MicroSD slot - real-time data recording

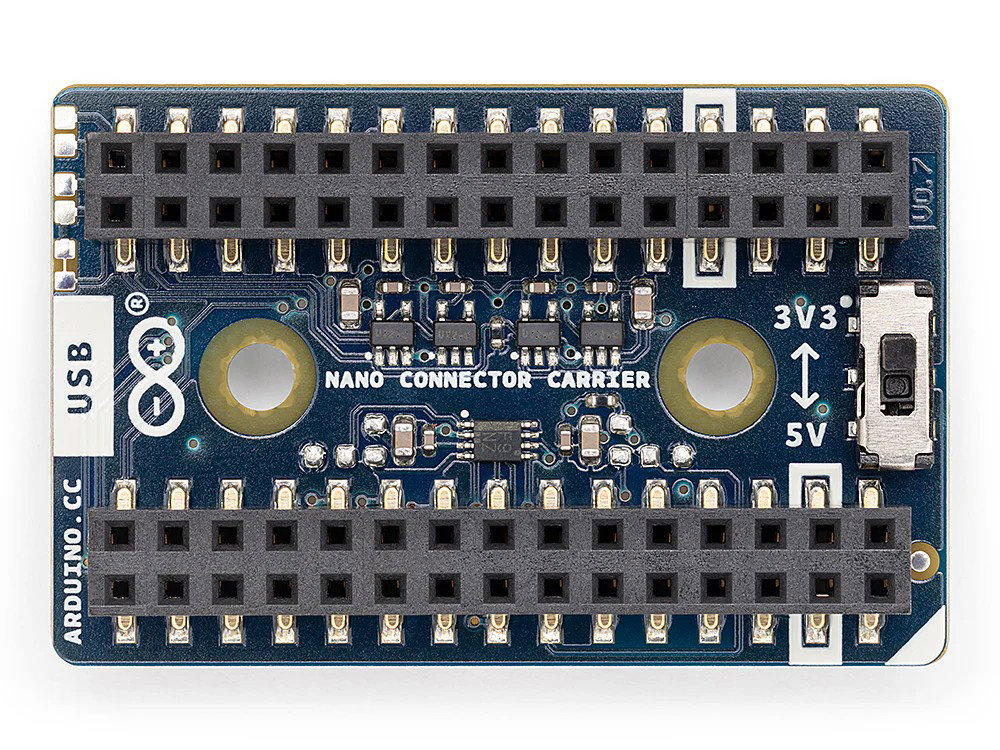

- Dual female connector for Nano boards - easy motherboard insertion
- Voltage level switch - select between 3.3V and 5V
Thanks to this configuration, the Nano Connector Carrier will be suitable for educational projects, home automation, as well as advanced industrial prototypes.

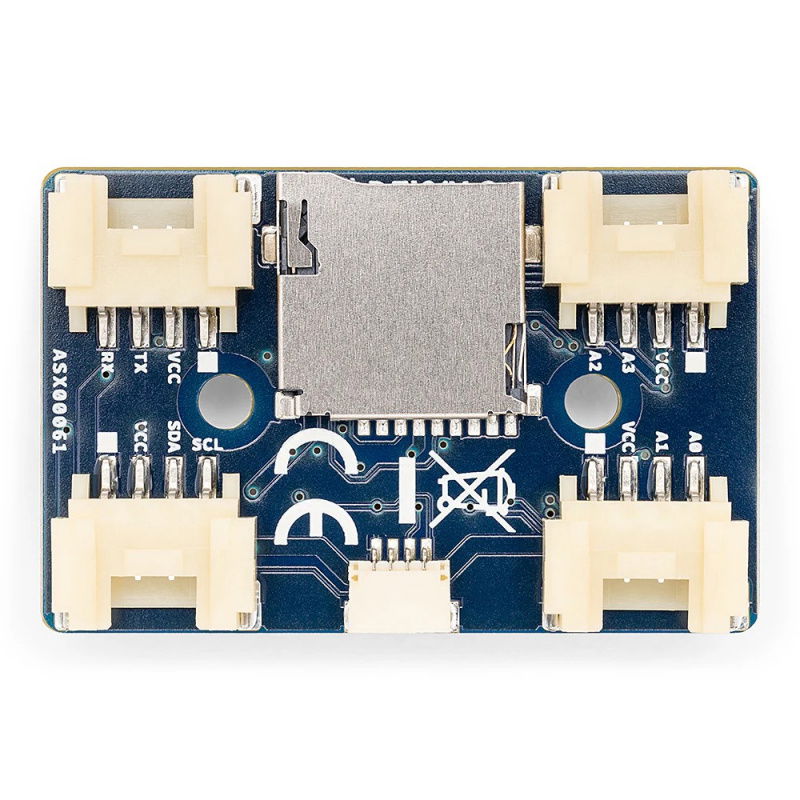

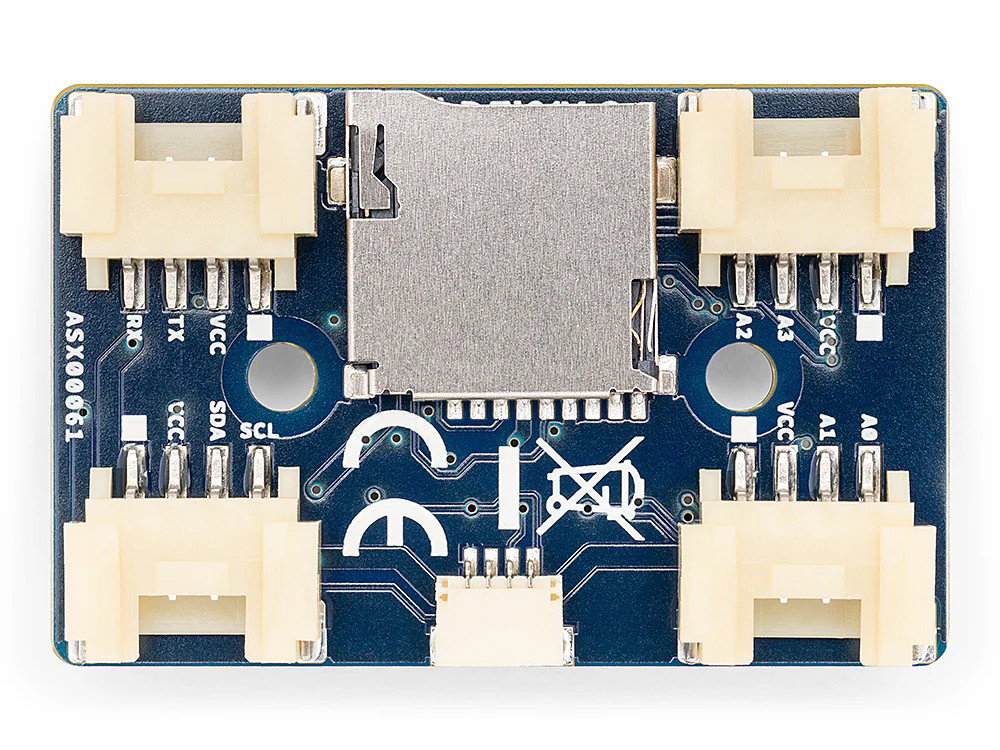

The board has plug and play Qwiic and Grove connectors, as well as a built-in microSD card slot.
The Nano Connector Carrier makes it easy to connect sensors, accessories, and microSD cards, extending the functionality of Arduino Nano family boards.
Technical specifications of the board
- Interfaces:
- 2x Grove analog/digital I/O
- Grove I2C
- Grove UART
- Qwiic I2C
- microSD card slot
- Dual Female Header for Arduino Nano
- I/O Voltage: 3.3V/5V switchable
- Dimensions: 28 x 43 mm
Contents of the set
- 1x Arduino Nano Connector Carrier
