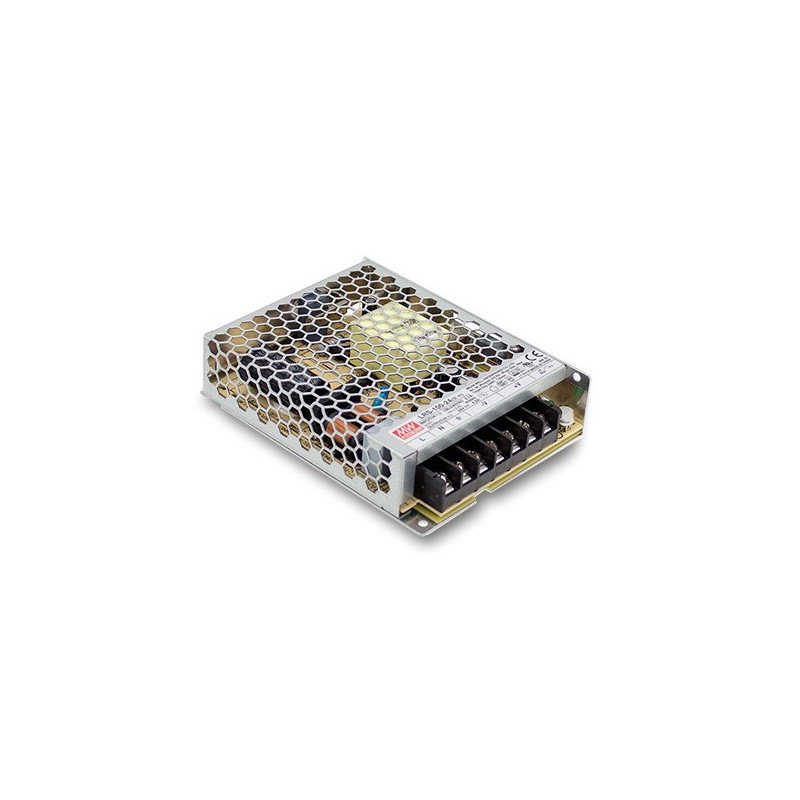

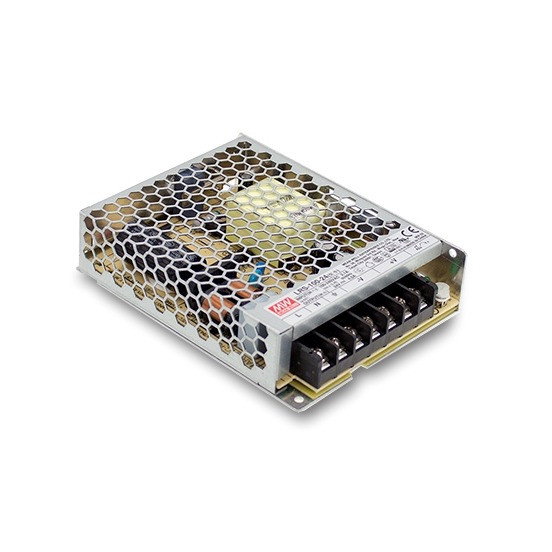

Mean Well LRS-100-24 power supply - 24V / 4.5A / 108W
24 V and 108 W at 90% efficiency: Mean Well LRS-100-24 enclosed power supply in a flat housing.
- Current up to 4.5 A, adjustable 21.6-28.8 V
- Housing 129 x 97 x 30 mm
- Operation up to 5000 m above sea level
We could not load the price.
The promotional price does not combine with quantity discounts.
108 W at 24 V in a housing 30 mm high
Mean Well LRS-100-24 is a power supply for installation inside machines that delivers 24 V and up to 4.5 A, which is 108 W, in a metal housing measuring 129 x 97 x 30 mm. It also suits vending machines, measuring devices and control cabinets, and is fastened with M3 screws.
The efficiency is typically 90%, and with no load the power supply draws less than 0.3 W. It works from mains of 85 V to 264 V AC, withstands a voltage surge of up to 300 V AC for 5 seconds and operates at altitudes up to 5000 m. You can set the output voltage from 21.6 V to 28.8 V.
Mean Well LRS-100-24 power supply open-frame type
24 V / 4.5 A
rated power 108 W
90%
typical efficiency
30 mm
housing height
5000 m
maximum operating altitude
A good choice for you?
A good choice if:
- you need about 100 W at 24 V for installation inside a device
- high efficiency and low standby consumption matter to you
- the device enclosure is flat
Consider another option if:
- you prefer DIN rail mounting: see the MDIN100W24 DIN rail power supply
- you need 5 V: choose the Mean Well LRS-100-5 power supply
Technical specifications
| Parameter | Value |
|---|---|
| Type | enclosed switching power supply in a metal housing |
| Output voltage | 24 V DC, adjustable 21.6-28.8 V |
| Output current | 0-4.5 A |
| Rated power | 108 W |
| Ripple and noise | max. 150 mVp-p |
| Input voltage | 85-264 V AC or 120-373 V DC |
| Efficiency | typically 90% |
| No-load power consumption | below 0.3 W |
| Protection | overload (110%-150% of power), short circuit, overvoltage (28.8-33.6 V) |
| Surge withstand | 300 V AC for 5 s |
| Operating altitude | up to 5000 m above sea level |
| Operating temperature | -30 °C to +70 °C (derating above 50 °C) |
| Cooling | natural, fanless |
| Mounting | M3 holes in the base and side of the housing |
| Connectors | screw terminals: L, N, FG, -V, +V |
| Dimensions | 129 x 97 x 30 mm |
| Weight | 330 g |
| Manufacturer warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
A power supply that works in the mountains
The manufacturer permits operating the LRS-100 at altitudes up to 5000 m above sea level. Above 2000 m the permissible ambient temperature drops by 5 °C for every further 1000 m, because thinner air cools the housing less effectively.
Source: Mean Well: LRS-100 datasheet
Frequently asked questions
Can I use it to power several devices at once?
Yes. The power supply has two +V and two -V terminals each, so you can easily distribute power as long as the total current does not exceed 4.5 A.
What happens in case of overload?
At a load of 110% to 150% of power, the power supply enters hiccup mode and returns to normal operation after the cause is removed.
How do I screw the power supply in place?
The housing has threaded M3 holes in the base and on the side, so you can mount it flat or vertically against the wall of the enclosure.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 21.6 V |
| Output voltage to | 28.8 V |
| Nominal output voltage | 24.0 V |
| Nominal power | 108 W |
| Current | 4.5 A |
| Power supply - type | mounting |
| Power supply - Plug | ARK screw |
| Width | 10.2 cm |
| Height | 13.8 cm |
| Depth | 3.8 cm |
| Weight | 0.322 kg |
