Step-Down Voltage Regulator D24V7F12 - 12V 0,6A - Pololu 5597
Steady 12 V and 600 mA from a voltage of up to 36 V: Pololu step-down regulator measuring 8.6 x 13.7 mm.
- Input 12.2-36 V, output 12 V
- No-load draw below 0.01 mA
- Short-circuit and thermal protection
We could not load the price.
The promotional price does not combine with quantity discounts.
Steady 12 V from up to 36 V on a board smaller than a postage stamp
Pololu D24V7F12 is a synchronous step-down regulator that turns an input voltage of 12.2 to 36 V into a steady 12 V and delivers up to 600 mA. The board measures 8.6 x 13.7 mm and weighs 0.5 g, so it fits in a small enclosure, and the three pins at 2.54 mm pitch fit a breadboard.
You can power low-power 12 V LED strips, 12 V fans, modules and relays with a 12 V coil supplied from a 24 V installation from it. The 600 mA current is available at any combination of input and output voltage, and with no load the regulator draws less than 0.01 mA, so it works well in battery-powered devices.

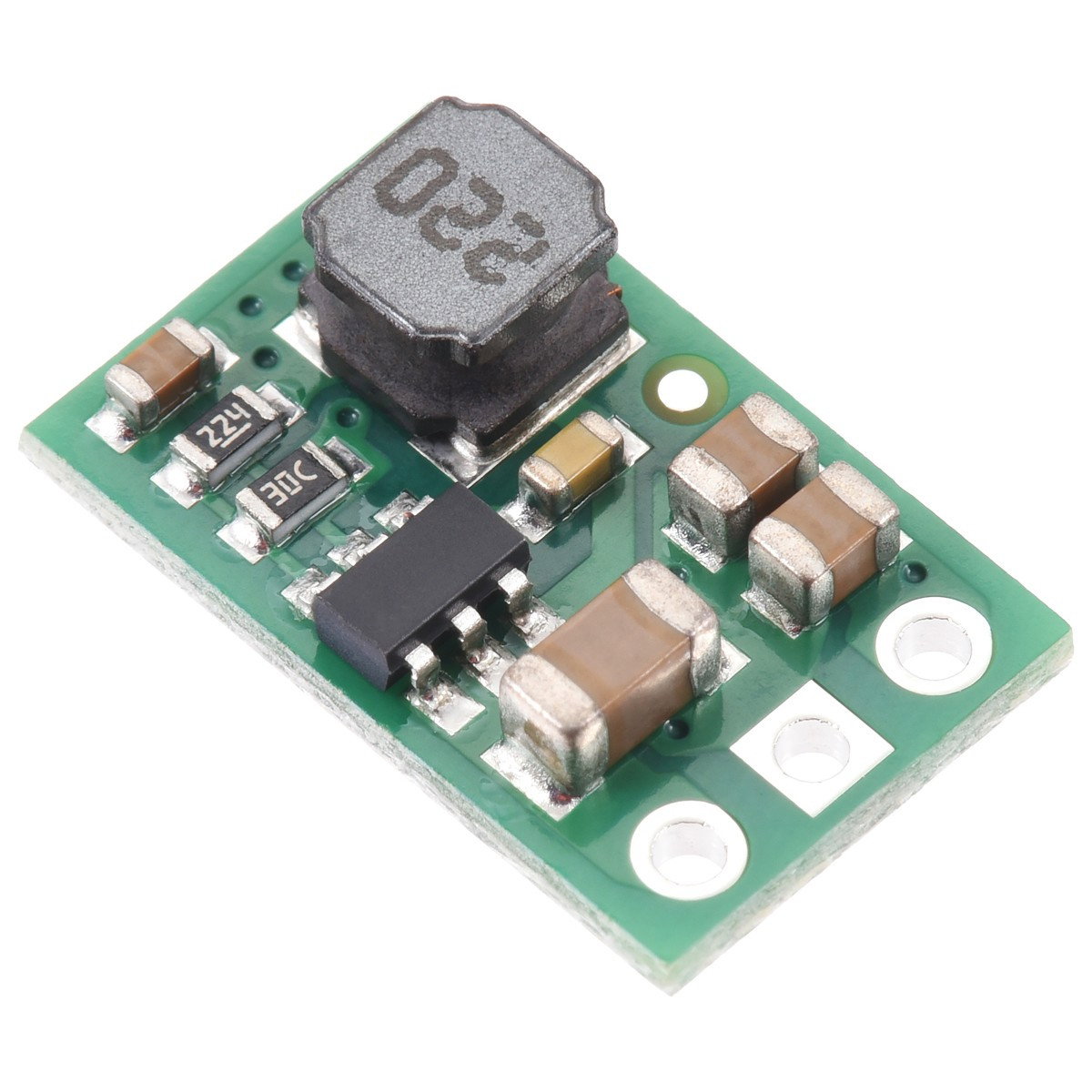

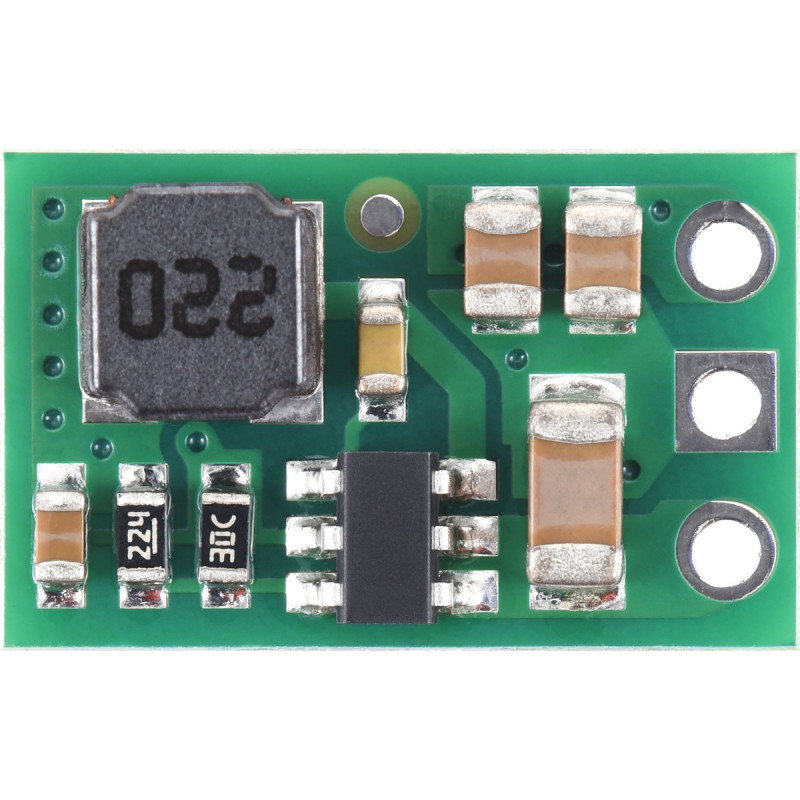

Pololu D24V7F12 step-down regulator board
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
12 V / 0.6 A
output voltage and current
12.2-36 V
input voltage
8.6 x 13.7 mm
board dimensions, weight 0.5 g
< 0.01 mA
no-load current draw
A good choice for you?
A good choice if:
- you need a steady 12 V from a battery, rechargeable battery or power supply up to 36 V
- your circuit draws up to 600 mA
- small size and low idle current draw matter
Consider another option if:
- you need more current: see the Pololu D24V10F12 step-down regulator (12 V, 1 A)
- you want to protect your circuit against reversed power connection: add the Pololu 4-75 V 8 A protection module
Technical specifications
| Parameter | Value |
|---|---|
| Type | synchronous step-down (buck) regulator |
| Output voltage | 12 V, 4% accuracy |
| Input voltage | 12.2-36 V |
| Output current | up to 600 mA continuous |
| Operating frequency | 1.1 MHz (lower at light load) |
| No-load current draw | below 0.01 mA |
| Protections | short-circuit, thermal |

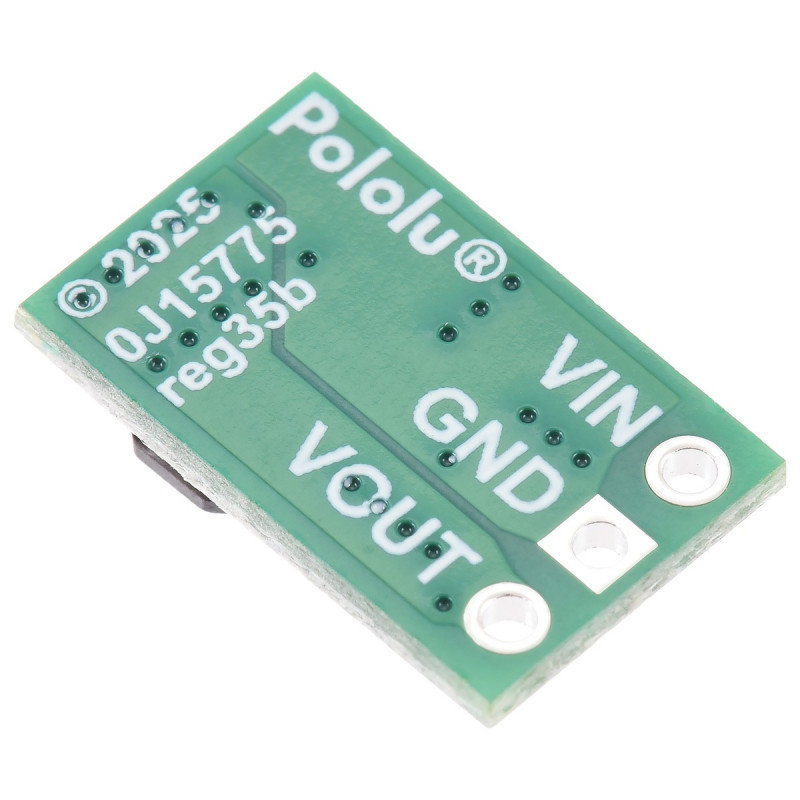

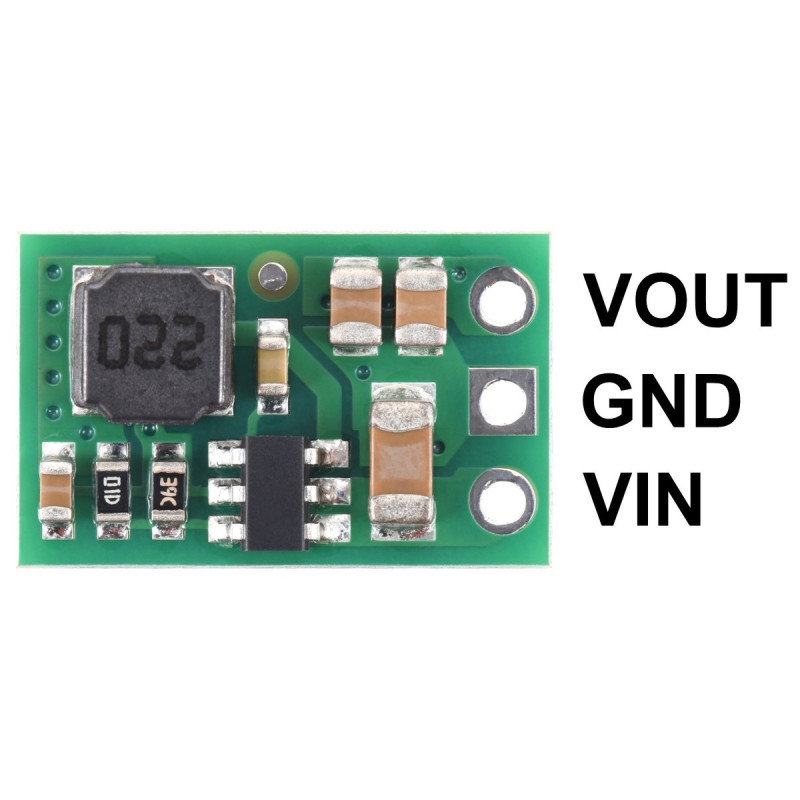

| Pins | VIN, GND, VOUT at 2.54 mm pitch |
| Dimensions | 8.6 x 13.7 x 4.1 mm |
| Weight | 0.5 g |
| Included | regulator without header strips |
| Manufacturer | Pololu (item #5597) |
Did you know?
Custom output voltage
Pololu also offers D24V7Fx regulators with a different output voltage as a custom order. As standard, the series has 3.3 V, 5 V, 6 V, 7.5 V, 9 V and 12 V versions.
Source: Pololu: product page
Frequently asked questions
Can I power the regulator from a 12 V battery?
Not fully. The regulator needs at least 12.2 V at the input, and a discharged 12 V battery has less. It works better with an 18-24 V supply.
Will the regulator survive a short circuit on the output?
Yes, it has short-circuit and thermal protection. However, it does not protect against reversed power connection at the input.
Are pins included?
No. The regulator is supplied without header strips, but you can solder on straight pins, right-angle pins or wires directly.
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.2 V |
| Voltage from | 36 V |
| Voltage output from | 12.0 V |
| Output voltage to | 12.0 V |
| Nominal output voltage | 12.0 V |
| Current | 0.6 A |
| Stabilizer - Type2 | switching |
| Stabilizer - Type | step-down |
| Width | 10 cm |
| Height | 5 cm |
| Depth | 0.5 cm |
| Weight | 0.002 kg |
