Product description: HPCB motor 10:1 double-sided shaft - Polol 3071

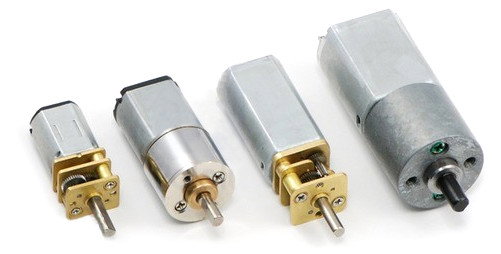

Polol's small, lightweight yet powerful engines are used as drive units by robot constructors. The units can be supplied with voltage up to 9 V, the useful power is above 3 V. The optimum voltage at which the power to strength ratio is best is 6 V. This version has an extended shaft with a length of 5.0 mm, allowing the installation ofspeed sensors - encoders.
HPCB motor specification 10:1
|
Supply voltage: |
3 V - 9 V |
|
Unloaded current (6 V): |
120 mA |
|
Current at stopped shaft (6 V): |
1600 mA |
|
Speed without load (6 V): |
3000 rpm |
|
Torque (6 V): |
0.3 kg*cm (0.029 Nm) |
|
Gear ratio: |
9.96:1 |
|
Brushes: |
Carbon brushes, high strength |
|
Shaft diameter: |
3 mm |
|
Body dimensions: |
26 x 12 x 10 mm |
|
The weight: |
10 g |
|
Two-sided shaft: |
YES |
|

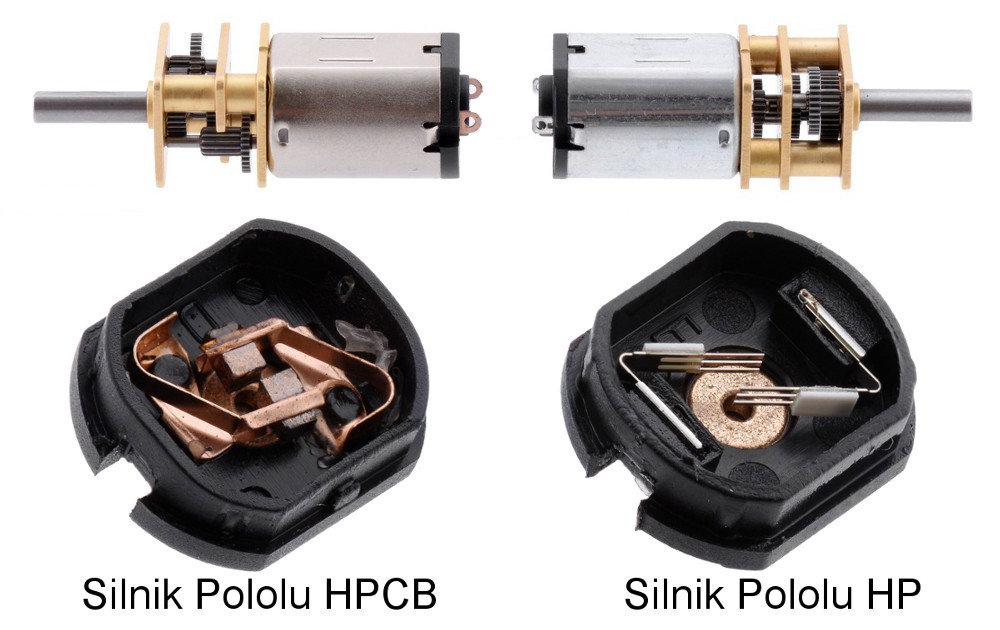

This version has carbon brushes with increased strength and a shaft on both sides for mountingthe encoders. |
Engine dimensions
The motor body is a 26 x 12 x 10 mm cuboid. The gearbox is 9,27 mm long. There is a 3 mm D-shaped shaft at the output. Total weight is about 10 g.

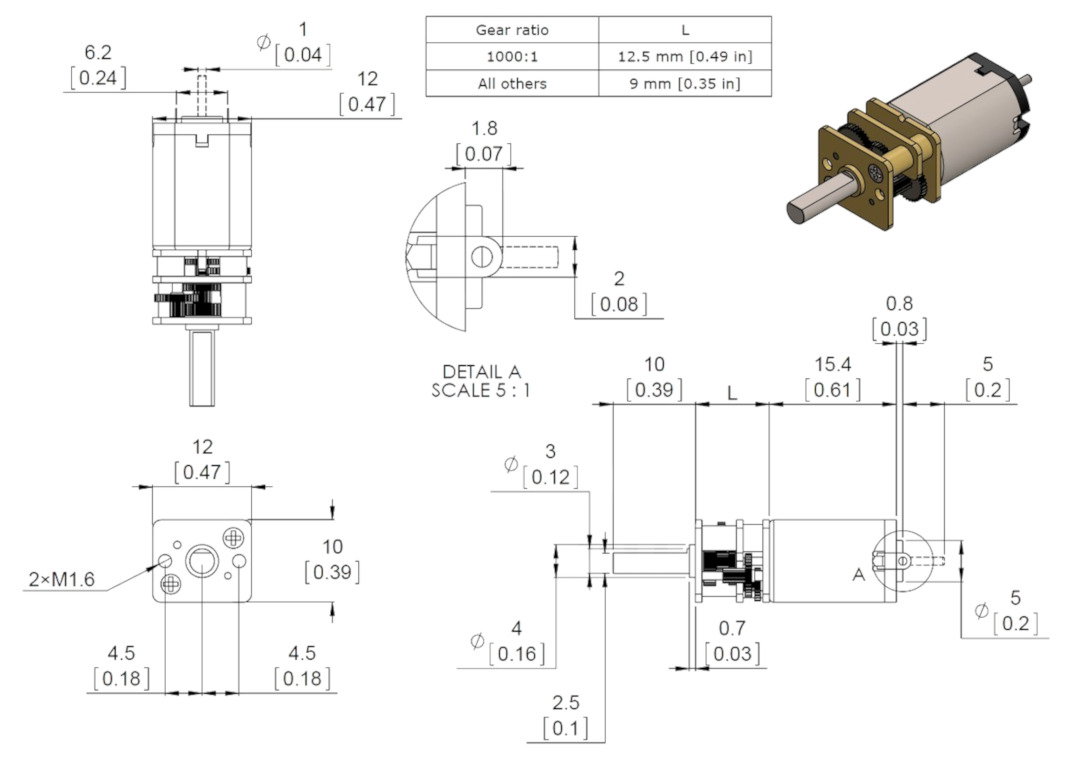

The drawing shows the dimensions of the Polol micro motor with gearbox.
Accessories for the motor
We offer a range of accessories that work with Polol's micro motors:
- Mountings
Special mountings in whiteorblack have been designed for motor mounting.There is also anextendedversion available and made ofaluminum withincreased strength.
- Wheels,crawlers,hubs,encoders
Our offer also includeswheelsand crawlers, matchedto the shafts of Polol's micro motors. There is also a special version of wheels with speed measurement - encoders. Installation of non-standard wheels is facilitated byadapters.
- Motor controllers
Direction and speedcontrolis provided by DC motor controllers. The offer includes both self-solderingintegrated circuitsas well as ready-to-connect, cooperating with sets (e.g. Arduino)modules.
There are also many othermotorsin the shop's offer.
