Adafruit QT Py ESP32-S2 WiFi - WiFi module with STEMMA QT/Qwiic connector - Adafruit 5325
Small size QT Py module created by Adafruit. It is equipped with a single-core ESP32-S2 system clocked at 240 MHz, 4 MB Flash memory and 2 MB PSRAM. ESP32-S2 enables wireless 2.4 GHz WiFi communication, but does not support Bluetooth communication. On the board you can find a native USB type C port, which is also used to power the board and a Qwiic / STEMMA QT connector, two buttons and a NeoPixel RGB LED. The distribution of pins and the dimensions of the module are in accordance with Seeed Xiao.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Adafruit QT Py ESP32-S2 WiFi - WiFi module with Qwiic / STEMMA QT connector - Adafruit 5325
Small size QT Py module created by Adafruit . It is equipped with a single-core ESP32-S2 system clocked at 240 MHz, 4 MB Flash memory and 2 MB PSRAM. ESP32-S2 enables wireless 2.4 GHz WiFi communication, but does not support Bluetooth communication. On the board you can find a native USB type C port, which is also used to power the board and a Qwiic / STEMMA QT connector, two buttons, a NeoPixel RGB LED and a 3.3 V LDO stabilizer with a maximum current efficiency of up to 600 mA. The distribution of pins and the dimensions of the module are in accordance with Seeed Xiao. QT Py from Adafruit offers the user as many as 13 GPIO pins: analog inputs, DAC output, PWM, I2C, UART, SPI and I2S interface, as well as a touch button driver. Board with ESP32-S2 can be programmed in Arduino IDE and CircuitPython.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.

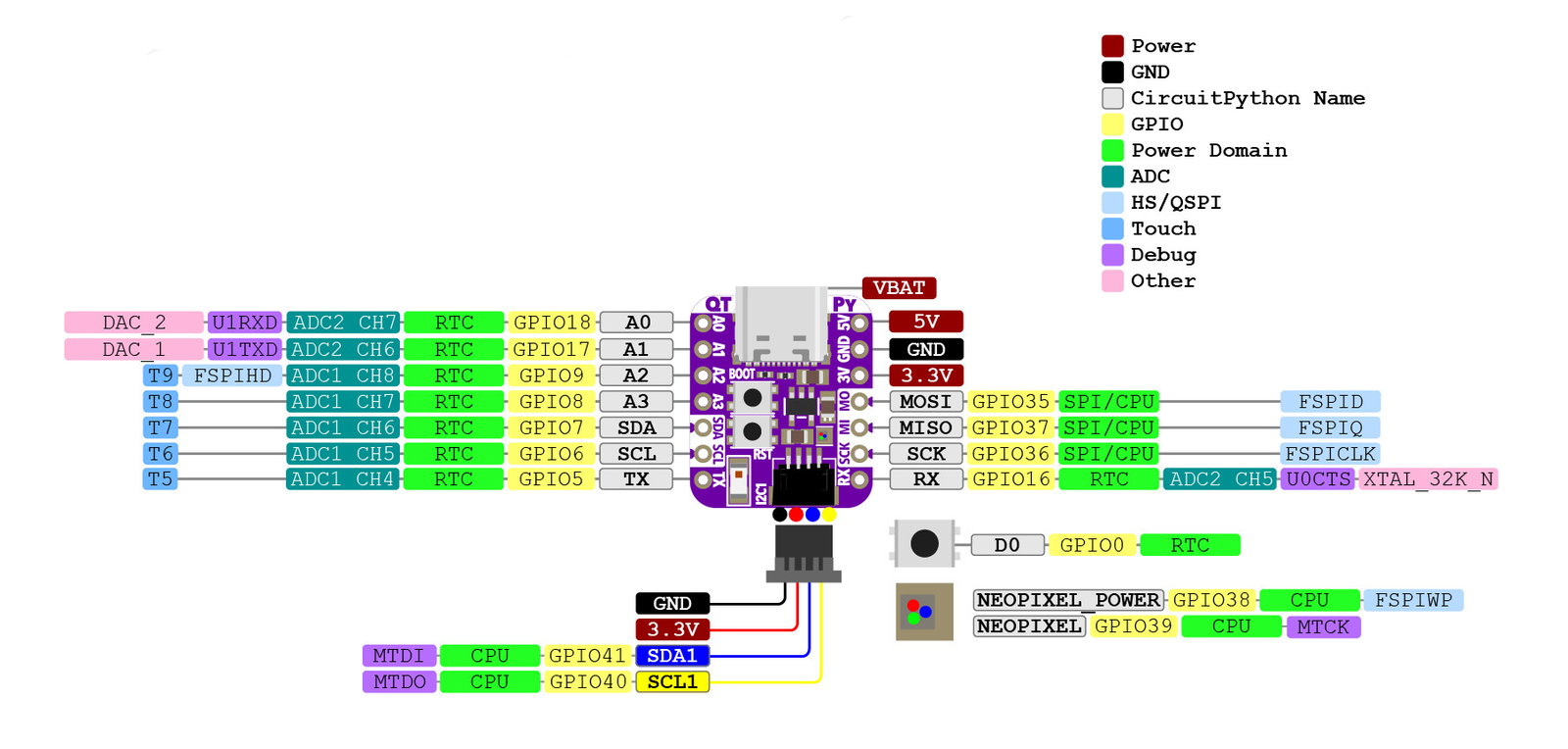

Description of the module pins.
The manufacturer has prepared a detailed user guide , which greatly facilitates the start of working with the module.
Kit contents
- 1x Adafruit QT Py ESP32-S2 WiFi - WiFi module with STEMMA QT / Qwiic connector - Adafruit 5325
- 1x goldpin strip 1x16 - 2.54 mm raster
Specification of the Adafruit QT Py ESP32 board
- System: ESP32-S2
- Processor: Tensilica Single-Core 240 MHz
- Flash memory: 4 MB
- PSRAM memory: 2 MB
- Native USB port supported by any operating system - can be used with Arduino or CircuitPython as a USB serial console, MIDI, HID keyboard / mouse, or even as a compact drive for storing Python scripts
- Works with Arduino IDE or CircuitPython
- Built-in RGB NeoPixel LED with power control to reduce power consumption in deep sleep mode
- Battery connection pads on the bottom of the board with a protective diode for an external battery pack up to 6V
- 13 GPIO pins:
- 11 pins on the pads, 2 more on QT connectors
- 10x 12-bit analog inputs (SPI high speed and others with plug-n-play STEMMA QT connector)
- UART hardware
- SPI hardware on high speed SPI peripheral pins
- I2C hardware on all pins
- 5x capacitive touch pads without the need for additional components
- A 3.3 V voltage regulator with an instantaneous output of 600 mA
- Light Sleep current consumption: 2 to 4 mA
- Deep Sleep power consumption: up to 70 uA
- Reset button
- Dimensions: 21.8 x 17.9 x 5.7 mm
- Weight: 2.1 g

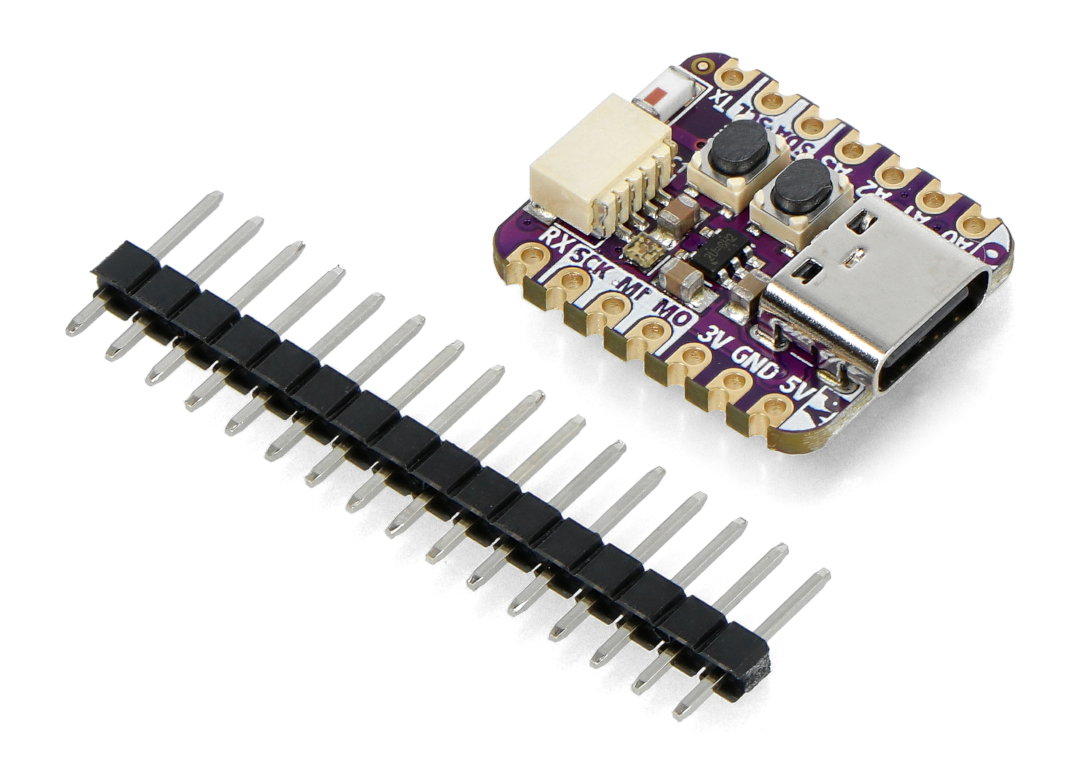

Adafruit QT Py ESP32-S2 kit contents.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-S2 |
| UC - Core | Tensilica |
| UC - Flash | 4 MB |
| UC - RAM | 2 MB |
| UC - core | 1. Single Core |
| UC - freq | 240 MHz |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 8 cm |
| Height | 0.5 cm |
| Depth | 10 cm |
| Weight | 0.005 kg |
