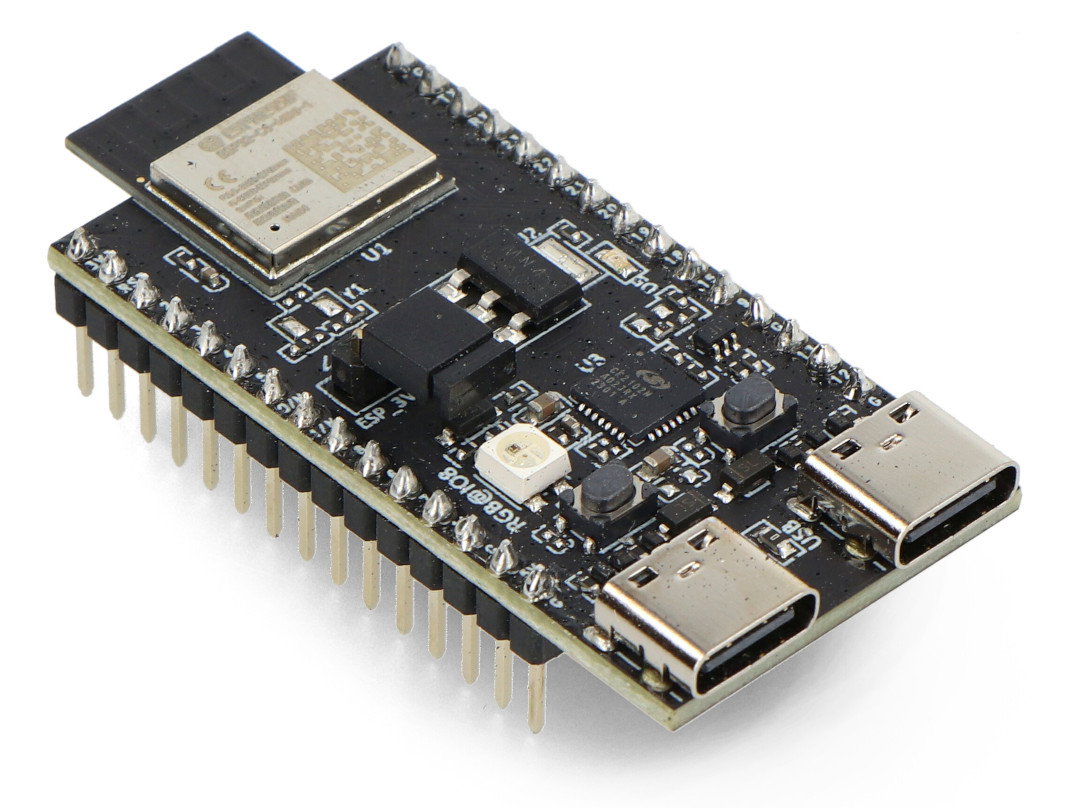

ESP32-C6-DevKitM-1-N4 - WiFi/Bluetooth/ZigBee/Thread - development board with ESP32-C6-MINI-1 chip
ESP32-C6-DevKitM-1-N4 is a development board from Espressif based on the ESP32-C6-MINI-1 system. Perfect for Matter-compatible Smart Home applications thanks to support for 2.4 GHz WiFi, Bluetooth 5.0, Zigbee and Thread wireless connectivity. It has 4 MB Flash memory and 512 KB SRAM memory. Equipped with 22 configurable GPIO pins and a PCB antenna, which makes it an ideal choice for IoT projects.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: ESP32-C6-DevKitM-1-N4 - WiFi / Bluetooth / ZigBee / Thread - development board with ESP32-C6-MINI-1 chip
ESP32-C6-DevKitM-1-N4 development board based on the ESP32-C6-MINI-1 system. It enables wireless communication WiFi 6 2.4 GHz, Bluetooth 5.0, Zigbee and Thread, making it an excellent choice for creating modern IoT solutions. The module offers 512 kB of SRAM and 4 MB of Flash memory , which allows storing large amounts of data and programs. ESP32-C6-DevKitM-1-N4 has 22 configurable GPIO pins that allow for wide integration with a variety of peripheral devices, and the presence of a PCB antenna ensures a stable wireless connection. The module can operate with a voltage of 3.3 V or 5 V , depending on the selected power source: through the USB C port to UART (default) and through pin connectors 5V0 and GND or 3V3 and GND.
Also check out the user guide prepared by the manufacturer!
The module offers 512 kB of SRAM memory and 4 MB of Flash memory.
Special features ESP32-C6-DevKitM-1-N4
- It enables wireless connectivity thanks to support for Wi-Fi 802.11 b/g/n, Bluetooth 5.0, Zigbee and Thread standards.
- Includes 22 configurable GPIO pins for connecting peripherals.
- It has 4 MB Flash memory, 512 kB SRAM, 320 kB ROM and 16 kB SRAM in RTC.
- It is equipped with a PCB antenna, offering a stable wireless connection.
- It allows operation in a wide temperature range from -40°C to 85°C.
- It offers operation with a voltage from 2.7 V to 3.6 V, with the default power supply option using USB Type C.
- Enables the development of IoT applications with advanced wireless connectivity and interface versatility.
Characteristic features of ESP32-C6-MINI-1
ESP32-C6-MINI-1 is a module based on the ESP32-C6FH4 system, equipped with a 32-bit RISC-V microprocessor operating at a maximum frequency of 160 MHz. It contains 320 kB of ROM, 512 kB of SRAM and 4 MB of Flash memory . It supports WiFi 6 standards in the 2.4 GHz band, which enables the use of advanced technologies such as MU-MIMO, OFDMA and TWT for effective energy management. Bluetooth 5 (LE) supports mesh networks and offers transmission speeds of up to 2 Mbps. Additionally, it is compatible with IEEE 802.15.4, Zigbee 3.0 and Thread 1.3 . It also includes a wide set of peripheral interfaces: GPIO, SPI, UART, I2C, I2S, which makes it a versatile solution for IoT, Smart Home , industrial automation and consumer electronics applications.
Enables WiFi, Bluetooth, Zigbee and Thread communication.
Key elements of the board.

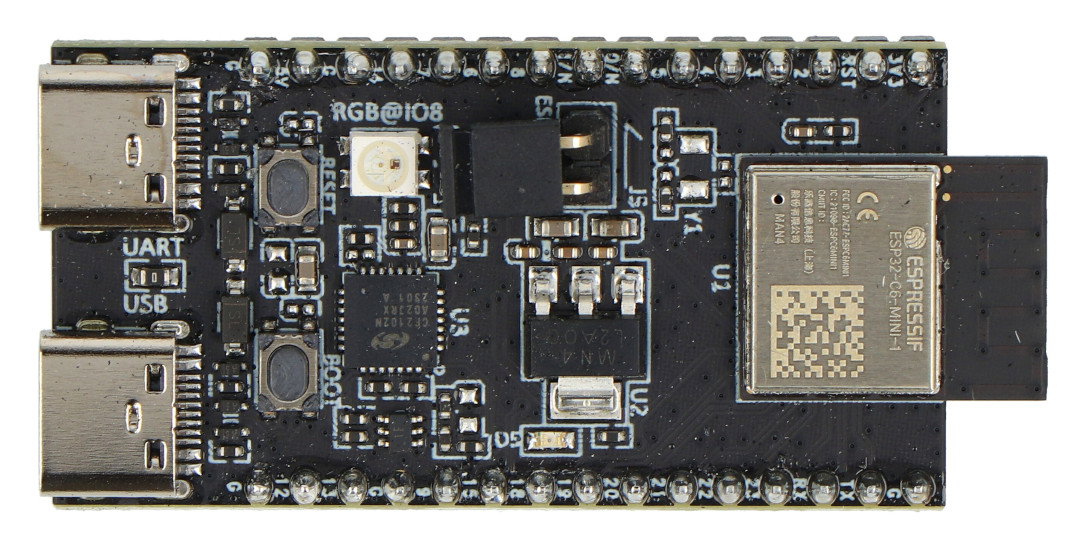

Arrangement of elements on the board
- ESP32-C6-MINI-1
- GPIO pinout
- LDO power regulator from 5V to 3.3V
- Power LED
- USB-UART bridge
- USB Type-C port
- Boot button
- Reset button
- USB-UART port
- Addressable RGB LED
- J5 - enables measurement of the current consumed by the module
- GPIO pinout
Technical specifications of ESP32-C6-DevKitM-1-N4
- Model: ESP32-C6-DevKitM-1-N4
- Module: ESP32-C6-MINI-1
- Chip: ESP32-C6FH4
- Wireless communication: WiFi 6 2.4 GHz, Bluetooth 5.0, Thread, Zigbee, IEEE 802.15.4
- Processor: 32-bit RISC-V single-core
- Clock: up to 160 MHz
- Flash memory: 4 MB
- SRAM memory: 512 kB
- LP SRAM: 16 kB
- ROM memory: 320 kB
- Antenna type: PCB
- GPIO: 22
- Operating temperature: -40 to 85°C
- Voltage: 2.7V to 3.6V
- Dimensions: 48.26 x 25.4 mm

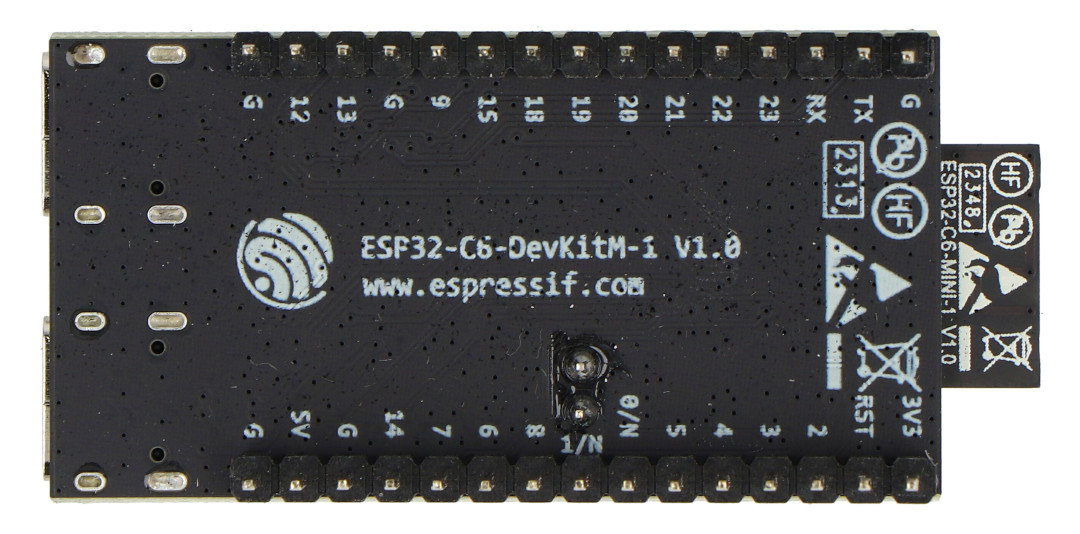

ESP32-C6-DevKitM-1-N4 has 22 configurable GPIO pins.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller |
|
| UC - Core | 32-bit RISC-V |
| UC - Flash | 4 MB |
| UC - RAM | 512 kB |
| UC - core | 1. Single Core |
| UC - Digital pins | 22 |
| UC - freq | 160 MHz |
| UC - A/C | 12-bit |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 5.4 cm |
| Height | 2.4 cm |
| Depth | 9.3 cm |
| Weight | 0.029 kg |
