Beetle ESP32-C6 miniature IoT development board - WiFi/Bluetooth/Thread/ZigBee/Matter - DFRobot DFR1117
Beetle ESP32-C6 is a miniature development board measuring 25 x 20.5 mm , comparable to a coin. Equipped with a 32-bit RISC-V processor at 160 MHz, it offers support for many communication protocols, such as WiFi 6, Bluetooth 5, ZigBee 3.0, Thread 1.3 and Matter , making it a versatile solution for a variety of IoT networks.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Beetle ESP32-C6 - miniature IoT development board - WiFi / Bluetooth / Thread / ZigBee / Matter - DFRobot DFR1117
Beetle ESP32-C6 is a miniature development board with dimensions of 25 x 20.5 mm , comparable to a coin. Equipped with a 32-bit RISC-V processor at 160 MHz , it offers support for many communication protocols such as WiFi 6, Bluetooth 5, ZigBee 3.0, Thread 1.3 and Matter , making it a versatile solution for a variety of IoT networks. Integrated battery charging management eliminates the need for additional modules, simplifying the design and reducing the size of projects. Additionally, the board enables monitoring of the battery voltage , which allows for early detection of low charge and ensures continuous operation of the device.
Beetle ESP32-C6 – miniature IoT development board - WiFi / Bluetooth / Thread / ZigBee / Matter - DFRobot DFR1117.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

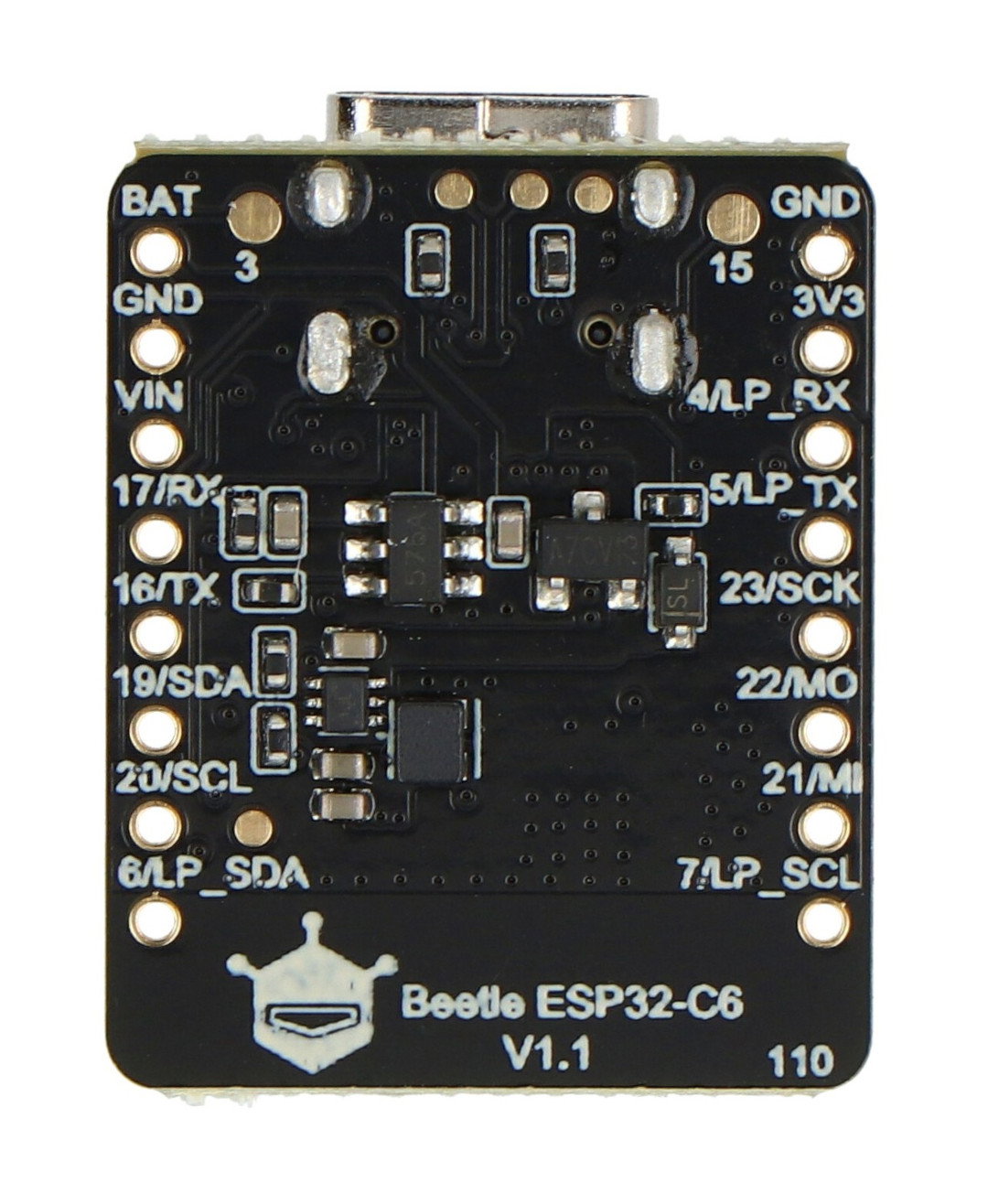

The Beetle ESP32-C6 is a miniature development board measuring 25 x 20.5 mm, comparable to a coin.
Special Features of the Beetle ESP32-C6
- Compact size : only 25 x 20.5 mm - ideal for small IoT projects
- Protocol support : WiFi 6, Bluetooth 5, ZigBee, Thread and Matter - versatility in communication
- Energy efficient : only 14 µA in deep sleep mode - ideal for battery-powered devices
- Lithium battery charging : built-in charging circuit for simpler designs
- Battery monitoring : constant control of the charge level
- USB Type-C : convenient power supply and communication with devices
Technical specification of the board
- System: ESP32-C6
- Processor: RISC-V single-core, 160 MHz
- SRAM memory: 512 KB
- ROM: 320KB
- Flash Memory: 4MB
- Operating voltage: 3.3 V
- Input voltage (USB Type-C): 5V DC
- Maximum charging current: 0.5 A
- Sleep mode current: 14 µA
- Interfaces:
- Digital I/O: 13
- PWM: 6 channels
- SPI: 1
- UART: 3
- I2C: 2
- I2S: 1
- ADC: 1 (12-bit, 7 channels)
- DMA: 3 transmit channels, 3 receive channels
- IR Transceiver: 5 Transmit Channels, 5 Receive Channels
- Operating temperature: -10°C to 60°C
- Dimensions: 25 x 20.5 mm
Kit Contents

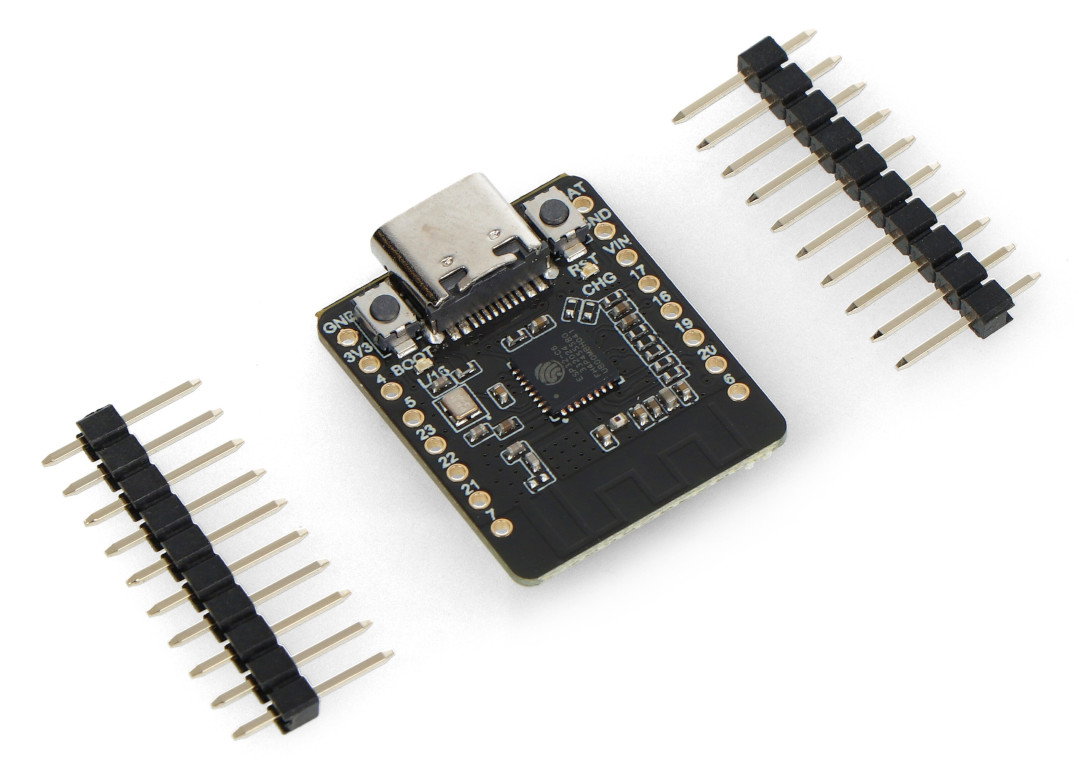

- Beetle ESP32-C6 - Miniature IoT Development Board
- 10 pin connector x2
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-C6 |
| UC - Core | 32-bit RISC-V |
| UC - Flash | 4 MB |
| UC - RAM | 512 kB |
| UC - core | 1. Single Core |
| UC - Digital pins | 13 |
| UC - freq | 160 MHz |
| UC - A/C | 12-bit |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Communication |
|
| Width | 5.7 cm |
| Height | 6.2 cm |
| Depth | 2.6 cm |
| Weight | 0.008 kg |
