Product description: Filament Rosa3D PCTG + CF 1.75 mm 0.3 kg - Black
Rosa3D 's PCTG + 10CF 3D filament in black is an advanced technical printing material based on PCTG copolyester and enriched with 10% carbon fiber . This provides excellent stiffness, tensile strength, and exceptional durability. Prints made with this material are less brittle than many other CF composites, making the filament ideal for harsh operating conditions. The matte finish enhances aesthetic appeal, while dimensional stability allows for precise reproduction of even complex models. The filament's diameter is 1.75 mm . The material weighs 0.3 kg per spool.

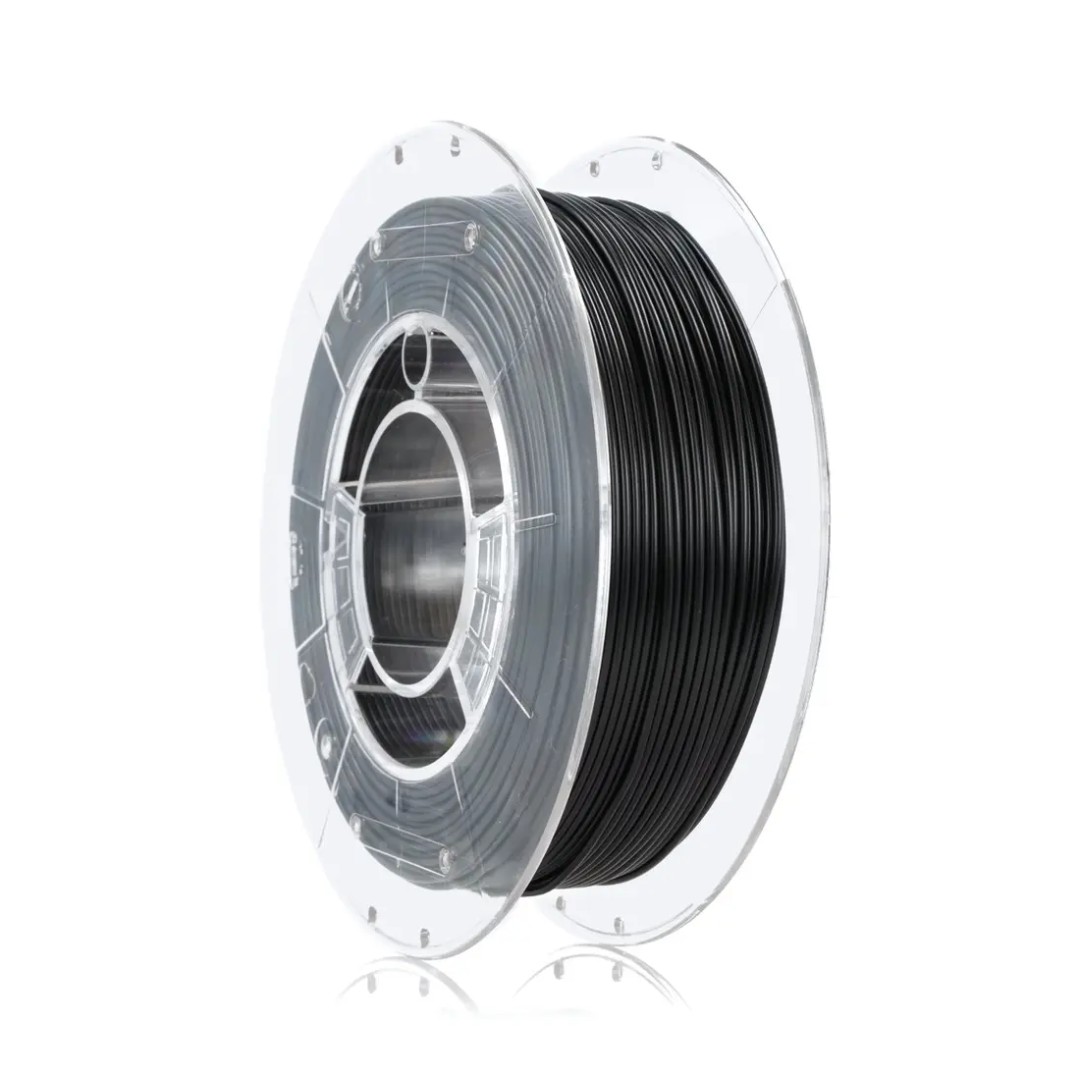

Rosa3D PCTG + CF filament 1.75 mm 0.3 kg - Black.
Our range of filaments also includes other materials and colors.
Main features of the PCTG + CF filament
- 10% carbon fiber reinforcement : increased strength and stiffness
- High tensile and impact resistance : ideal for industrial applications
- Matte, professional finish : graphite surface masking the print layers
- Low shrinkage and dimensional stability : no deformation upon cooling
- Chemical and heat resistance : durability in difficult working conditions
- Printing with a steel nozzle (diameter > 0.5 mm) : prevents rapid wear
- Drying before printing : ensures optimal surface quality and layer consistency
Suggested filament printing parameters
| Head temperature | From 250°C to 280°C |
| Table temperature | From 70°C to 90°C |
| Print cooling | From 0% to 60% |
Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally.
Filaments used in 3D printing .
| Technical specifications of the PCTG + 10CF filament | |
|---|---|
| Filament type | PCTG + 10CF |
| Color | Black |
| Filament diameter | 1.75 mm |
| Dimensional tolerance | +/- 0.05 mm |
| Thermal resistance | 77°C |
| Density | 1.28 g/cm³ |
| Spool | Standard |
| Spool dimensions | 160 x 45 x 52 mm |
| Mass | 0.3 kg |
