Product description: AN0404 - module with a 4x4 matrix keyboard and 16 LEDs for FPGA and SoC boards

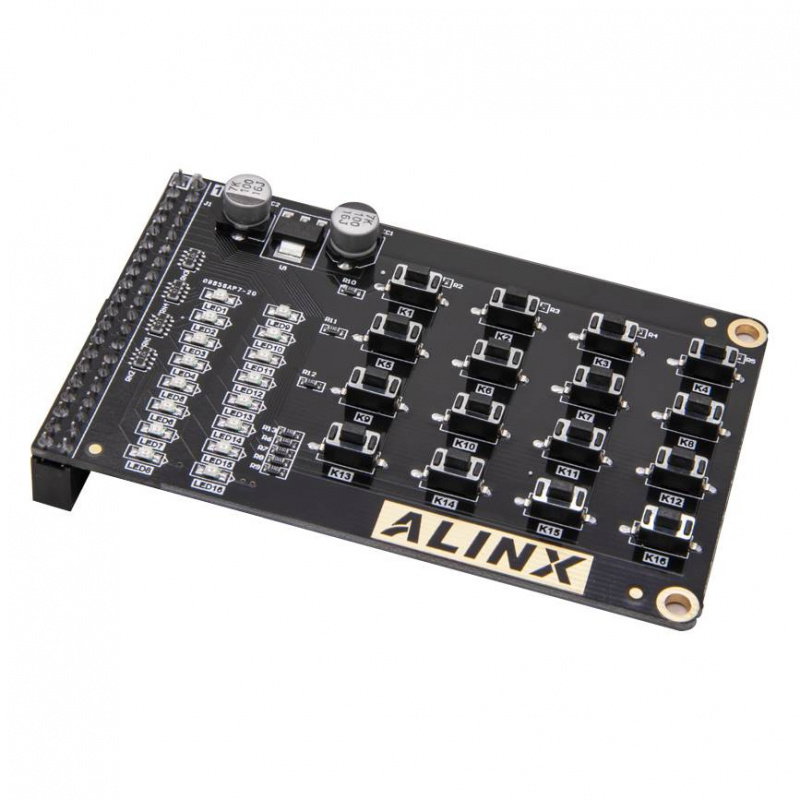

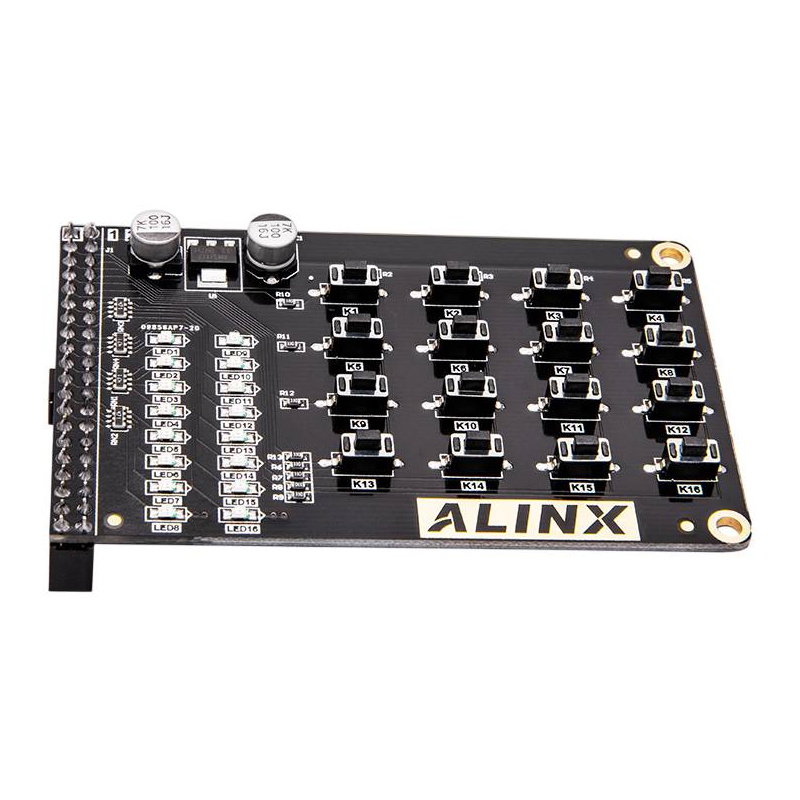

The ALINX AN0404 is a module designed for use with compatible development kits . The board features 16 buttons forming a 4 x 4 matrix and 16 independently controlled LEDs . The buttons can be used for data entry, function selection, and testing matrix keyboard scanning algorithms. The LEDs provide a clear presentation of logical states, program execution results, or the system's response to individual button presses. The AN0404 module is ideal for educational projects, digital electronics laboratories, and learning environments.
Technical specifications of the ALINX AN0404
- Intended use: FPGA and SoC development boards
- Keyboard layout: 4 x 4
- Number of buttons: 16
- Number of keyboard rows: 4
- Number of keyboard columns: 4
- Number of LEDs: 16
- LED control method: independent
- Number of keyboard signal lines: 8
- Speaker line pull-up resistors: 10 kΩ
- Module interface: 40-pin female connector
- Connector pitch: 2.54 mm
- Operating temperature: -40°C to 85°C
- Dimensions: 51 x 81 mm
Contents of the set
- ALINX AN0404 matrix keyboard and LED module
