DFRobot micro: Maqueen Plus V2.1 - advanced education robot platform - DFRobot MBT0021-EN
Advanced educational robot platform micro: Maqueen Plus V2.1, designed to work with the BBC micro:bit module. The plus version is optimized for better power management and powered by a higher capacity battery. It has a larger design, relative to the basic version, allowing the robot to be expanded with more features.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DFRobot micro: Maqueen Plus V2.1 - Advanced educational robot platform - DFRobot MBT0021-EN
An advanced educational robot platform micro: Maqueen Plus V2.1, designed to work with the BBC micro:bit module. The plus version has been optimized for better power management and powered by a higher capacity battery. It has a larger design, relative to the basic version, allowing you to expand the robot with more features. Maqueen Plus V2.1 allows you to mount the HuskyLens module, so you can create designs that recognize objects using AI (artificial intelligence). Designed for intermediate to advanced users, for beginners we recommend the basic version. The robot can be controlled wirelessly using the micro:Gamepad.
Attention! The kit does not include the BBC micro:bit minicomputer or Ni-MH batteries, these items can be purchased separately. |

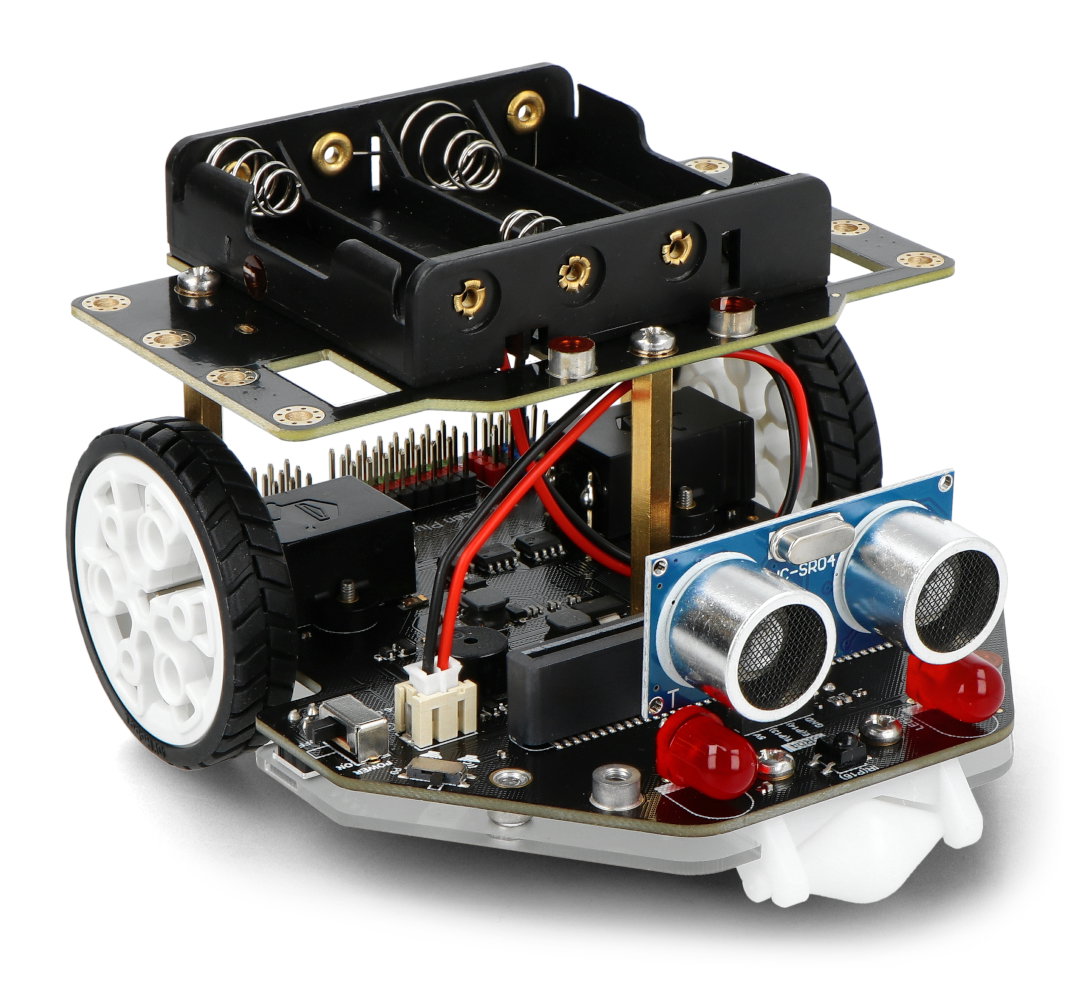

Educational micro robot: Maqueen Plus V2.1.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

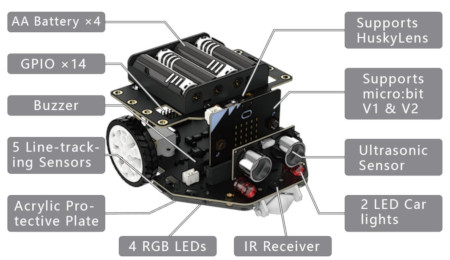

Elements on the micro: Maqueen Plus V2.1 robot board
micro: Maqueen Plus V2.1.

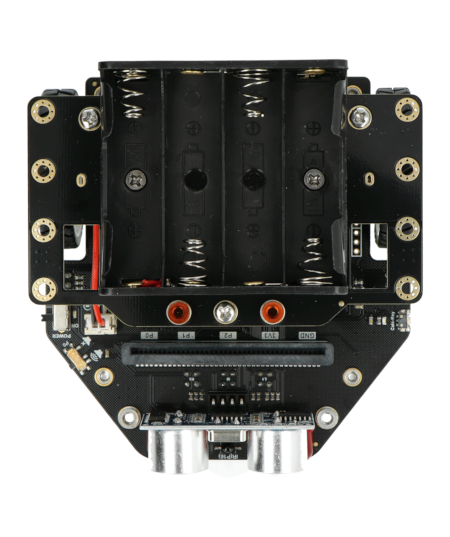

Maqueen Plus V2.1 robot circuit board
The robot is powered by four AA batteries (not included). The Maqueen Plus V2.1 features five sensors for line tracking, which can be calibrated with the push of a button. In addition, the board has standard pin-outs with a 2.54 mm raster, such interfaces as: 14 x GPIO, 3 x I2C. The robot is fully compatible with the AI HuskyLens camera.
Platform equipment
The robot platform is equipped with high quality metal motors with 266 RPM speed along. The robot also features 2 large LEDs with the ability to light up in 6 different colors, an IR receiver and buzzer, and an ultrasonic sensor.

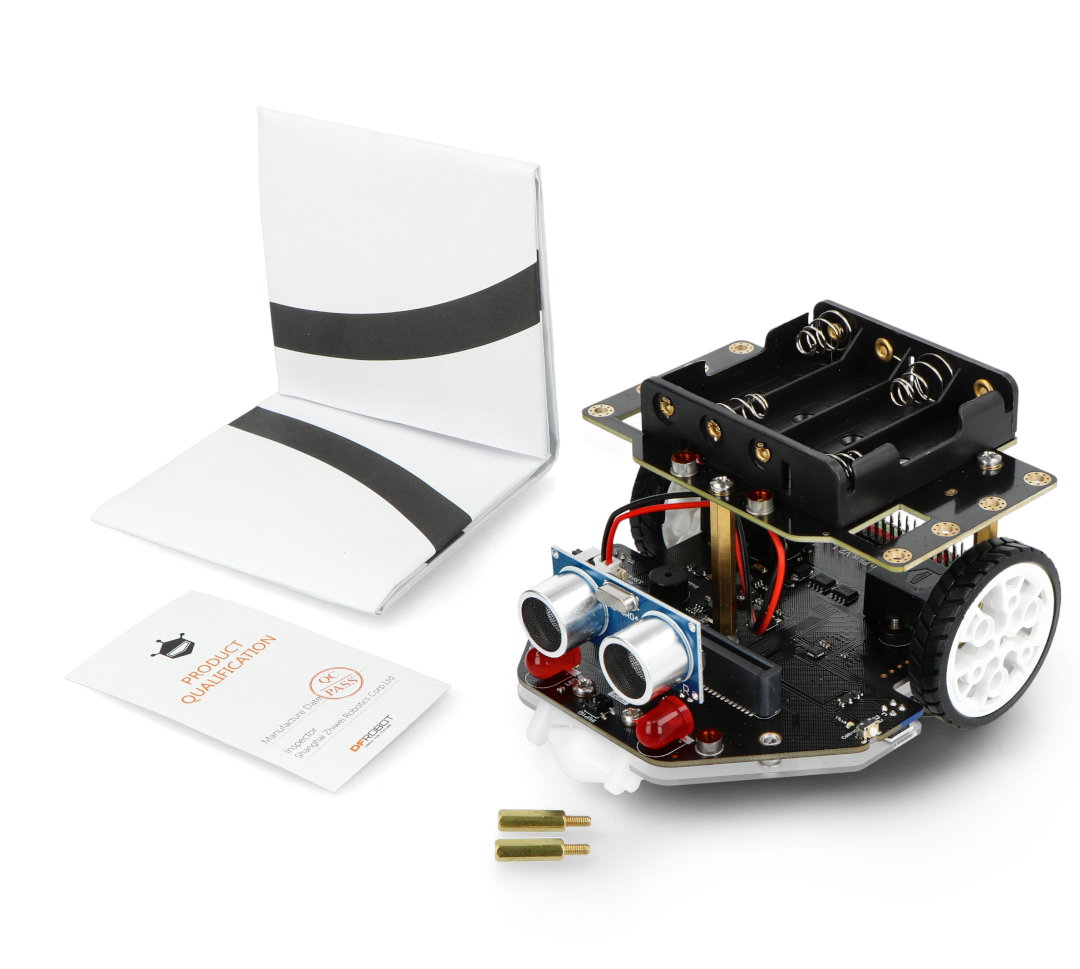

Kit includes:
- Micro robot platform: Maqueen Plus V2.1 - 1 piece.
- Ultrasonic distance sensor - 1 pc.
- Copper distance - 2 pcs.
- Line tracking mat - 1 pcs.
DFRobot micro: Maqueen Plus V2.1.
Comparison of the Plus version and the basic version
| Name | micro: Maqueen | micro: Maqueen Plus V2.1 |
|---|---|---|
| Power supply | 3 x AAA or CR123A (600 to 800 mA) | 4 x Ni-MH rechargeable battery / 4 x AA batteries |
| Rechargeable battery charging system | No | No |
| Battery charge indicator | No | Yes |
| Encoder with PID control | No | No |
| Support for HuskyLens AI camera | No | Yes |
| Support for line tracking sensor calibration | Yes | Yes |
| Support for analog reading from line tracking sensor | No | Yes |
| Number of line tracking sensors | 2 | 5 |
| Number of I/O ports | 4 | 3 |
| Number of servo ports | 2 | - |
| Number of mechanical components | 2 | 16 |
| Speed of motors | 133 rpm | 266 rpm |
| LED color | Red | Large RGB LEDs with 6 colors |
| Ultrasonic Sensor | H-SR04 | HC-SR04 |
| Continuous operating time with HuskyLens | 30 min | 180 min |
| Average operating time | 8 h | 24 h |
| Included map with tracking line | No | Yes |
| Built-in IR receiver and buzzer | Yes | Yes |
| Built-in WS2812 RGB LED | Yes | No |
| Purpose | Elementary classroom teaching | Intermediate level teaching, school workshops, competitions |
Useful links
| Name | Value |
|---|---|
| Robot type | 2-wheel |
| Robot power supply |
|
| Control platform | BBC micro:bit |
| Robot form | Self-assembly |
| Width | 16.5 cm |
| Height | 7.5 cm |
| Depth | 16 cm |
| Weight | 0.41 kg |
