Description

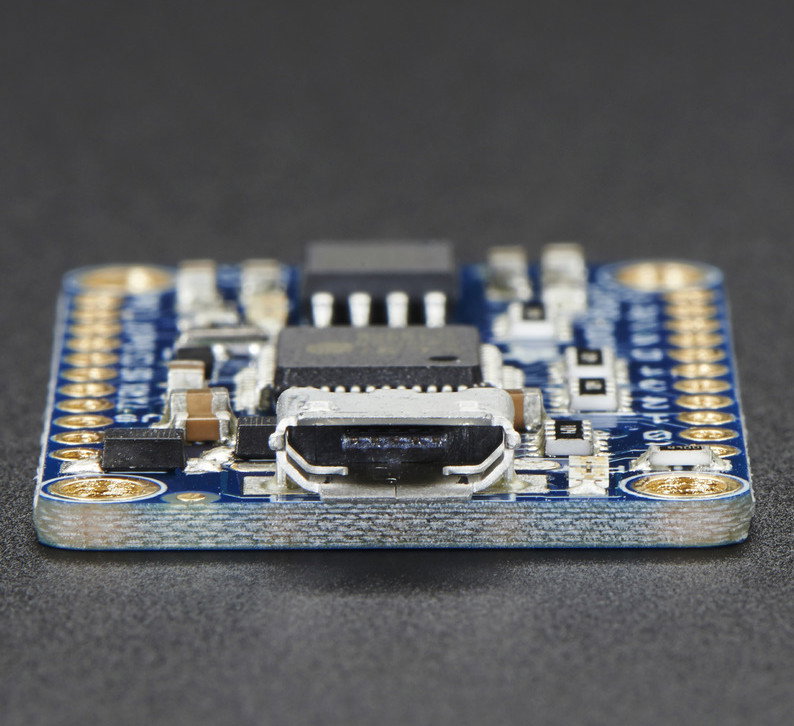

Standalone module which supports playback of wav or oog files stored in memory. The device is powered with voltage from 3 V to 5.5 V, has stereo output which can be programmed via microUSB. This version has 16 MB of internal Flash memory.
Basic module features:
- Does not require additional controller module, it is an independent device.
- The board has small dimensions: 38 x 23 x 4 mm.
- The weight is about 4 g.
- This kit includes goldpin connectors raster 2.54 mm for self-soldering.
- Has a built-in memory, thanks to which it does not require external media. 16 MB is enough to store about 15 minutes of uncompressed stereo sound.
- When connected via USB cable, appears in the system data storage device (such as media) to which you can upload audio files.
- High quality module plays 16-bit stereo sound at 44.1 kHz.
- 8 sources trigger playback can be controlled with the 8 buttons or other sources.
- Five different reactions to the release, configured by changing the file name - without the need for programming details inthe user guide.
- Control via UART interface - any microcontroller, e.g.Arduinousingan existing library.
|
Detailed product description you can be found in the user manual. |
