Description

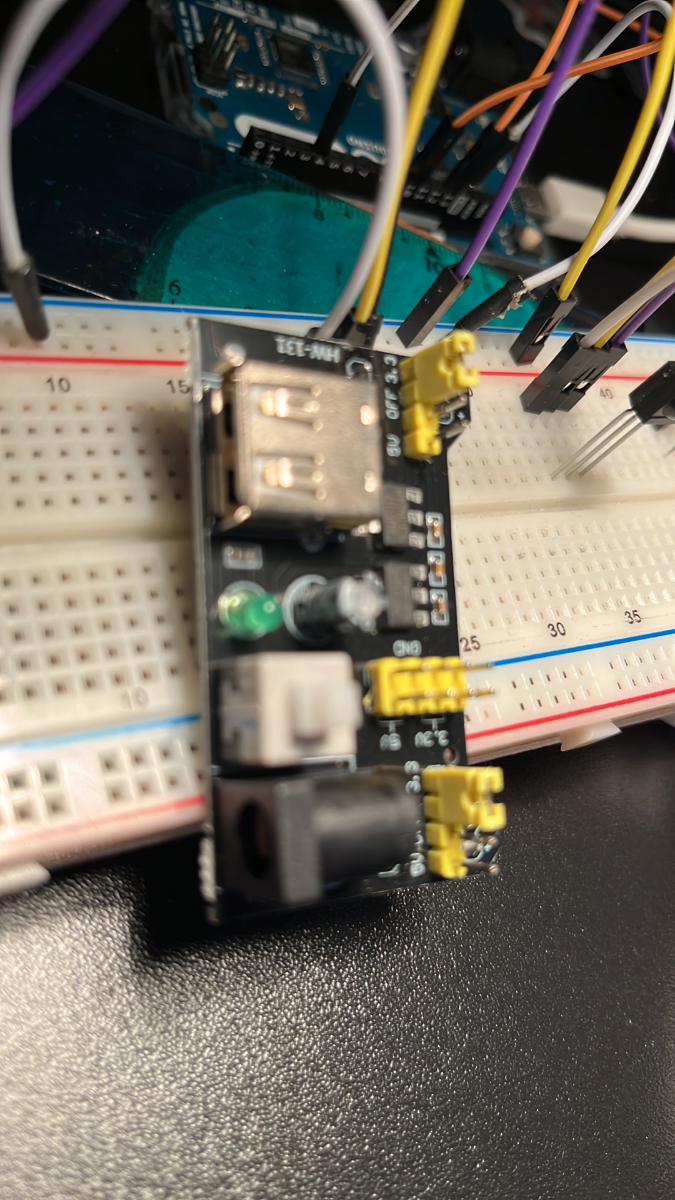

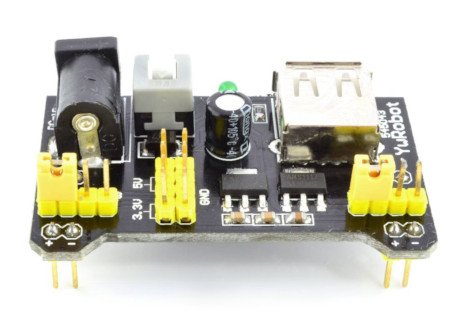

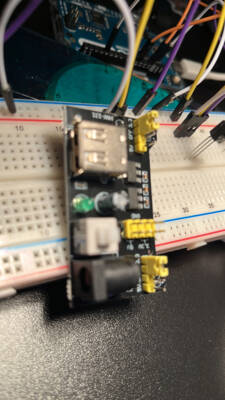

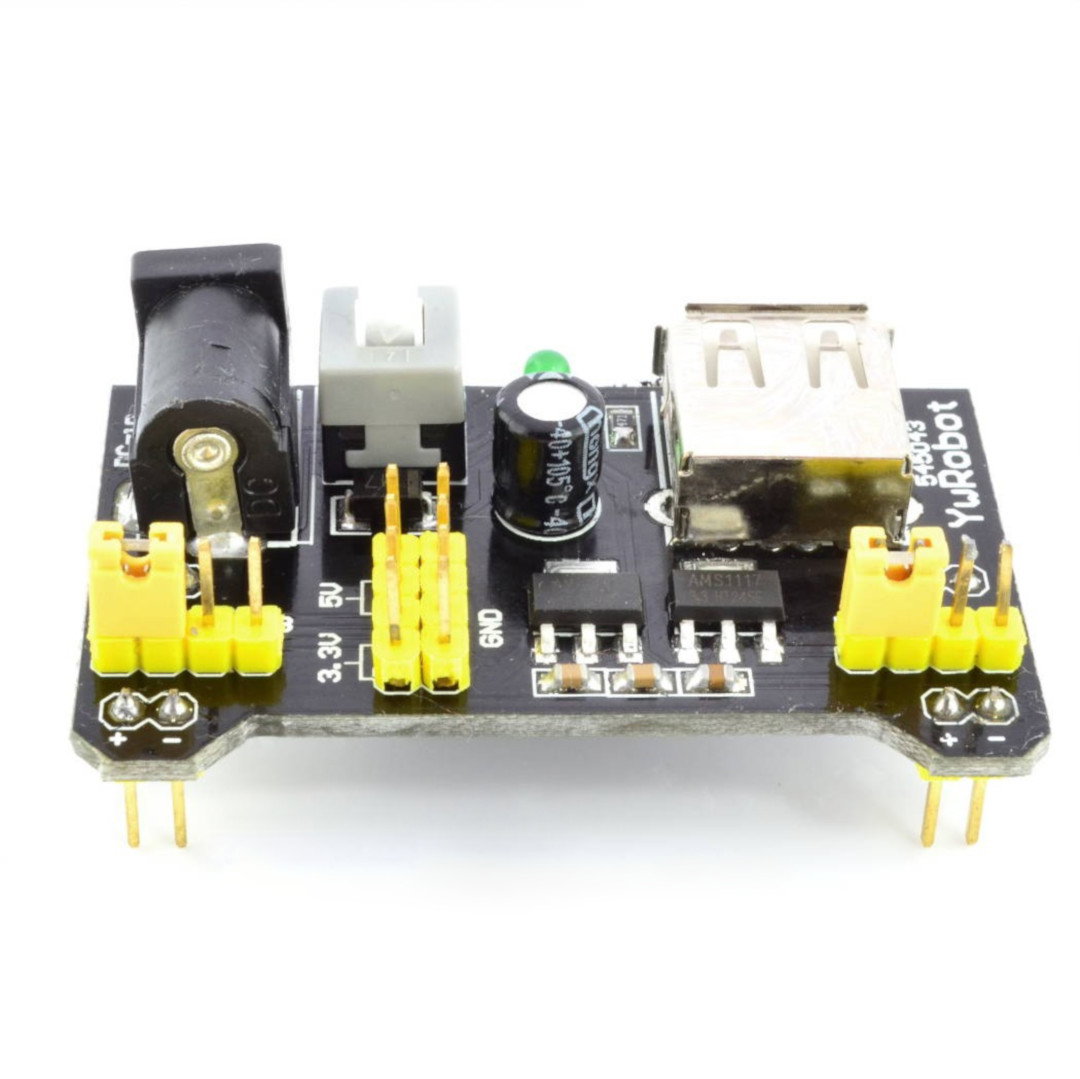

The module allows, in a simple way, to bring the supply voltage of 5 V or 3.3 V to the prototype breadboard. The system is equipped with a popular DC connector to connectthe AC adapter. The device also has a USB output,type A, enabling the lead of the 5V power for other systems, e.g. Arduino. Using the jumpers, the user selects a level of voltage of 3.3 V or 5 V, for a given rail of board. Power indicated by the LED, can be disabled with the button.
Specification
- Output voltage: 3.3 V or 5V
- Output current: max. 700 mA
- Installed On-Offswitch, which allows turning off the power at any moment
- LED indicating the power connection
- USB output, type A enabling the lead of the 5V power for other systems
- DC 2.1 mm x 5.5 mm input, allowing you to attach thenetwork adapter 6.5 V - 12 V
The choice of the supply voltage
The output voltage is selected using jumpers on each side rail of the breadboard. At a user disposal is the value of 5 V and 3.3 V (you can choose any value on each line). In addition, power will be connected using the connector located in the central part of the board using the wires.
