Pico-UPS-A - Wireless UPS module for Raspberry Pi Pico - Waveshare 19694

Index: WSR-19359 EAN: 5904422364601

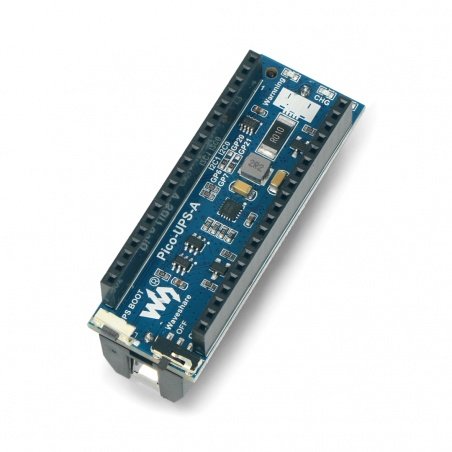

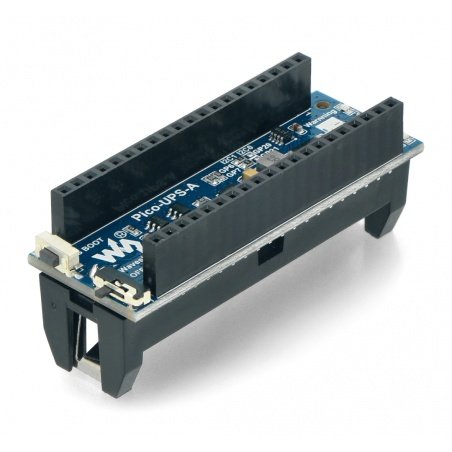

Overlay in a form of UPS module supplying power from a wireless source. Dedicated to Raspberry Pi Pico version. It has space for single cell 14500 lithium ion battery which needs to be purchased separately. Extension connects to Raspberry via GPIO interfaces and uses I2C bus for communication.
Pico-UPS-A - Wireless UPS module for Raspberry Pi Pico - Waveshare 19694
€17.34
€14.10 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: Pico-UPS-A - Wireless UPS module for Raspberry Pi Pico - Waveshare 19694

An overlay in the form of aUPS modulesupplyingpowerfrom a wireless source. Dedicated to Raspberry Pi Pico version. It has space for a single cell14500lithium ion battery, which must be purchased separately. The extension connects to Raspberry via GPIO connectors, also using I2C bus for communication purposes.

Product compatible with Raspberry Pi Pico

Aproduct wiki pageis available on the manufacturer's website, which includes a detailed user guide to help you get started with the module.

Moduł zasilania bezprzewodowego UPS do Raspberry Pi Pico.

Wireless UPS power module for Raspberry Pi Pico.

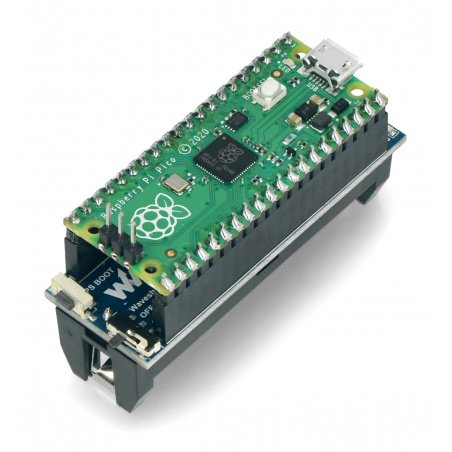

Sposób połączenia elementów. Moduł Raspberry Pi Pico nie jest częścią zestawu, można go nabyć osobno w naszym sklepie.

How the components are connected. The Raspberry Pi Pico module is not part of the kit, it can be purchased separately from our store.

Special features of the cap

  • Dedicated to Raspberry Pi Pico version
  • Equipped with voltage and current monitoring circuit
  • Enables monitoring of the battery through the I2C bus providing voltage, current and charge level data
  • Provides a stable power supply to the device, thanks to the built-in equalizing charge function
  • Equipped with protective circuits such as protection against overcharge and critical discharge, overcurrent protection, short-circuit protection, protection against reverse plugging of the cell

We also offer otherextensions for Raspberry Pi Pico. We invite you to familiarize yourself with the range of Botland store.

Technical specification of UPS module

  • Type: plugin for Raspberry Pi Pico
  • Module: wireless UPS
  • Charging voltage: 5 V
  • Communication interface: I2C bus
  • Number of slots per cell: 1
  • Battery type:14500Li-Ion rechargeable battery (not included)
  • Overlay dimensions: 60 x 21 mm

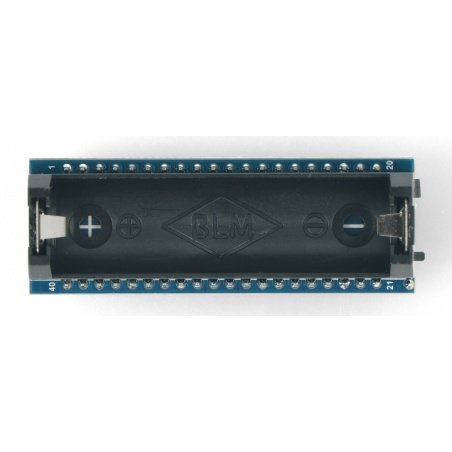

Nakładka posiada miejsce na jedno ogniowo akumulatora 14500.

The cap has space for one 14500 battery cell.

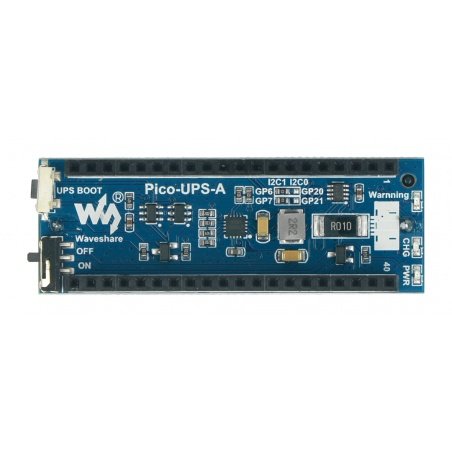

Rozmieszczenie elementów.

Arrangement of components.

Arrangement of components on the cap from Waveshare

  1. ChargeETA6003
  2. voltage/current monitoringINA219
  3. lithium-ion battery protection circuitS8261
  4. Lithium-ion battery protection MOSFS8205
  5. MOS chip withback-protectionAO3400
  6. Back-protect MOS chipSI2305
  7. Rapsberry Pi Pico connectorsfor direct connection to Raspberry Pi Pico
  8. Power switch
  9. Activationbuttonthat activates the protection circuit when the battery is replaced
  10. Battery holder 14500
Cell - case 14500
Cell 1
Cell - Type Li-Ion
