RP2040-LCD-0.96 - board with RP2040 microcontroller and IPS LCD display - Waveshare 20330
This board from Waveshare features the Raspberry RP2040 microcontroller, which is also found in the Raspberry Pi Pico. The RP2040-LCD-0.96 has two ARM Cortex-M0+ cores clocked at up to 133 MHz, 264 kB of on-board SRAM and 2 MB of Flash memory. The module also features a 0.96 inch color IPS LCD with a resolution of 160 x 80 pixels. The platform supports popular MicroPython, CircuitPython and C/C++ programming languages. Programs can be loaded into the memory using the USB type C interface.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: RP2040-LCD-0.96 - board with RP2040 microcontroller and IPS LCD display - Waveshare 20330
A board from Waveshare featuring the Raspberry RP2040 microcontroller, which is also found in the Raspberry Pi Pico. The RP2040-LCD-0.96 has two ARM Cortex-M0+ cores clocked at up to 133 MHz, 264 kB of on-board SRAM and 2 MB of Flash memory. The module also features a 0.96 inch color IPS LCD with a resolution of 160 x 80 pixels. The platform supports popular MicroPython, CircuitPython and C/C++ programming languages. Programs can be uploaded to the memory using the USB type C interface.

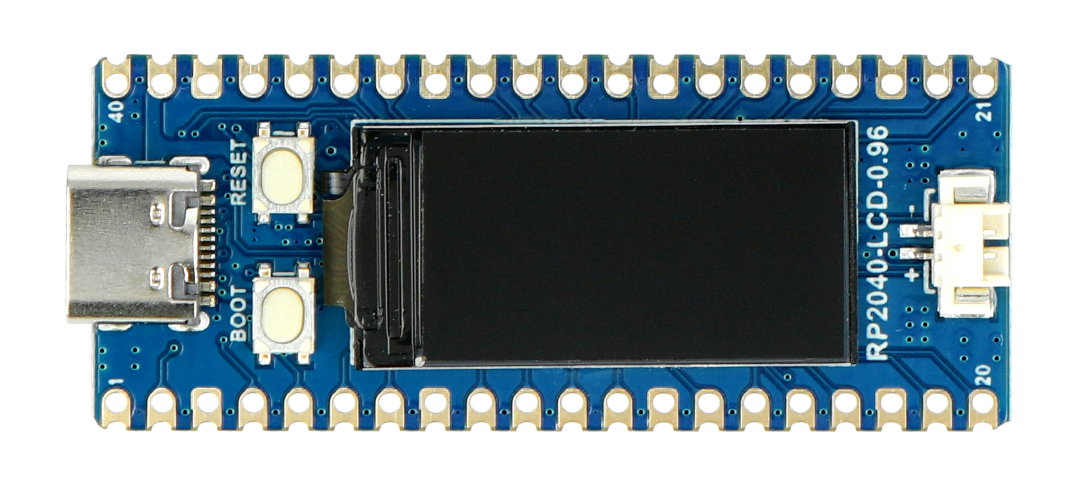

RP2040-LCD-0.96 - board with RP2040 microcontroller and IPS LCD display - Waveshare 20330.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.

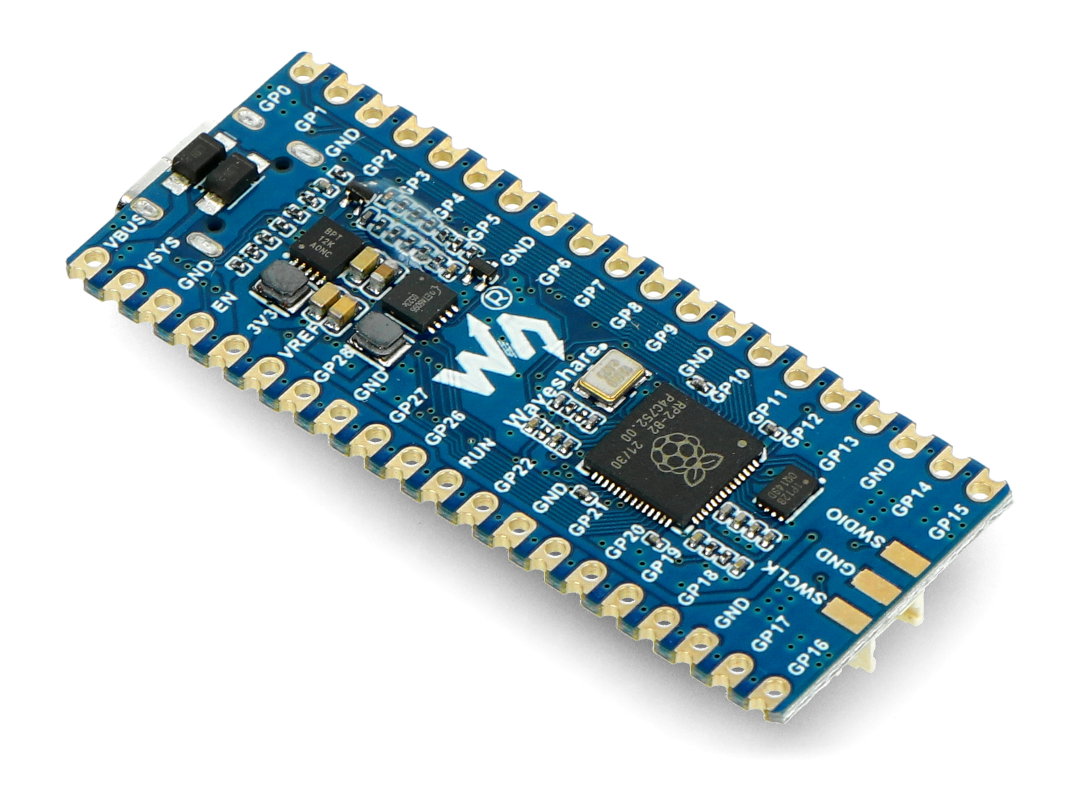

RP2040-LCD-0.96 - rear view.
Features of the RP2040-LCD-0.96 board
- Equipped with our own RP2040 microcontroller chip designed in the UK
- Dual core Arm Cortex M0+ processor
- 0.96" color IPS LCD display with 160 x 80 pixels and 65K display colors
- Lithium battery charge/discharge port - suitable for mobile devices
- Built-in TPS63000 DC-DC chip, high efficiency DC-DC buck-boost circuit, 1.8 A current switch
- USB 1.1 with device and host support
- Drag-and-drop programming using USB mass storage
- 26 multi-functional GPIO pins compatible with Raspberry Pi Pico pinouts
- 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM interfaces
- Built-in temperature sensor
- 8x programmable I/O (PIO) to support custom peripherals
Arrangement of elements on the board
- USB type C connector
- BOOT button
- Reset button
- 0.96", 160 x 80 px, 65K color IPS LCD display
- MX1.25 battery connector, for 3.7V lithium battery, enables simultaneous battery charging and board powering
- TPS63000 - high performance DC-DC buck-boost circuit
- ETA6096 high-performance lithium battery charge manager
- RP2040 dual-core processor, operating frequency up to 133 MHz
- W25Q16JVUXIQ - 2 MB NOR-Flash memory
- Debugging pins
- Pinouts compatible with Raspberry Pi Pico

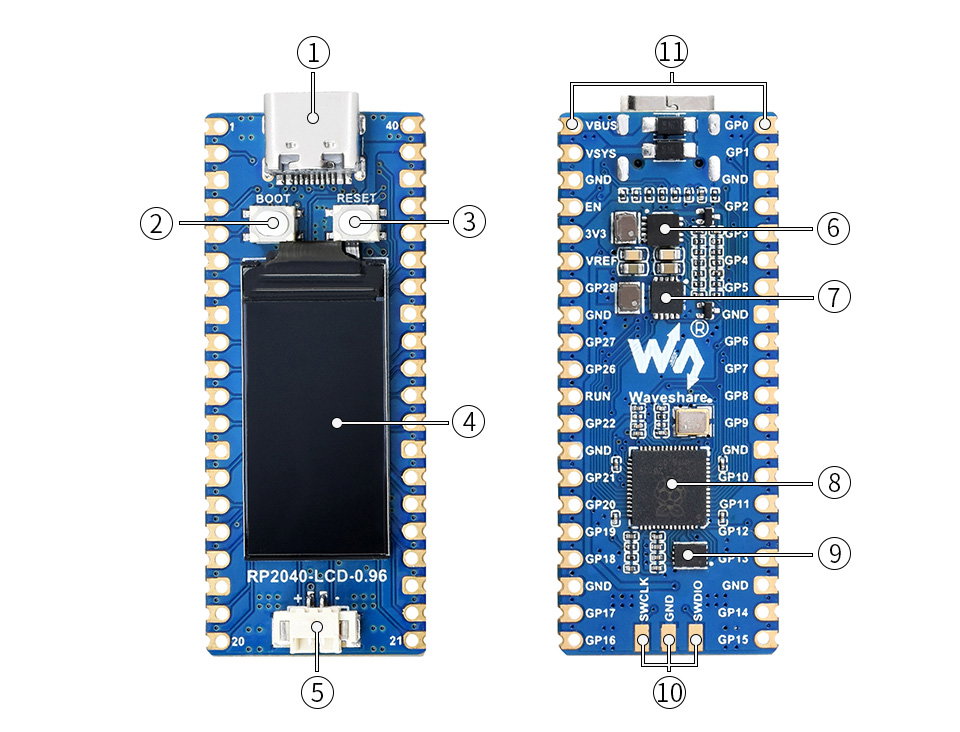

Elements layout on the board.

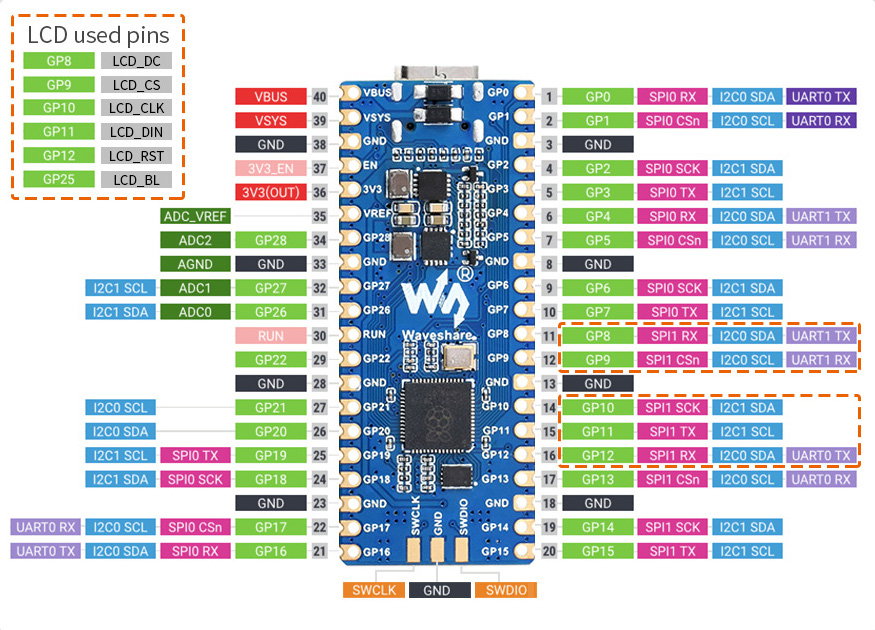

Pinouts description.
Pinouts description
- Red - power pins
- Black - ground pins
- Violet - pins of UART communication interface
- Light green - GPIO, PIO and PWM pins
- Dark green - ADC pins
- Pink - SPI interface pins
- Orange - debugging pins
- Pink - System Control pins
- Blue - I2C interface pins
PCB specifications from Waveshare
- Chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ Dual-Core 133 MHz
- SRAM: 264 kB
- Embedded Flash memory: 2 MB
- Pinouts: 26 multi-function GPIO pins
- Interfaces: 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM
- Display: LCD IPS
- Diagonal: 0,96''
- Resolution: 160 x 80 px
- Display colors: 65k colors
- Development environment: Raspberry Pi C/C++ SDK or MicroPython
- Power connector: USB type C
- Board dimensions: 51 x 21 mm
- Display dimensions: 28 x 13.5 mm

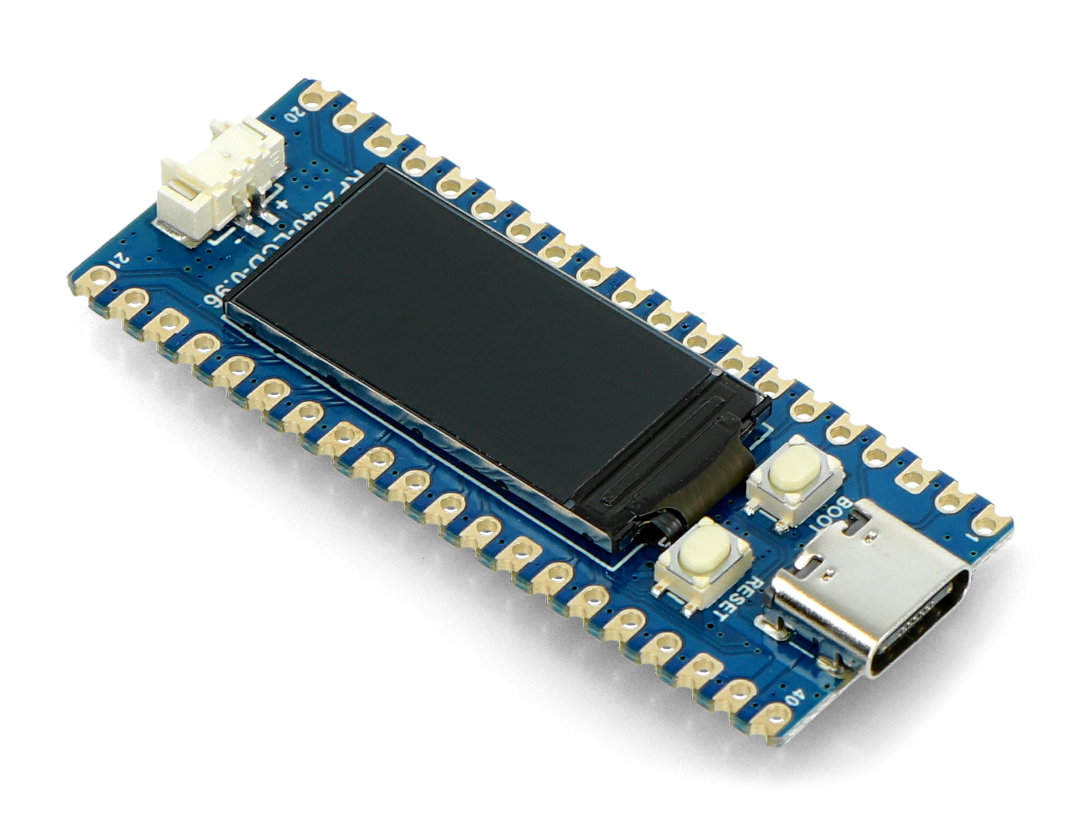

The board also has an IPS LCD display.
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 0,96" |
| Screen - resolution | 160 x 80 px |
| UC - Microcontroller | RP2040 |
| UC - Core | ARM Cortex-M0+ |
| UC - core | 2. Dual Core |
| UC - freq | 133 MHz |
| UC - A/C | 12-bit |
| UC - USB | USB C |
| Width | 5 cm |
| Height | 7 cm |
| Depth | 2.4 cm |
| Weight | 0.011 kg |
