Flame sensor - 760-1100nm - Iduino SE060

Index: OST-14255 EAN: 5903351242271

The sensor used to detect fire. It is powered with the voltage from 3.3 V to 5 V. The range of the detected wave is from 760 nm to 1100 nm, detection angle is 60 °. The detection sensitivity is adjustable via potentiometer. The output is a digital or analog signal.

Flame sensor - 760-1100nm - Iduino SE060
€1.90
€1.54 tax excl.
Delivery 10 pcs scheduled for 2024-03-29
Waiting for delivery
PayPal payment
Manufacturer: Iduino

Product description: The flame sensor Iduino 760 - 1100 nm

The sensor used to detect fire. It is powered with the voltage from 3.3 V to 5 V. The range of the detected wave is from 760 nm to 1100 nm, detection angle is 60 °. The detection sensitivity is adjustable via potentiometer. The output is a digital or analog signal.

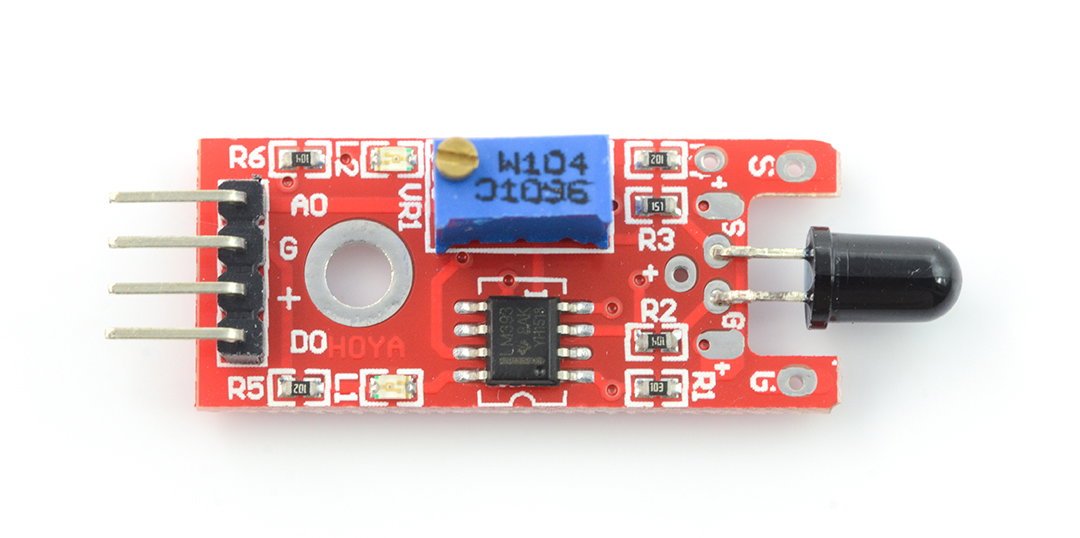

Czujnik płomieni

Connecting the flame sensor

The module is equipped with 4 pins in the form of the goldpin pins. It has digital and analog output signal, it communicates with any device equipped with a microcontroller, e.g.an Arduino.

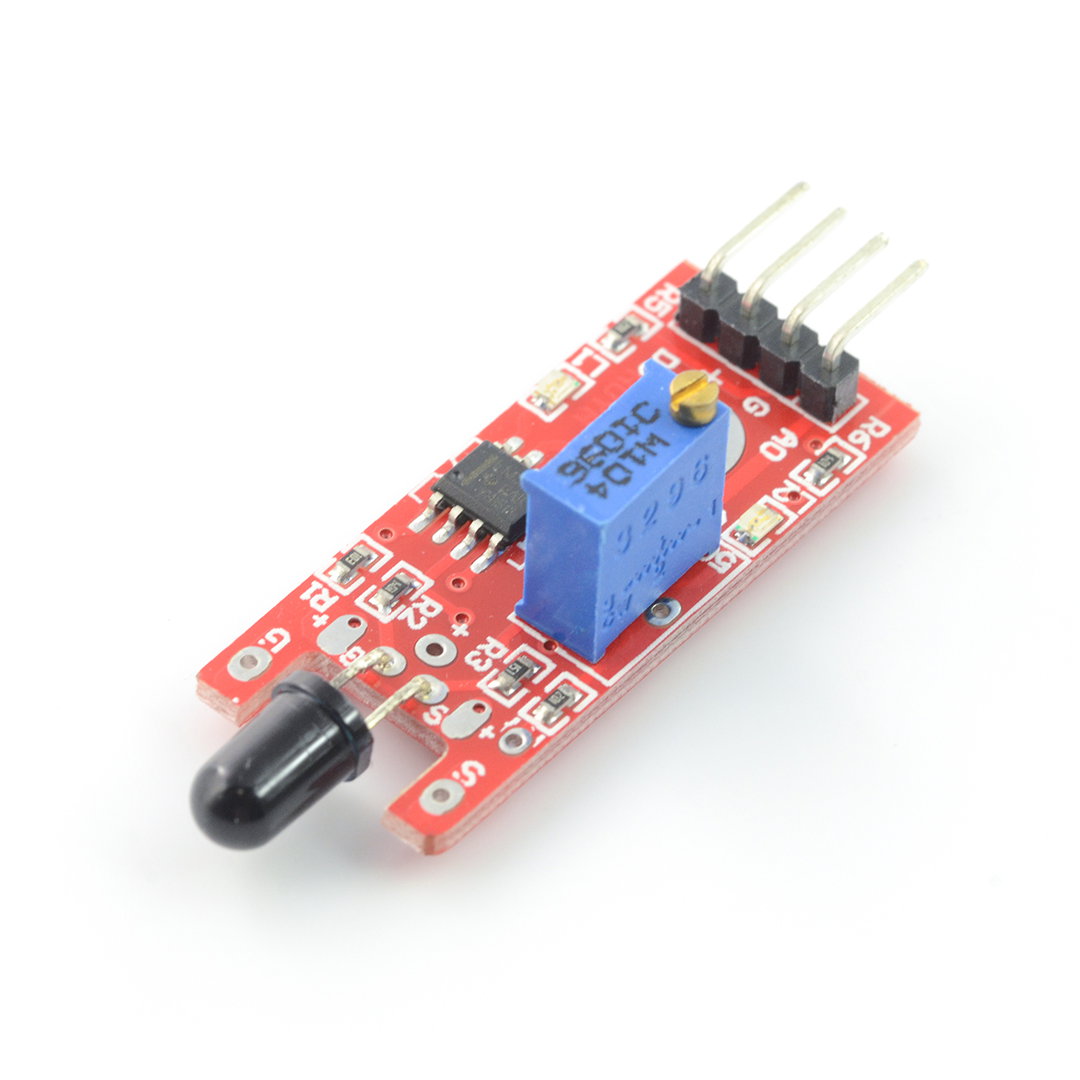

Czujnik płomieni Iduino

Pin Description
A0 Analog output signal.
D0 The digital output signal.
+ Supply voltage of 5 V (for analog), 3.3 V (for digital).
GND The ground of the system.

Specification of the flame sensor

  • Supply voltage: from 3.3 V to 5 V
  • Communication: digital or analog
  • The detection range of waves: from 760 nm to 1100 nm
  • Detection angle: 60°
  • Adjustable sensitivity
  • Operating temperature: -40°C to 85°C
  • Operating humidity: 30% to 90%
  • Storage temperature: from -5°C to 30°C
  • Storage humidity: 20% to 75%
  • Dimensions: 47 x 15 x 13 mm

Interface Digital I / O
Sensor - type flames
Sensor - Temperature to 85 °C
Sensor - Temperature from -40 °C - 120 °C
Package width 3 cm
Package height 5 cm
Package depth 1.5 cm
Package weight 0.004 kg
