Product description: Smart thermostatic head LoRaWAN - Milesight WT101-868M
Milesight WT101 is an advanced thermostatic head , using LoRaWAN technology, which provides a long communication range of up to 15 km . The built-in ambient temperature sensor automatically regulates the water flow, maintaining stable thermal conditions. The head supports up to 16 individual heating schedules and offers features such as open window detection, anti-theft protection and parental control. Easy NFC setup and the manufacturer's intuitive application simplify use. Thanks to replaceable batteries with a lifespan of up to 5 years and various mounting adapters, the WT101 fits most radiators, and its durable ABS and steel construction guarantees reliability in all conditions.

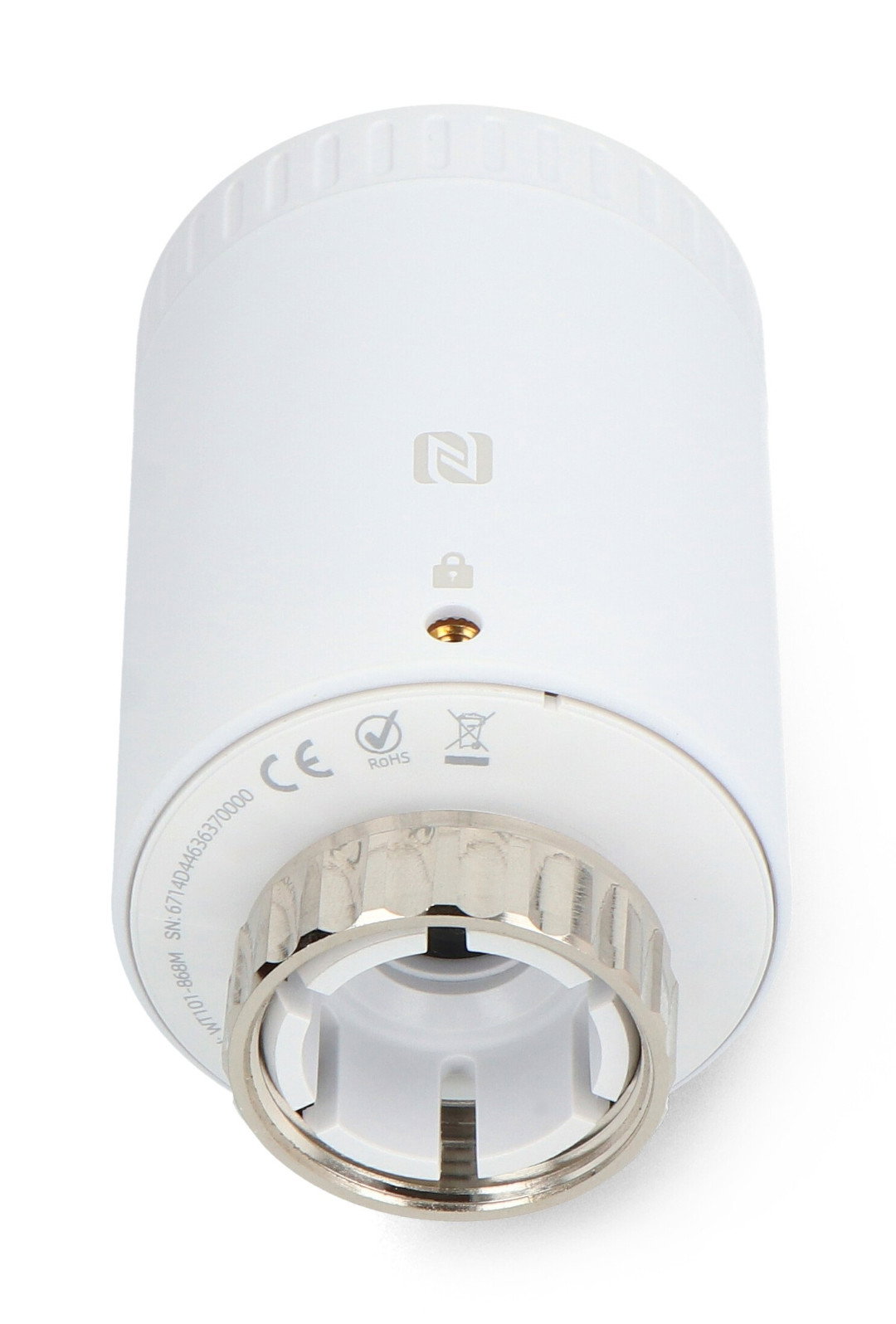

LoRaWAN intelligent thermostatic head - Milesight WT101-868M.
The head has a system for detecting when a window is open in the room.
Main features of the head
- Intelligent temperature control with LoRaWAN technology
- Support for up to 16 configurable heating scenarios
- Open window detection, anti-theft protection and parental control
- Built-in temperature sensor with an accuracy of ± 0.5°C
- Simple NFC setup and compatibility with Milesight IoT Cloud app
- Range up to 15 km thanks to the LoRaWAN protocol
- Up to 5 years of operation on replaceable Li-Fe batteries
- Mounting compatible with M30 x 1.5 mm valves and others thanks to adapters
Remote heating control and advanced automation
The Milesight WT101 thermostatic head enables remote management of room temperature using LoRaWAN technology. Thanks to support for mobile applications, you can monitor and adjust heating from anywhere. Milesight WT101 is fully compatible with LoRaWAN gateways and the Milesight IoT Cloud platform. This allows you to easily manage not only heating, but also other IoT devices in one system. The head offers up to 16 configurable heating scenarios , such as turning off radiators after working hours. The open window detection function automatically reduces heating, which prevents energy waste.

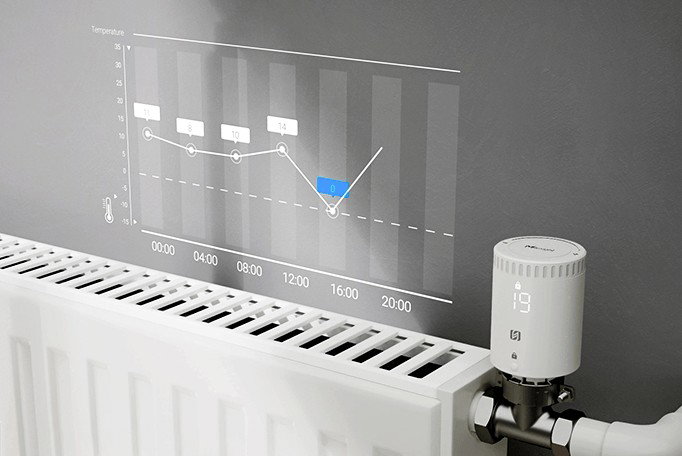

The head supports up to 16 heating schedules.

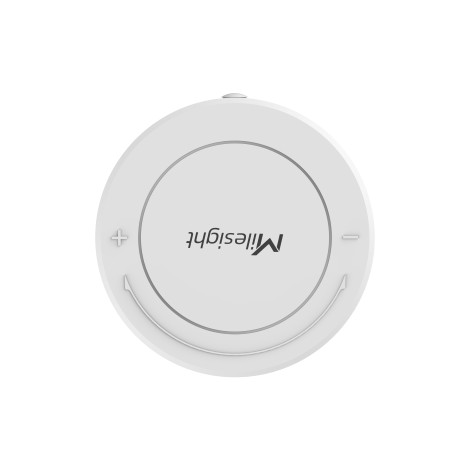

The built-in LED display allows you to view the current temperature.
Precise temperature maintenance and long operating time
Thanks to the built-in temperature sensor with an accuracy of ± 0.5 ° C, Milesight WT101 regulates the water flow in the radiator to ensure stable and optimal thermal conditions in the room. The device is powered by replaceable Li-Fe batteries that last up to 5 years . The solid steel and ABS construction and compatibility with M30 x 1.5 mm radiator valves make the WT101 a durable solution for years.
Easy installation and configuration
The device is installed quickly thanks to a set of valve adapters. Configuration is done via NFC and a dedicated mobile application , which allows for quick start-up of the device without specialist knowledge. The intelligent radiator head reduces heating costs by optimizing energy consumption . Automatic adjustment of temperature to the needs of users allows for more ecological management of heating in residential and commercial buildings.

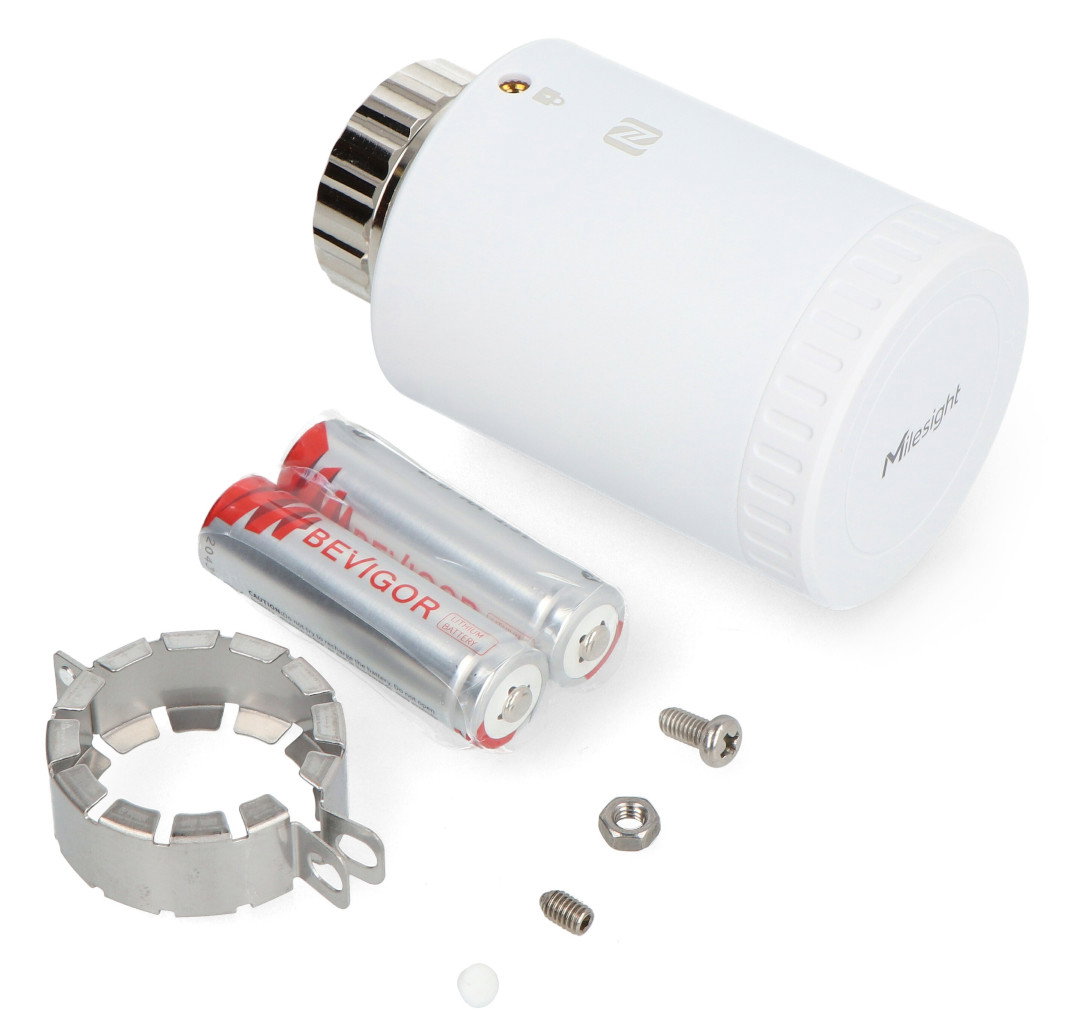

Items included in the set.
Technical specification
- Model: WT101-868M
- Protocol: LoRaWAN
- Frequency: IN865 / RU864 / EU868
- Transmission power: 16 dBm (868 MHz)
- Sensitivity: -137 dBm
- Communication mode: OTAA / ABP Class A
- Valve connector: M30 x 1.5 mm
- Temperature measurement range: 0°C to 60°C
- Temperature measurement accuracy: ± 0.5°C
- Temperature measurement resolution: 0.1°C
- Power supply: 2x 3000 mAh Li-Fe replaceable batteries (up to 5 years)
- Material: steel + ABS
- Communication range: up to 15 km
- Degree of protection: IP30
- Dimensions: 52 x 90 mm
- Weight: 200 g
Kit Contents
- 1x Thermostatic head WT101 (with valve base)
- 2x Li-Fe Batteries (factory installed)
- 1x Mounting screw
- 1x Fixing nut
- 1x User Guide
- 1x Warranty card
