Aqara W500 UT-A01D - floor heating thermostat - ZigBee/Thread/Matter
The Aqara W500 floor heating thermostat controls heating up to 16 A and 3600 W, supports Zigbee and Thread, and works with Apple Home and Home Assistant via Matter.
- Built-in temperature and humidity sensor plus an NTC sensor
- Energy consumption measurement and a 7-day schedule
- Open window detection and floor overheating protection
We could not load the price.
The promotional price does not combine with quantity discounts.
Aqara W500: floor heating thermostat with Zigbee, Thread and Matter
Aqara Floor Heating Thermostat W500 is a wall-mounted thermostat for electric and water underfloor heating that supports Zigbee, Thread and the Matter standard. Via Matter it works with Apple Home and Home Assistant, it has a built-in temperature and humidity sensor, and the NTC floor sensor in the box protects the floor against overheating.
The thermostat controls resistive loads up to 16 A and 3600 W at 230 V, measures energy consumption and follows a weekly schedule in which you can set up to 7 periods with different temperatures. You change the Home, Away, Relax, Sleep and Vacation presets with the buttons on the panel or in the app.
- Open window detection that pauses heating for 30 minutes
- Temperature hysteresis from ±0.5 °C to ±3 °C, which reduces frequent switching of the heating
- Sensor calibration from -5 °C to 5 °C in 0.5 °C steps

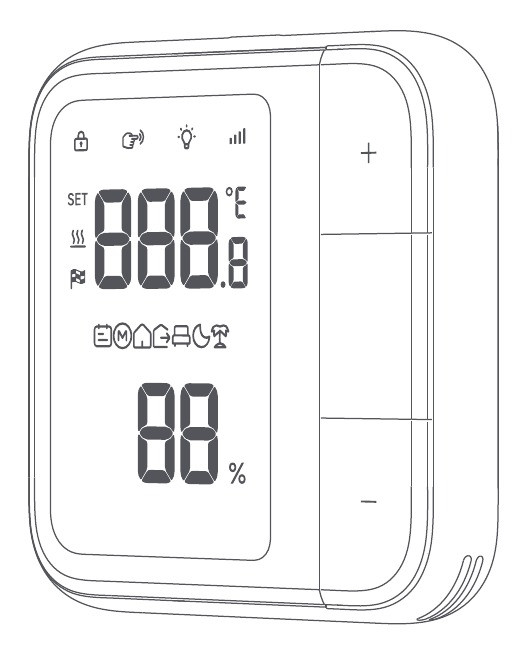

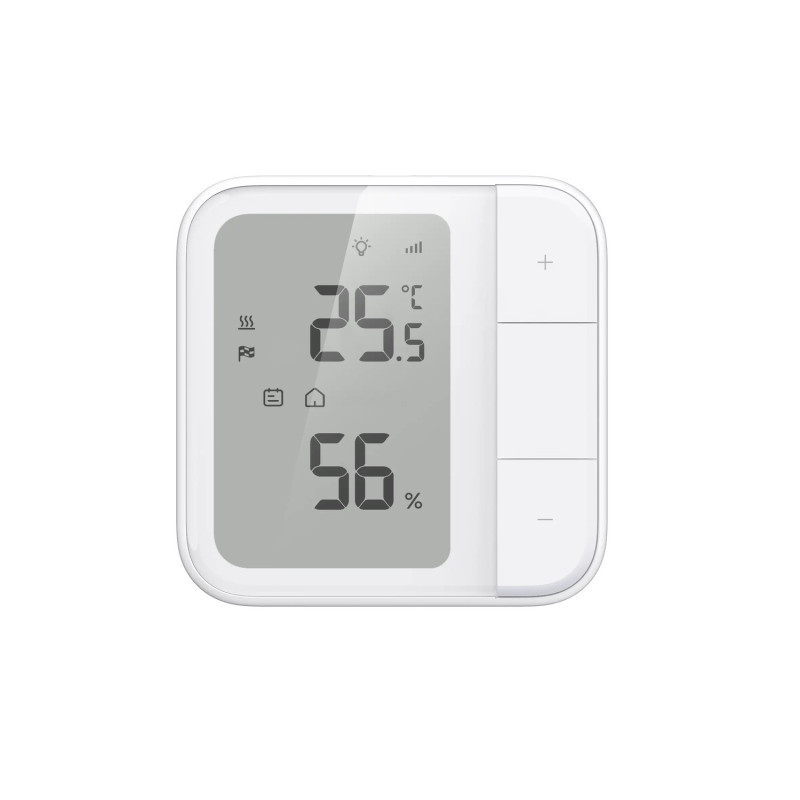

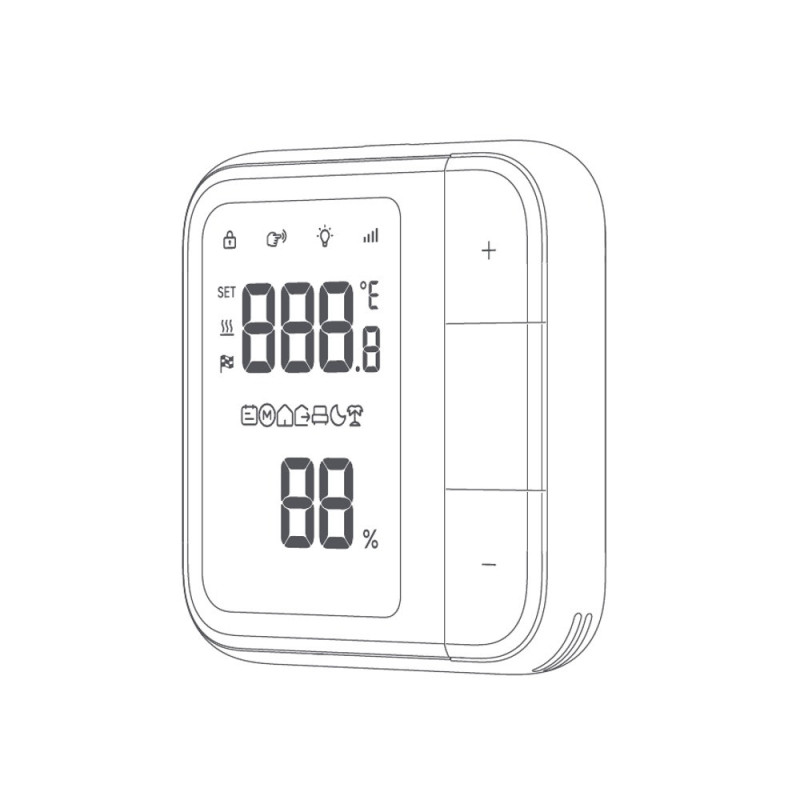

Aqara W500 thermostat with an LCD screen and buttons
16 A / 3600 W
max. resistive load at 230 V
Zigbee / Thread
wireless connectivity with Matter support
NTC
floor temperature sensor included
86 x 86 x 46.8 mm
thermostat dimensions
Installing the Aqara W500 thermostat
Official Aqara video: how to install the W500 floor heating thermostat.
Video: the manufacturer's official YouTube channel.
Is it a good choice for you?
A good choice if:
- you have electric underfloor heating or a water system with NC actuators and want to control it from your phone
- you are building a smart home on Matter, for example in Apple Home or Home Assistant
- you want to track heating energy consumption and set a weekly schedule
Consider another option if:
- you want to control a radiator with a thermostatic valve: choose Tuya - ZigBee thermostatic head
- you prefer a WiFi heating controller without a hub and without Matter: see BleBox ThermoBox
Fun fact
A manual change does not break the schedule
When the schedule is running and you change the temperature manually, the W500 keeps the new setting for 2 hours by default and then returns to the programme on its own. You can change the length of this break in the Aqara Home app when the thermostat works in Zigbee mode. The schedule covers all 7 days of the week, and a single schedule has up to 7 periods, each lasting at least 15 minutes.
Source: Aqara W500 user manual (PDF)
Frequently asked questions
What do I need to control the Aqara W500 from my phone?
The Aqara Home app requires a compatible Aqara hub within range of the thermostat. Via Matter you can add the W500 to, for example, Apple Home or Home Assistant if you have a Matter-compatible Thread border router.
Which floor sensor does the W500 support?
An NTC sensor is included, and the thermostat supports NTC sensors with a resistance of 10, 50 or 100 kΩ at 25 °C. When the sensor is connected, the thermostat enables floor overheating protection by default and then switches off the heating.
Does the W500 thermostat detect an open window?
Yes. When the temperature drops by 2 °C within 3 minutes, the thermostat pauses heating for 30 minutes. With the Aqara Door and Window Sensor the pause starts when the window has been open for more than 3 minutes.
Package contents
- 1 x Aqara W500 thermostat
- 1 x NTC floor temperature sensor
- 1 x Screw set
- 1 x User manual
- 1 x Declaration of conformity
An Aqara hub and a Thread border router are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Model | UT-A01D |
| Type | thermostat for electric and water underfloor heating |
| Connectivity | Zigbee, Thread, Bluetooth |
| Ecosystems | Aqara Home (with an Aqara hub), Matter (via a Thread border router) |
| Power supply | 220-240 V AC, 50/60 Hz (user manual), 220-250 V AC (manufacturer website) |
| Max. load | 16 A, 3600 W at 230 V AC (resistive) |
| Compatible systems | electric heaters L and N, two-wire NC water actuators |
| Sensors | built-in temperature and humidity sensor, NTC floor sensor |
| Supported NTC sensors | 10, 50 or 100 kΩ at 25 °C |
| Schedule | 7 days, up to 7 periods per schedule, min. period 15 min |
| Temperature hysteresis | ±0.5 °C to ±3 °C |
| Sensor calibration | -5 °C to 5 °C, 0.5 °C step |
| Protection | floor overheating, device overheating and overload |
| Dimensions | 86 x 86 x 46.8 mm (user manual), 86 x 86 x 45 mm (manufacturer website) |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 0 %-90 % RH, non-condensing |
| Use | indoor only |
