Product description: Sonoff MINI-RBS-E Orb-RBS - smart wall switch for WiFi roller blinds / Matter - white
The Sonoff Orb-RBS (model MINI-RBS-E) from the Fusion series is a single-channel, Matter-enabled WiFi smart blinds switch , designed to upgrade classic electric blinds. The device communicates via IEEE 802.11 b/g/n 2.4 GHz WiFi and requires a neutral wire for proper operation. The maximum motor current is 1A , and the power supply ranges from 100V to 240V~ 50/60Hz . Thanks to support for the Matter standard, the switch can be added directly to popular smart home ecosystems without the need for proprietary platforms.
Sonoff MINI-RBS-E Orb-RBS - Smart Wall Switch for Roller Blinds WiFi / Matter - White.

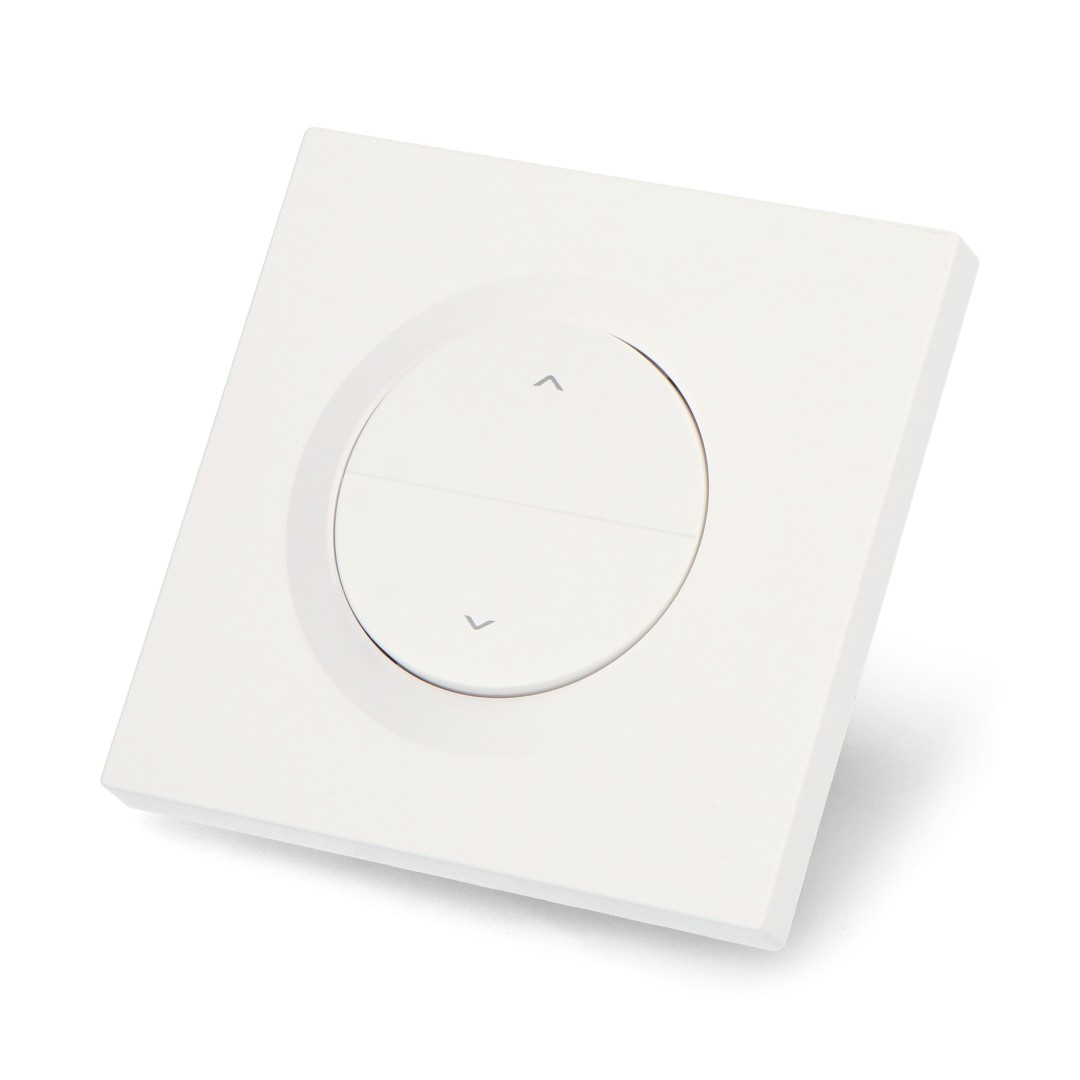

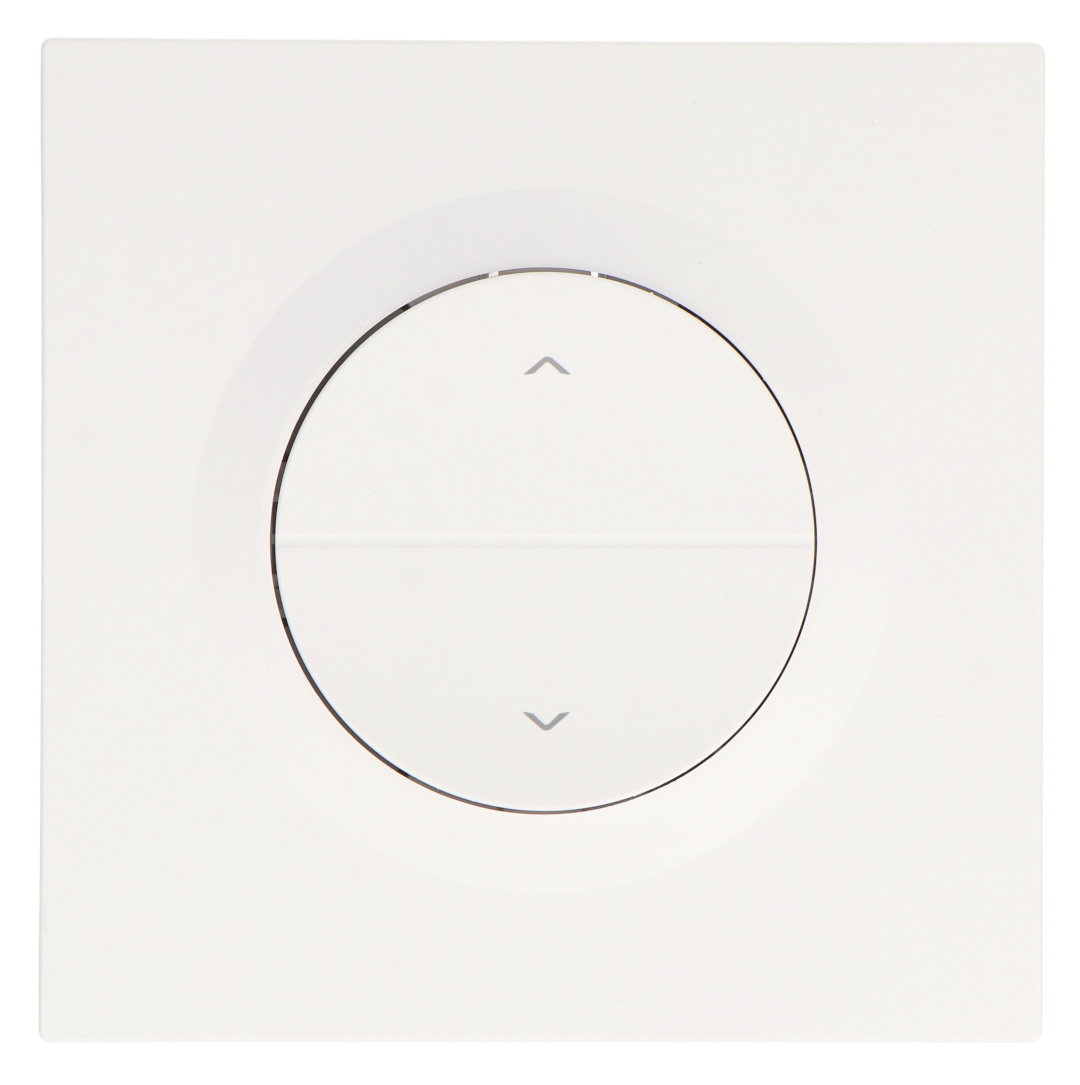

Wall switch designed to control blinds, shutters and curtains.
Main features of the Sonoff MINI-RBS-E roller shutter switch
- Wireless connectivity : WiFi IEEE 802.11 b/g/n 2.4 GHz ensures a stable connection to the home network and the ability to control from anywhere via a mobile application or locally in the LAN network
- Communication standard : Matter over WiFi enables seamless integration with multiple Smart Home ecosystems without the need for a proprietary platform
- Percentage control : precise adjustment of the blind position from 0% to 100% after calibration, allowing you to precisely control the amount of light in the room
- Direction reversal function : possibility of electronically reversing the motor's direction of operation without the need to reconnect the L out1 and L out2 cables
- Schedules and timers : automatic opening and closing of blinds at specific times, support for countdowns and cyclical automation scenes
- Local control : LAN communication support allows you to control the device even when there is no internet access at a moment.
- Roller shutter calibration : automatic or manual calibration available, increases the accuracy of percentage control and improves the synchronization of end positions
- Modern design : compact dimensions of 86 x 86 x 34 mm, housing made of durable PC material and compatibility with Fusion series frames enable aesthetic installation in standard installation boxes
Installation and connection of the WiFi roller shutter switch

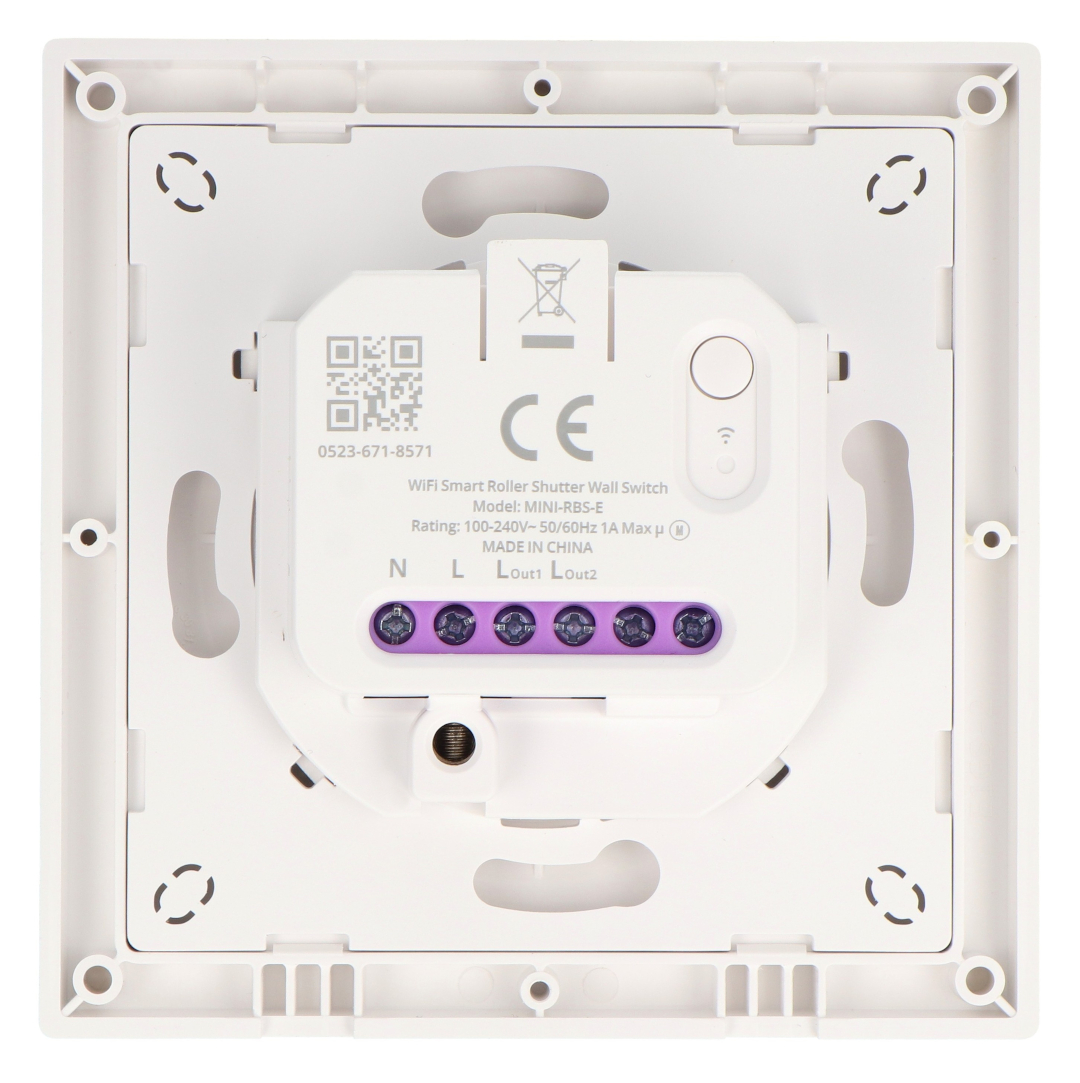

The Sonoff Orb-RBS requires a live wire (L), a neutral wire (N), and two motor control outputs (Forward and Reverse). It is designed for AC motors powered from 100V to 240V with a maximum current consumption of 1A . It is recommended to use a 1A overcurrent protection device upstream of the device. It can be mounted in type 86 and round 60mm diameter junction boxes . Installation should be performed by a qualified electrician with the power disconnected.

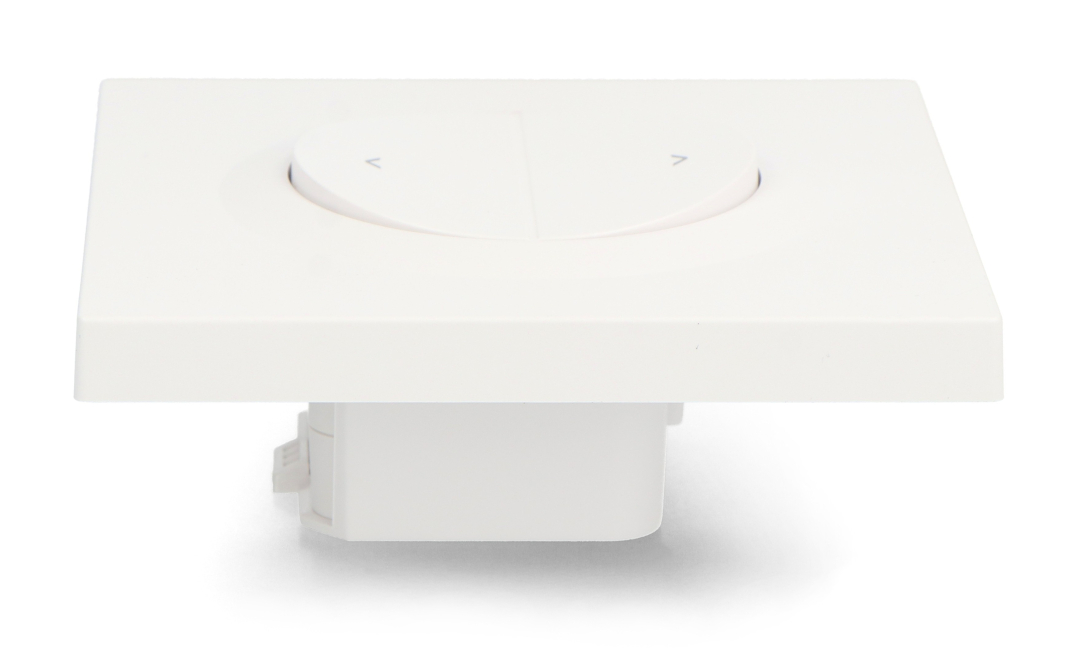

The switch is suitable for installation in type 86 boxes and popular round boxes with a diameter of 60 mm.
Sonoff MINI-RBS-E works in the Matter over WiFi standard.
Compatibility with Smart Home applications and systems
Thanks to the Matter standard, the switch is compatible with Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant . Scanning the Matter QR code allows the device to be added directly to the selected ecosystem. Percentage control is available on select platforms, and basic opening and closing functions are supported on all compatible systems. The device allows for the creation of schedules, automation scenes, and integration with smart home sensors .
Technical specifications of Sonoff switch
- Model: MINI-RBS-E
- Product name: Orb-RBS
- Series: Fusion
- Type: WiFi Matter Smart Roller Shutter Switch
- Power supply: 100 V to 240 V~ 50/60 Hz
- Maximum motor current: 1 A
- Wireless connectivity: WiFi IEEE 802.11 b/g/n 2.4 GHz
- MCU: ESP32
- Housing material: PC
- Operating temperature range: -10°C to 40°C
- Operating humidity: 5% RH to 95% RH non-condensing
- Application: for internal use
- Certification: CE, RoHS
- Dimensions: 86 x 86 x 34 mm
- Weight: 84.7 g
Contents of the set
- 1 x Sonoff Orb-RBS (MINI-RBS-E)
- 1x User Manual

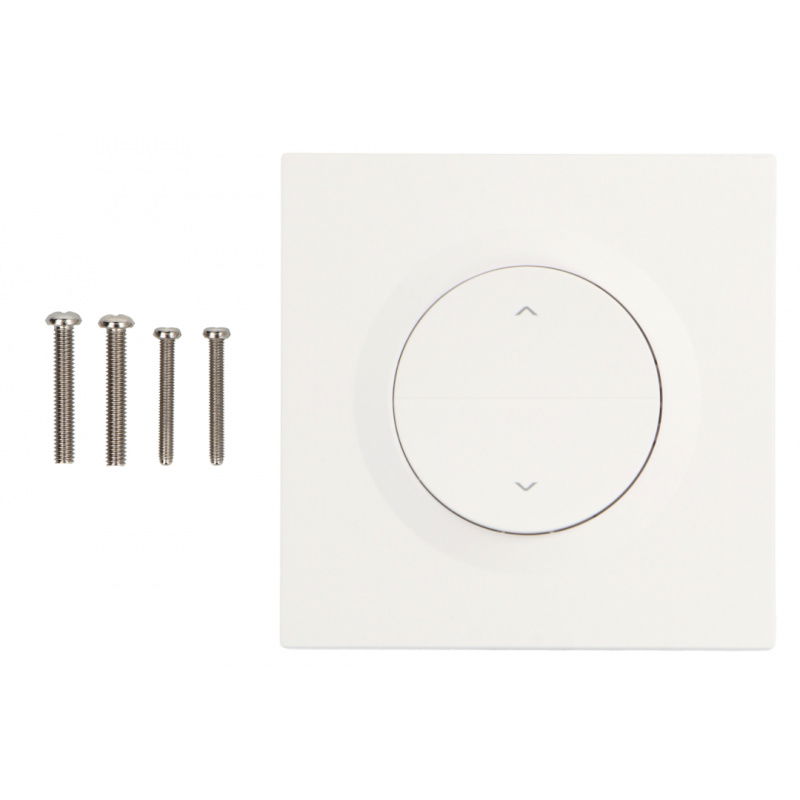

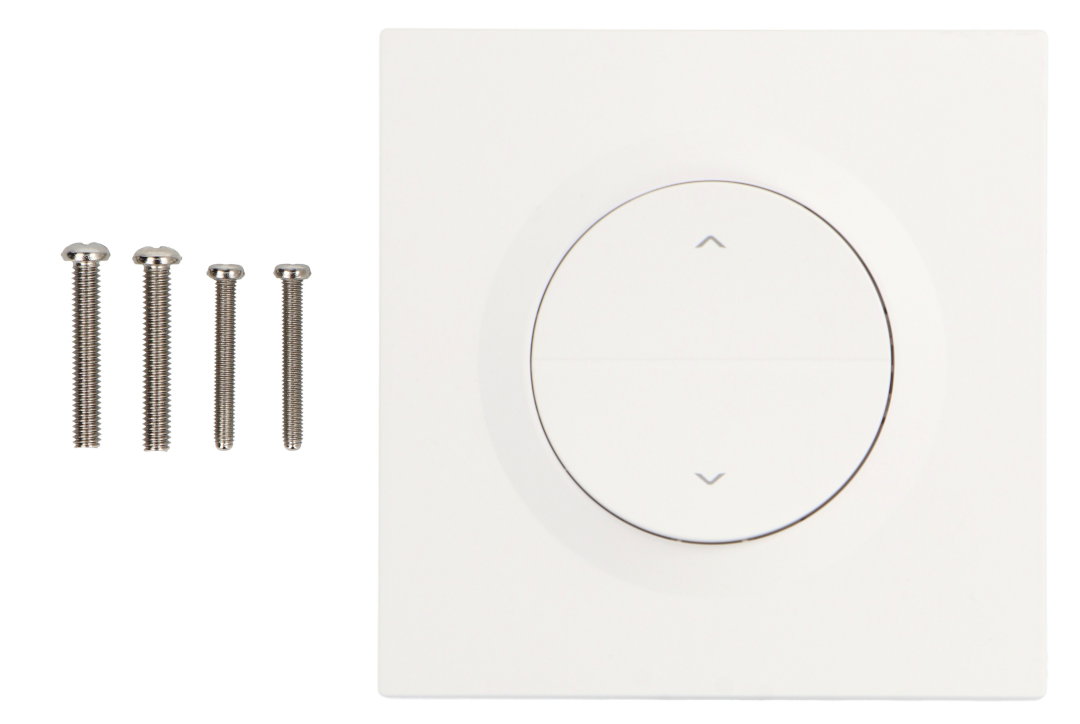

Elements included in the set.
