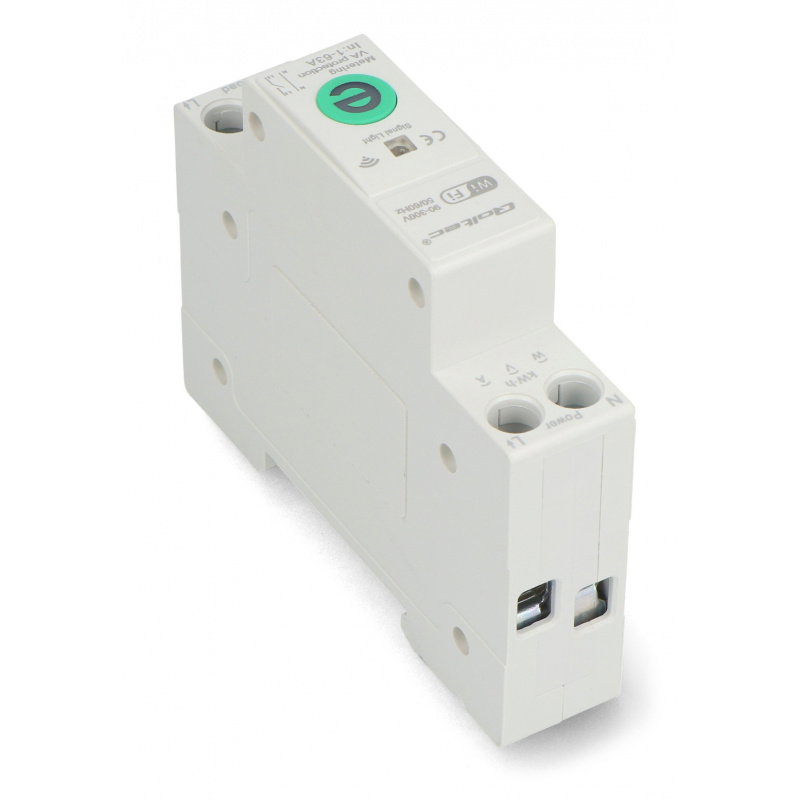

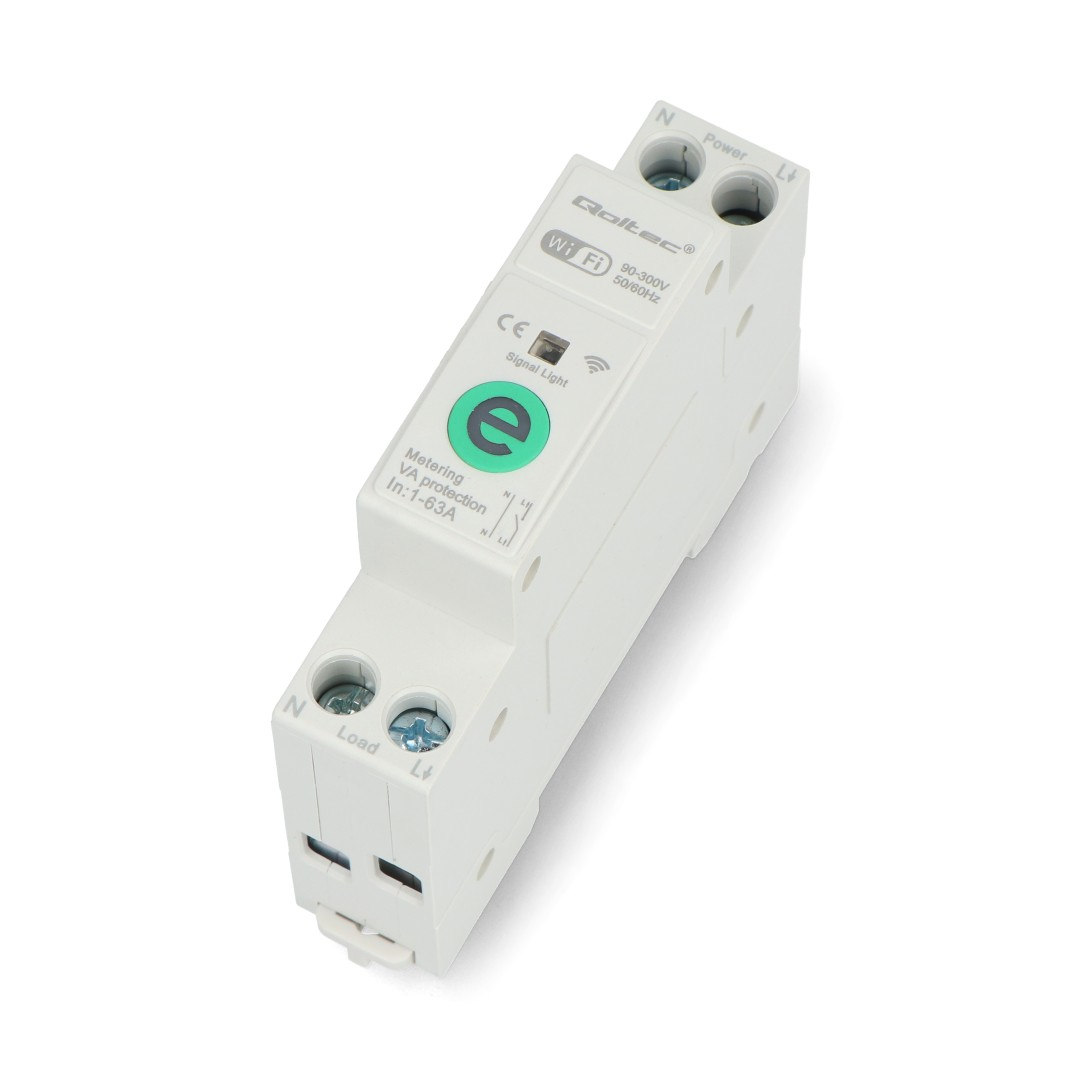

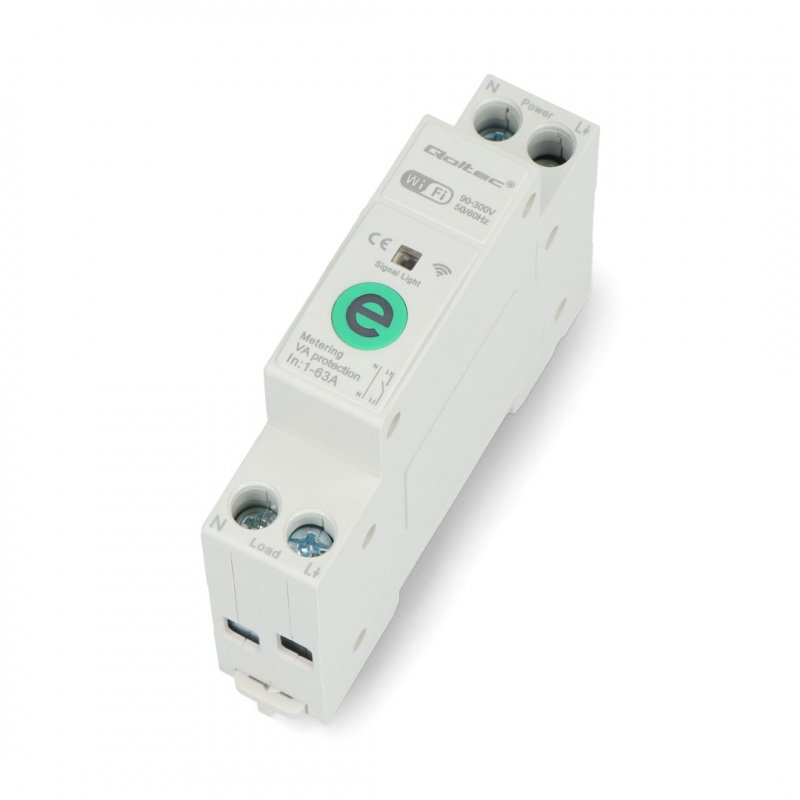

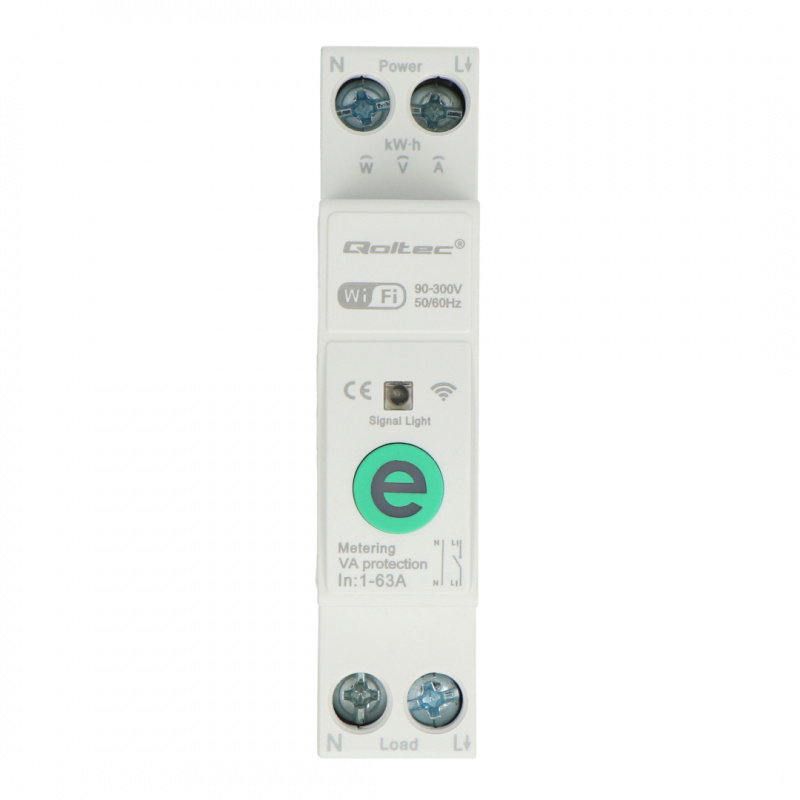

Product description: Sonoff - single-phase relay with energy meter - 63 A - WiFi - Qoltec 50991
The Qoltec single-phase electronic relay with energy consumption metering is an advanced device for intelligently managing electrical installations in homes and businesses. Mounted on a DIN rail, it allows remote control of devices, real-time energy consumption monitoring, and automation of equipment operation. Integration with the Sonoff eWeLink app allows users to check current energy consumption and manage connected devices from anywhere. The relay offers extensive automation features, such as schedules, countdowns, and cyclic on/off switching, allowing you to tailor the operation of your installation to your individual needs.
Sonoff - single-phase relay with energy meter - 63 A - WiFi - Qoltec 50991.

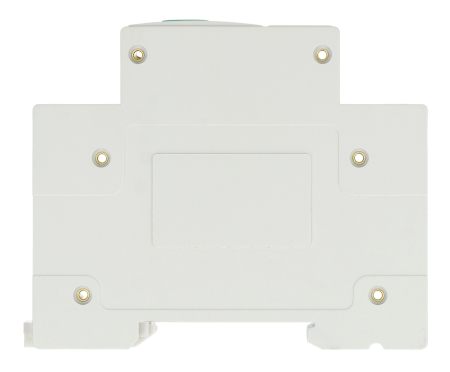

The Qoltec single-phase electronic relay with an energy consumption meter function is an advanced device for intelligent management of the electrical installation in a home or company.Special features
- WiFi remote control: full device control via the eWeLink app
- Energy measurement: real-time consumption monitoring (up to 999999 kWh, ±2%)
- Wide current range: adjustable from 1 A to 63 A
- Timer function: schedules and cycle on and off
- Automatic protection: cut-off when voltage or current exceeds
- Installation protection: OVP, OCP protection and current leakage detection
- DIN rail mounting: easy installation in the electrical distribution board
- Manual control: button on the housing for quick operation
- LED: configurable operating status indication
Practical applications
The Qoltec relay is ideal for use in smart home and industrial installations where efficient energy management is key. It's ideal for controlling lighting, electric heating, boilers, and air conditioning, enabling automatic switching of devices on and off according to a schedule. The device is particularly useful for those who want to control energy consumption and reduce operating costs. Thanks to its monitoring and remote control functions, users can respond to changes in energy consumption in real time, even when away from home.
Technical specifications of the relay
- Communication: WiFi
- App support: eWeLink
- Operating voltage: 90 V to 300 V (single-phase installations)
- Current range: 1 A to 63 A
- Maximum current: 63 A
- Energy measurement: from 0 kWh to 999999 kWh
- Measurement accuracy: ±2%
- Functions: timer, schedule, remote control, automatic shutdown
- Low voltage protection: 50V to 190V (default 170V)
- High voltage protection: 250V to 300V (default 270V)
- Overload protection: up to 63 A
- Maximum load: 8000 W (LED)
- Current leakage detection: 50 mA
- Signaling: LED (configurable)
- Manual control: button on the housing
- Mounting: DIN rail
- Operating temperature: -30°C to 70°C
- Dimensions: 65 x 36 x 85 mm
Contents of the set
- Qoltec WiFi electronic relay for DIN rail
The relay offers extensive automation functions such as schedules, countdown timers and cycling on and off. Useful links |
