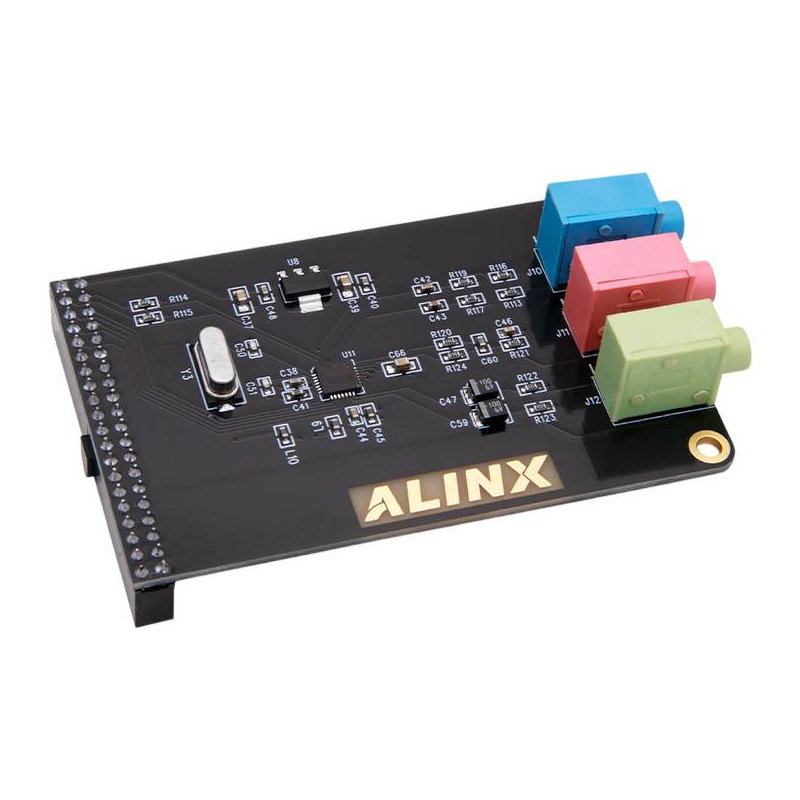

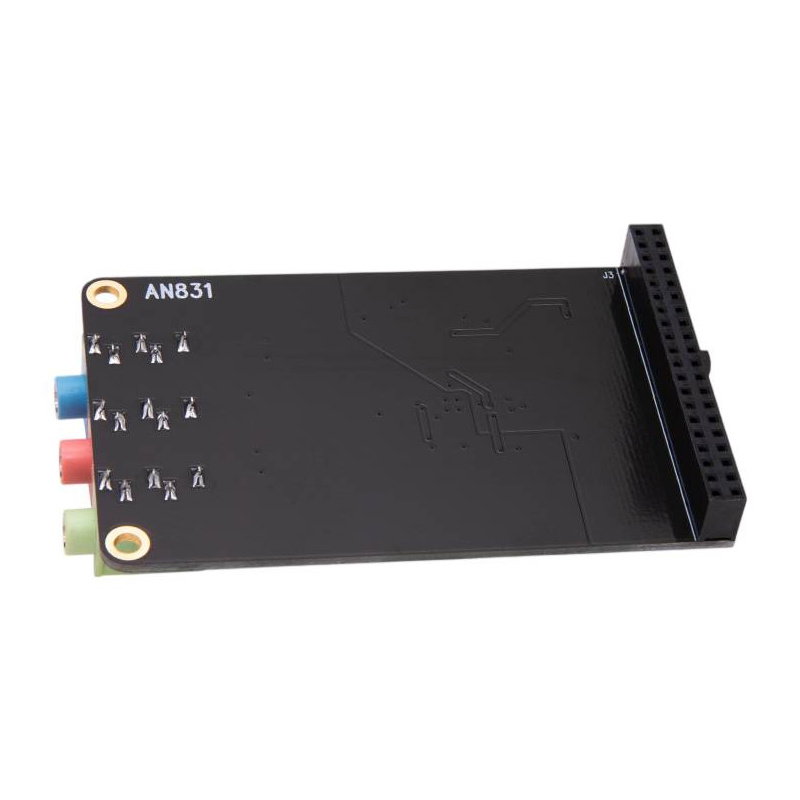

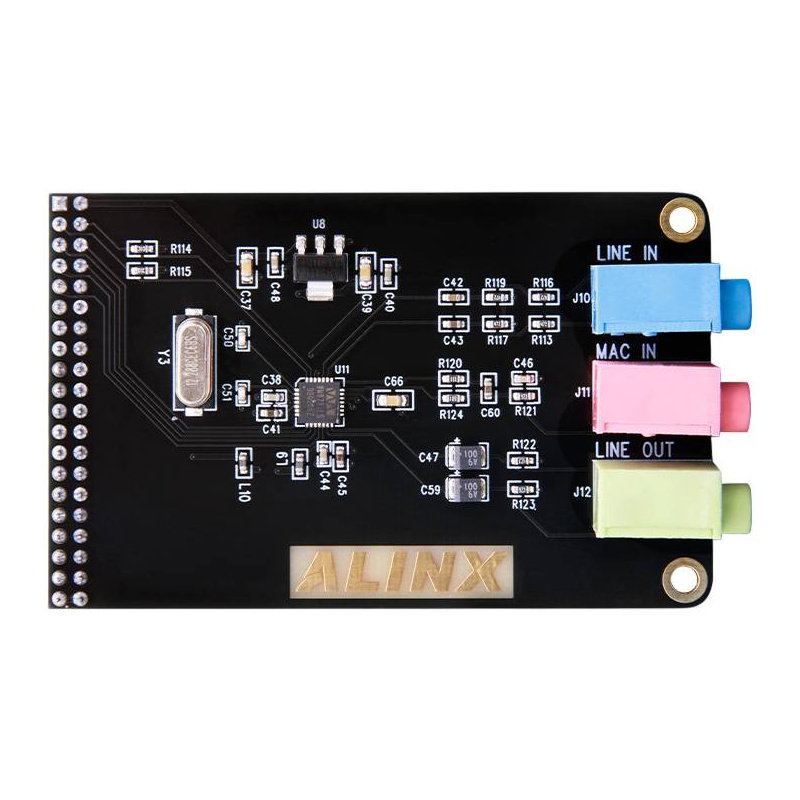

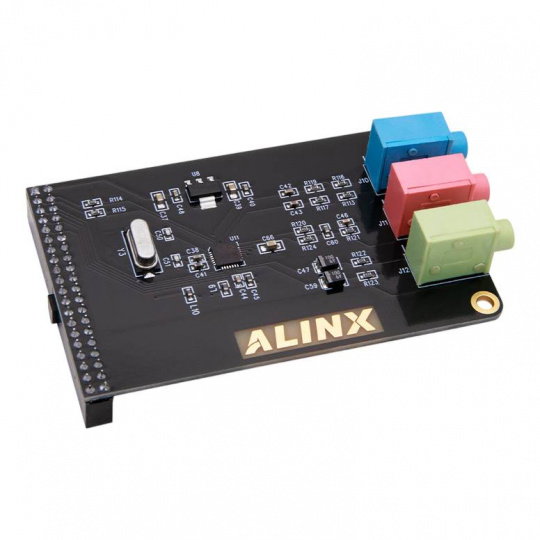

Product description: AN831 - audio module with WM8731 codec for FPGA and SoC boards
The ALINX AN831 is an expansion module based on the WM8731 stereo audio codec . The system performs analog-to-digital and digital-to-analog audio signal processing, allowing the module to be used for both audio acquisition and playback . The board includes connectors for connecting a microphone, an external audio source, and headphones or other audio receiver . The module communicates with a compatible development board via a 40-pin connector. The codec is configured via an I2C bus, while digital audio data is transmitted using dedicated clock and data signals. The AN831 is suitable for developing audio recorders, audio players, voice communication systems, and digital signal processing projects implemented on FPGAs and SoCs.
Technical specifications of the module
- Codec model: WM8731
- Codec functions: A/D and D/A conversion
- Microphone input: yes
- Audio line-in: yes
- Audio output: yes
- Sampling frequency range: 8 kHz to 96 kHz
- Configuration interface: I2C
- Audio signals: DACDAT, ADCDAT, BCLK, DACLRC and ADCLRC
- Communication connector: 40-pin
- Power lines available on the connector: 3.3 V and 5 V
- Intended use: FPGA and SoC development boards
- Operating temperature: -25°C to 85°C
- Dimensions: 81 x 51 mm
Contents of the set
- ALINX AN831 audio module
