Product description: DS18B20 digital 1-Wire temperature sensor - Joy-IT KY-001
The KY-001 is a compact temperature module equipped with the popular DS18B20 digital sensor , providing accurate and stable temperature measurement. The sensor offers 9- to 12-bit resolution and an accuracy of ±0.5°C over a range of -10°C to 85°C. Using a 1-Wire bus, multiple sensors can be connected to a single data line, and each module's unique 64-bit identifier allows for individual recognition within the system. The module can be powered by 3.3V and is suitable for both simple educational projects and more advanced temperature monitoring systems, building automation, and smart home solutions. Its small size facilitates integration with prototype devices and embedded systems.

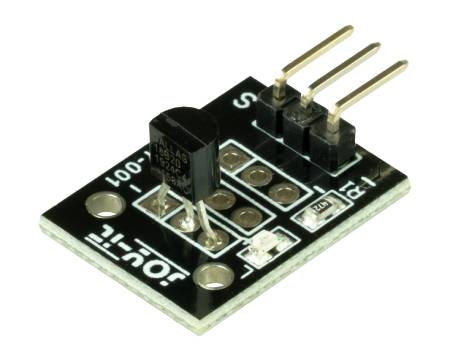

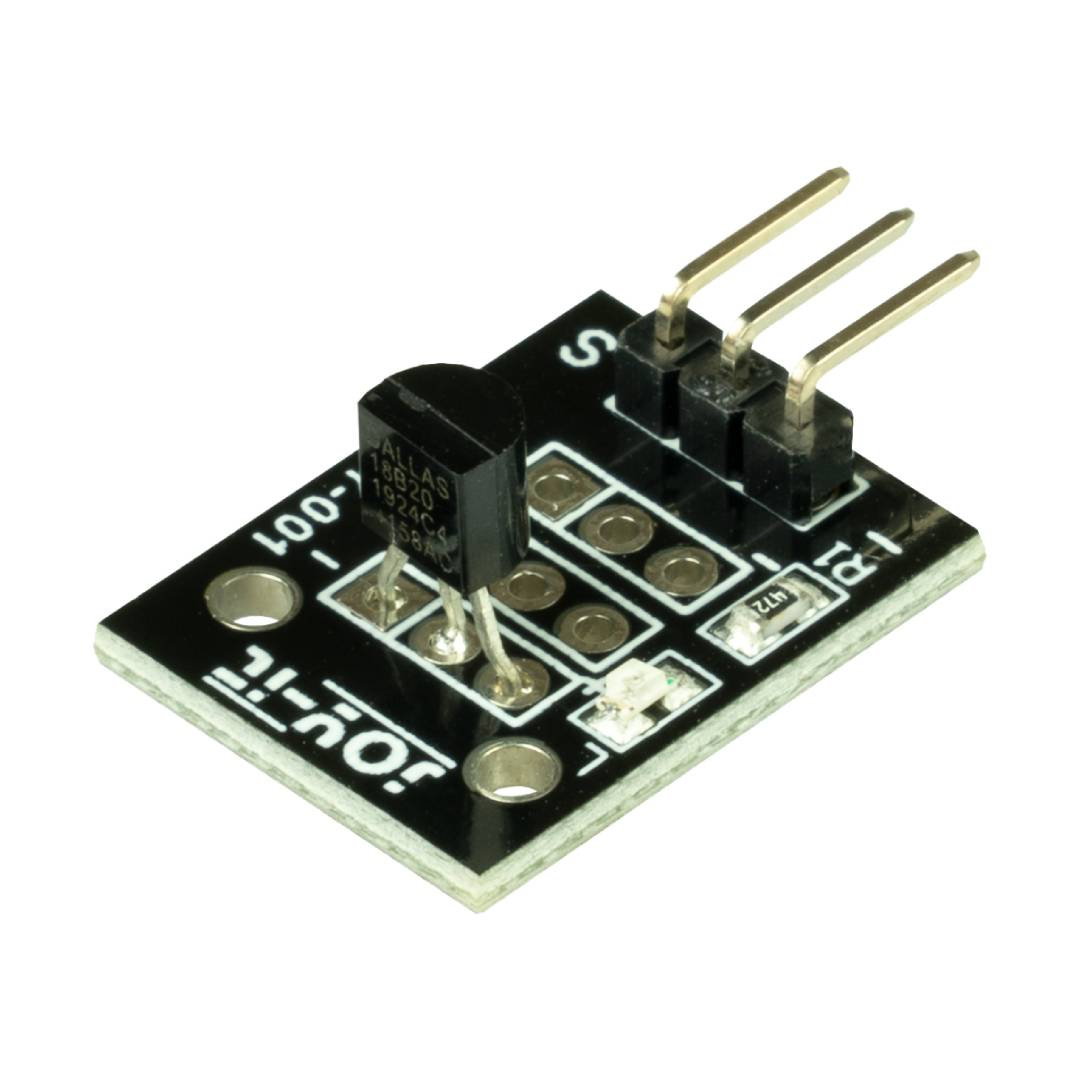

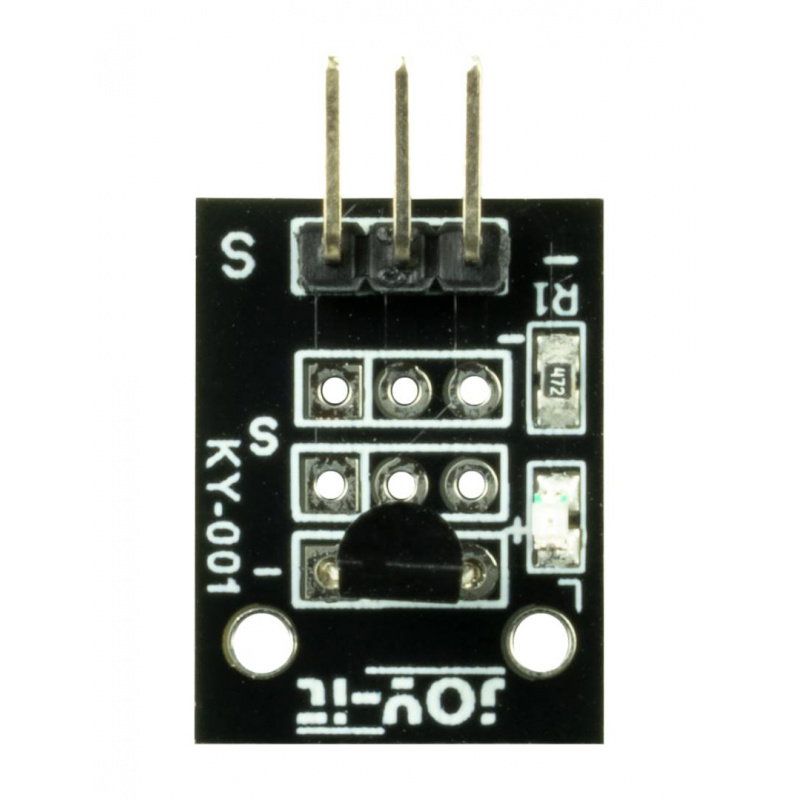

DS18B20 digital 1-Wire temperature sensor - Joy-IT KY-001.

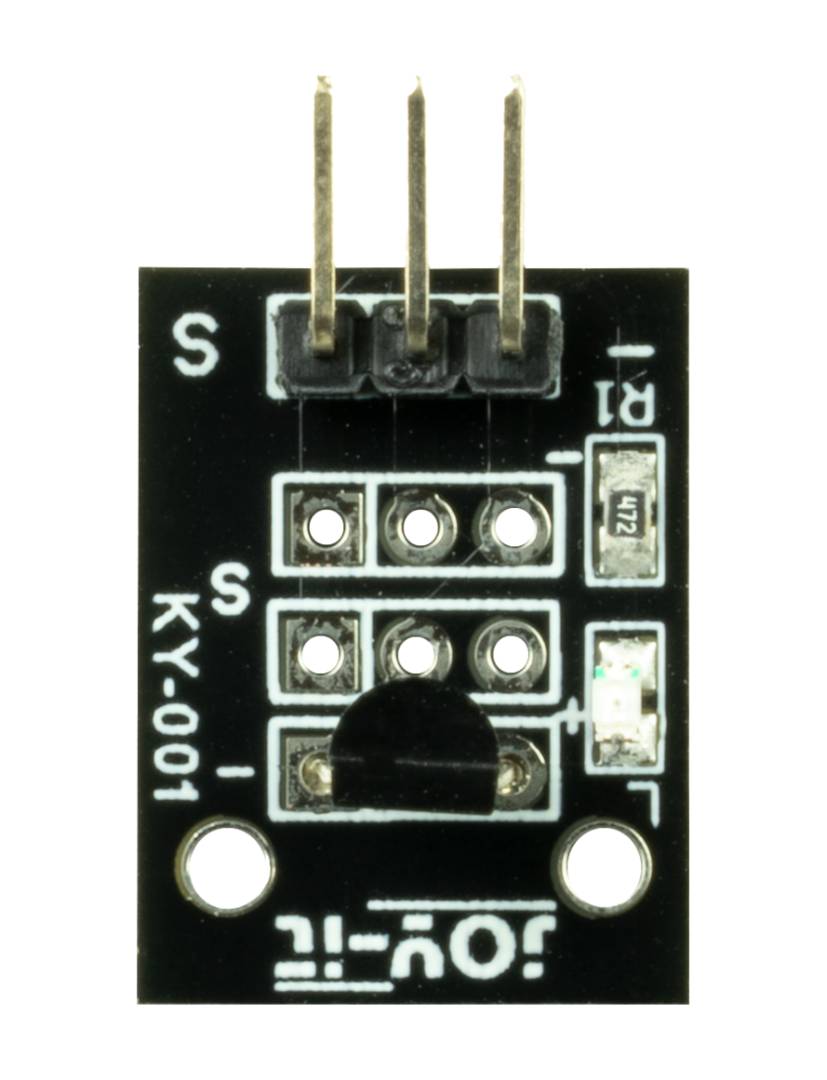

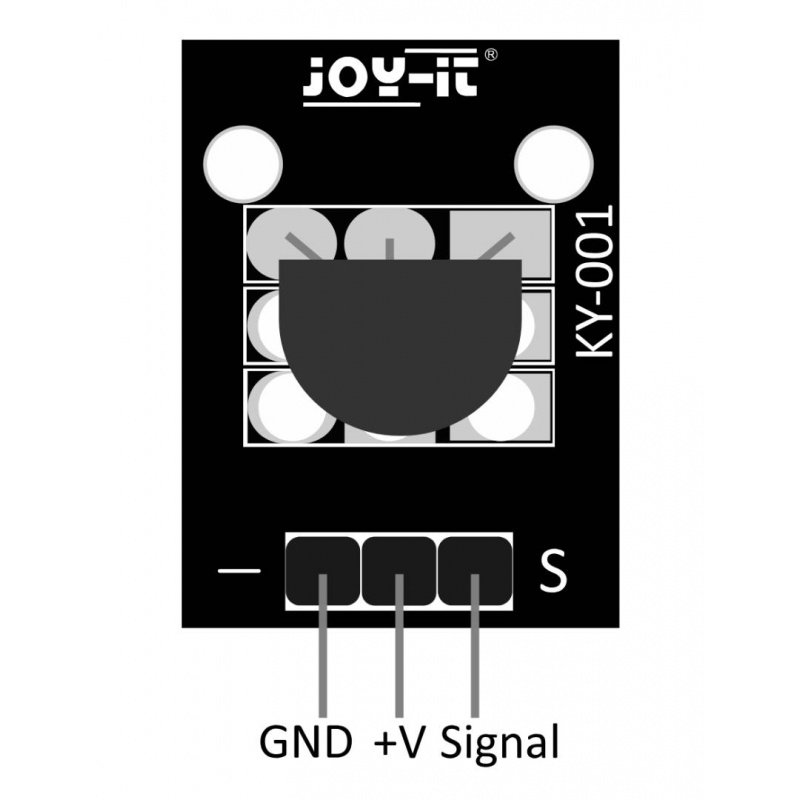

The module is equipped with three basic pins.
Main features of the KY-001 module
- DS18B20 chip : digital temperature sensor ensuring stable and accurate measurement
- 1-Wire communication : data transmission using only one signal line
- Measuring range from -55°C to 125°C : ability to operate in a wide temperature range
- Resolution from 9 to 12 bits : possibility of obtaining very accurate measurement results
- Accuracy ±0.5°C : high precision from -10°C to 85°C
- Unique 64-bit address : support for multiple sensors on one bus
- Compact design : small dimensions facilitate installation in electronic devices
- Low operating voltage of 3.3 V : compatible with popular embedded platforms

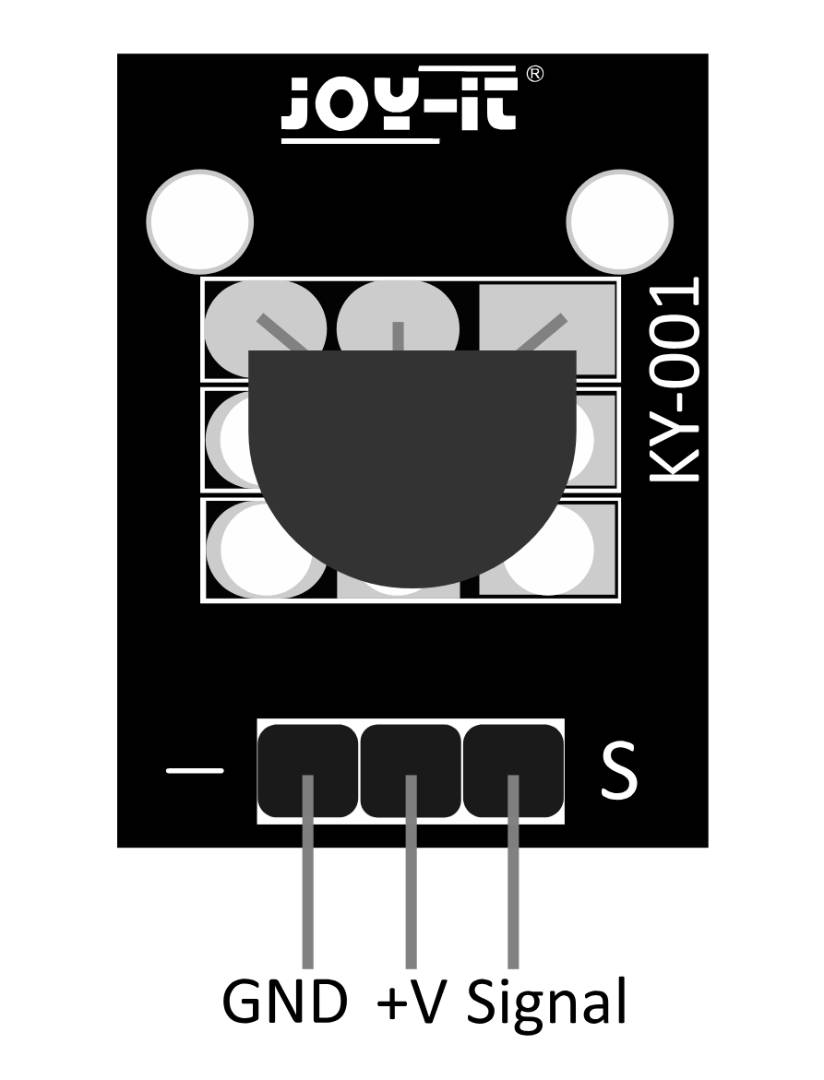

KY-001 sensor pinouts and connections
The KY-001 module features three basic pins for quick connection to a microcontroller or single-board computer. The Signal pin is responsible for communication via the 1-Wire bus, while the +V and GND pins are used to power the module. Simple configuration makes connecting the sensor to Arduino or Raspberry Pi platforms quick and easy, even for beginners. The sensor can also operate in parasite power mode , where power is drawn directly from the data lines. This solution reduces the number of wires in the project and facilitates integration into more complex measurement systems.

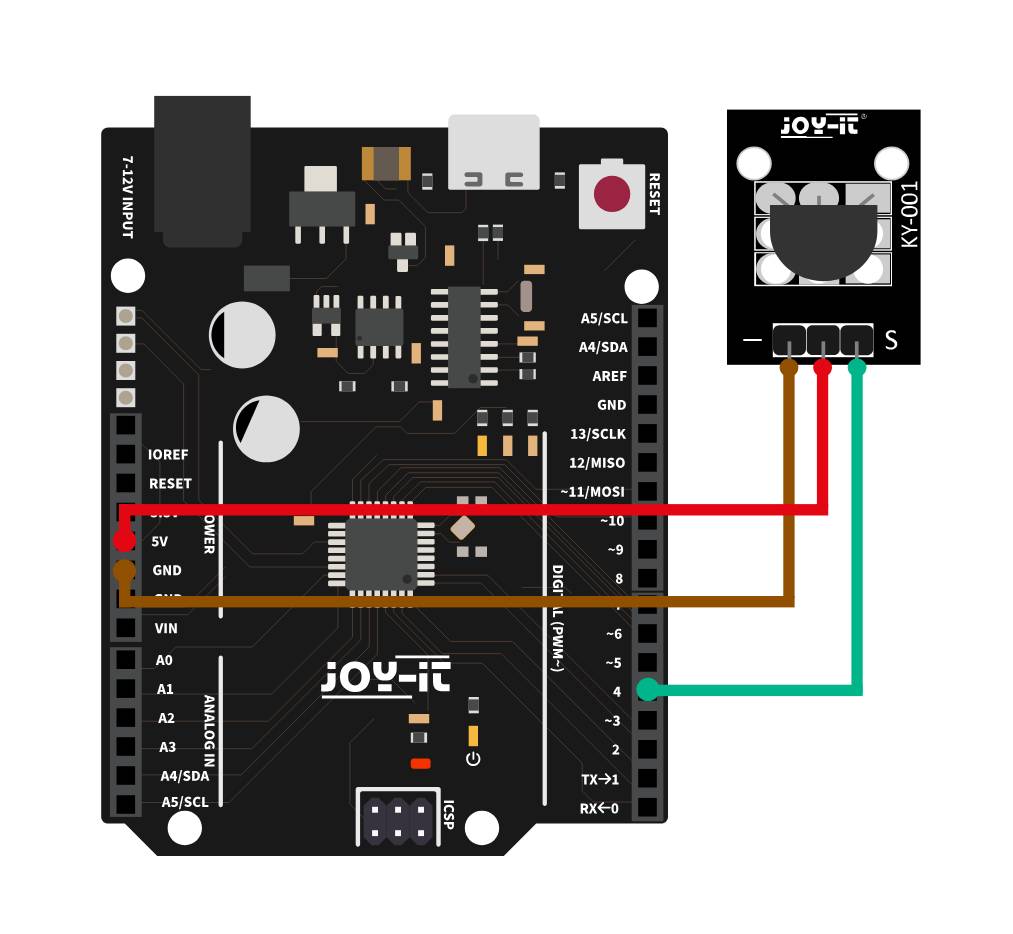

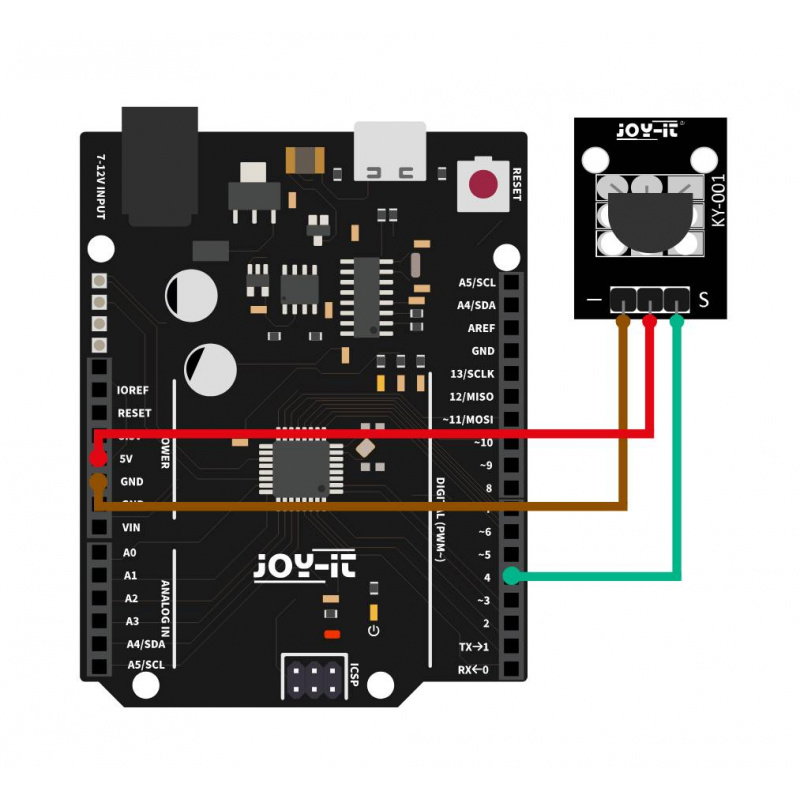

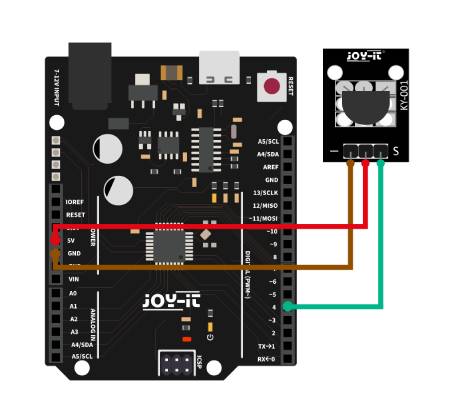

Arduino connection diagram.

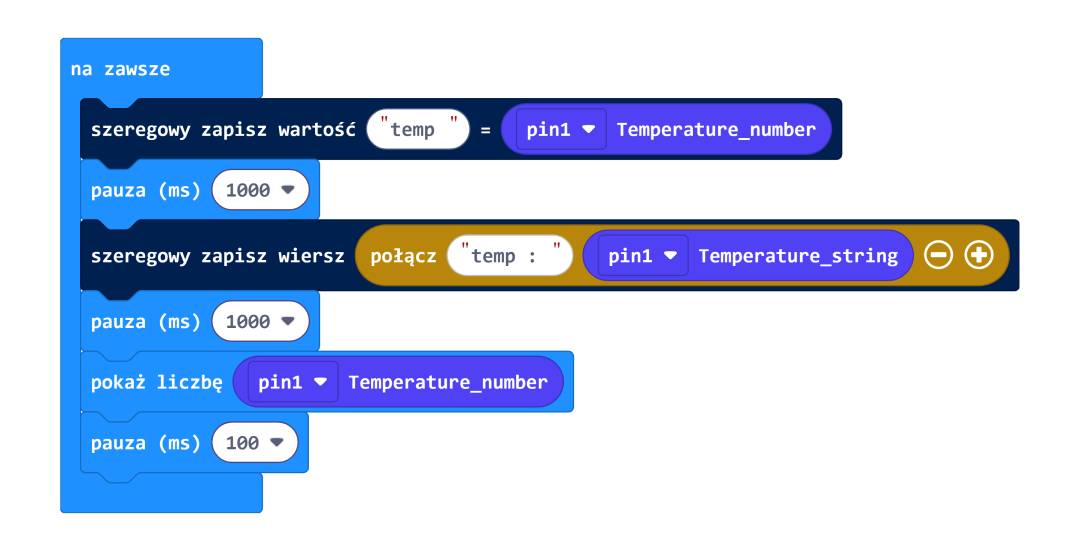

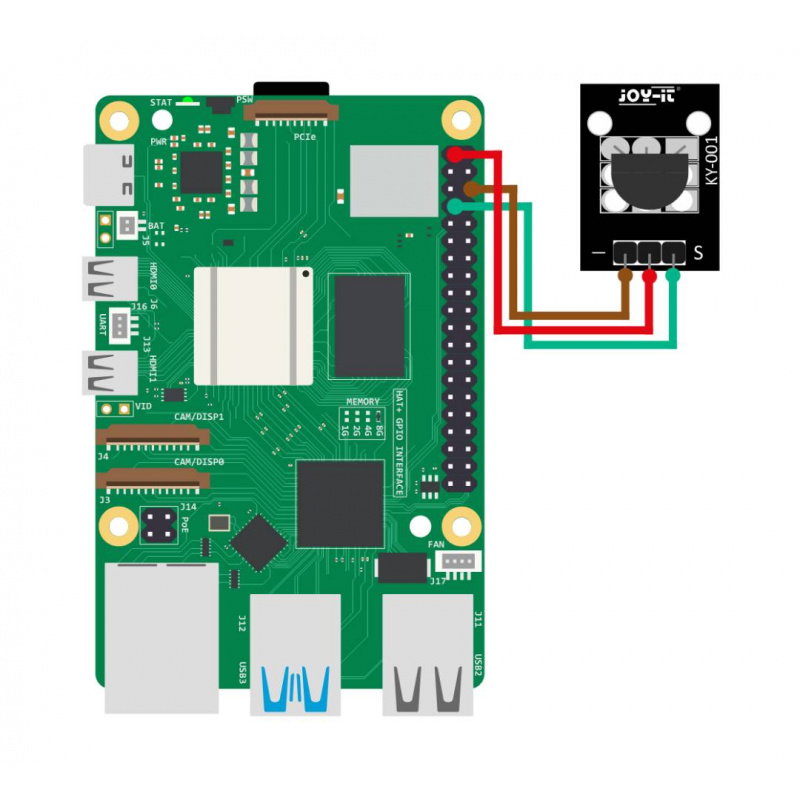

The sensor works with Arduino, Raspberry Pi, Raspberry Pi Pico and BBC micro:bit platforms.
DS18B20 Sensor Compatibility and Programming
The KY-001 sensor is compatible with popular programming platforms such as Arduino, Raspberry Pi, Raspberry Pi Pico, and BBC micro:bit . Using a standard 1-Wire bus, the module can be easily integrated with IoT projects, home automation, weather stations, and temperature monitoring systems. Programming the sensor is very simple thanks to the wide availability of libraries for the Arduino IDE and Linux systems . The manufacturer provides sample code for Arduino and Raspberry Pi, using the OneWire and DallasTemperature libraries. The ability to connect multiple sensors to a single bus makes the module ideal for building complex measurement systems.
KY-001 Technical Specifications
- Chip: DS18B20
- Communication protocol: 1-Wire
- Measurement resolution: 9 to 12 bits
- Measurement range: -55°C to 125°C
- Measurement accuracy: ±0.5°C in the range from -10°C to 85°C
- Operating voltage: 3.3 V
- Compatibility: Raspberry Pi, Arduino, BBC micro:bit, Raspberry Pi Pico
- Parasite power mode: yes
- Dimensions: 15 x 25 x 8 mm
- Weight: 1 g
Contents of the set
- 1x Temperature sensor KY-001
Thanks to its compact dimensions and simple communication, the module is suitable for educational projects and designs based on Arduino and Raspberry Pi.
