Universal multimeter UNI-T UT52

Index: UPM-06062 EAN: 5901436740681
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Multimeter enables to measure DC and AC current, DC and AC, resistance and capacitance. The device has the function of testing transistors and a warning sound.

PLN75.53
PLN75.53 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: UNI-T

Description: Universal multimeter UNI-T UT52

Multimeter enables to measure DC and AC current, DC and AC, resistance and capacitance. The continuity is indicated via an acoustic signal. The device has the function of testing transistors. The meter is powered by the popular 9V battery, which is also included. The batterry discharge is indicated on a digital indicator. Large, easy to read display and attached strap make it easy to use. Everything is enclosed in rather protected, original box.

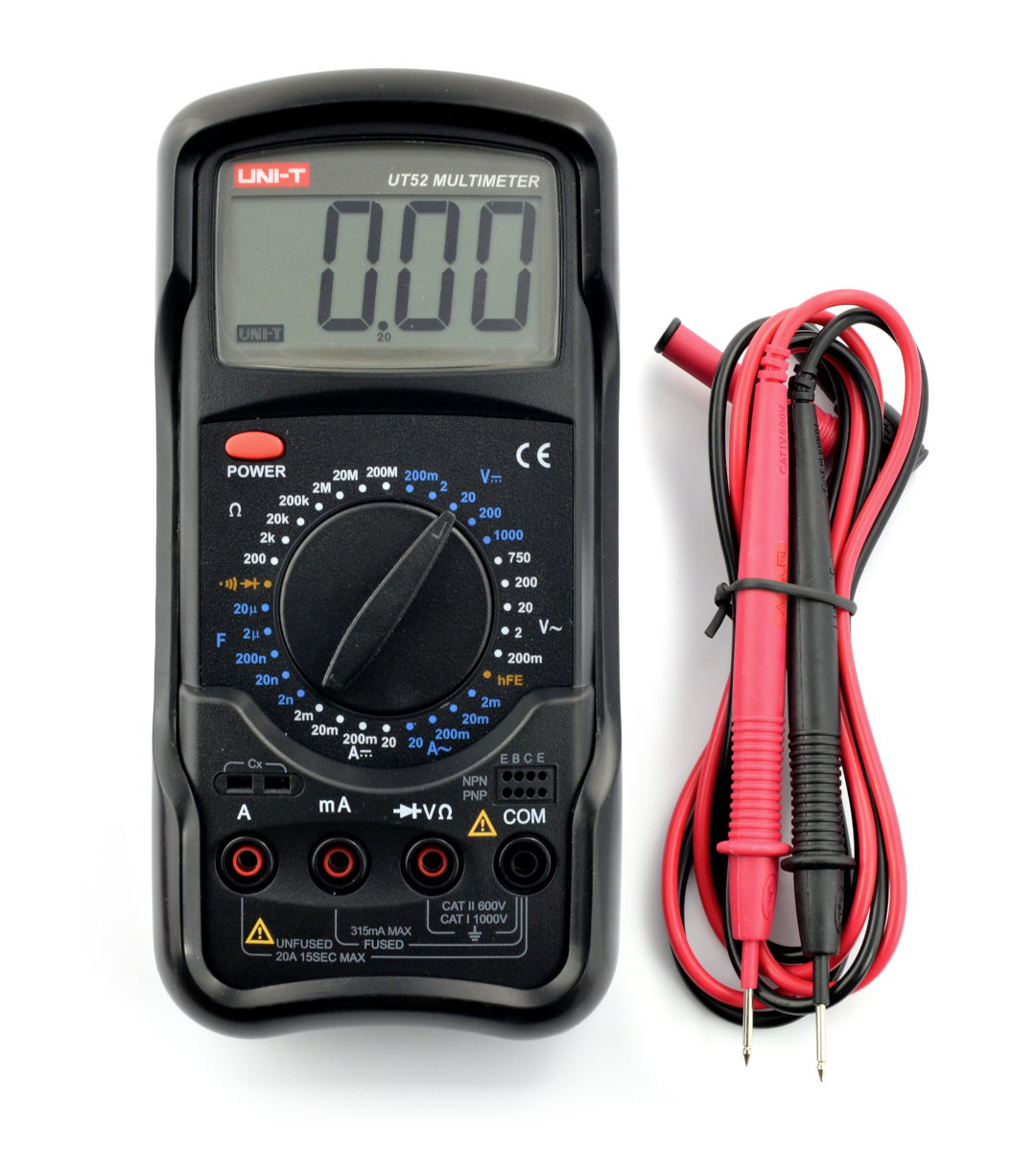

 Universal multimeter UNI-T UT52

Includes:

  • Meter UT52
  • Test leads
  • The rubber pad on the meter
  • 9V battery
  • Strap
  • Instruction: in English and Polish
  • 24 month warranty



Specification

Option Range
DC voltage 200 mV / 2 V / 20 V / 200 V / 1000 V
AC voltage 200 mV / 2 V / 20 V / 200 V / 750 V
DC 2 mA / 20 mA / 200 mA / 20 A
AC 2 mA / 20 mA / 200 mA / 20 A
Resistance 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 200 MOhm
Capacity 2 NF / 20 NF/ 200 NF / 2 UF / 20 UF
Inductance not
Frequency not
Temperature not
Automatic range selection not
Standby mode not
Warning sound yes
Transistor tester yes
Diode tester yes
Battery tester not
Function Data Hold not
Battery indicator yes
Backlight not
Display LCD 1999 (33 x 65 mm)
Dimensions 190 x 88 x 34 mm
Power supply 9 V battery (included)
Weight 560 g





Meter - DC voltage yes
Meter - Diode tester yes
Meter - Battery tester no
Meter - Frequency no
Meter - AC voltage yes
Meter - AC current yes
Meter - Capacitance yes
Meter - Auto Range no
Meter - DC current yes
Meter - Resistance yes
Meter - Transistor tester yes
Meter - sound yes
Meter - Inductance no
Meter - Backlight no
Meter - Temperature no
Meter - Data Hold no
