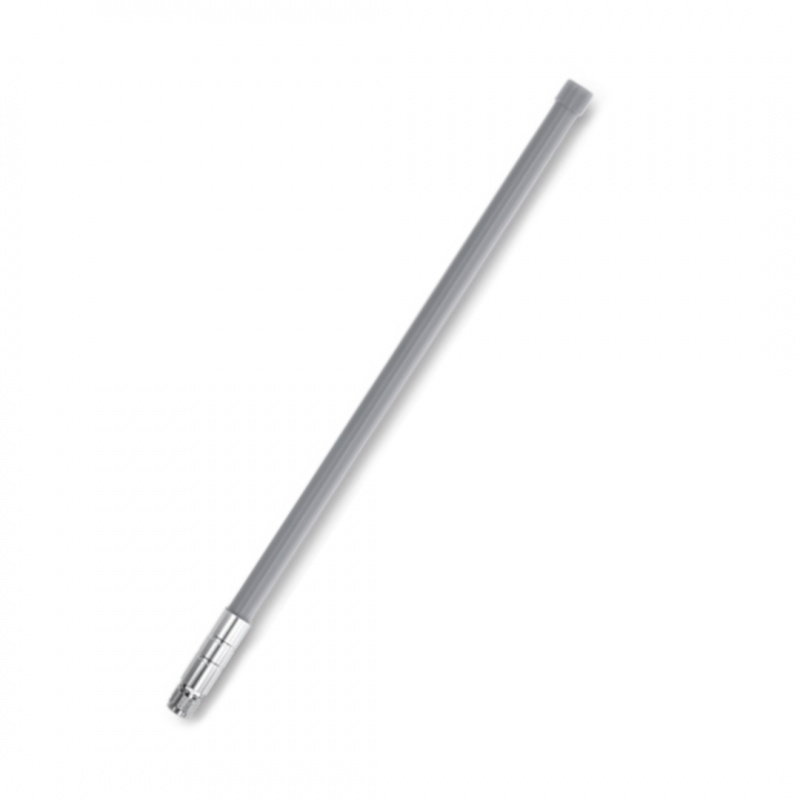

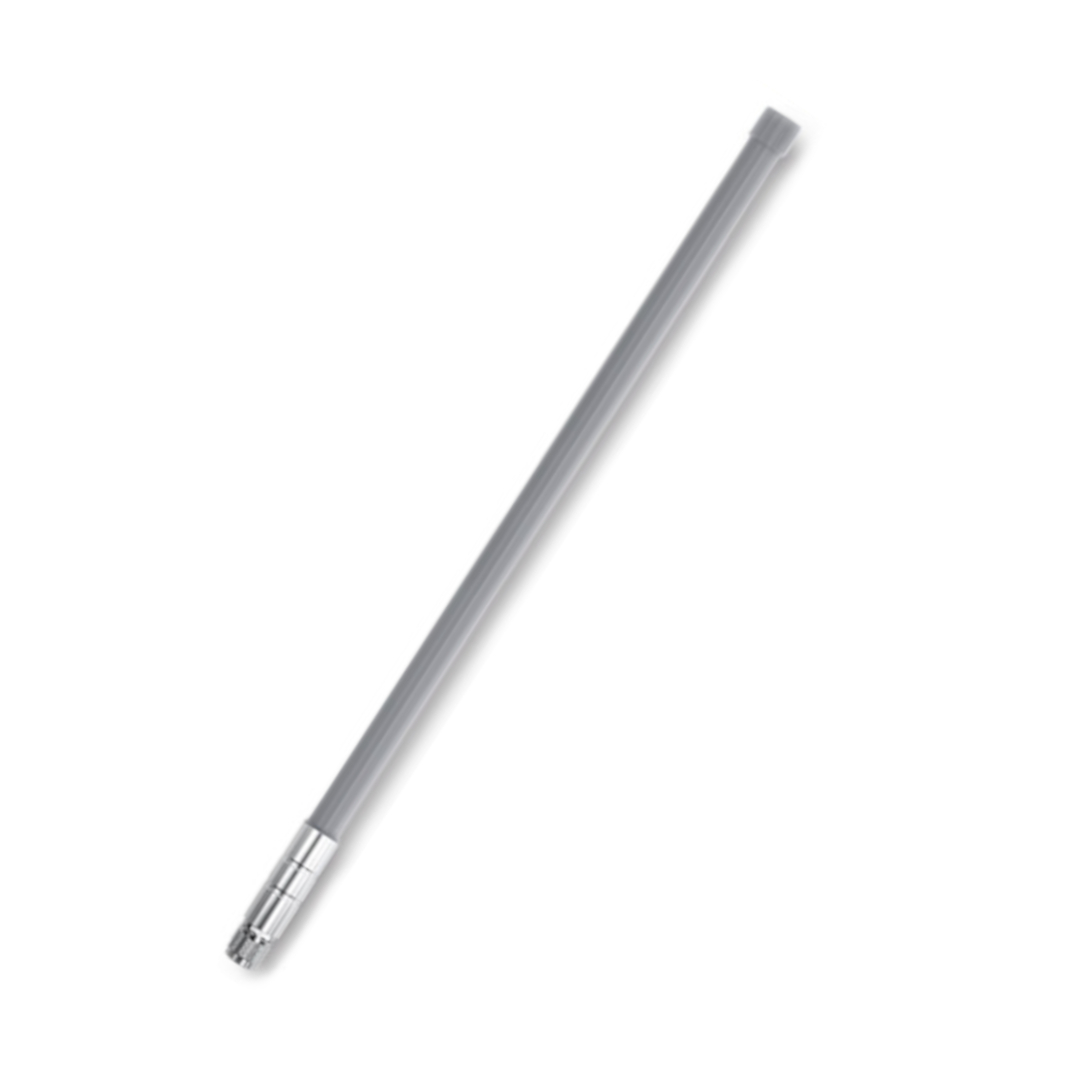

Product description: LoRa antenna 8 dBi 868 MHz - outdoor IP67 - Qoltec 57025
Qoltec's high-quality, fiberglass- based 8 dBi external LoRa antenna for wireless communication is designed to increase the range and stability of transmission in IoT networks and LoRaWAN systems. Its high 8 dBi gain enables efficient data transmission over long distances, even in challenging environmental conditions. It operates in the 868 MHz band , ensuring reliable communication in applications such as monitoring, building automation , and M2M systems . Its omnidirectional radiation pattern allows for even signal distribution in all directions, making the antenna ideal for outdoor installations.
LoRa antenna 8 dBi 868 MHz - outdoor IP67 - Qoltec 57025.
High-quality Qoltec 8 dBi external LoRa antenna, made of fiberglass, for wireless communication.Special features
- High energy gain: 8 dBi for increased signal range
- Operating band: 868 MHz for LoRa and LoRaWAN systems
- Omnidirectional design: even signal emission in every direction
- Outdoor use: weather resistance (IP67)
- Solid materials: fiberglass and nickel-plated copper
- Low signal loss: 50 Ω impedance and VSWR ≤ 2.0
- Easy installation: N male connector
Practical applications
The Qoltec LoRa antenna is used in Internet of Things (IoT) systems, where long-range and energy-efficient communication is crucial. It is suitable for environmental monitoring, intelligent building installations, measurement systems, and industrial automation. Its long range makes it ideal for communication between devices in distributed locations, such as farms, warehouses, urban installations, and infrastructure management systems. It can also be used in M2M solutions, where reliable data transfer between devices is required.
Technical specifications
- Antenna type: external
- Operating frequency: 868 MHz
- Energy gain: 8 dBi
- Power: 50 W
- Impedance: 50 Ω
- VSWR: ≤ 2
- Polarization: vertical
- Connector: N male
- Tightness class: IP67
- Material: fiberglass, nickel-plated copper
- Operating temperature: -20°C to 85°C
- Color: gray
- Height: 1130 mm

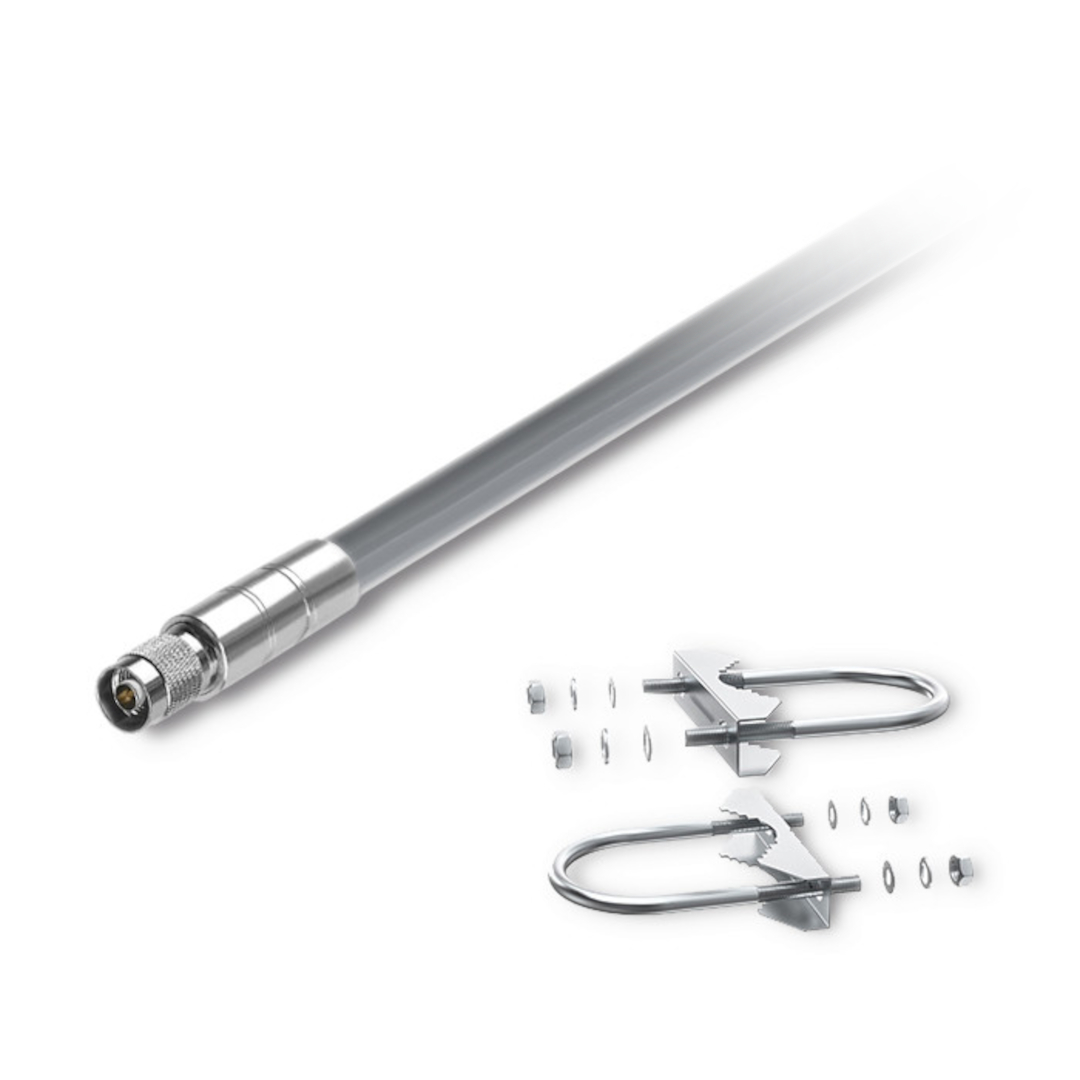

Kit contents
- Qoltec 8 dBi LoRa Antenna
- Mounting kit
The omnidirectional radiation pattern allows the signal to be distributed evenly in all directions. Useful links |
