Product description: Ultimate GPS GNSS with USB - MTK3333 GPS module with antenna - Adafruit 4279
The Ultimate GPS GNSS module is an advanced GPS module with a built-in MTK3333 chipset that can track up to 33 satellites on 99 channels. It is characterized by exceptional receiver sensitivity (-165 dBm) and an update frequency of 10 Hz . Includes a built-in patch antenna and the option to connect an external active antenna via the u.FL connector. The module also offers a built-in data logger and support for DGPS, WAAS, EGNOS and AGPS technologies. Powered by USB Type-C, it is energy-saving and equipped with LEDs to indicate UART status and activity. The device determines position accuracy up to 3 m and speed accuracy up to 0.1 m/s.
The manufacturer has provided a user guide that makes it easier to start working with the module.

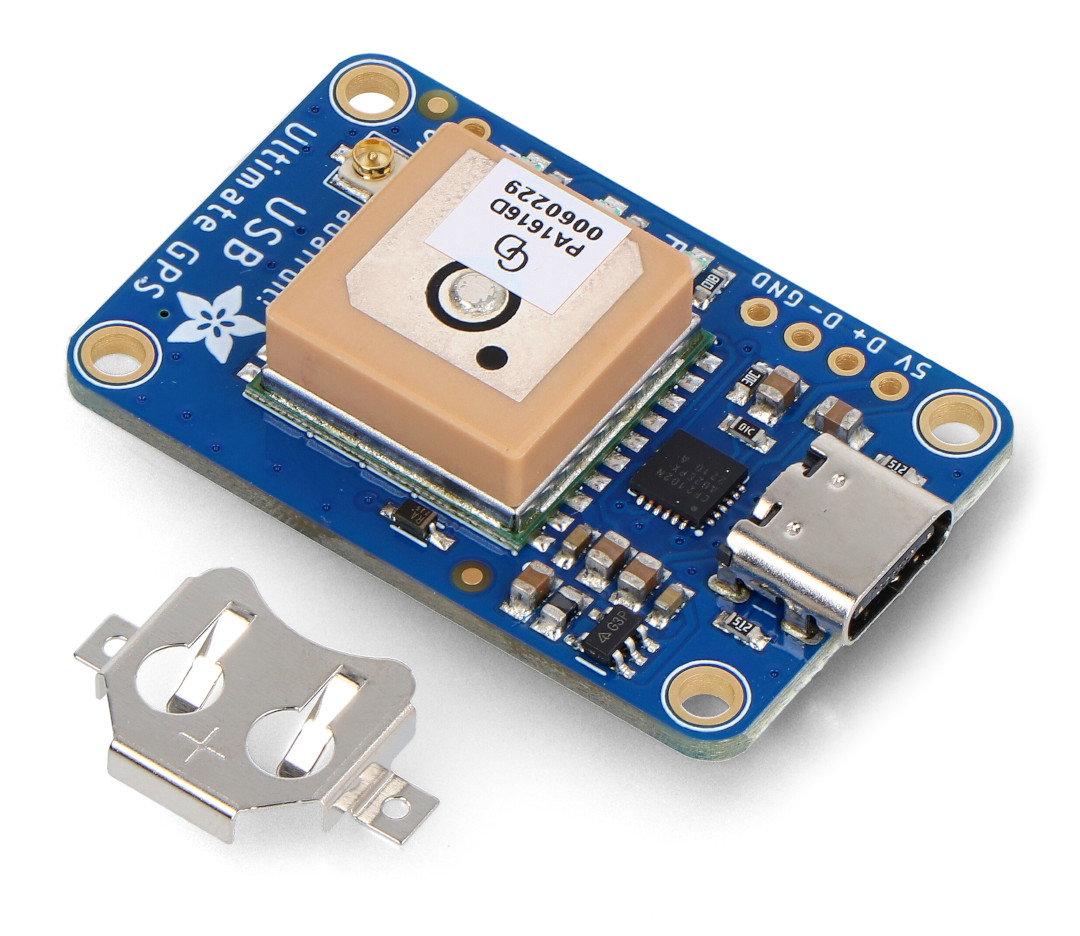

Ultimate GPS GNSS with USB - MTK3333 GPS module with antenna - Adafruit 4279.
The device is used to precisely determine geographical location.
Special features of the product
- It has 99 channels for tracking location signals that update at a frequency of 10 Hz
- Supports GPS and GLONASS navigation systems
- It allows easy connection to a computer via a built-in USB - UART converter
- It has a built-in antenna and the option to connect an external active antenna via the u.FL connector
- It offers a built-in data logger to save location information
- It is equipped with a USB Type C connector and four mounting holes
- It is energy efficient as it only consumes about 29 mA while navigating

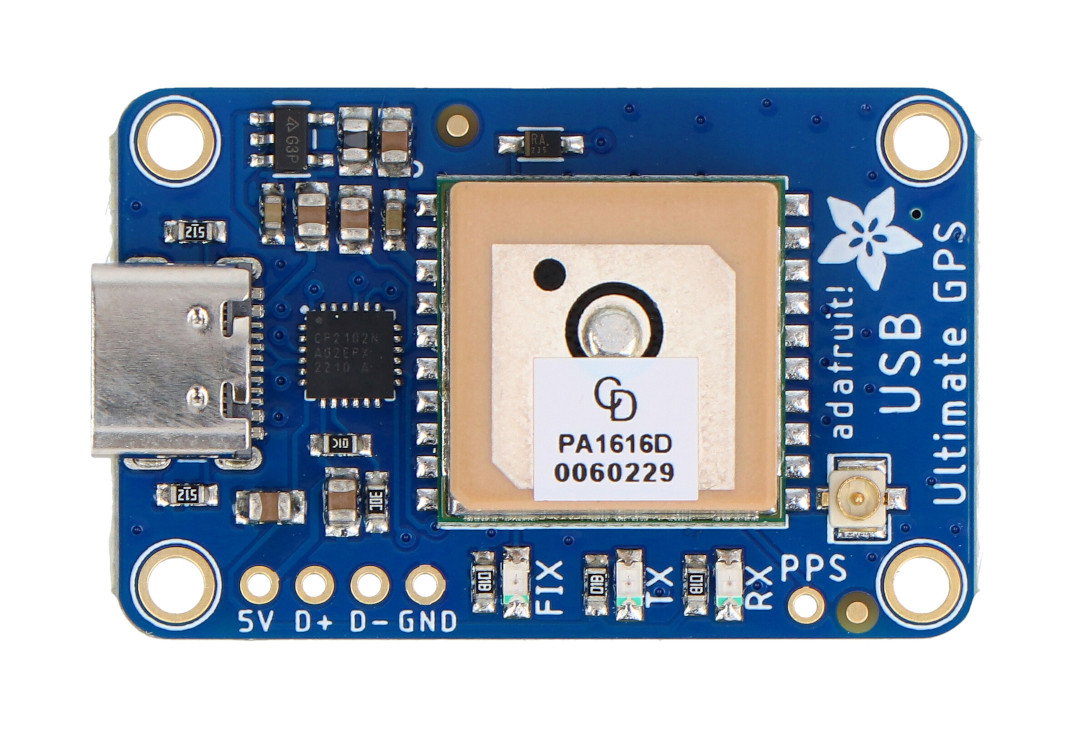

- It has LEDs to indicate GPS status and data transmission activity
- It offers support for DGPS, WAAS, EGNOS and AGPS technologies
Also check out other Adafruit products in our offer.
Product technical specifications
- Module type: GPS module
- Built-in chip: MTK3333
- Number of supported satellites: 33
- Number of channels: 99
- Update rate: 1 Hz to 10 Hz
- Acquisition sensitivity: -145 dBm
- Tracking sensitivity: -165 dBm
- Support for navigation systems: GPS, GLONASS
- Position tracking accuracy: up to 3 m
- Speed tracking accuracy: 0.1 m/s
- Maximum speed: 515 m/s
- Connection type: USB Type C
- Input voltage: 3V to 5.5V DC
- Power consumption:
- acquisition: 34 mA
- tracking: 29 mA
- Antenna: yes, built-in patch antenna
- u.FL connector: yes, for external antenna
- Technology support: DGPS, WAAS, EGNOS, AGPS
- Data logger: yes
- Programming: Python and CircuitPython
- Antenna dimensions: 15 x 15 x 4 mm
- Module dimensions: 40.8 x 25.3 x 10.8 mm
- Weight: 9.9 g
Check out other offers of GPS modules available on our website!
The module has a built-in data recorder.
