Description

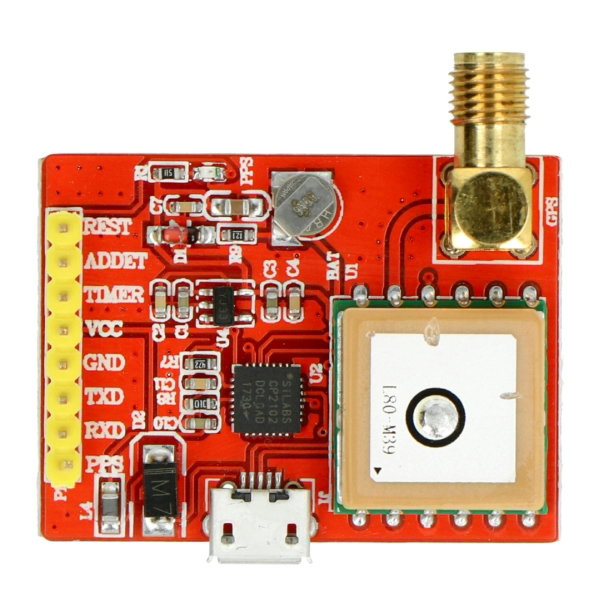

GPS module based on the L80-R-39 system. It supports 66 search channels and 22 tracking channels. It is working with the voltage of 3.3 V - 5 V. The module has the USB and the TTL port that facilitates the connection to the Raspberry Pi minicomputer. GPS uses the NMEA 0183 Protocol with built-in SMA antenna.
The module is compatible with popular Raspberry Pi minicomputers.
Specification
- Working voltage: 3.3 V to 5 V
- Maximum current: 100 mA
- GPS model: L80-39
- Positioning accuracy: < 2.5 m CEP
- Capture sensitivity: -148 dm
- Tracking sensitivity: -165 dm
- Update rate: 1 Hz by default, 5 Hz max.
- Data format: NMEA0183 protocol
- Channels
- 22 tracking
- 66 searching
- Working temperature: -40℃ - 85℃
- Connection: 8-pin, pitch of 2.54 mm, MicroUSB cable
- Built-in internal antenna, the possibility of connecting an external antenna
- Module dimensions: 39,1 x 29 mm
- Weight: 4,35 g
Set includes
- 1 x GPS USB/TTL module for the Raspberry Pi
- 1 x MicroUSB cable
- 10 x connecting female-female cable
