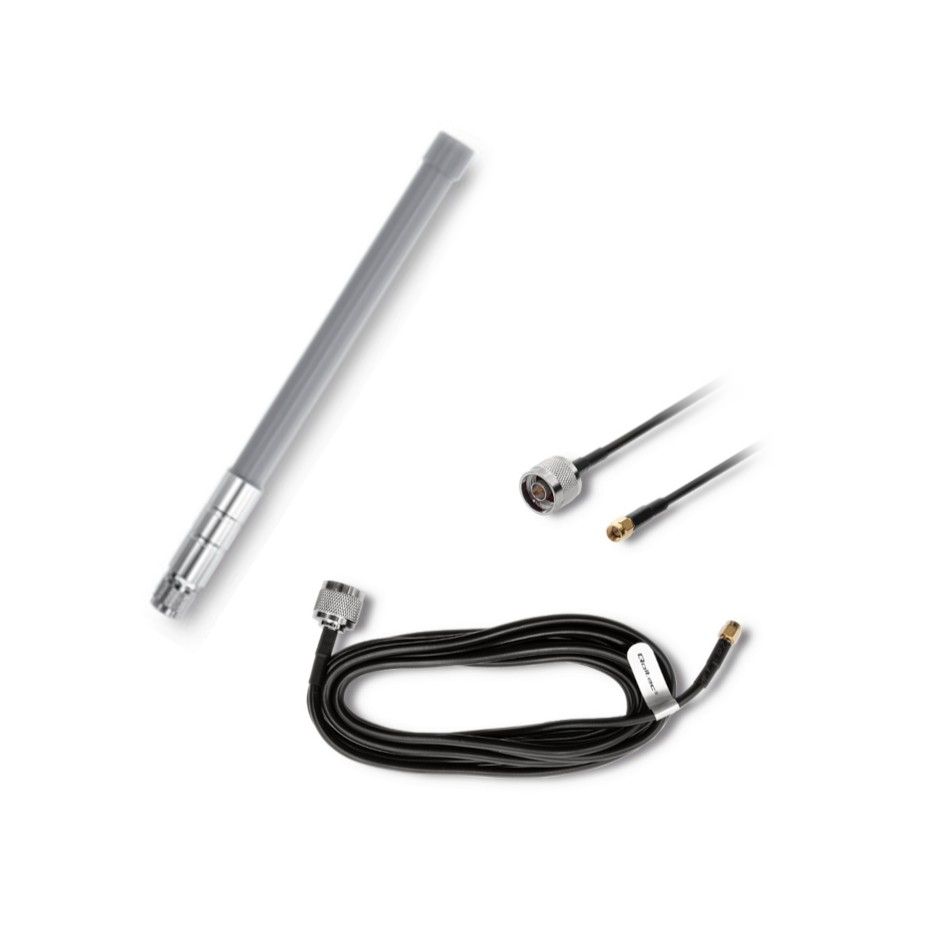

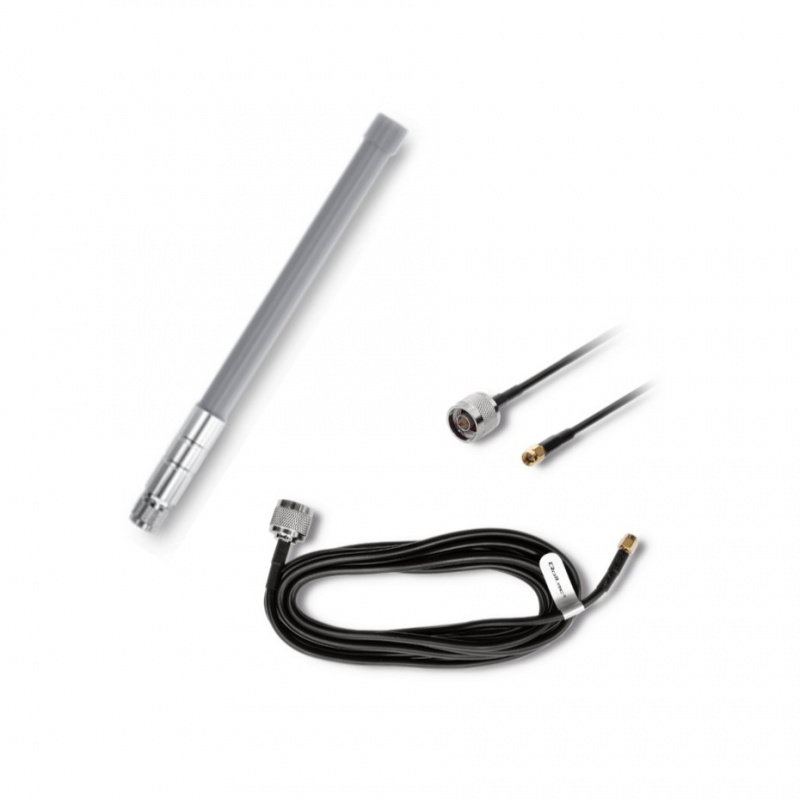

Product description: LoRa antenna set - 5.8 dBi - 3 m - N and SMA - Qoltec 57019
The Qoltec 5.8 dBi LoRa antenna kit with a 3-meter cable is a complete solution for increasing the range and stability of wireless communication in IoT and LoRaWAN networks . Thanks to the omnidirectional antenna , the device ensures even signal distribution in all directions, ensuring effective communication even in distributed installations. The antenna operates in the 868 MHz band, offering high interference immunity and energy-efficient data transmission. The energy gain improves signal quality and extends the range of LoRa-based systems . The included RG58 coaxial cable allows for convenient antenna placement in the optimal location.
LoRa antenna set - 5.8 dBi - 3 m - N and SMA - Qoltec 57019.

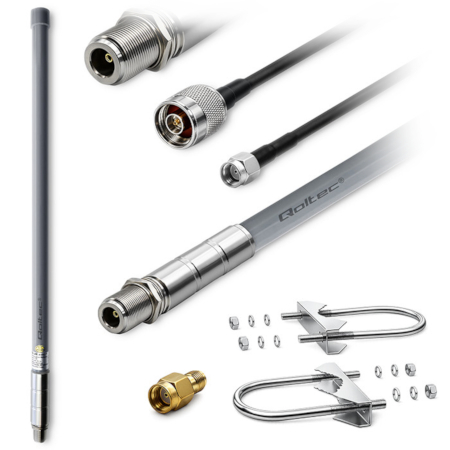

The Qoltec 5.8 dBi LoRa antenna set with a 3 m cable is a complete solution for increasing the range and stability of wireless communication.Special features
- Antenna set: LoRa antenna + 3 m RG58 cable + SMA adapter
- Energy gain: 5.8 dBi for increased range
- Operating band: 868 MHz for LoRa and LoRaWAN
- Omnidirectional design: uniform signal emission
- Connectors: N female and SMA male
- Resistance to conditions: IP67 protection class
- Durable materials: fiberglass and nickel-plated copper
- Low signal loss: impedance 50 Ω, VSWR ≤ 2
- Easy installation: ready-made kit with cable and adapter
Practical applications
The Qoltec LoRa antenna kit is ideal for Internet of Things (IoT) systems, where long range and stable data transmission are required. It can be used in environmental monitoring, smart buildings, measurement systems, and industrial automation. The included cable allows the antenna to be mounted in an optimal location, which is particularly important in outdoor installations and locations with difficult signal access. The kit is also ideal for M2M solutions, enabling reliable communication between devices over long distances.
Technical specifications of the set
- Antenna type: omnidirectional
- Operating frequency: 868 MHz
- Energy gain: 5.8 dBi
- Power: 50 W
- Impedance: 50 Ω
- VSWR: ≤ 2
- Polarization: vertical
- Connectors: 1 x N female, 1 x SMA male
- Tightness class: IP67
- Material: fiberglass, nickel-plated copper
- Operating temperature: -20°C to 85°C
- Cable length: 3 m (RG58)
- Color: gray
- Dimensions: 25 x 500 mm

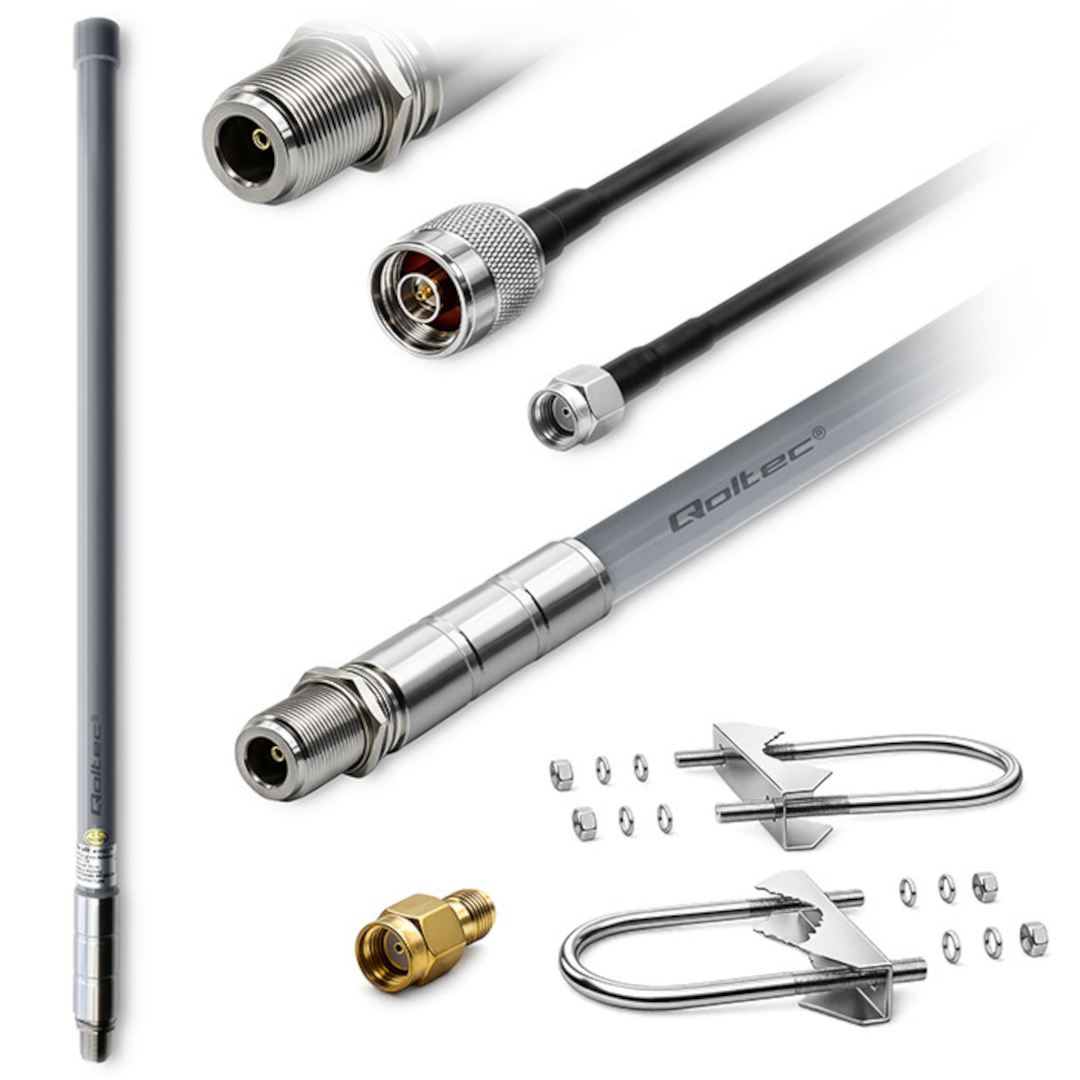

Kit contents
- Qoltec 5.8 dBi LoRa Antenna
- 3m RG58 coaxial cable
- SMA adapter
- Mounting kit

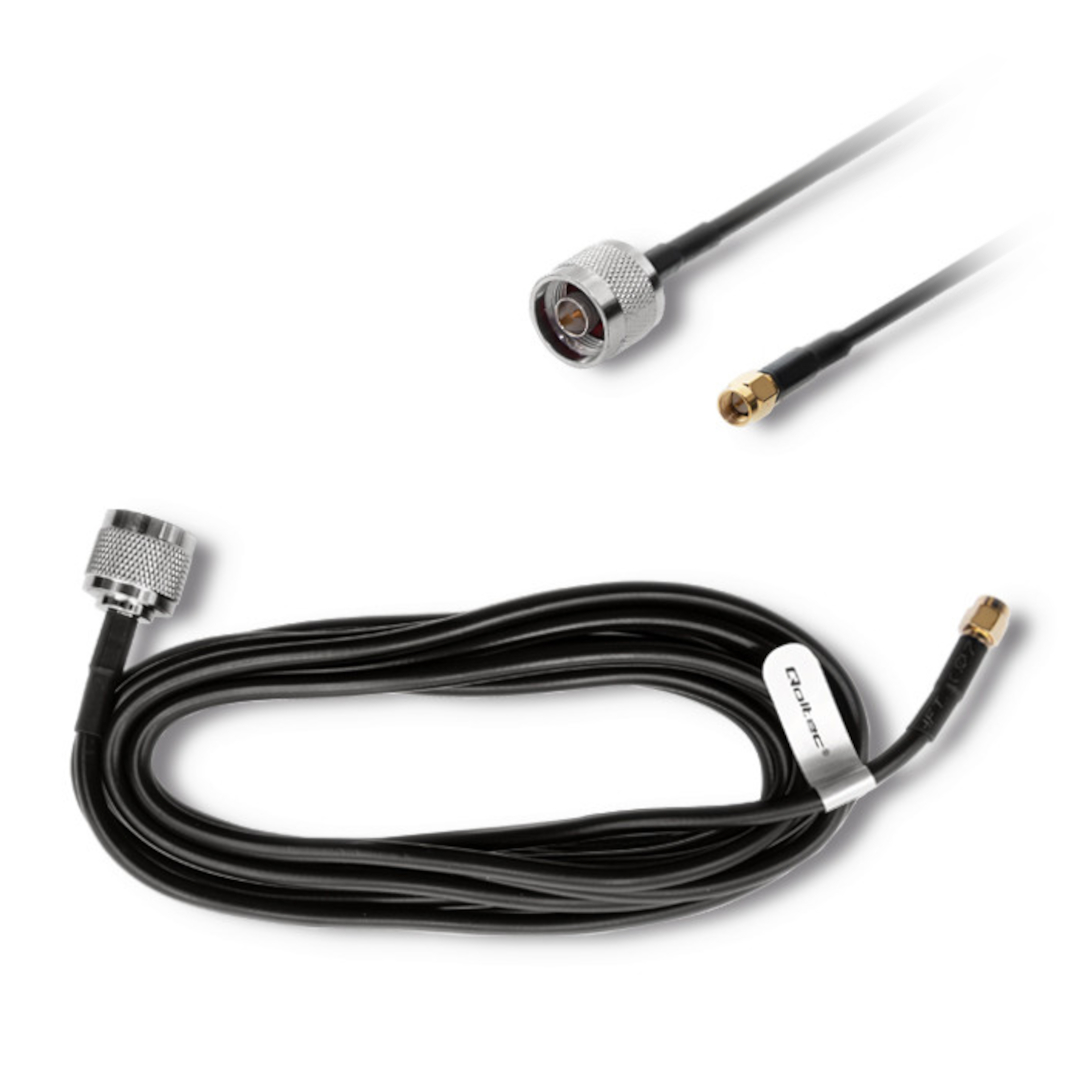

The included RG58 coaxial cable allows you to conveniently position the antenna in the optimal location. Useful links |
