Forbot Robot Shield for Arduino
Forbot Robot Shield is an extension board for Arduino, which is adding to it, everything what's necessary for making robot. On board of the module, found can be, i.a. the driver of the DC motors, a connector for servo, the I/O expander, IR receiver, buzzer and the button. Other signals of the Arduino, has been brought to standard goldpin connectors.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Forbot Robot Shield is an extension board for Arduino, which is adding to it, everything what's necessary for making robot. On board of the module, found can be, i.a. the driver of the DC motors, a connector for servo, the I/O expander, IR receiver, buzzer and the button. Other signals of the Arduino, has been brought to standard goldpin connectors.
The module is also available in akit that contains everything needed to perform the constructiondescribed in the course of building robots! |
Drive control
On board is the driver of motors DRV8835, which allows the connection of two DC drives (up to 1.2 A per channel). The motors are powered through filter capacitors that protect electronics from interferences caused by drivers. The module is also equipped with separate connector for the servo.

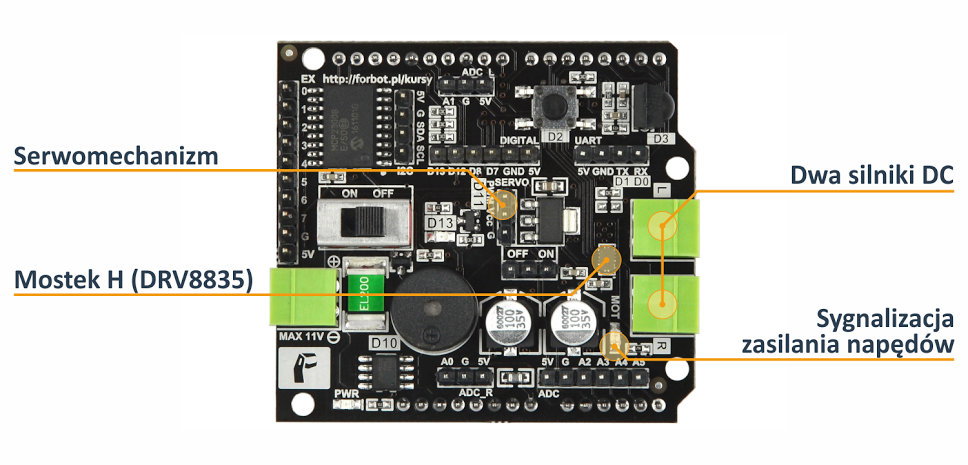

The elements and connectors to control DC motors.
Power

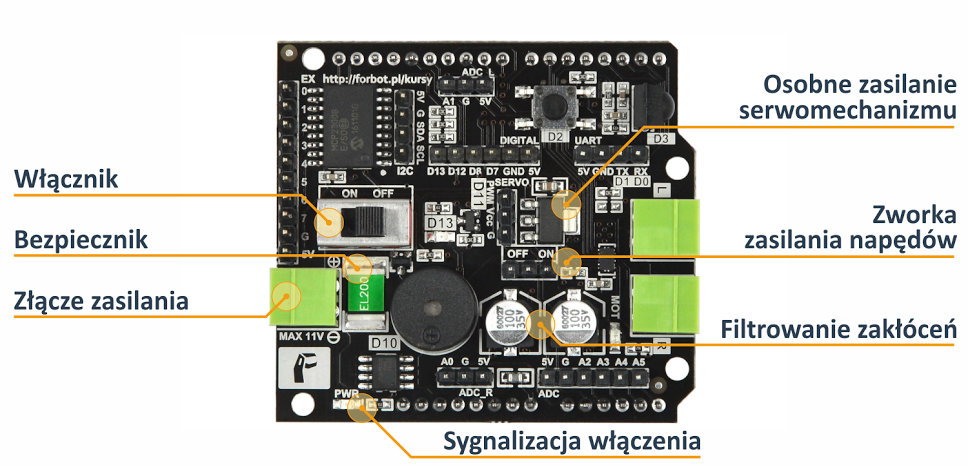

Shield should be powered with a voltage ranging from 7 V to 11 V (recommended 8 to 10 V) via special connector (located on the left edge). Board is equipped with protection from the reverse power connection, polymer fuse and slide switch. The voltage indicated on the power connector is used to power two DC motors and servo (via a separate stabilizer). Using internal jumper, you can remove the voltage from drives!
Board also powers the Arduino - there's no need to connect a separate power supply for electronics! |
The course of building robots

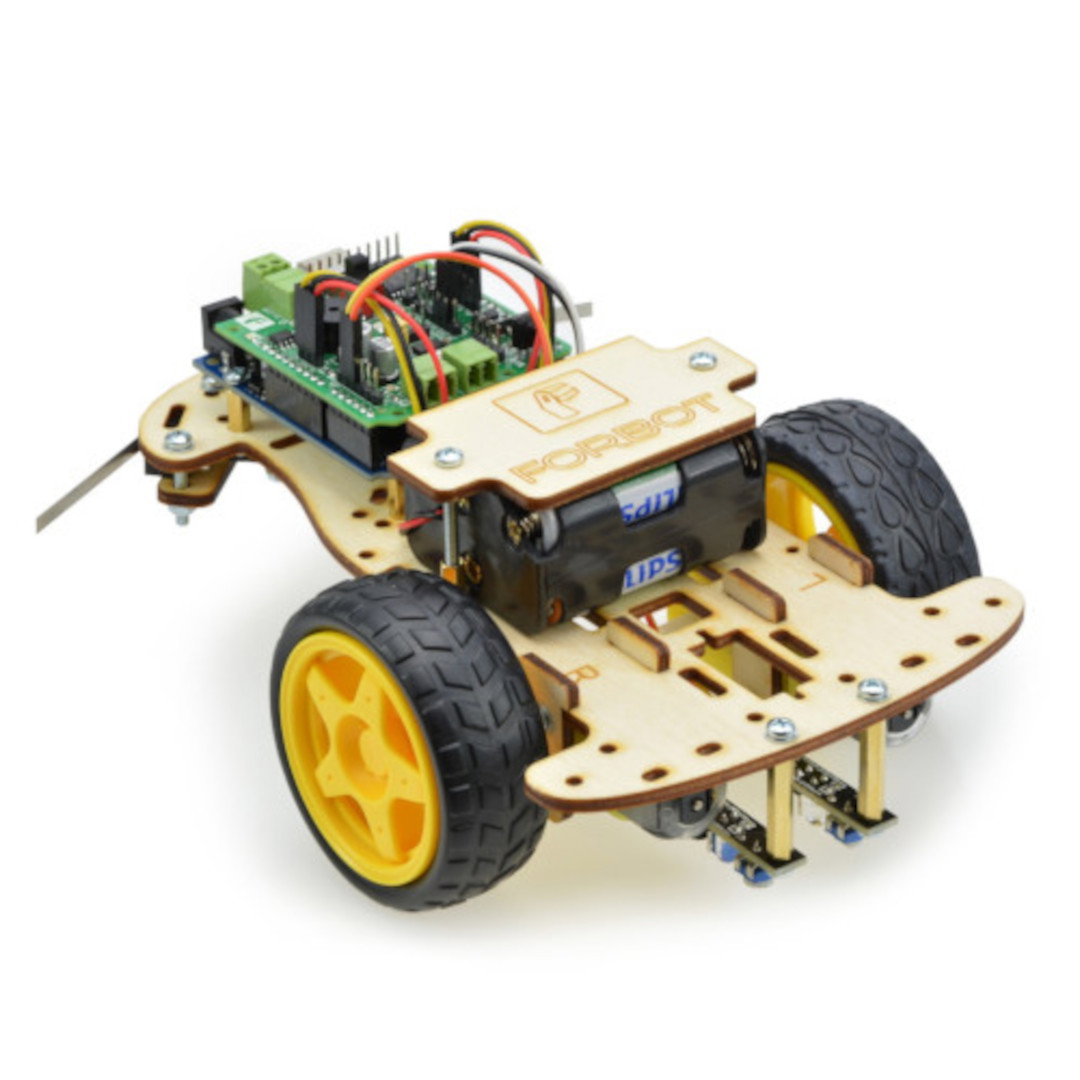

Manufacturer of board, which is partof a set for building robots, it's a Polish firm MSX. Test programs that use peripheral devices, as well as a detailed module description can be found in a series of articles published on Forbot:http://kurs.forbot.pl/robot
Construction kit of a robotalong with an on-line course can be purchased separately in our store.
Specification of board
- Bridge H (driver of DC motors):
- Dual channel DRV8835 driver
- Powering engines from 7 V to 11 V
- Built-in capacitors for noise filtering
- The ability to adjust the direction and speed of rotation
- Drivers are connected via screw connectors
- Connector for servo:
- Servo power: 5V (via separate stabilizer)
- The servo is connected via goldpin connector (GND, VCC, PWM)
- 8-channel port expander (MCP23008)
- IR receiver (TSOP2236)
- Button (connected via RC filter)
- Buzzer with generator
- LED connected to Arduino
- Two LEDs indicating power supply (of electronics and drivers)

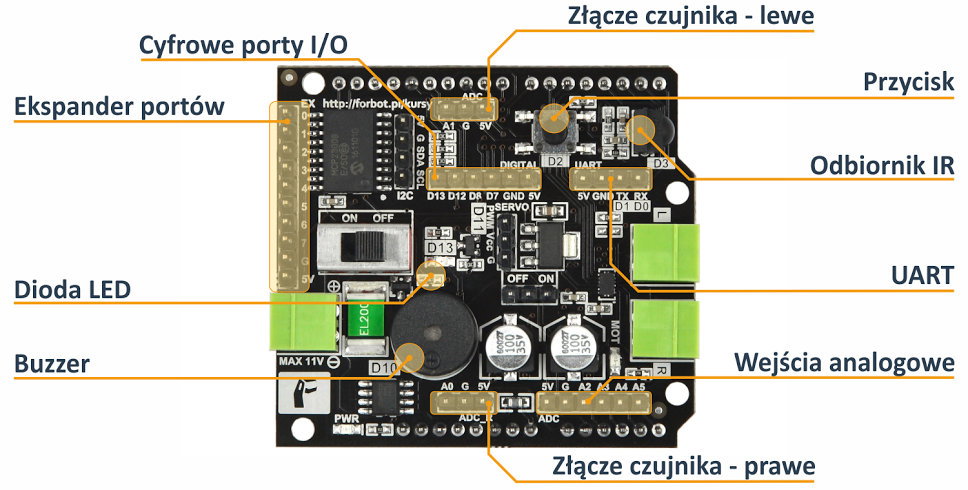

- Extra goldpin connectors:
- UART
- I2C
- Leads of available I/O Arduino pins
- Power:
- Input voltage: 7-11V (recommended 8-10V)
- Polymer fuse
- Protection from reverse power connection
- Slide power switch
- Jumper to allow disconnection of power supply for drives
The contents of the set:
- module from Forbot Robot Shield
- jumper of power drives
- 3 plug-ins suitable for screw connectors (power, motors)
