Product description: BleBox doorbox PRO - door and gate controller 12 - 24 V AC / DC WiFi - Android / iOS application
The BleBox doorBox PRO is a modern access control controller that allows you to remotely manage doors and gates from anywhere in the world. It works with electric strikes, locks, and deadbolts, offering safe and convenient control. Equipped with a potential-free relay (from 5 V to 230 V AC/DC) and a waterproof IP54 housing with an external RP-SMA antenna (5 dB) , the controller operates locally, via the cloud, or in Access Point mode. It supports the 2.4 GHz WiFi standard, has an open API , and supports Smart Home protocols such as Google Assistant, Alexa, and Home Assistant . Compatible with Android, iOS, and Windows.

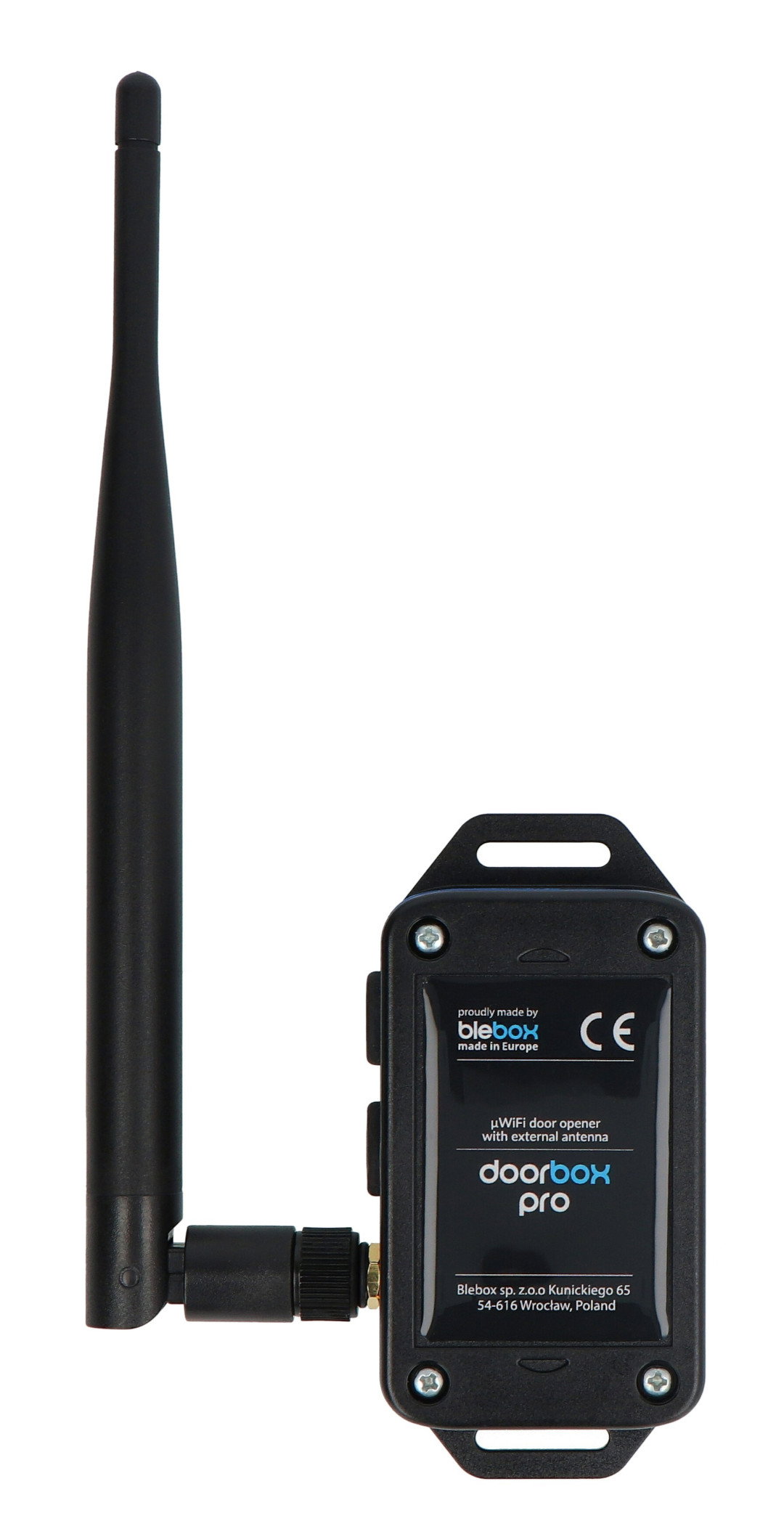

BleBox doorbox PRO - door and gate controller 12 - 24 V AC / DC WiFi - Android / iOS application.
The controller sends notifications to the smartphone (e.g. about opening a door) in real time.
Main features of the controller
- Remote control of doors and gates : via an application on a smartphone or computer
- Potential-free relay : supports voltages from 5 V to 230 V AC/DC
- Support for multiple sensors : reed switches, NO/NPN inductive sensors
- External WiFi antenna : increased range and can be mounted in difficult locations
- Waterproof housing : IP54 protection class
- Safe supply voltage : 12 V to 24 V AC/DC
- Integration with voice assistants : works with Google Assistant, Alexa, Home Assistant
Controls and sensors - flexible connection options
The doorBox PRO controller offers three operating modes: local, remote via the cloud, and direct in Access Point mode . It is possible to connect door or gate opening sensors (e.g., reed switches , inductive sensors), as well as additional control buttons (e.g., bell buttons). The inputs are fully configurable and support voltages from 12 V to 24 V AC/DC , enabling a wide range of applications in automation systems.
The controller allows you to connect a sensor that allows you to check it in real time in the wBox application.
Intelligent automation 1Azcx1X3 schedules, notifications and the wBox app
The wBox app allows you to create schedules based on astronomical clocks (sunrise and sunset), allowing you to automatically open or close doors at specific times. Push notifications notify you of any events , such as opening the door or ringing the doorbell. The controller also allows for integration with other BleBox modules, such as lighting or a doorbell.
Connection and assembly 1Azcx1X3 quick start1Azcx1X3up

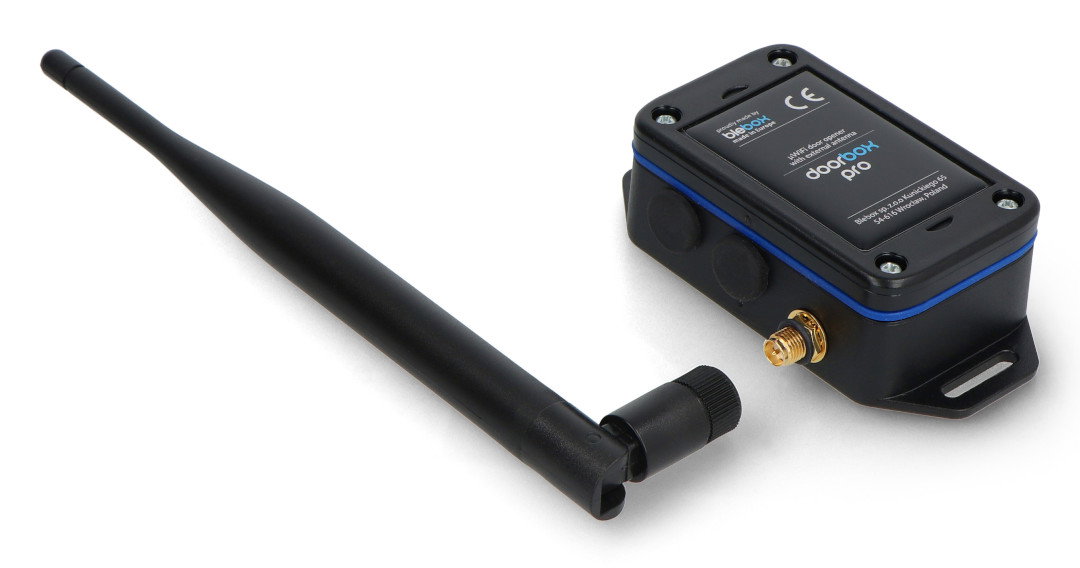

Starting up the doorBox PRO controller is intuitive and quick. The housing has mounting holes and an option for adhesive tape mounting. The WiFi antenna with an RP-SMA connector can be replaced or extended outside the housing. A 5 dB omnidirectional antenna is included, ensuring stable communication even in areas with poor reception.
BleBox doorBox PRO is powered by a voltage of 12 V to 24 V AC / DC.

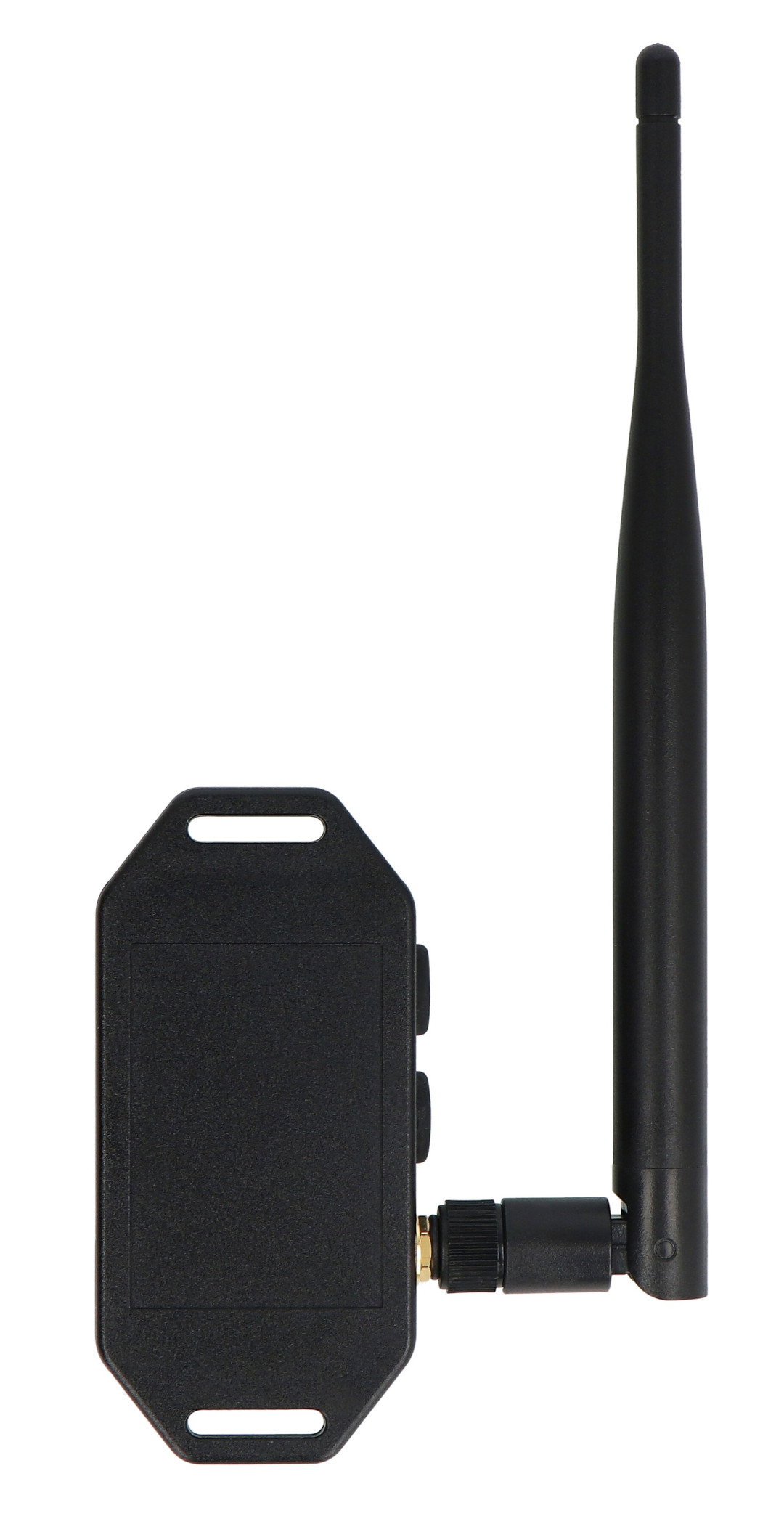

The set includes an antenna.
Technical specifications of BleBox doorbox PRO
- Supply voltage: 12 V to 24 V AC/DC
- Power consumption: < 1W
- Number of outputs: 1 (relay NO, separated)
- Maximum load: 5A 230V AC / 5A 30V DC
- Number of inputs: 3 (logical, potential-free)
- Input signal range: 12V to 24V AC/DC
- Accessory Power Output: 12V to 24V DC / 100mA
- Antenna: omnidirectional, RP-SMA, gain 5 dB
- Protection class: IP54
- Communication: µWiFi, 802.11g (2.4 GHz)
- Encryption: WPA2-PSK, AEAD
- API: open (technical.blebox.eu)
- Operating temperature: -20°C to 50°C
- Dimensions: 50 x 92 x 28 mm (without antenna), 85 x 230 x 28 mm (with antenna vertical)
Contents of the set
- BleBox doorBox PRO controller
- WiFi antenna RP-SMA (5 dB)
