Product description: M5Stack Core LAN - LAN hat W5500 - PoE - RS485 / RS232

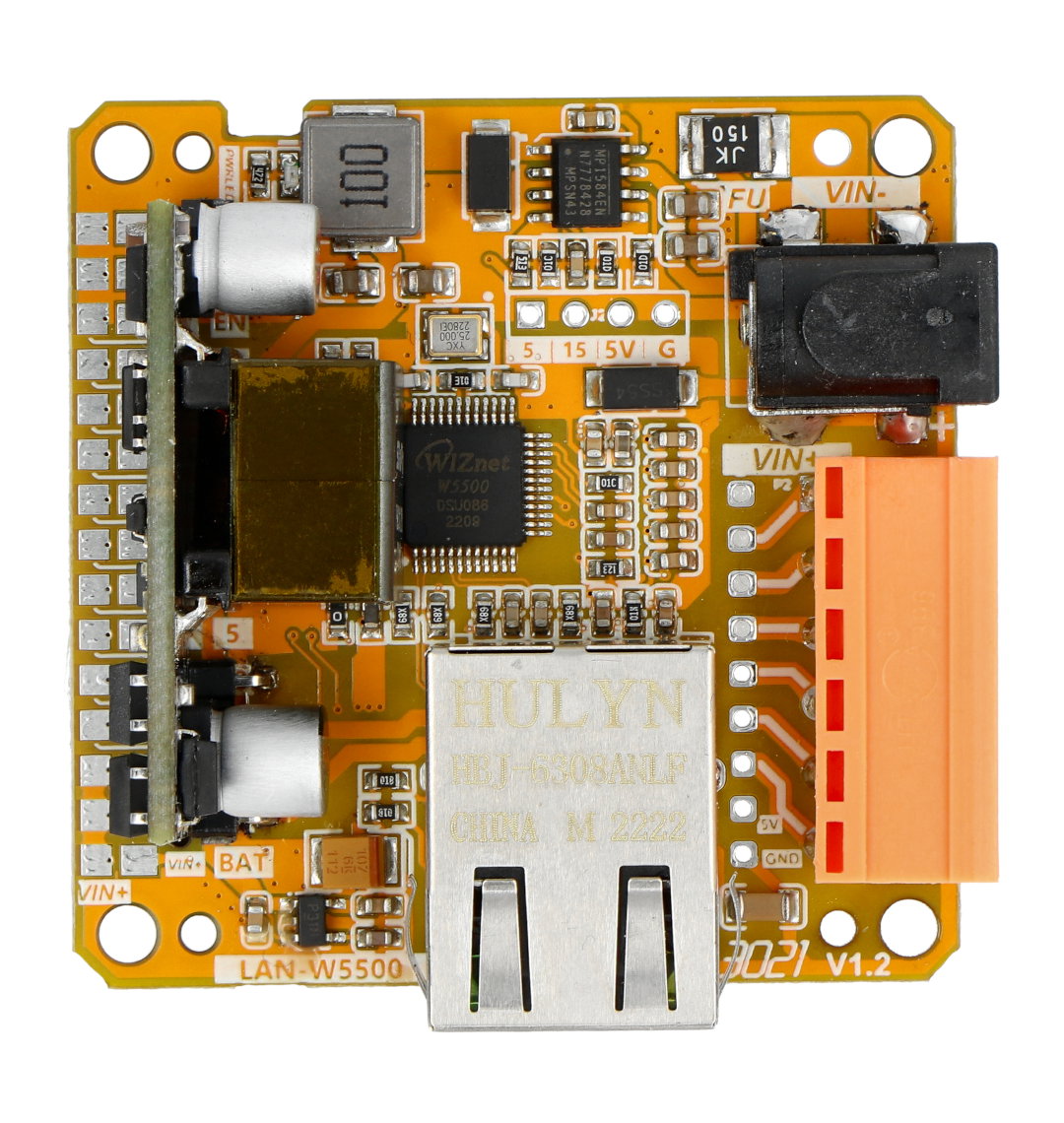

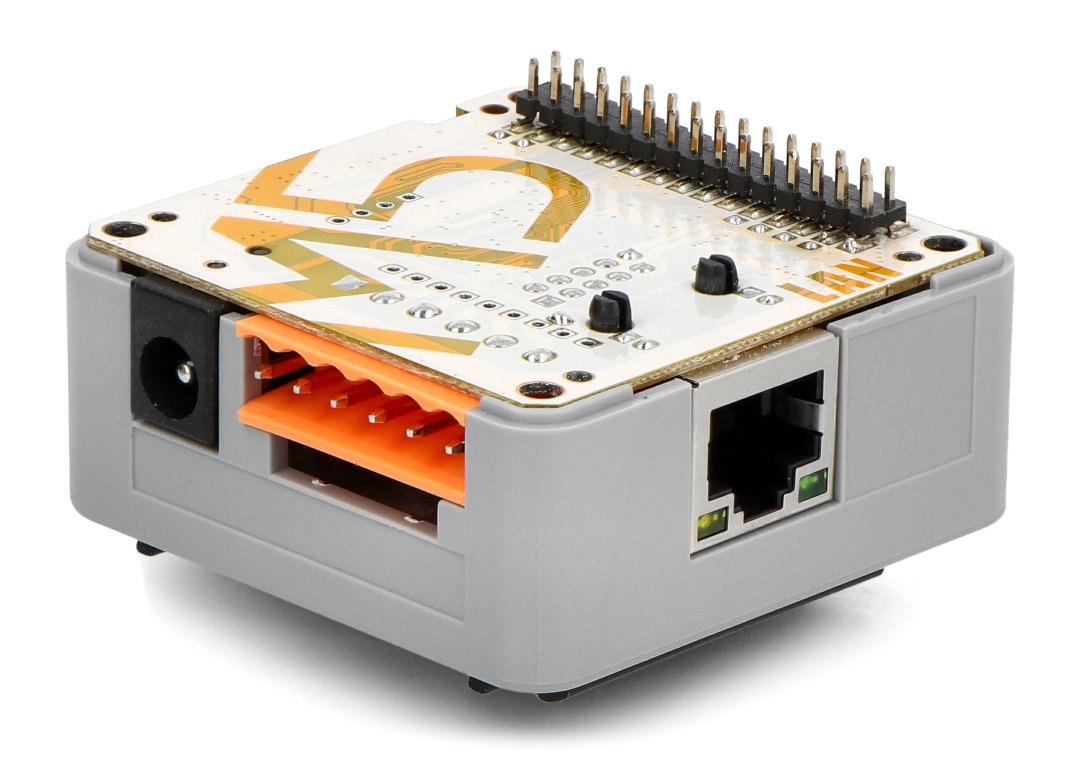

The PoE-enabled LAN module is equipped with aW5500Ethernetchip that integrates aTCP/IPstack,a 10 / 100 Ethernet data link layer and a physical layer. The module allows communication viaRS485 or RS232interface. The device was designed mainly for industrial applications. The overlay is powered by a PoE hub/switch.HT3.96connectors and mounting elements such asmetal railand magnets for easy installation are also included.
Implementation of the RS485 or RS232 interface requires soldering the appropriate circuit.
Set contents.

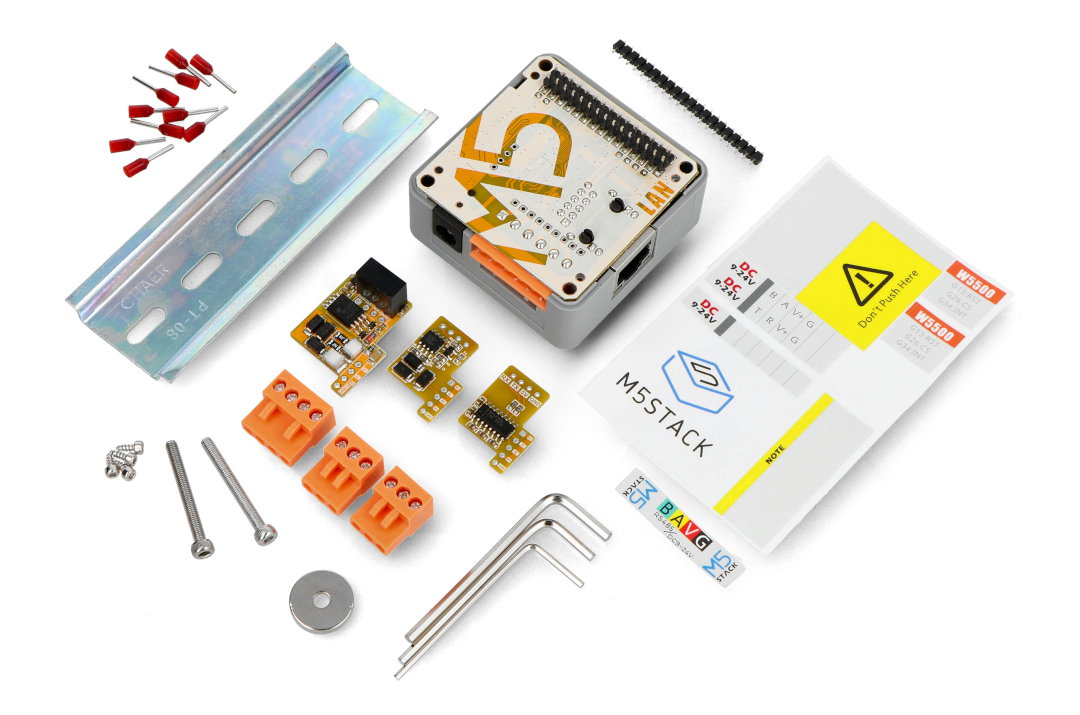

The kit includes
- PoE overlay
- Adapter module TTL - RS485
- Adapter module TTL - RS232
- Module CANBus
- 20-pin goldpin raster 2.54 mm
- Metal rail with handle
- Magnetic disk
- Connectors HT3.96
- Sleeve end
- Allen wrenches
- Screws
Main features of the cap
- PoE IEEE802.3 AF support
- DC input voltage: 9 to 24 V
- Connectors HT3.96 for RS485 / RS232 interface
- Support for TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
- 10BaseT / 100Base-T Ethernet PHY support
- Easy to mount on the wall or other surface
Technical Specification
- Supply voltage: 9 V to 24 V
- Ethernet chip: W5500
- Protocols supported: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- RS485 chip: SP3485EE
- RS232 chip: MAX232
- PoE standard: IEEE802.3 AF
- Dimensions: 54 x 54 x 28 mm
- Weight: 32 g
LAN W5500 overlay for M5Stack Core modules.
