Micro motor 50:1 420RPM - 6V - side connector - PiMoroni COM0820
A small, light, and at the same time powerful PiMoroni motor with a 50: 1 gearbox , it is perfect for projects requiring miniature components. The motor is supplied with the voltage of 6 V and consumes up to 920 mA with the shaft stopped. It reaches a rotational speed of approx. 420 rpm , and its torque is 0.4 kg * cm . The miniature motor is equipped with a JST-ZH connector, by means of which it can be connected directly to the motor driver module, eg PiMoroni Motor SHIM to Raspberry Pi Pico.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of the Pimoroni brand. This British company offers inventive solutions for electronics enthusiasts, covering modules, sensors, Raspberry Pi expansions, educational kits and prototyping accessories. The Botland range holds original Pimoroni products only.
Product description: Micro 50 motor: 1 420 RPM - 6 V - side connector - PiMoroni COM0820
A small, light, and at the same time powerful PiMoroni motor with a 50: 1 gearbox , it is perfect for projects requiring miniature components. The motor is supplied with the voltage of 6 V and consumes up to 920 mA with the shaft stopped. It reaches a rotational speed of approx. 420 rpm, and its torque is 0.4 kg * cm . The miniature motor is equipped with a convenient JST-ZH connector, by means of which it can be connected directly to the motor driver module, eg PiMoroni Motor SHIM to Raspberry Pi Pico .
The engine is equipped with a JST-ZH connector located on the narrow side of the engine. Our offer also includes a version with a connector on the wider side - check it out!

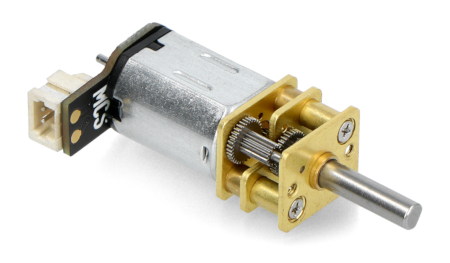

Micro motor 50: 1 420 RPM - 6 V - side connector - PiMoroni COM0820.

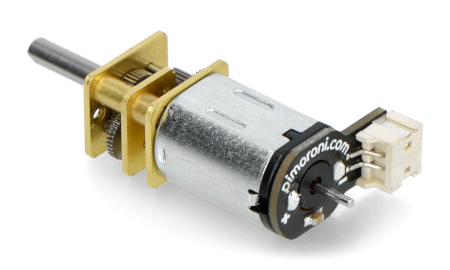

50: 1 PiMoroni Motor, 420 RPM, 6V.
Main features of the PiMoroni COM0820 engine
- JST-ZH connector located on the narrow side of the engine.
- The idle speed is approx. 420 rpm.
- The maximum speed under load is approx. 355 rpm.
- Easy to assemble and disassemble.
- The maximum engine noise is 55 dB.
- Compact dimensions of 24 x 12 x 10 mm.
Engine dimensions
The motor body is a cuboid with dimensions 24 x 12 x 10 mm, and its overall dimensions are 41.2 x 12 x 10. There is a 3 mm D-shaped shaft at the exit.
Cables are not included, they must be purchased separately.
Micro DC motor specification
- Power supply: 6V
- Power consumption:
- without load: ≤ 90 mA
- with load: ≤ 215 mA
- with the shaft stopped: ≤ 920 mA
- Working temperature: from -10 ° C to 60 ° C
- No-load speed: approx. 420 rpm
- Rotation speed with load: approx. 355 rpm
- Torque: ≥ 0.4 kg * cm
- Gear ratio: 50: 1
- Maximum volume: 55 dB
- Rotation Direction: Clockwise (CW)
- Body dimensions: 24 x 12 x 10 mm

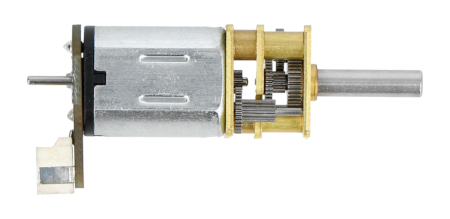

Micro DC motor with 3mm D-shaft.
Useful links
| Name | Value |
|---|---|
| Voltage to | 6.0 V |
| Voltage from | 6.0 V |
| Motor - current | 920 mA |
| Motor - gear | 50:1 |
| Rotation speed | 420 obr/min |
| Torque | 0.4kg*cm |
| Motor - shaft | 3 mm |
| Width | 8 cm |
| Height | 12 cm |
| Depth | 1.5 cm |
| Weight | 0.012 kg |
