Pololu Mini Push MOSFET Switch LV 2.2-20V/6A - with Reverse Current Protection - Pololu 2808
Switch the power on and off with one button: the Pololu LV solid-state switch from 2.2 V with reverse polarity protection.
- Continuous current approx. 6 A, 12 A momentarily
- ON, OFF and CTRL inputs for a microcontroller
- Current draw when off approx. 0.01 µA
We could not load the price.
The promotional price does not combine with quantity discounts.
Switch the power on and off with one button
Pololu Mini Pushbutton Power Switch LV is a solid-state power switch controlled by a momentary button: one press turns the power on, the next turns it off. The load current does not flow through the button but through MOSFET transistors, so a small button controls a current of up to about 6 A. The switch also has built-in reverse power protection.
The LV version works from 2.2 V, so you can power a device from a single lithium cell. The button is already on the board, and you can connect external buttons to the A and B pins. The ON, OFF and CTRL inputs let a microcontroller turn off the power by itself, e.g. when the battery is already discharged.

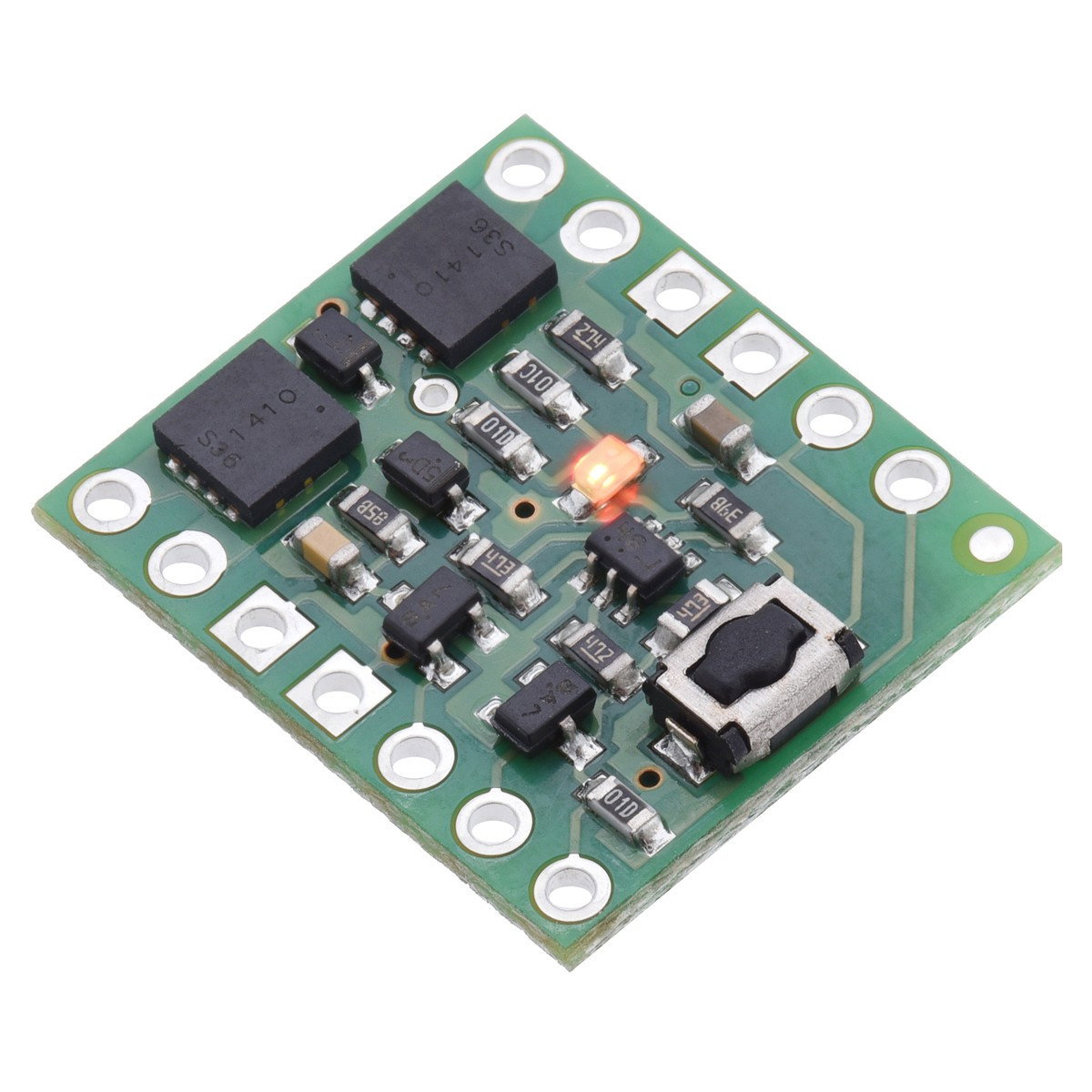

Pololu pushbutton power switch board
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
2.2-16 V
recommended operating voltage (max. 20 V)
approx. 6 A
continuous current, 12 A momentarily
0.01 µA
current draw when off
15.2 x 17.8 mm
board dimensions, weight 0.6 g
A good choice for you?
A good choice if:
- you want to switch on the power of a battery-powered device with a small button
- you power a circuit from a single lithium cell or from a voltage of up to 16 V
- the microcontroller is to turn off the power by itself, e.g. after the battery is discharged
Consider another option if:
- you need a higher voltage: see Pololu Push MOSFET SV switch 4.5-40 V/4 A
- you need a higher current: choose Pololu Push MOSFET HP large switch 4.5-40 V/16 A
Technical specifications
| Parameter | Value |
|---|---|
| Type | solid-state power switch controlled by a button, LV version |
| Recommended operating voltage | 2.2-16 V (max. 20 V) |
| Continuous current | 3 A (transistors up to 55 °C), 6 A (transistors up to 150 °C) |
| Maximum current | 12 A |
| Current draw when on | approx. 210 µA per volt of voltage, mainly the LED |
| Current draw when off | approx. 0.01 µA |
| Protection | reverse power connection |

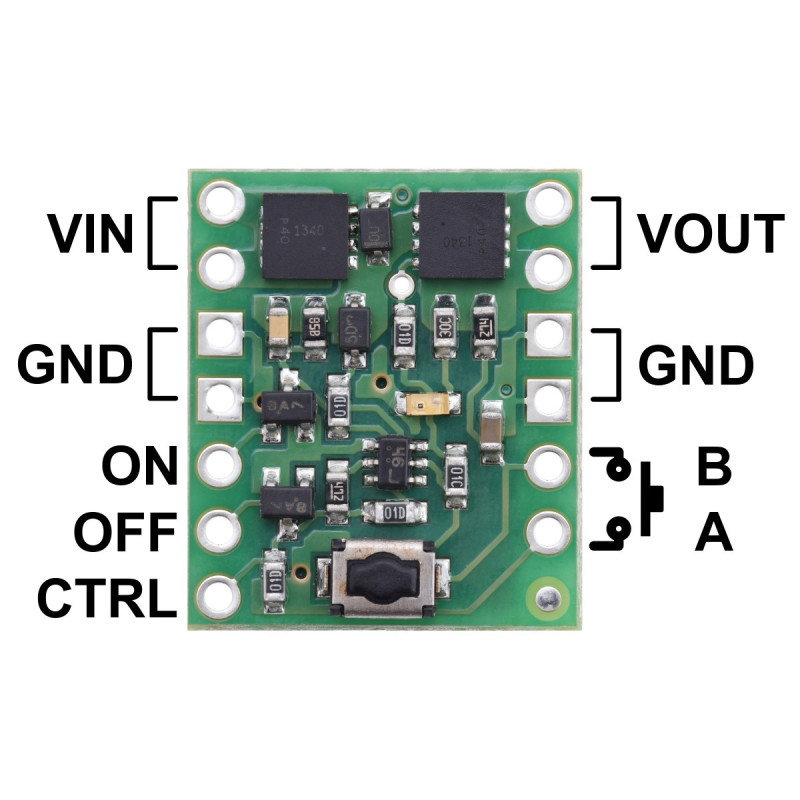

| Control | button on the board, A and B pins for an external button, ON, OFF and CTRL inputs |
| Indicator | red LED |
| Pitch | 2.54 mm |
| Dimensions | 15.2 x 17.8 x 3 mm |
| Weight | 0.6 g |

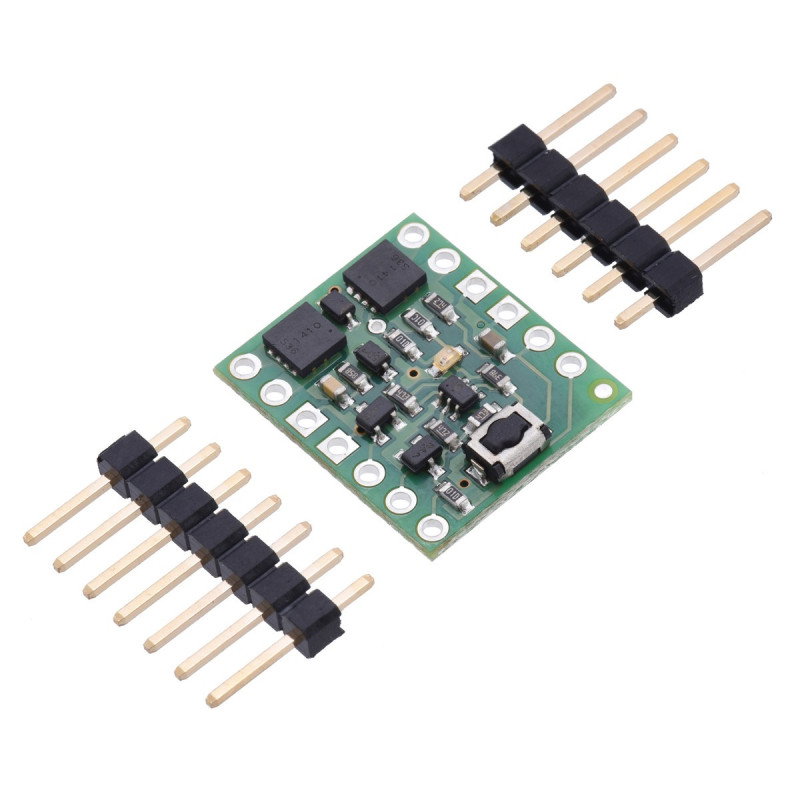

| Included | switch and male pin headers to solder |
| Manufacturer | Pololu (number 2808) |
Did you know?
Made for themselves first
Pololu developed this switch for its own products as a replacement for large mechanical switches, and the design is patented. Because the current does not flow through the button, one small button can control high power.
Source: Pololu: product page
Frequently asked questions
Can I connect several buttons?
Yes. You connect external momentary buttons in parallel to the A and B pins, and each of them switches the power on and off. The manufacturer also describes how to connect a button that only switches on or only switches off.
Can the microcontroller turn off the power by itself?
Yes. A short pulse on the OFF or CTRL input turns the power off, and a pulse on ON turns it on. The manufacturer recommends pulses, not a constant high state.
What is the difference between the LV and SV versions?
The LV version works from 2.2 V to 16 V and delivers more current at low voltage. The SV version works from 4.5 V to 32 V, but it will not work from a single lithium cell.
