Soft Power Swich - USB Type C - SparkFun PRT-27081
Soft Power Switch with USB Type-C from SparkFun is a power switch that works on the principle of a passive button, but with the possibility of control via software. The button works similarly to a laptop power button: a single press turns the system on, and another press (after intervention by the microcontroller) can turn it off. If problems occur, just hold the button for about 10 seconds to force the system to shut down.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Soft Power Switch - power switch - USB Type-C - SparkFun PRT-27081

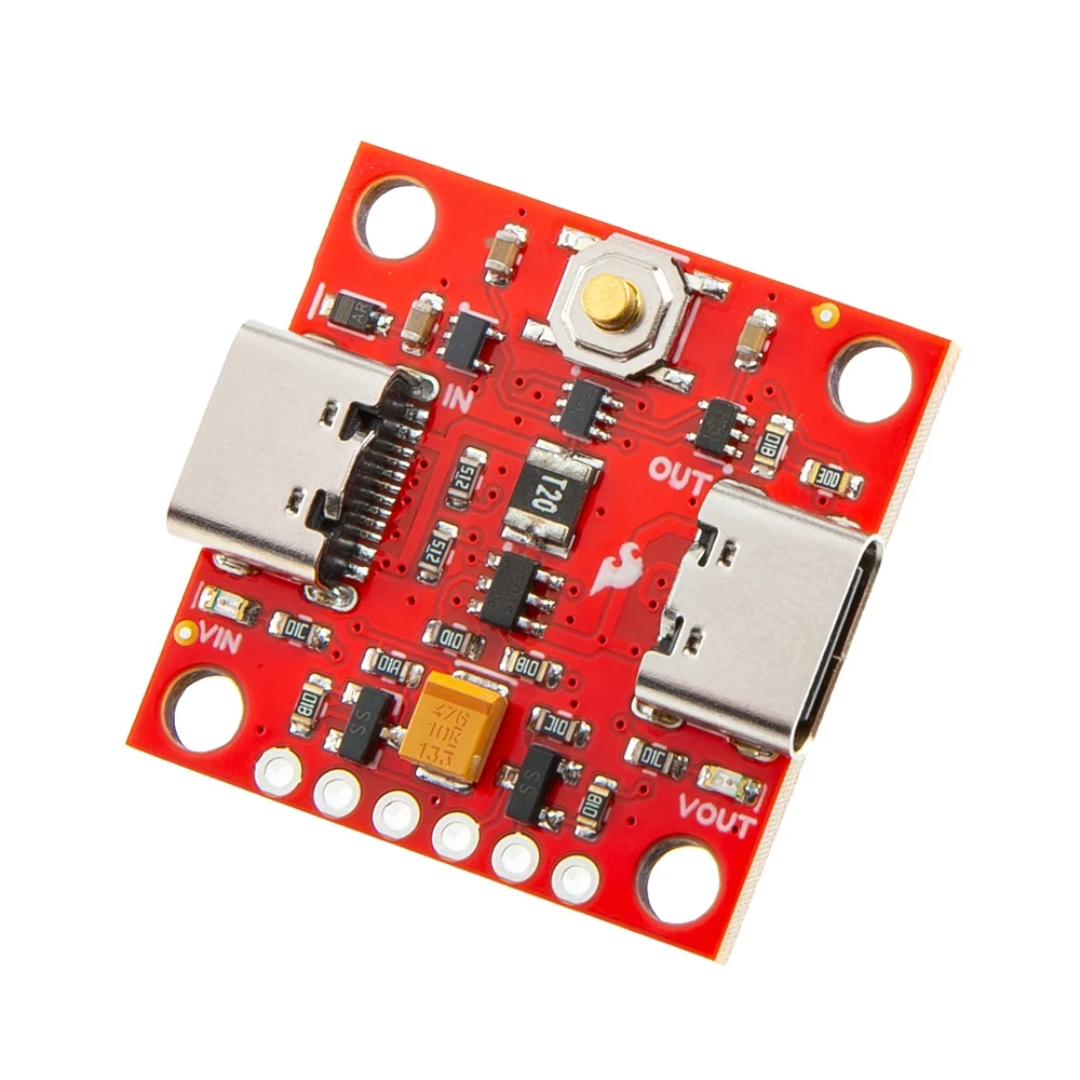

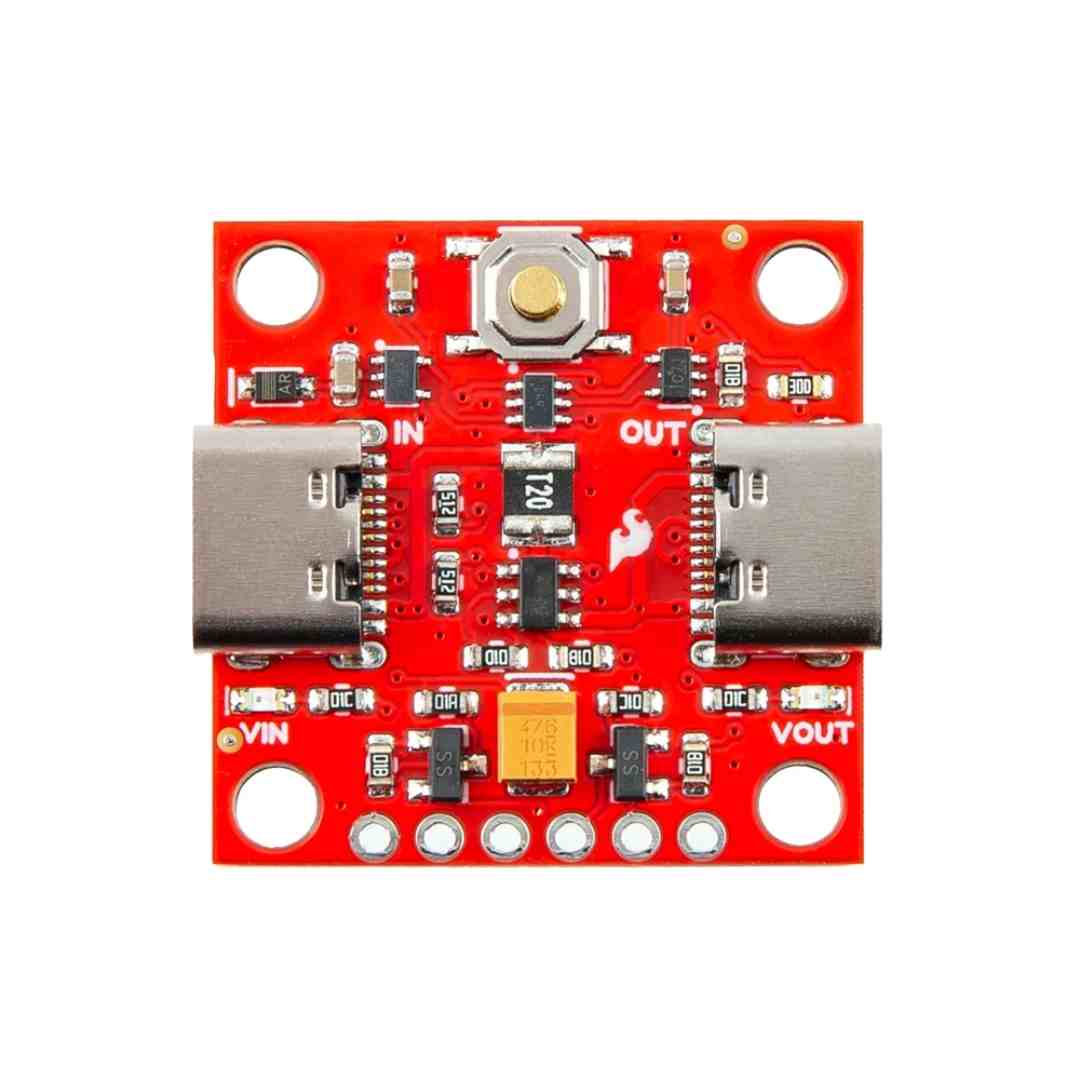

The SparkFun USB Type-C Soft Power Switch is a power switch that works like a passive button, but can be controlled via software. The button works similarly to a laptop power button: a single press turns the system on, and a second press (via a microcontroller) can turn it off. If problems occur, simply hold the button for about 10 seconds to force the system to shut down . The switch is ideal for Thing Plus-based projects and other devices where you need an easy way to control the power supply. It offers two USB Type-C connectors, as well as a version with 2 mm JST connectors for connecting a battery. It features a robust, digital design based on Texas Instruments circuits and provides very low power consumption in standby mode, which translates into energy savings in battery-powered devices. Equipped with LEDs to indicate the power status (input and output), as well as a 2 A fuse, providing protection against overloads.
Soft Power Switch - power switch with passive button - USB Type-C - SparkFun.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
The Soft Power Switch from SparkFun is a power switch that works like a passive button, but with the ability to be controlled via software.
Special Features
- Minimal standby current consumption - less than 1 µA at 3.75 V, with VIN LED off
- USB Type-C Connectors - Two USB Type-C ports for both power and data transfer
- Built-in button - allows you to easily turn the device on and off
- Forced shutdown - holding the button for about 10 seconds forces the system to shut down
- Overload protection - built-in 2A fuse provides protection against excessive current draw
- Microcontroller Compatibility - Ability to connect PUSH and OFF pins to a microcontroller to monitor buttons and initiate the shutdown process
- Power Status LEDs - LED indicators for input and output power, can be disabled if required
Practical applications
The SparkFun Soft Power Switch USB Type-C is the perfect solution for projects that require easy power management, such as mobile devices, IoT projects, prototyping with development boards, as well as battery-powered systems. Thanks to its functionality, it can be used in systems that require simple but safe power-on and power-off.
The button works similarly to a laptop power button: a single press turns the system on, and a subsequent press (after the intervention of the microcontroller) can turn it off.
It offers two USB Type-C ports, as well as a version with 2mm JST connectors for connecting the battery.
Technical Specifications Soft Power Switch
- Supply voltage: 1.8 V to 5.5 V (typically 5 V from USB Type-C)
- Maximum current: 2 A continuous, 4 A peak
- MOSFET: SIL2308 N&P-Channel MOSFET, P-Channel on resistance: 70 mΩ
- Quiescent Current: <1µA at 3.75V when VIN LED is off
- Connectors: 2x USB Type-C (power and data flow)
- Fuse: 2 A (self-regenerating)
- Voltage regulator: 3.3V (AP2112K)

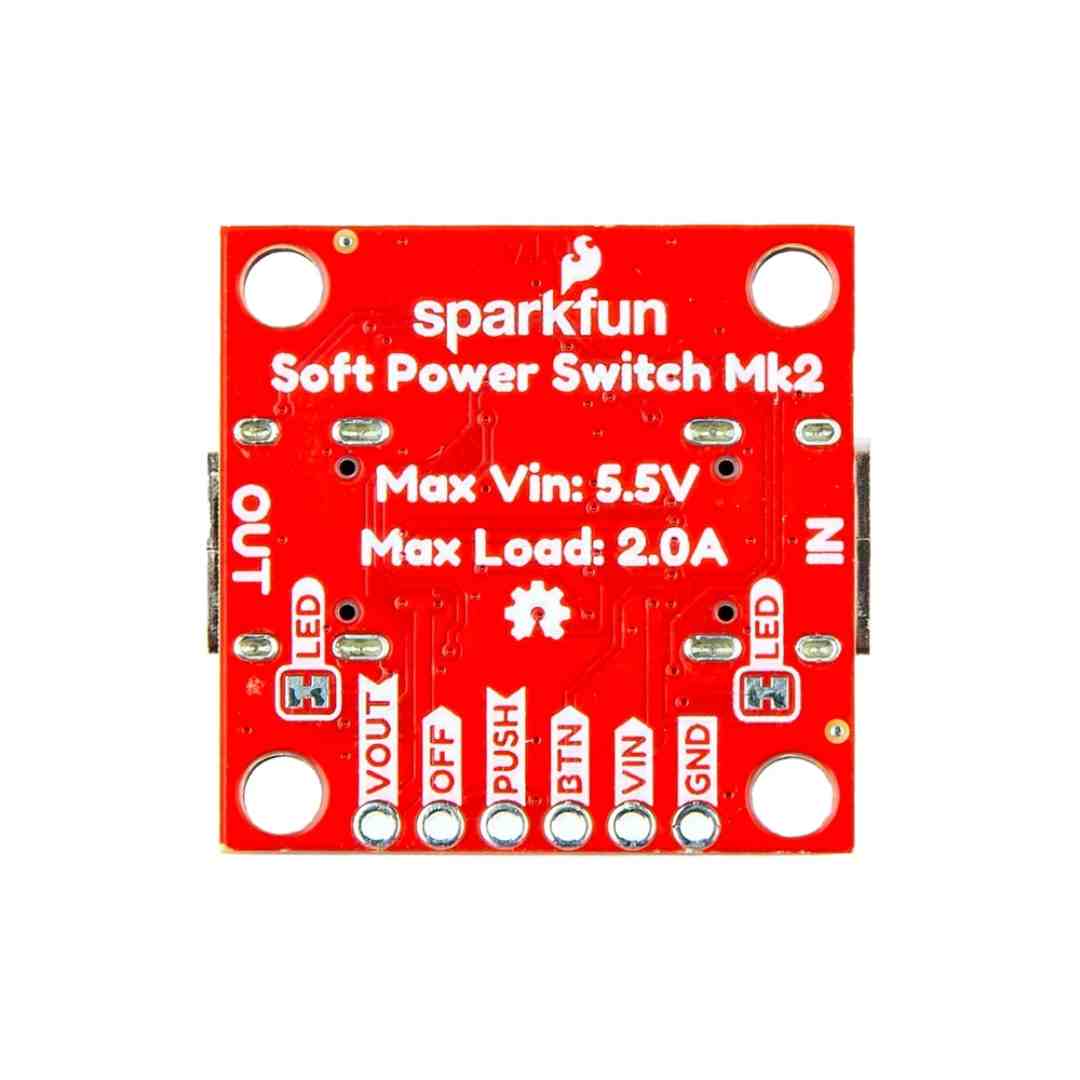

- Pins: GND, VIN, VOUT, BTN, PUSH, OFF

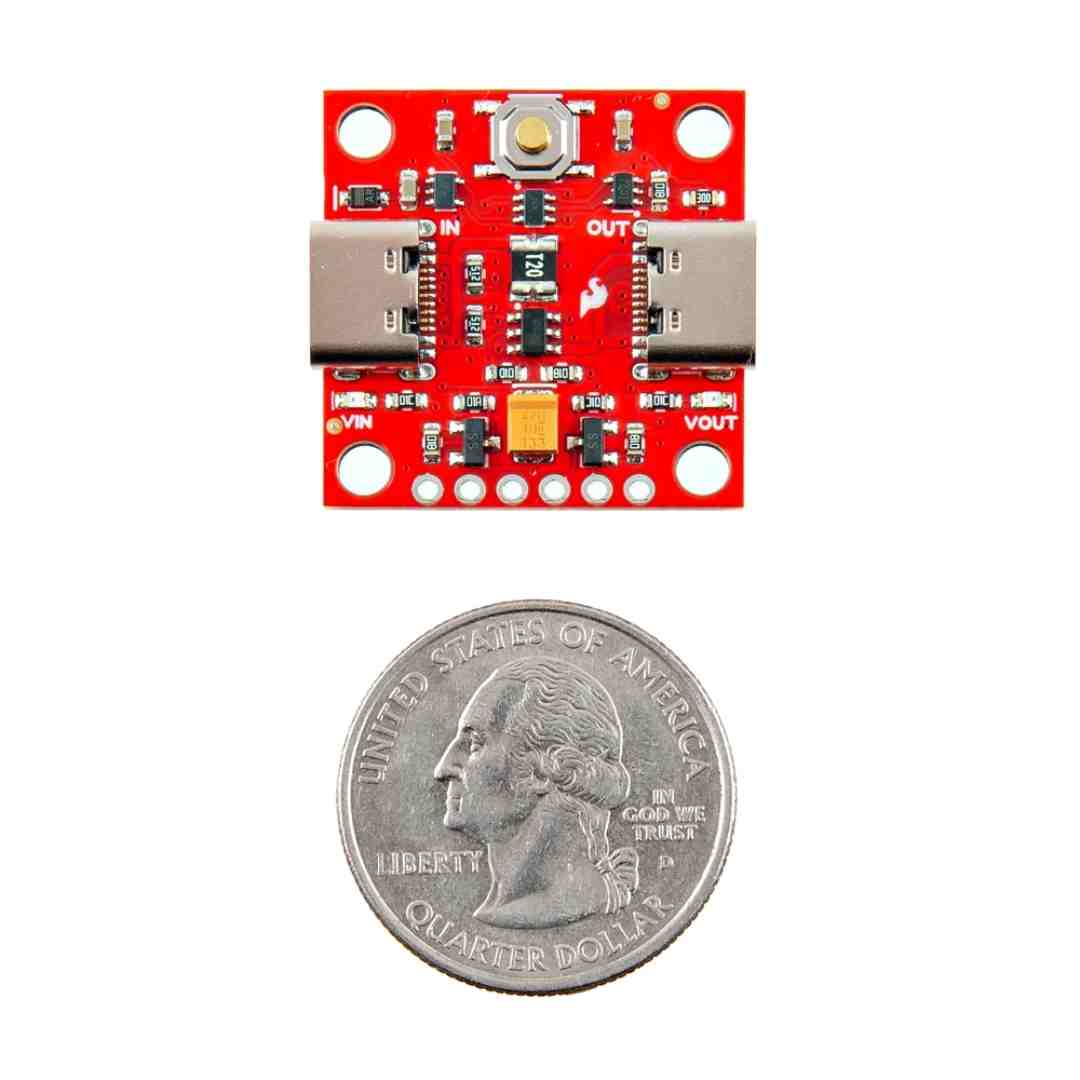

- Board dimensions: 25.4 x 25.4 mm
- Weight: 3.25 g
