WiFi module Thing Plus - ESP32 WROOM - SparkFun WRL-15663
The SparkFun module is equipped with ESP32 WROOM and ESP32-D0WDQ6 for wireless communication using WiFi and Bluetooth. Thing Plus for communication uses Qwiic Connect system based on I2C interface, thanks to Qwiic Connect system we can easily connect the module to the system without soldering. The module offers a huge possibility of IoT systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Thing Plus WiFi module - ESP32 WROOM - SparkFun WRL-15663.
The SparkFun module is equipped withESP32 WROOMandESP32-D0WDQ6forwirelesscommunication using WiFi and Bluetooth. Thing Plus for communication uses Qwiic Connect system based onI2Cinterface, thanks to Qwiic Connect system we can easily connect the module to the system without soldering. The module offers a huge potential in terms of IoT systems and can be used to control LEDs as well as to transfer data to a specific platform. Thing Plus can also be programmed using ArduinoIDE anda speciallibrary.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
Presentation of SparkFun Thing Plus module.
Module outputs
The Thing Plus board supports a number of interfaces and peripheral outputs, a detailed layout of the module outputs can be found in theuserguide. These include

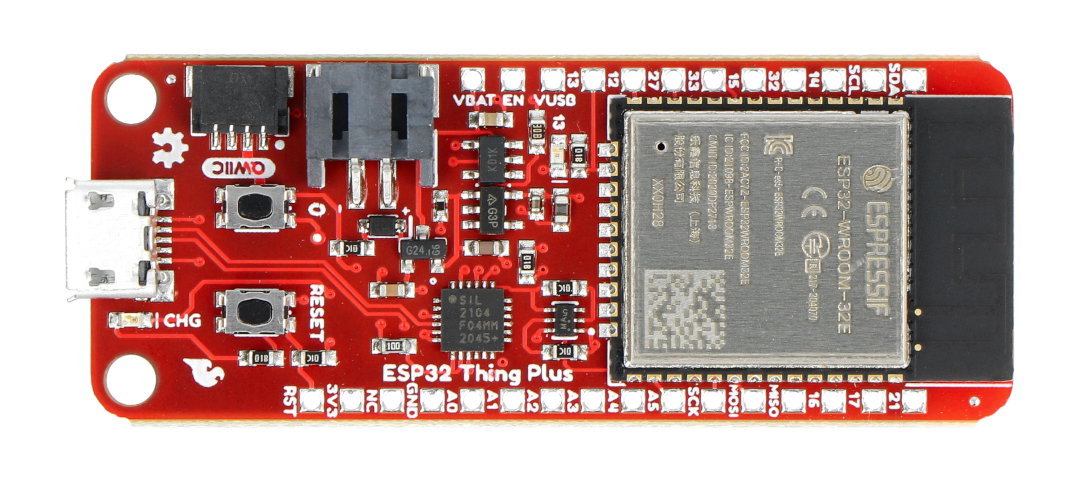

SparkFun Thing Plus module.
Module outputs
- 13x: ADC converter
- 3x: UART (only two outputs are configured by default, one of the outputs is used for loading and debugging)
- 3x: SPI (by default only one output is configured in Arduino IDE)
- 2x: I2C (by default only one output is configured in Arduino IDE)
- 2x: DAC converter channel
- 16x: PWM output
- 8x: capacitive touch controller
- 1x: Hall sensor
- 1x: CAN interface
- 1x: SD/SDIO/MMC memory controller
- 1x: microUSB connector
- 1x: JST connector 2.0 mm
- 1x: Qwiic connector
Technical Specification
- Supply voltage: 3 V to 3.6 V
- CPU: Xtensa® LX6 32-bit
- Clocking: up to 240 MHz
- Memory:
- 520 kB of SRAM
- 16 MB flash memory
- WiFi standard: 802.11 b/g/n
- Bluetooth operating modes: classic and BLE
- Connectors:
- GPIO - 21 pin
- microUSB connector
- JST connector 2.0 mm
- Qwiic connector
- Accelerating the encryption: AES, SHA2, ECC, RSA-4096
- Dimensions: 58.42 x 22.86 mm
Useful links
| Name | Value |
|---|---|
| Voltage to | 3.0 V |
| Voltage from | 3.6 V |
| UC - Microcontroller |
|
| UC - Core | Tensilica Xtensa LX7 |
| UC - Flash | 16 MB |
| UC - RAM | 520 kB |
| UC - core | 2. Dual Core |
| UC - Digital pins | 21 |
| UC - freq | 240 MHz |
| UC - Ethernet | yes |
| UC - A/C | Tak |
| UC - C/A | 1 |
| UC - PWM | 16 |
| UC - WiFi | yes |
| UC - USB | microUSB |
| UC - microSD | yes |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | 5V microUSB |
| UC - SPI interface | yes |
| Width | 2.3 cm |
| Height | 5.8 cm |
| Depth | 0.7 cm |
| Weight | 0.008 kg |
