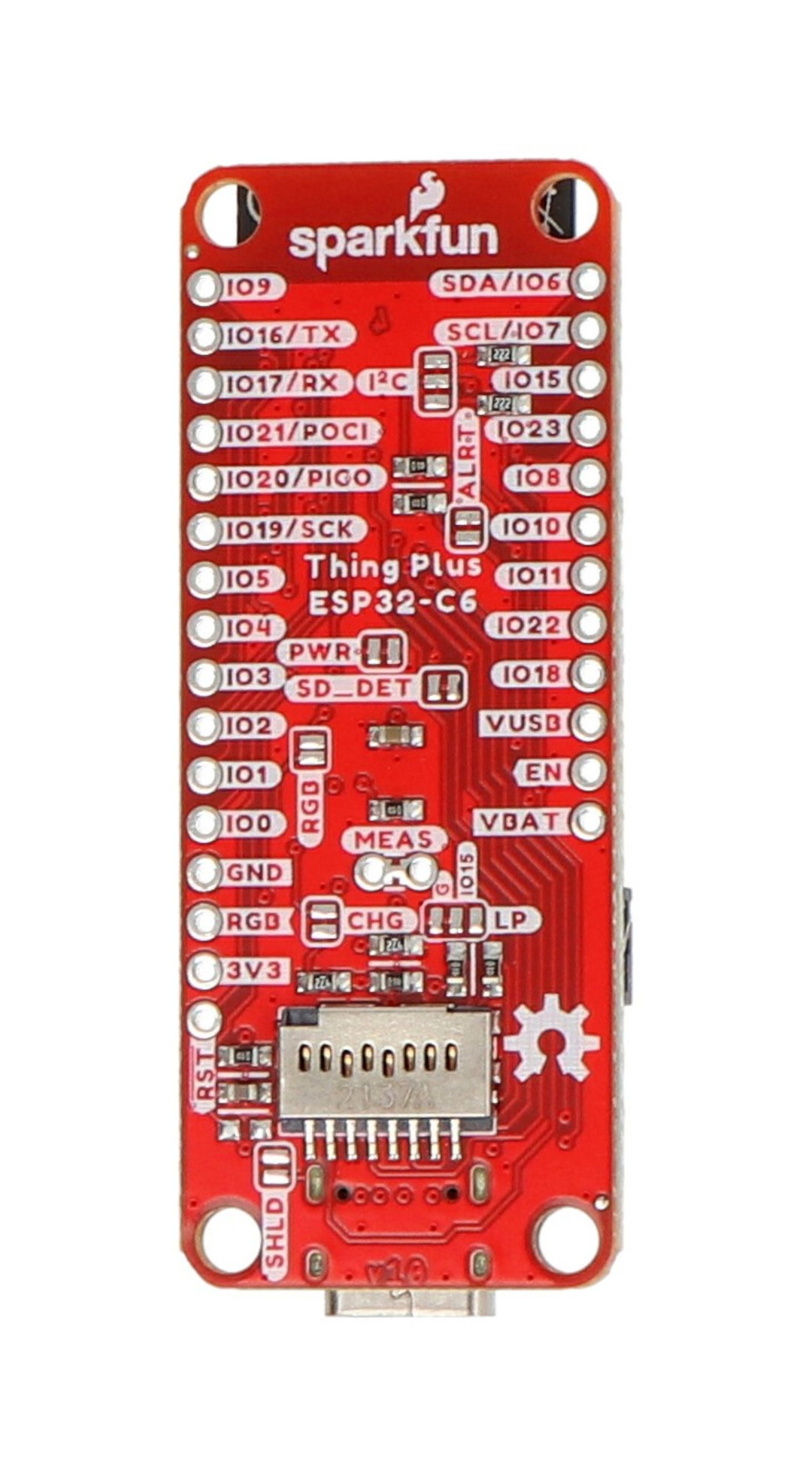

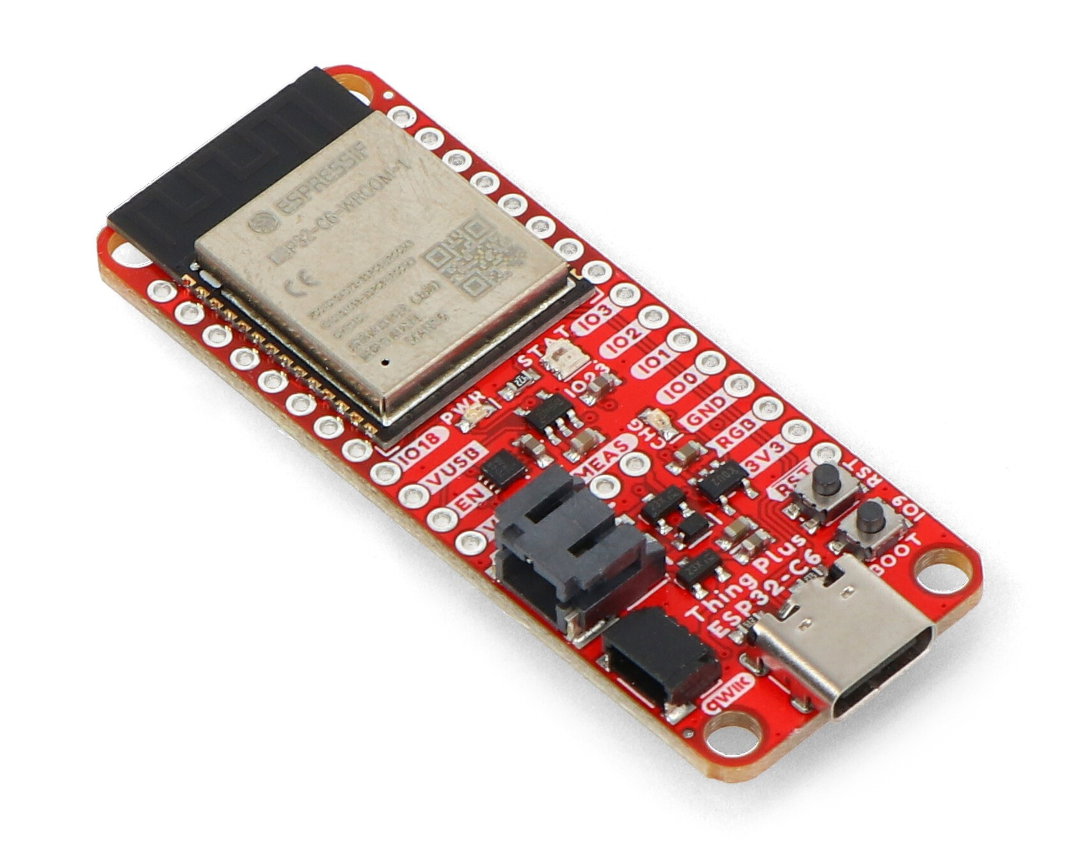

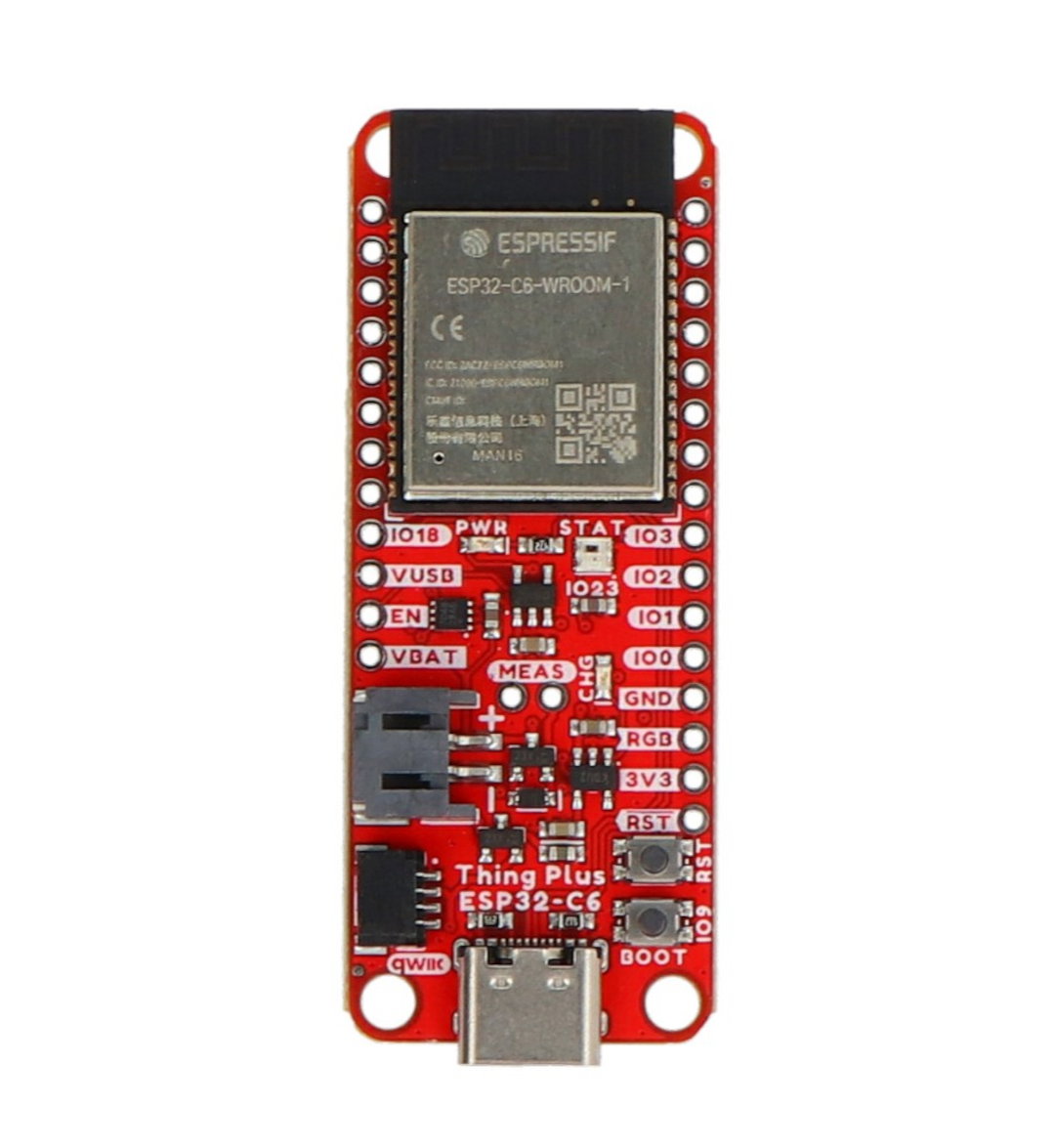

SparkFun Thing Plus - development board with ESP32-C6 - SparkFun DEV-22924
Compact yet high-performance development board from SparkFun, equipped with the powerful ESP32-C6 WROOM-1-N16 from Espressif with a single-core RISC-V processor. It supports a wide range of wireless communication - 2.4 GHz WiFi 6, Bluetooth 5.3, Zigbee and Thread (802.15.4), offering unlimited possibilities for your projects. What's more, SparkFun Thing Plus is equipped with a microSD card slot that allows you to expand the possibilities of your project, as well as a Qwiic connector for quick and smooth integration with other devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SparkFun Thing Plus - Development Board with ESP32-C6 - SparkFun DEV-22924
Compact yet high-performance development board from SparkFun , equipped with the powerful ESP32-C6 WROOM-1-N16 from Espressif with a single-core RISC-V processor. It supports a wide range of wireless communication - 2.4 GHz WiFi 6, Bluetooth 5.3, Zigbee and Thread (802.15.4), offering unlimited possibilities for your projects. What's more, SparkFun Thing Plus is equipped with a microSD card slot that allows you to expand the possibilities of your project, as well as a Qwiic connector for quick and smooth integration with other devices.
Also check out the user guide prepared by the manufacturer!
SparkFun Thing Plus - development board with ESP32-C6 - SparkFun DEV-22924.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
The board has a USB Type-C connector.
Special Features of SparkFun Thing Plus
- Contains a 32-bit single-core RISC-V microprocessor ESP32-C6 WROOM-1-N16,
- Supports 2.4GHz WiFi, Bluetooth LE 5.3, Zigbee and Thread (802.15.4) wireless communication,
- It offers as many as 23 multi-function GPIOs and a range of interfaces, including SPI, UART, LPUART, I2C, I2S, PWM, Serial/JTAG, ADC,
- It has a Qwiic connector and a USB interface with a USB Type-C connector, as well as a 2-pin JST connector for connecting a Li-Pol battery,
- Equipped with a microSD slot and status LEDs,
- It enables the implementation of IoT applications, Smart Home and portable projects.
Our offer also includes other modules with wireless communication - check them out!
Technical specification of the board
- Built-in microcontroller: ESP32-C6 WROOM-1-N16
- 32-bit single-core RISC-V microprocessor
- 16MB Flash Memory
- Wireless communication: 2.4 GHz WiFi 6, Bluetooth 5.3, Zigbee and Thread (802.15.4)
- Interfaces:
- 23x multifunction GPIO
- Up to 7x 12-bit ADC channels
- Up to 2x UART channels
- 1x UART, 1x UART Low Power, 1x I2C, 1x I2C Low Power, 1x I2S
- PWM diode
- PCB Antenna
- Operation indication: LED diodes
- User Buttons: Boot, Reset
- Pins: solder pads, Qwiic connector, USB Type-C, 2-pin JST connector for connecting the Li-Pol battery
- Additional: microSD slot, built-in MCP73831 and MAX17048
- Mounting holes: 4x
- Board dimensions: 64.8 x 22.9 mm
The operating status is indicated by built-in LEDs.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-C6-WROOM-1 |
| UC - Core | 32-bit RISC-V |
| UC - Flash | 16 MB |
| UC - core | 1. Single Core |
| UC - Digital pins | 23 |
| UC - analog in | 7 |
| UC - A/C | 12-bit |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 5 cm |
| Height | 9.5 cm |
| Depth | 0.7 cm |
| Weight | 0.008 kg |
