Functional generator DDS FY6900 20MHz - 2 channels
A two-channel function generator. Enables generation of sinusoidal waveform in the range up to 20 MHz. Sampling value is 250 MSa/s, vertical resolution is 14 bits. FY6800 allows you to adjust the transition amplitude in the range from 1 mVpp to 20 Vpp. The device has modulation functions and a counter and frequency meter.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Functional generator DDS FY6900 20 MHz - 2 channels
Two-channelfunction generator. Enables generation of sinusoidal waveformin the range up to 20 MHz.Sampling value is 250 MSa/s, vertical resolution is 14 bits. FY6900 allows you to adjust the transition amplitude in the range from 1 mVpp to 20 Vpp. The device hasmodulation functionsand a counter and frequency meter.
Functional generator DDS FY6900 20 MHz - 2 channels.

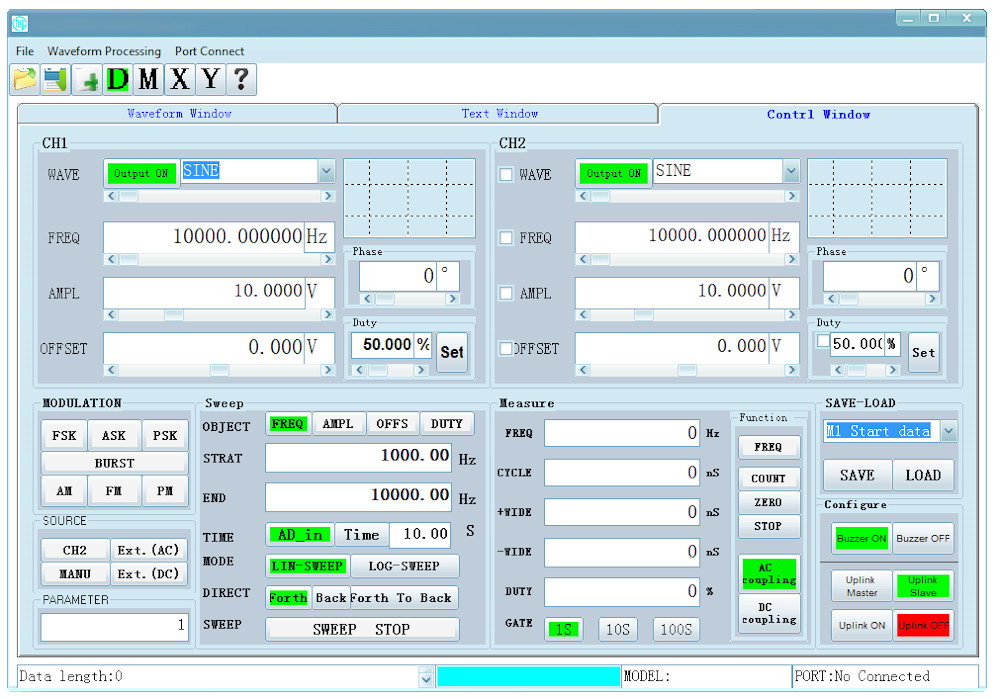

The manufacturer provides software to operate the generator via computer.
FY6900 is based ondirect DDS frequency synthesis. Two independent output channels allow to generate waveforms:
- Sinusoidal .
- Rectangular
- Triangular
- Soccer
- Digital TTL
- Arbitrary
The manufacturer providessoftware tooperate the generator via computer.
DDS generator specification FY6900
- Number of channels: 2
- DDS digital frequency synthesis technology
- Output frequency: up to 20 MHz
- Output amplitude adjustment range: 1 mVppto 20 Vpp
- Sampling: 250 MSa/s
- Length of the mileage memory: 8192 points
- Frequency resolution: 0.01 Hz
- Amplitude adjustment resolution: 1 mV
- Vertical resolution: 14 bits
Specifications
- Sinusoidal range: 0 to 20 MHz
- Range - rectangle: 0 to 15 MHz
- Triangular range: 0 to 10 MHz
- Pulse-pulse range: 0 to 10 MHz
- CMOS/TTL digital range: 0 to 10 MHz
- Arbitrary course: 0 to 10 MHz
- Modulation functions: SWEEP (frequency sweep, amplitude, offset, fill factor), FM and AM signal modulation
- The number of arbitrary runs: 64
- Other functions: frequency and frequency meter up to 100 MHz
- USB interface
- Display: 2.4" LCD TFT
Dimensions of the FY6900 Functional Generator
Set contents
- Functional generator FY6900 - 20 MHz: 1 pc.
- BNC cable - crocodile: 1 pc.
- BNC cable - BNC: 1 pc.
- Power cable: 1 pc.
- USB cable: 1 pc.
- Functional generator FY6900 - 20 MHz - 1 pc.
- BNC cable - crocodile - 1 pc.
- BNC cable - BNC - 1 pc.
- Power cable - 1 pc.
- USB cable - 1 pc.
Useful links
| Name | Value |
|---|---|
| Oscilloscope - Type | digital |
| Oscilloscope - Sampling | 250 MS/s |
| Width | 27.5 cm |
| Height | 9.5 cm |
| Depth | 21.5 cm |
| Weight | 1.082 kg |
