Description
Collision sensor from Grove. It detect collision and vibration. It has an additional external circuit, to reduce the effect of ambient noise. The module is supplied with the voltage of 5 V. The kit includes a cable for Seeedstudio Base Shield v2.0.

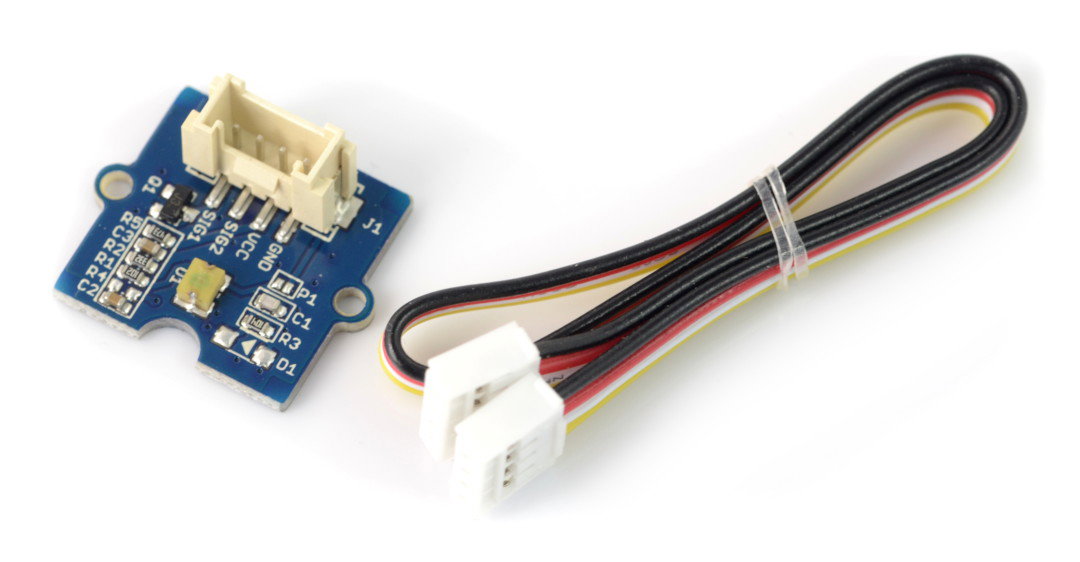

Modules included 4-pin cable for Base Shield v2.
Specification
- Control system: MVS0608.02
- Supply voltage: from 3.3 V to 5 V
- 4-pin Grove interface
- Module dimensions: 20 x 20 mm
- Weight: 11 g
|
The product is compatible with Arduino The manufacturer offers a user manual, and the program for Arduino. |
Connection

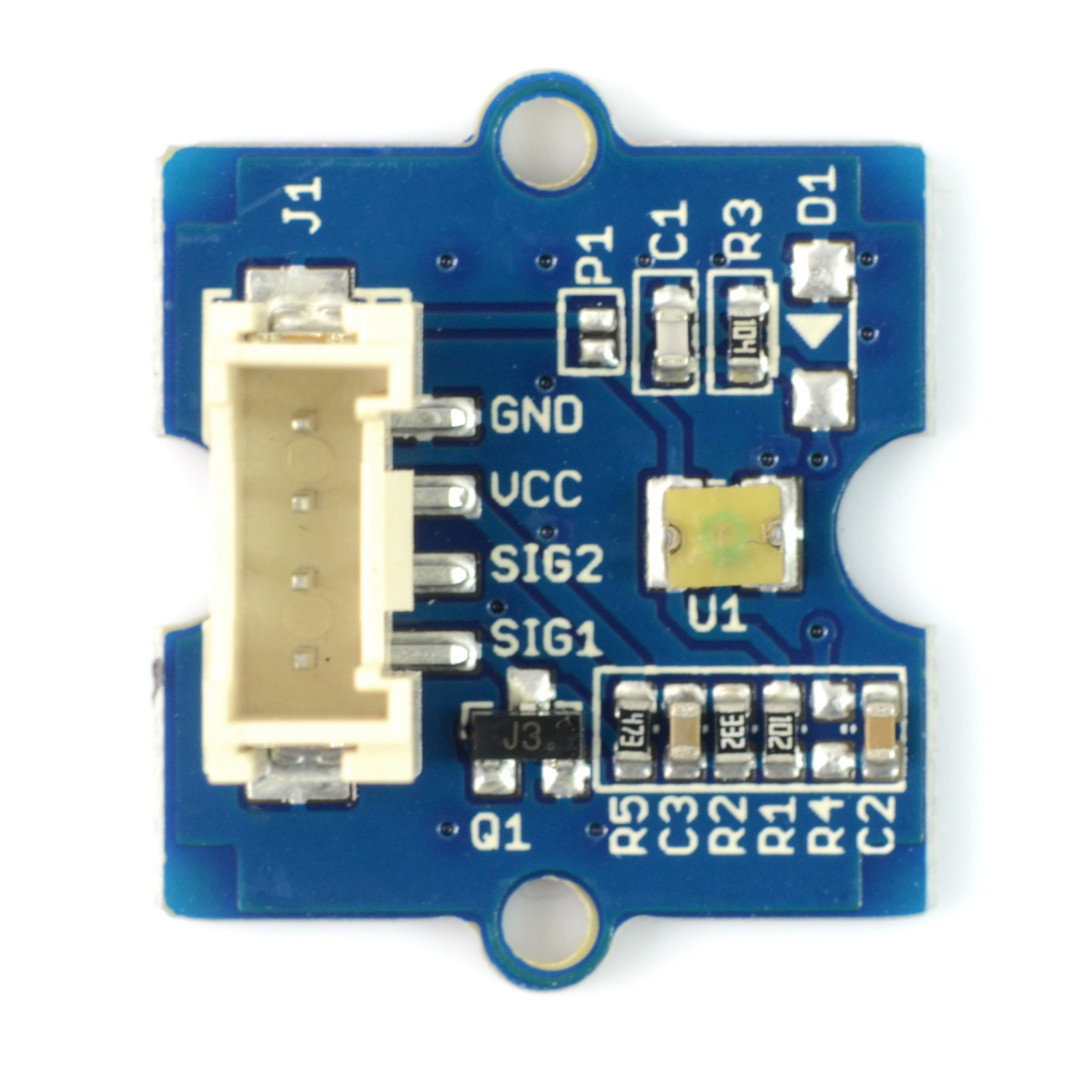

The sensor communicates with the microcontroller through two pins digital. It has the following pins:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | The supply voltage of 3.3 V to 5 V. |
| SIG1 | The sensor signal. |
| SIG2 | The signal of the sensor. |
|
Grove is a series of modules and sensors that are compatible with Base Shield boards working with Arduino and STM32 Nucleo. |
