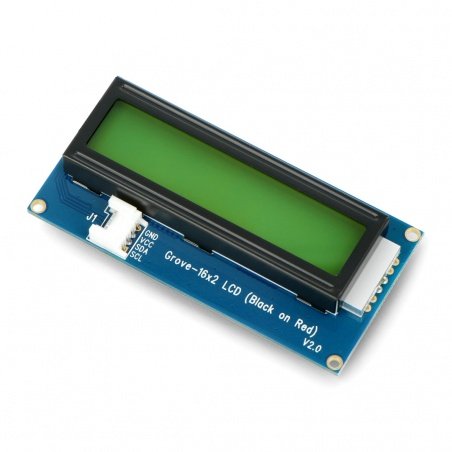

Product description: Grove LCD v2.0 2 x 16 I2C with backlight (Black on Red)

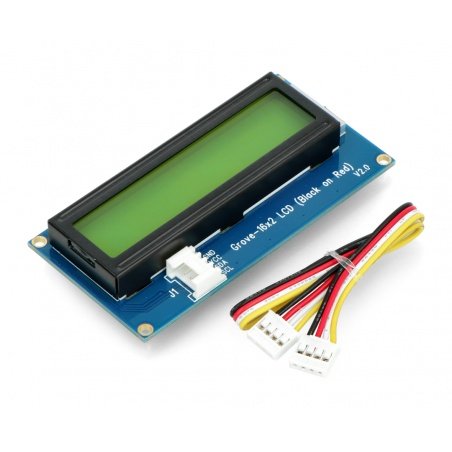

Grove module with2 x 16 characters monochrome LCD display withhigh brightness backlight. It communicates via the two-row I2C bus. It is poweredfrom 3.3 V to 5 V. The setincludes a Grove cable,which is adapted to work with Seeedstudio Base Shield v2.0.
A traditional LCD display requires upto 10 I/O pins onthe control board and screens with RGB backlighting require three additional pins to control the backlighting colour. This is a limitation for people using software boards with smaller resources such as Arduino, RaspberryPi.With the Grove I2C connector, only two signal pins and 2 power pins are required, just connect the module to the I2C interface in Seeeduino, RaspberryPi or Arduinousingthe Grove cable.

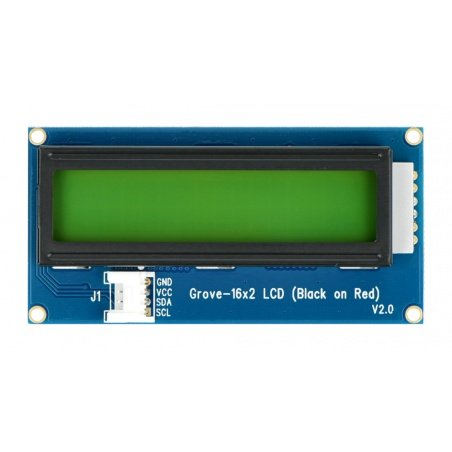

Grove module with 2x16 I2C monochrome LCD display with backlight.
Features and applications of the Grove module with monochrome display
- Display of 2 lines of 16 characters each
- Display mode STN (yellow green)
- Built-in MCU
- I2C interface
- Support for English and Japanese fonts
- It is used in displays for thermometers, clocks and other projects requiring simple display.

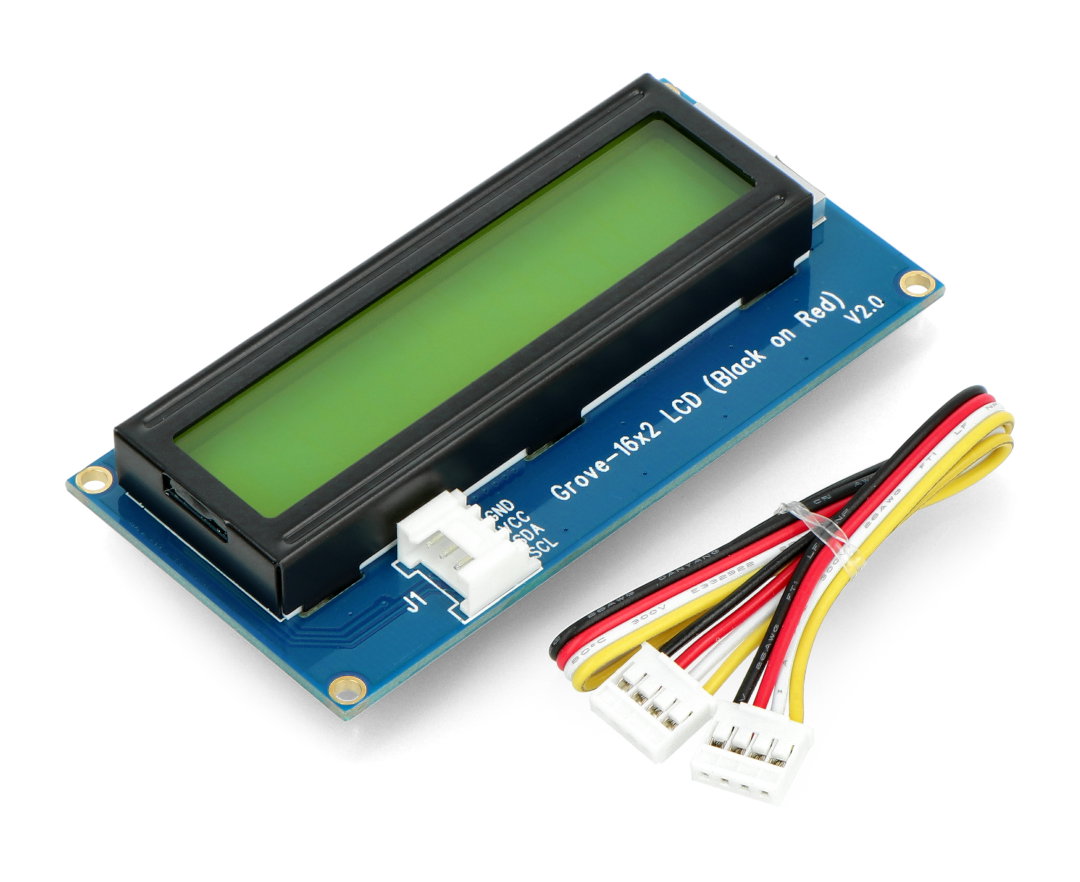

Monochrome 2X16 I2C LCD display v2.0 with backlighting.
| User guide available under thislink. |
Technical specifications of Grove module with display
| Parameter | Scope |
|---|---|
| Operating voltage | 3.3 V to 5 V |
| Working temperature | From 0℃ to 50℃ |
| Storage temperature | From -10℃to 60℃ |
| Interface | I2C |
| I2C address | 0X3E |
| Dimensions | 40 mm x 80 mm x 13 mm |
| Mass | 42.9 g |
