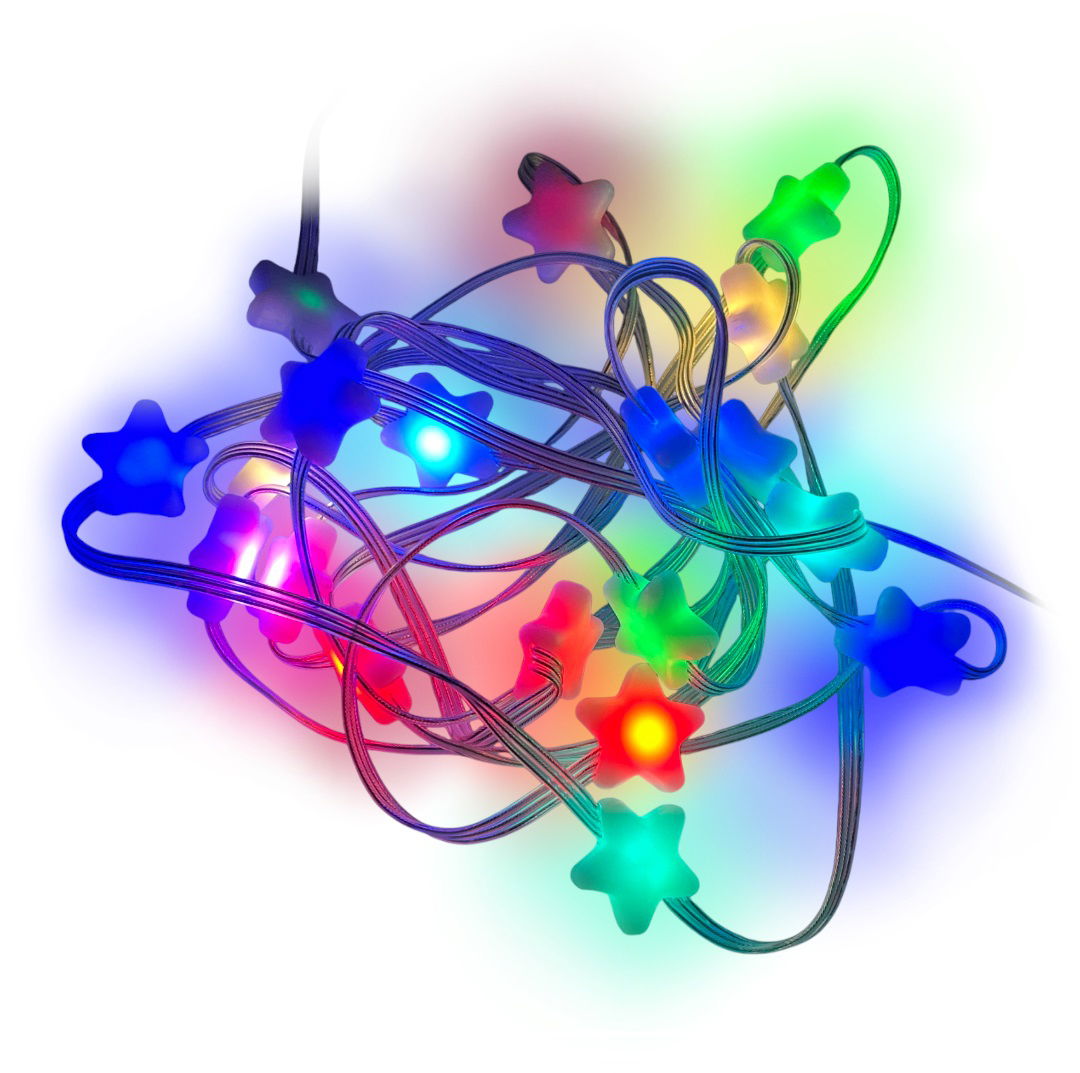

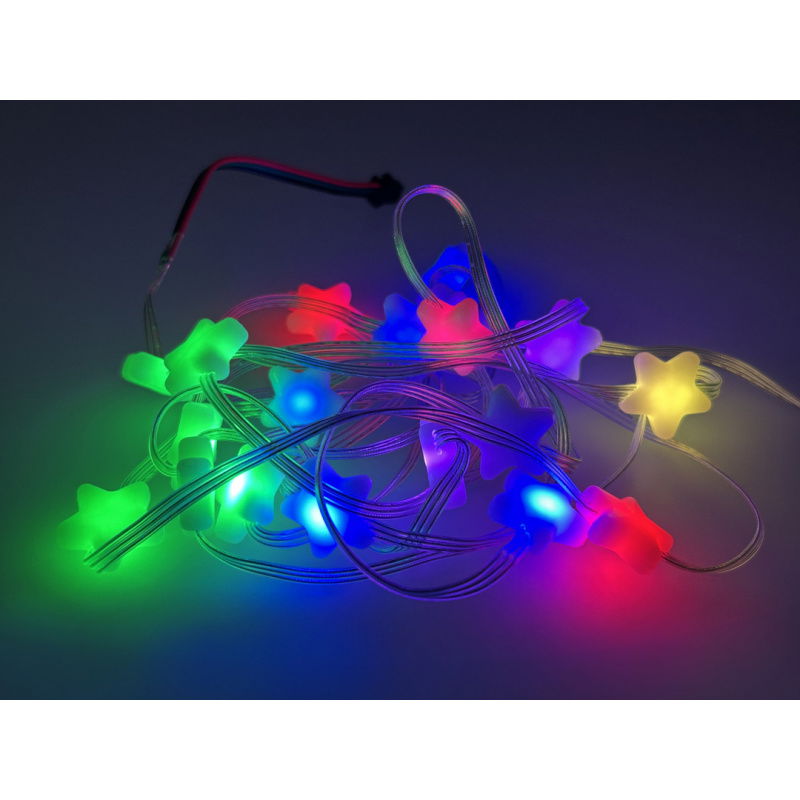

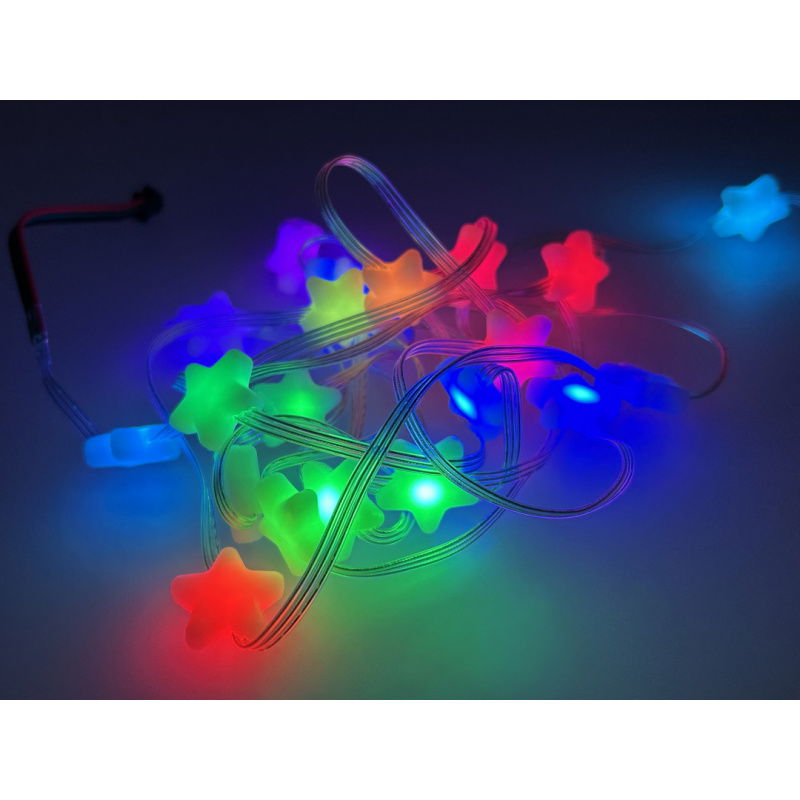

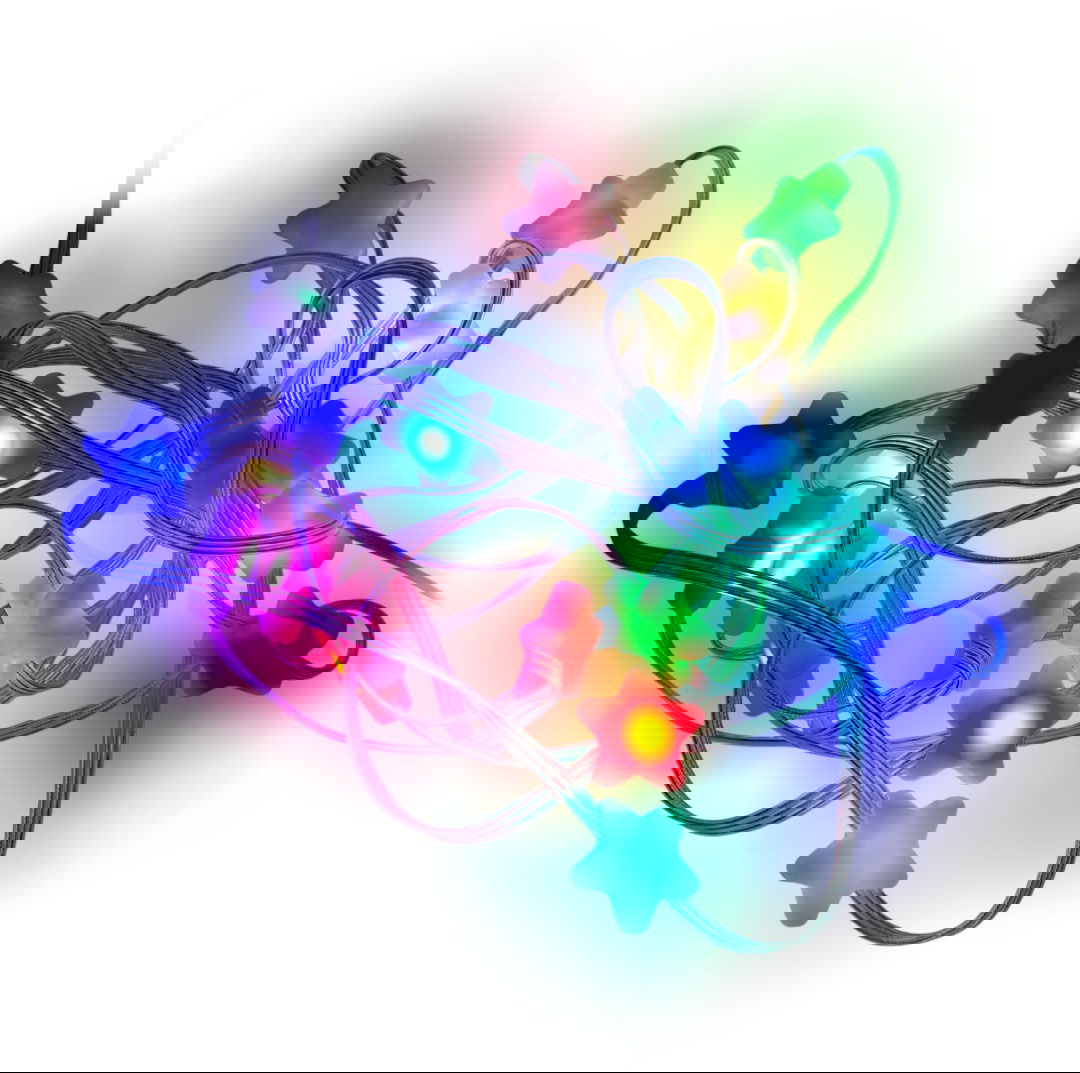

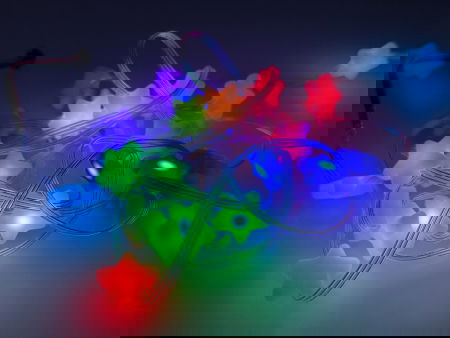

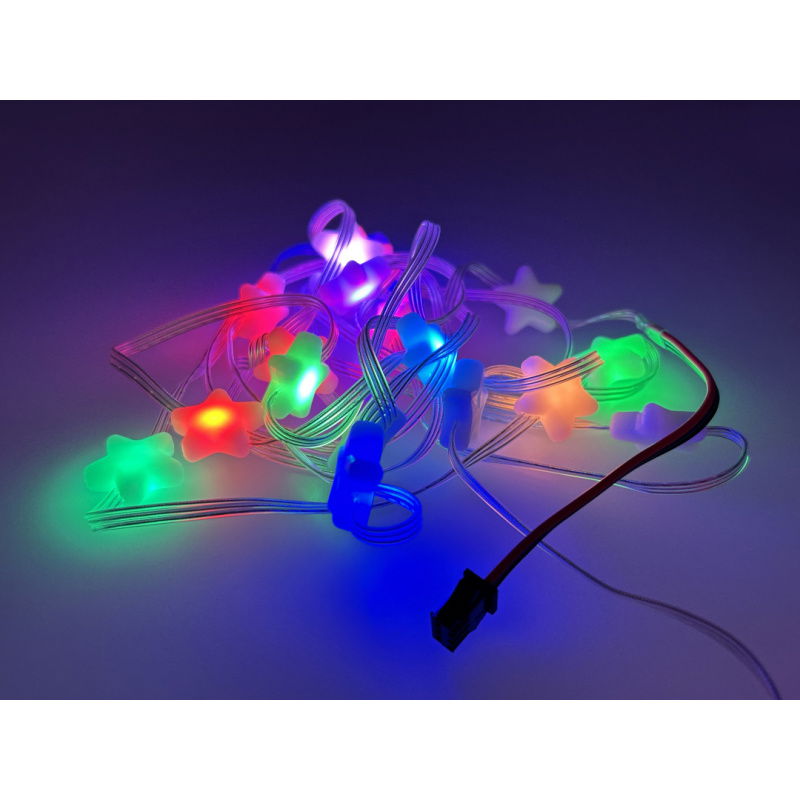

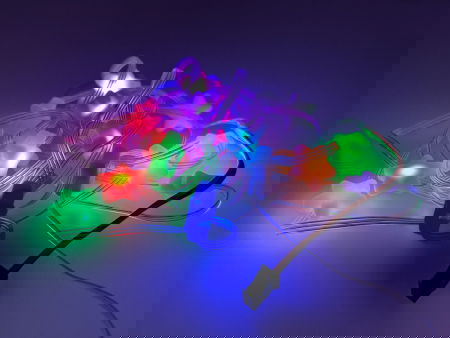

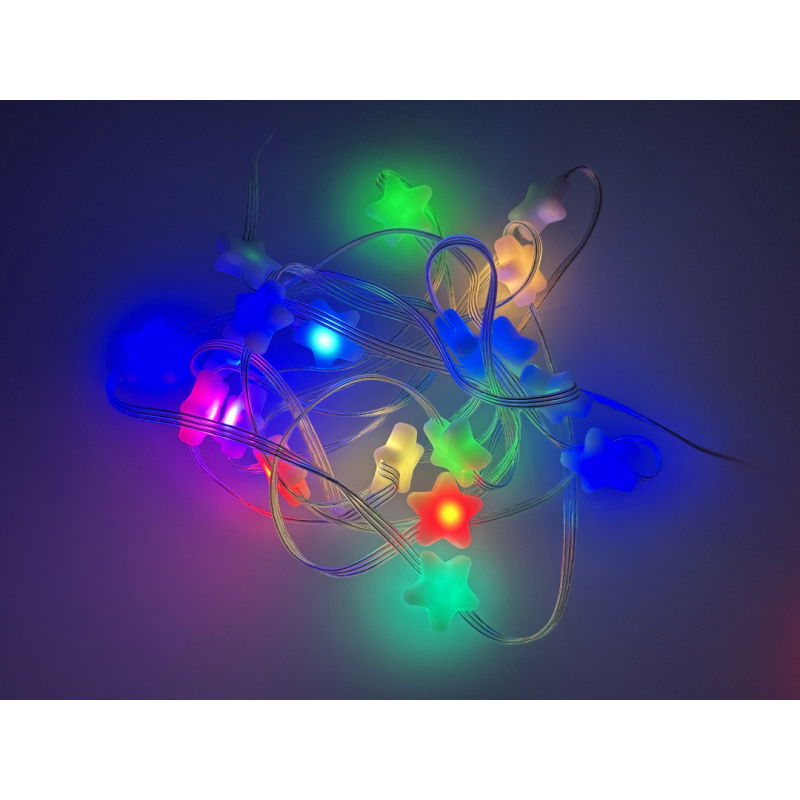

Product description: NeoPixel Star Shape Pixel Strand - 20 x 5050 RGB LED strip in the shape of stars - digital, addressable - 5V - Adafruit 5982
The Adafruit NeoPixel Star Strand is a unique array of 20 RGB LEDs in the shape of five-pointed stars . Each star contains a single NeoPixel LED (type 5050) with a built-in microcontroller for precise color control. The LEDs are mounted on a 3-meter flexible cable , and JST SM connectors allow for easy connection of multiple arrays. It's an ideal choice for costume, stage, and decorative projects.
NeoPixel Star Shape Pixel Strand - 20 x 5050 RGB LED strip in the shape of stars - digital, addressable - 5V - Adafruit 5982.
The 3 m long LED chain has 20 stars that light up in any color.
Main features of the LED strip
- 20 star-shaped LEDs : eye-catching appearance and even spacing every 150 mm
- Addressable RGB LEDs : Each LED can illuminate in any of 16 million colors
- NeoPixel 5050 LEDs : integrated PWM microcontroller in each LED
- Easy connection and power supply : JST SM (3-pin) connectors on both ends
- 5V DC power supply : compatible with most controllers and microcontrollers
- Cable length 3 m : freedom of installation and spatial applications
- Low power consumption : only 0.1 W for the entire string (20 diodes)
Attention!
The strip has a changed internal order of color channels - from RGB to BRG .
This means that when controlling the LEDs , you need to modify the configuration in software (e.g., in the Adafruit NeoPixel or WLED libraries) to ensure that the colors are displayed correctly.
If you use previously written code with the default RGB layout, color distortions may occur (e.g. red instead of blue).
Technical specifications of the NeoPixel strip
- Number of diodes on the strip: 20 pcs.
- LED type: NeoPixel 5050 RGB
- LED shape: five-pointed star
- Color scheme: BRG (from November 2024)
- Addressability: full, digital - each diode separately
- Power supply: 5V DC
- Power consumption: 0.1 W for the entire set (20 diodes)
- Connectors: 3-pin JST SM male and female
- Diode spacing: 150 mm
- Total cable length: 3 m
Contents of the set
- 1x NeoPixel Star Shape Pixel Strand - 20 x 5050 RGB LED strip in the shape of stars - digital, addressable - 5V - Adafruit 5982
Each star contains a single NeoPixel LED with an embedded microcontroller.
