Product description: LED Sequins - LEDs - warm white - 5 pcs - Adafruit 1758
Set of 5 miniature modules with LEDs . Their small size allows them to be used as unique luminous decorations, e.g. on clothes or everyday objects. Starting a single diode requires only connecting the power supply from 3.3 V to 6 V to the "+" pin and the ground to the "-" pin. The modules can also be powered by a Li-Pol cell or a CR2032 coin cell. To be able to control the flickering and smooth dimming of the light, just connect it to any microcontroller, e.g. to the Gemma or Flora module from Adafruit. With a supply voltage of 3.3 V, one diode consumes approx. 5 mA, so you can connect up to 4 or 5 diodes in parallel on one microcontroller contact. The modules are located on a strip from which you can easily detach them one by one.

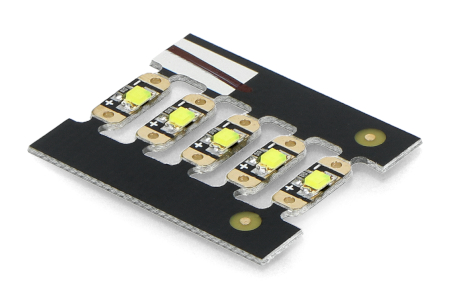

LED Sequins - LEDs - warm white - 5 pcs - Adafruit 1758.

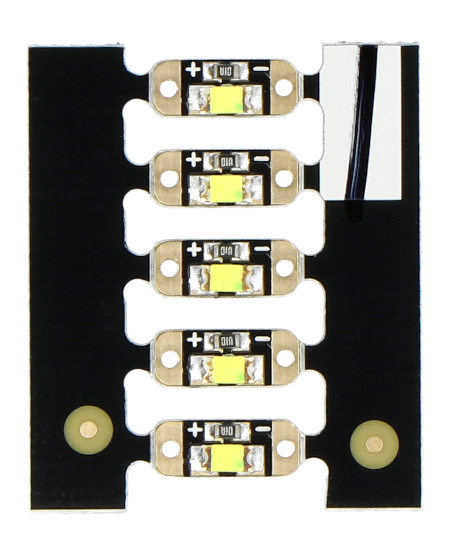

There are 5 LEDs on the strip.
LED Sequins technical specification
- Manufacturer: Adafruit
- Module type: LED
- Light color: warm white
- Supply voltage: 3.3 V to 6 V DC
- Current consumption by one LED: approx. 5 mA
- Number of diodes in the set: 5 pcs
- Spacing of mounting holes: 7 mm
- Dimensions of a single diode: 4 x 9 x 2 mm
