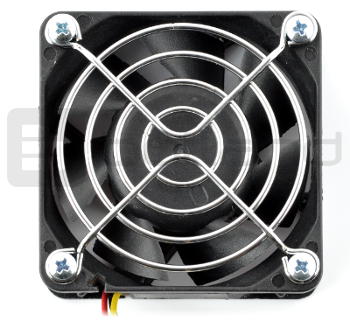

Fan 12V 80x80x25mm 3 wires
The fan with the input voltage of 12 V and a size of 80 x 80 x 25 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Specification
- Input voltage: 12 V
- Current: 300 mA
- Input power: 2.4 W
- Rated speed: 3000 rpm
- The generated sound level: 32 dB
- Dimensions: 80 x 80 x 25 mm
- Weight: 60 g
Output - 3 wires:
- black: mass
- red: power supply (up to 12 V)
- yellow: the measurement of the angular velocity (for the measurement, you must connect a pulling up resistor to the supply voltage, for example, 10 kΩ)
Cable length: approx. 27 cm
