Product Description: Official fan for NVIDIA Jetson TX2 NX - Waveshare 22983
The fan branded NVIDIA dedicated to cooling the Jetson TX2 NX minicomputer. The fan has the ability to adjust the speed of rotation through the PWM interface, it works in the range of 5500 ± 10% rpm . The supply voltage is 5 V and consumes up to 0.65 W of power (5 V / 0.13 A). It effectively cools the minicomputer, which significantly improves the operating parameters that are necessary for more demanding applications. The fan was enclosed in an aluminum housing. On its bottom part there is a silicone thermally conductive layer, which should not be disturbed during assembly.

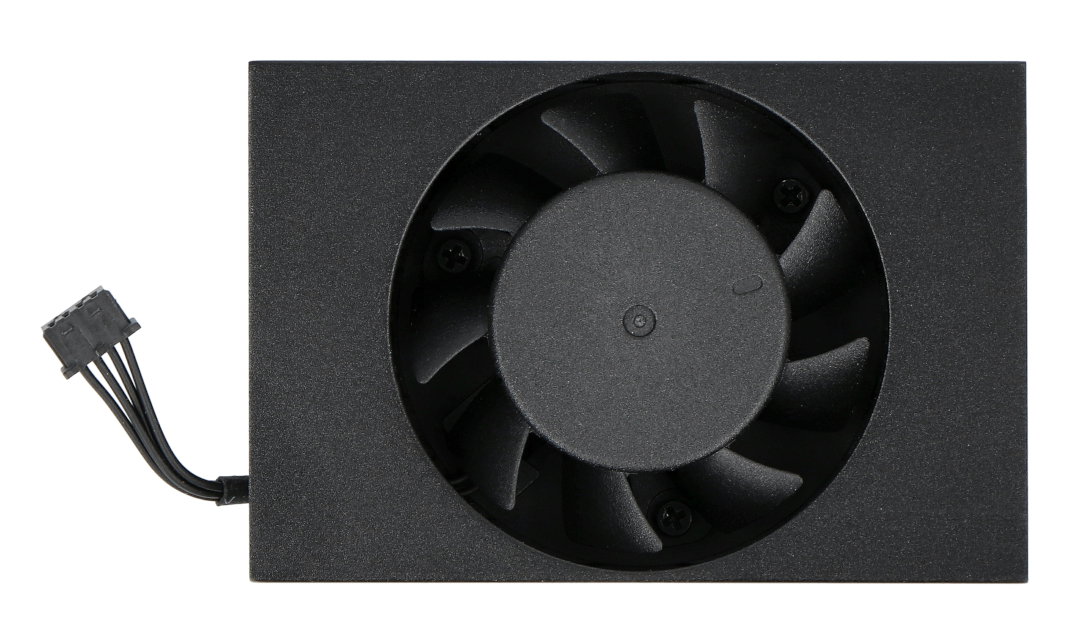

Official fan for NVIDIA Jetson TX2 NX - Waveshare 22983.
Kit contents.Technical specification of the item
- Type: fan
- Manufacturer's designation: TX2-FAN-PWM
- Purpose: for NVIDIA Jetson TX2 NX
- Control: PWM signal
- Adjustable PWM speed: yes
- RPM: 5500 ± 10% RPM
- Input voltage: 5V DC
- Power: 0.65W @ 5V / 0.13A
- Housing: integrated
- Housing material: aluminum
- Black colour
- Leads: wires terminated with a plug
- Cord length: 37mm ± 3mm
- Fan and case dimensions: 39 x 57.8 x 18 mm (± 0.25 mm)

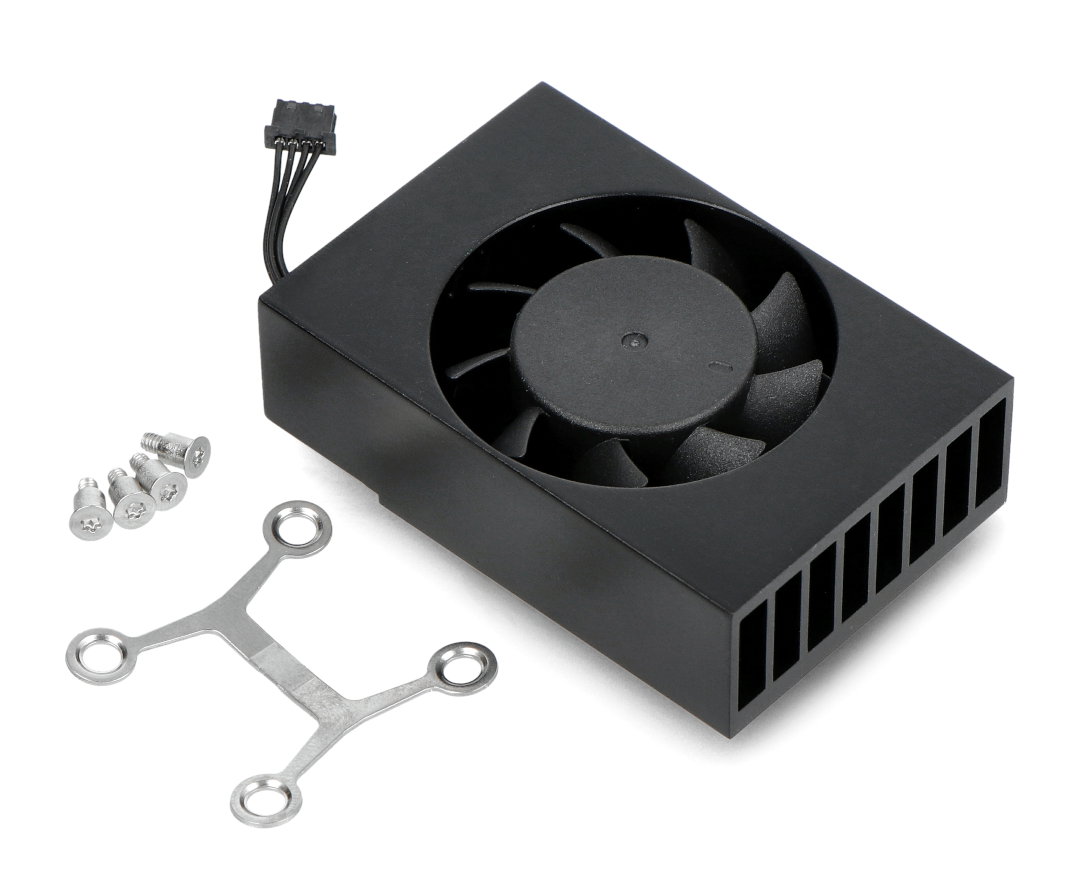

Kit contents
- Official fan for NVIDIA Jetson TX2 NX - TX2-FAN-PWM
- Bracket and mounting screws
