Product description: Pogo-a-go-go Solderless GPIO Pogo Pins - pogo pins and mounting accessories for HAT and Raspberry Pi Zero / Zero W - PiMoroni PIM330
Pogo-a-go-go Solderless GPIO Pogo Pins set by PiMoroni. Designed for the Raspberry Pi Zero / Zero W , it allows you to attach the HAT overlay to the module, which has no pins. Pogo pins are resilient and allow for a perfect fit of the elements (without the need for additional tools ). They are also durable, so they enable frequent prototyping and changing the design concept.

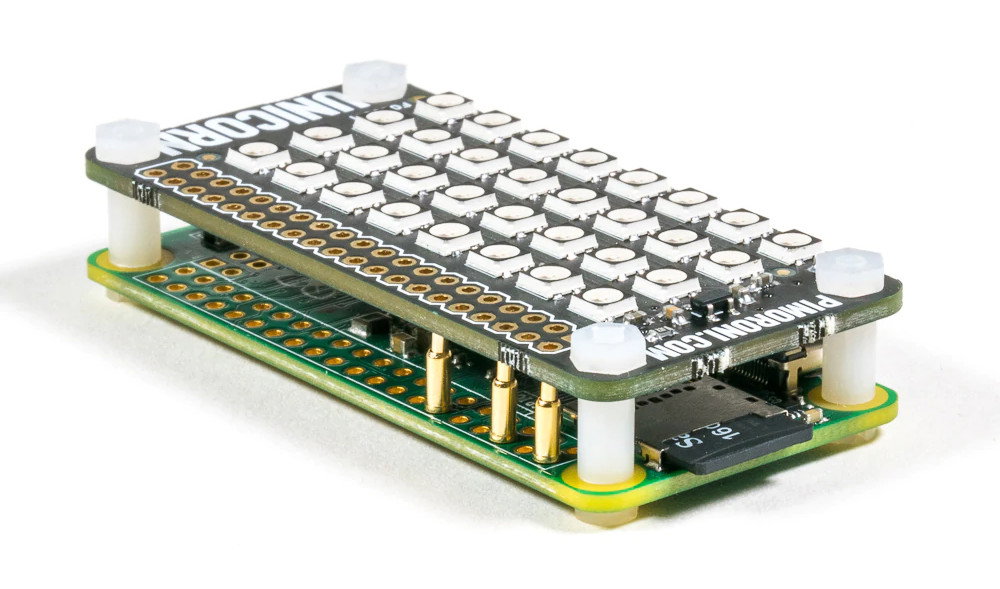

Pogo-a-go-go Solderless GPIO Pogo Pins - pogo pins and mounting accessories for HAT and Raspberry Pi Zero / Zero W - PiMoroni PIM330.
The kit only includes pogo pins and mounting accessories in the form of nylon screws, spacers and nuts. The Raspberry Pi Zero / Zero W module and the HAT shield must be purchased separately.

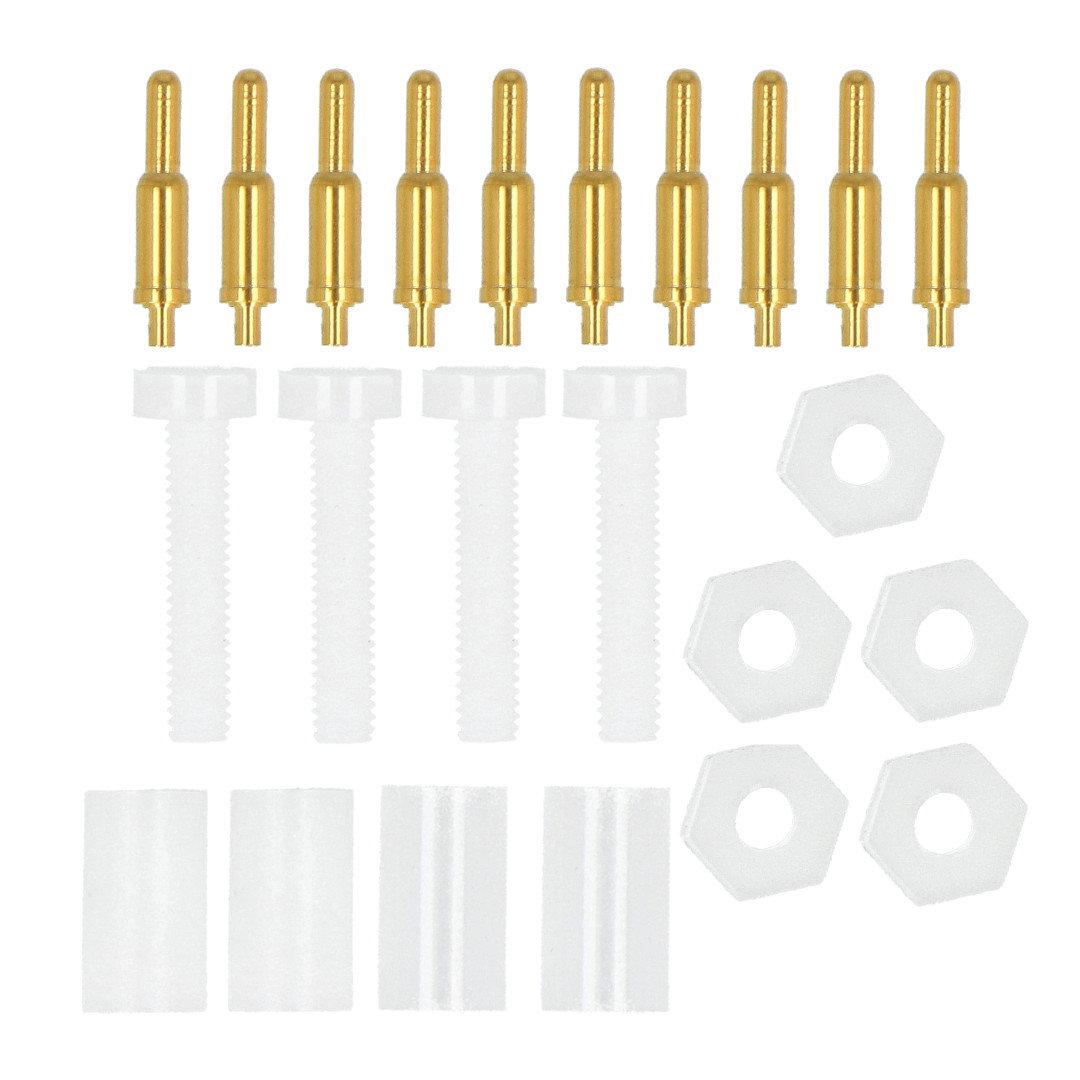

Pogo-a-go-go Solderless GPIO Pogo Pins kit contents.
Kit specification
- Type: pogo pins and mounting hardware
- Purpose: for mounting HATs with Raspberry Pi
- Compatible RPI Model: Raspberrry Pi Zero / Zero W
- Mounting accessories material: nylon
- Color: white and gold
- Pogo Pin Length:
- about 9.5 mm when extended
- about 7 mm when compressed
Contents of the Pogo-a-go-go Solderless GPIO Pogo Pins kit from PiMoroni
- 10x GPIO pogo pins
- 4x white M2.5 x 12 mm nylon mounting screws
- 4x white M2.5 x 7 mm nylon spacers
- 5x white M2.5 nylon nuts
In our offer you will also find HAT overlays for Raspberry Pi Zero / Zero W.
Assembly instructions - how to install the Raspberry Pi overlay
- Find the pins used by the overlay you want to match on pinout.xyz
- Insert the four screws through your RPi's mounting holes (from the bottom)
- Put on the four nuts from the top
- Place the pogo pins with the short end in the GPIO RPi in the corresponding holes you read on pinout.xyz
- Place the HAT overlay on top
- Secure the pad with the four nuts on the mounting holes
